Китайский Производитель Подгонянные светодиодные лампы светофоры для безопасности дорожного
- Категория: Светофор >>>
- Поставщик: Shenzhen,Noble,Opto,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 688.54 $* | 722.46 $* |
| Aug-16-2025 | 682.43 $* | 716.14 $* |
| Jul-16-2025 | 572.42 $* | 601.62 $* |
| Jun-16-2025 | 670.88 $* | 704.20 $* |
| May-16-2025 | 584.3 $* | 613.57 $* |
| Apr-16-2025 | 659.13 $* | 692.70 $* |
| Mar-16-2025 | 653.73 $* | 686.11 $* |
| Feb-16-2025 | 647.97 $* | 679.74 $* |
| Jan-16-2025 | 642.99 $* | 674.39 $* |
Характеристики
Product Description
25 LED Arrow Board with solar pannel
25 led Road Construction Arrow Board
Used as warning sign on garbage truck tail,sprinkler truck,excavator,maintenance truck etc.

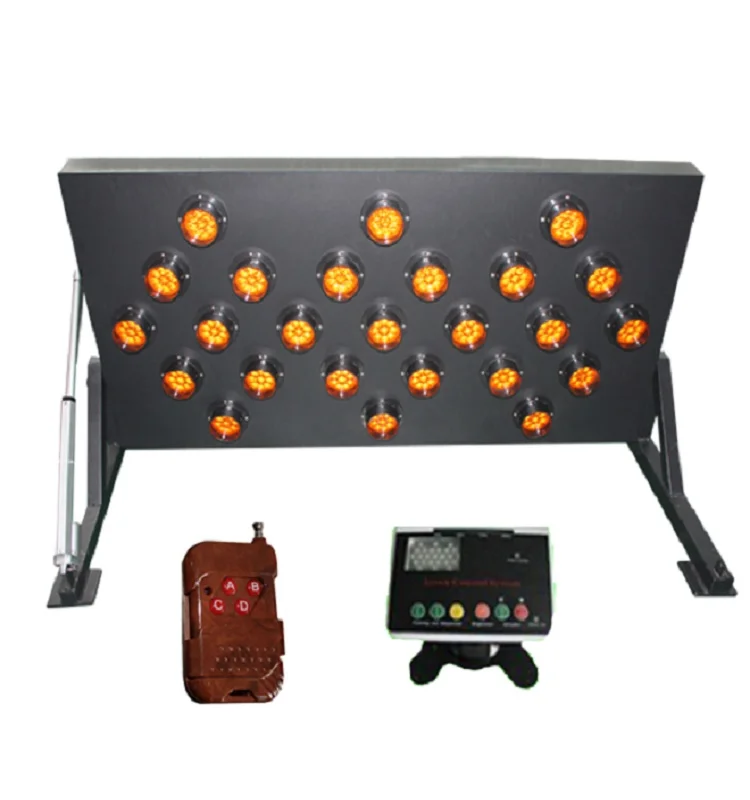

25 led Road Construction Arrow Board with portable
Used in combination with solar panels, the remote controller controls the various modes of Arrow Board and the stretching bracket.
Arrow Board Car controller
As Well as in constrcution site,and highway,to further improve the security between workplaces.
Key | Function |
Key1 | Press each time,modes switch between（1）（2）（3）（4）（5）（6） |
Key2 | Press each time,modes switch between（7）（8）（9）（10）（11）（12）（13） |
Key3 | Press Key 3 after press key1 or key2,the correspondent flashing or sequential modes begin |
Key4 | Brightness adjustment key,to switch four modes(25%,50%,75%,100%) |
Key5 | Actuator's up key,press one time to lift,press second time to stop. |
This is the work video of LED Arrow Board, and also the production situation of the factory. Carry out a full range of inspections before shipment.
Detailed Images
Introduction of product advantages or application effect or application mode
1)LED Arrow board is controlled by intelligent MCU,has transitter and receiver two parts.
2)LED Arrow board is used Full-Duplex Transmissions,wireless remote control,automatically extending and retracting with actuuator up and down.
3)Operating Voltage is 12/24VDC

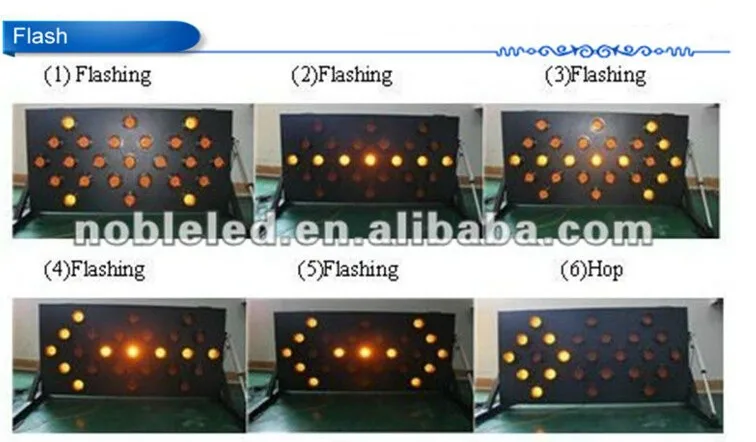

4)13 kinds of work status:6 flashing,7 sequential.
5)Brightness adjustment:25%,50%,75%,100%.
6)If choose external power supply,when power is lower than 12V,low voltage indicator is on,and the brightness adjust to 25% automatically.
Production details
Production drawing
Factory order drawing, a large number of LED Road Construction Arrow Board.Support inspection and visit to the factory.
Product Presentation
Product introduction: application, function, style, etc
The following configuration is a product diagram + table with the specific parameters of the configuration product
Size | 1500mm*760mm*60mm 1200mm*600mm*60mm |
Aluminum&Iron | |
9,15,30 | |
Visibility | up to 1000m |
Voltage | 12/24 VDC |
Working modes | 25 lamps-5 flashing modes,7 sequential modes.15 lamps-5 flashing modes,2 sequential modes. |
Certificate
SHENZHEN NOBLE OPTO CO.,LTD has been and will always be striving to improve its production quality standards as well as making production operations more efficient and environmentally friendly.
There are certificates of conformity showing we comply with relevant international quality standards such as
EN12368,FCC,RoHS,CE,ISO9001,Software copyright and pateent foor utility models utility model patent.
There are certificates of conformity showing we comply with relevant international quality standards such as
EN12368,FCC,RoHS,CE,ISO9001,Software copyright and pateent foor utility models utility model patent.
Company Introduction
SHWNZHEN NOBLE OPTO CO.,LTD is a high-tech private enterprise,Professional in researching,developing,and manufacturing high flux traffic signal light,solar power traffic signal.Since(2008)the establishment of the company,we recognize the importance of providing good quality products and best pre-to after-sale,and we are always trying our best offer to improve our design and production capacity.Moreover,we have the led traffic lights EN12368,ITE,CE IS9001 certification.Our products are exported to oversea markets around European countries and Middle Eastern area,such as
Sweden,England,Italy,Poland,Romania,Serbia,Turkey,Lsrael,Spain,USA,Russia Ross,Singapore etc.
Sweden,England,Italy,Poland,Romania,Serbia,Turkey,Lsrael,Spain,USA,Russia Ross,Singapore etc.
FAQ
1. Where are there your company solar traffic light system projects?
A: South Africa, Nigeria, Congo, Libya, Philippines, Zimbabwe, Mozambique ect..
2. Whole solar traffic light system include???
A: Including traffic light, controller, battery, solar panel, solar charge, pole, controller box, cable.
3. Is it easy to install the solar traffic light system?
A: Yes, it is easy. If any problem on installation of traffic light, we will provide you video to show, or let you contact our
engineer to consult directly.
4. How long warranty is the solar traffic light system?
A: Traffic light and controller, our warranty is 2 years, Solar panel and battery, only 1 year warranty.
5. Why choose Noble?
A: Our company is professional on traffic light system.
Welcome to contact us for more details.
Traffic signal, solar traffic light, pedestrian light, countdown timer, controller system, loop detector, pedestian touch button,
blind clock, etc.
A: South Africa, Nigeria, Congo, Libya, Philippines, Zimbabwe, Mozambique ect..
2. Whole solar traffic light system include???
A: Including traffic light, controller, battery, solar panel, solar charge, pole, controller box, cable.
3. Is it easy to install the solar traffic light system?
A: Yes, it is easy. If any problem on installation of traffic light, we will provide you video to show, or let you contact our
engineer to consult directly.
4. How long warranty is the solar traffic light system?
A: Traffic light and controller, our warranty is 2 years, Solar panel and battery, only 1 year warranty.
5. Why choose Noble?
A: Our company is professional on traffic light system.
Welcome to contact us for more details.
Traffic signal, solar traffic light, pedestrian light, countdown timer, controller system, loop detector, pedestian touch button,
blind clock, etc.
Welcome to contact me for more detail,
Shenzhen Noble Opto Co, Lt
+86 0755-27651483-609
whatapp: +86 15913517193
Skype: 873934733@qq.com
Wechat: +86 15913517193
QQ:873934733
