One or two Intel® Xeon® E5-2600 v3 or v4 Series processor(s) with up to 22 cores
MEMORY
Up to 1TB DDR4 ECC RDIMM Memory 16 DIMM slots (8 Per Processor)
STORAGE CONTROLLER
Integrated LSI SAS 3008 12Gb/s SAS (6Gb/s SATA) controller supports software RAID 0, 1, 10 with up to 8 hard drives [Included]. Optional Dell MegaRAID SAS 9341-8i 12Gb/s 8-Port PCI-e RAID Controller Required for RAID 5 support.
STORAGE
Support for up to (4) M.2 PCIe SSDs and up to (4) 3.5” SATA or (8) 2.5” SATA/SAS drives
VIDEO
Support for 4 PCI Express® x16 Gen 2/Gen 3 Graphics Cards - up to 675W (Total 3x 225W graphics cards in 3 slots)
NETWORK
Integrated Intel I217 and I210 Gigabit Ethernet controllers with Intel Remote Wake UP, PXE and Jumbo frames support
Hard Drives
Support for up to (4) M.2 PCIe SSDs and up to (4) 3.5” SATA or (8) 2.5” SATA/SAS drive
SLOTS
(2) PCIe x16 Gen 3 [(2) more with optional 2nd CPU]; (1) PCIe x16 Gen 3 [x4 Interface – Slot 1], (1) PCIe x16 Gen 2 [x4 Interface]; (1) PCI 32Bit
BAYS

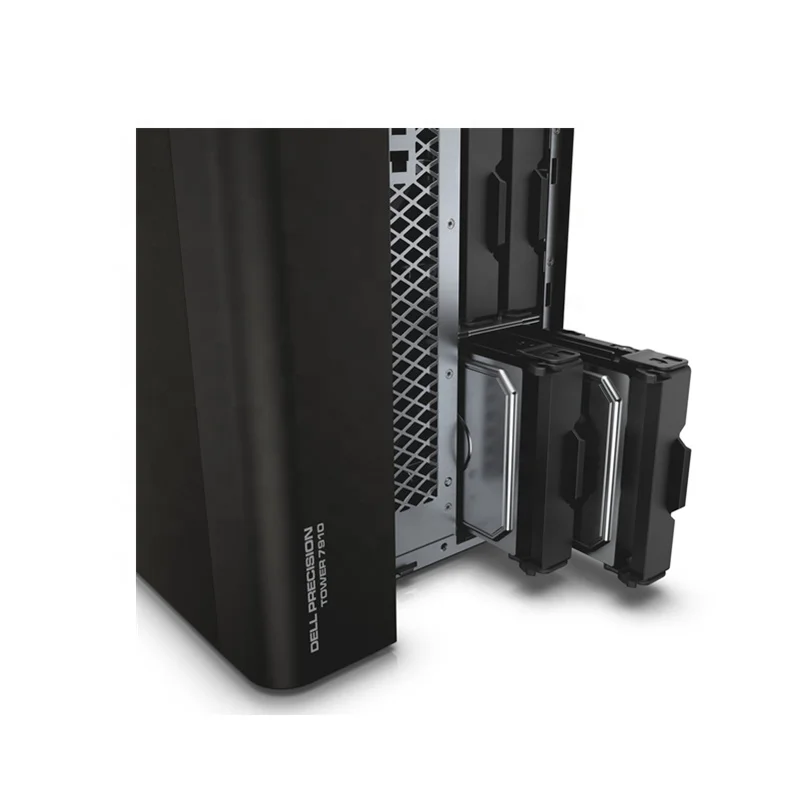

(1) External Slimline Optical Bay; (4) Internal 3.5” Bays (Supports up to a total of (4) 3.5” or 2.5” drives); (1) external 5.25” bay (up to 4 2.5” drives)
POWER SUPPLY
Dell 1300 Watt 80 PLUS Gold Certified Externally Accessible/Removeable Power Supply Unit

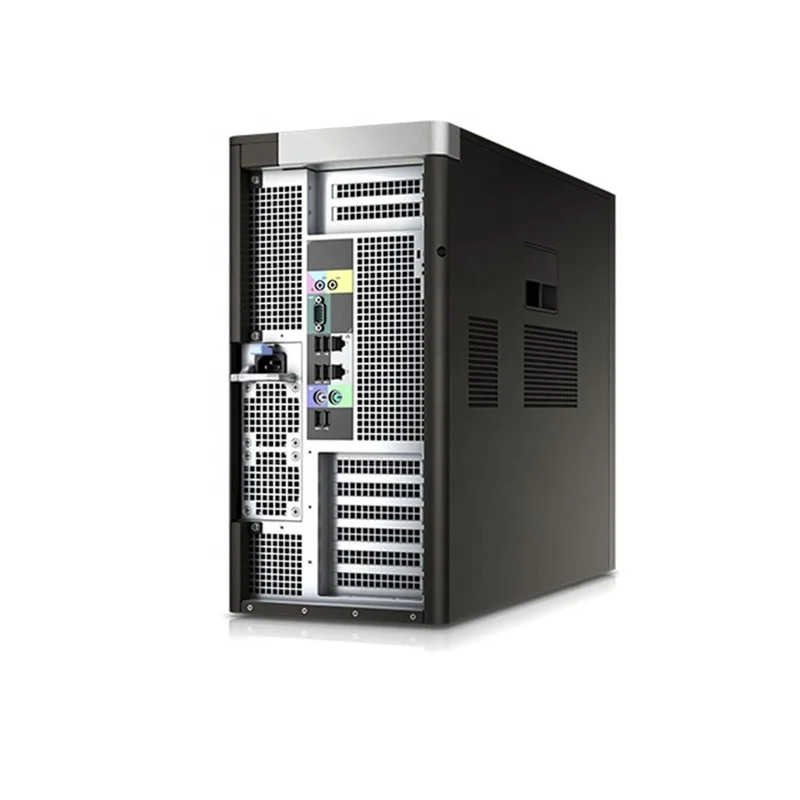

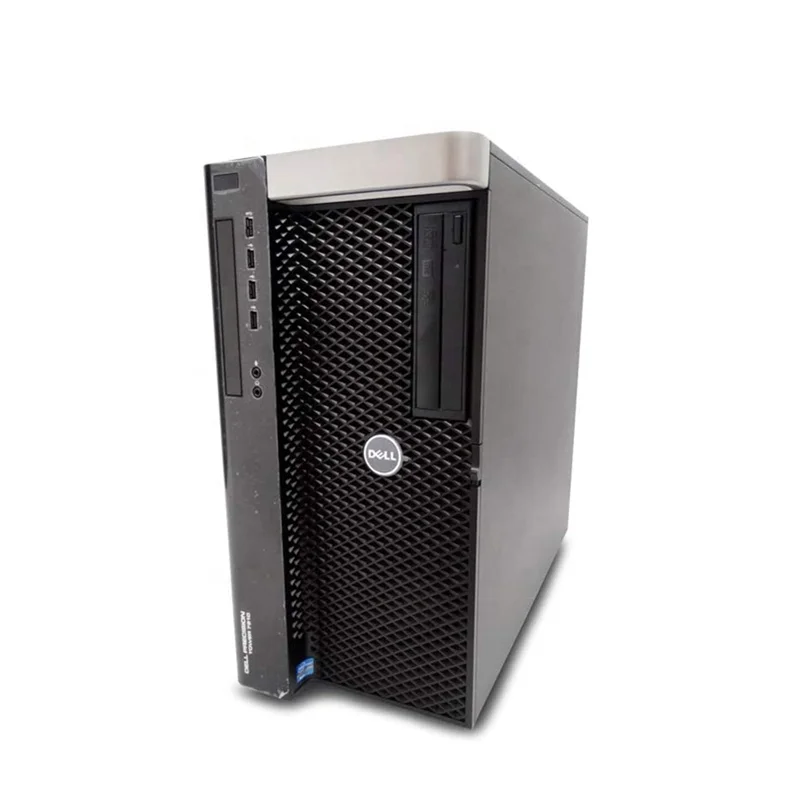

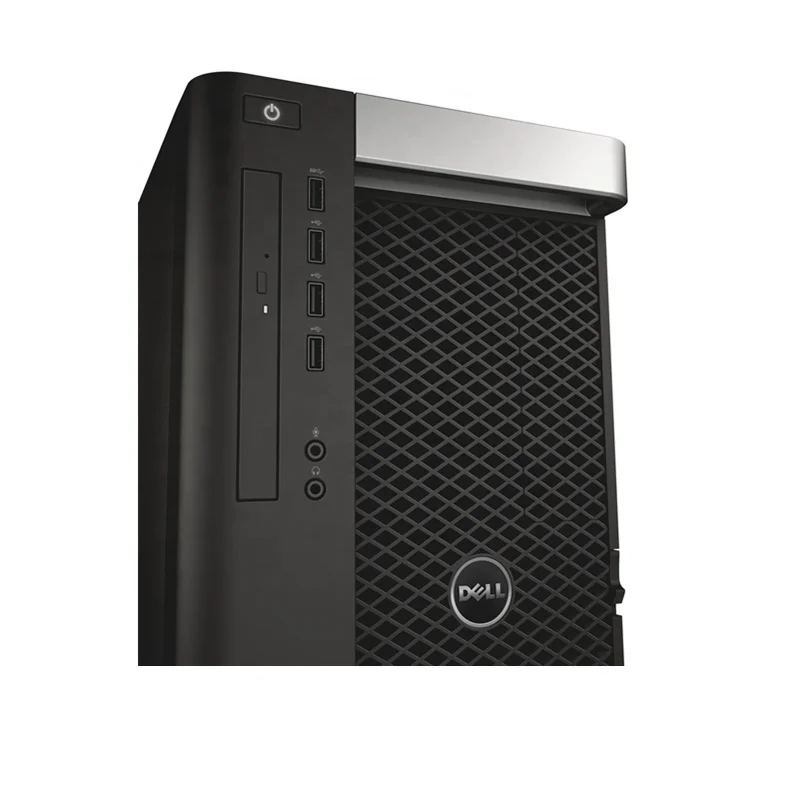

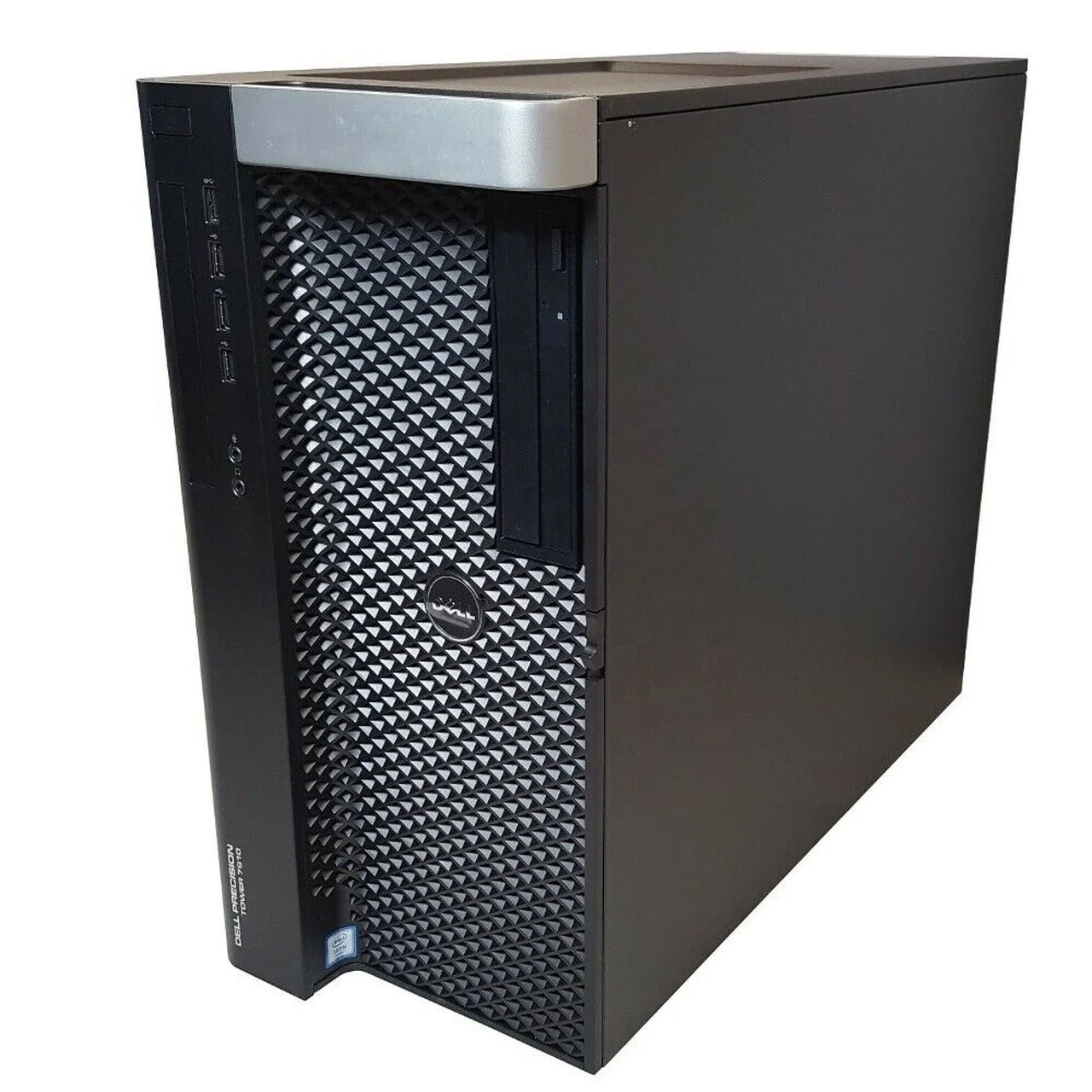

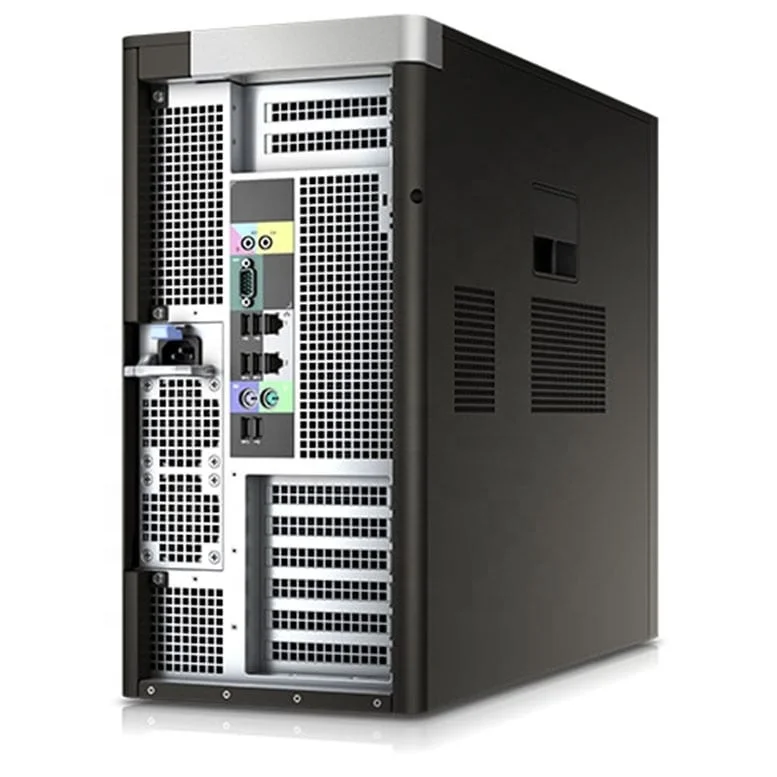

Details Images
6 hard-drive activity light
7 microphone connector
8 headphone connector
9 optical-drive eject button (optional)
10 optical drive (optional)
11 line-in/microphone connector
12 serial connector
13 power supply unit (PSU) release latch
14 power cable connector 15 hard-drive access cover release latch
16 USB 3.0 connectors
17 USB 2.0 connectors
18 expansion card slots
19 security cable slot
20 padlock ring
21 line-out connector 22 network connector
23 PS/2 Keyboard connector
24 PS/2 Mouse connector
25 active expansion card slots 26 mechanical slot
21 DIMM slots
22 remote power connector
23 thunderbolt side band connector
24 system fan connector
25 system fan connector
26internal speaker connector
27 integrated SAS0 connector
28 integrated SAS1 connector
29 main power connector
30 CMOS Clear Jumper 31 password jumper 32 hard-drive fan connector 33 SATA connectors
34 USB 3.0 connector for front panel
35 CPU1 fan connector
36 front panel connector
37 thermal sensor connector 38 internal USB 2.0 connector
