Прямая поставка с завода распределитель HDMI 4K 1x8 на выходе 1 к 8 видео
- Категория: >>>
- Поставщик: Changzhou,Halee,Electronic,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 27.60 $* | 28.1 $* |
| Jul-16-2025 | 22.77 $* | 22.81 $* |
| Jun-16-2025 | 26.44 $* | 27.43 $* |
| May-16-2025 | 26.27 $* | 27.19 $* |
| Apr-16-2025 | 21.56 $* | 21.12 $* |
| Mar-16-2025 | 26.34 $* | 27.91 $* |
| Feb-16-2025 | 25.36 $* | 26.30 $* |
| Jan-16-2025 | 25.76 $* | 26.26 $* |
Характеристики
Product Description
Product Name | HDMI SPLITTER 1x8 |
Material | metal |
Package | Customizable |
Product performance description
The 1x8 HDMI Splitter uses a single HDMI source,accessing to multiple HDMI sinks. It allows one HDMI device to be split easily to eight HDMI compatible monitors or projectors. In addition，it can be placed at the end of a long HDMI cable to regenerate the HDMI signal. The resolution of this hdmi splitter can be up to 3840x2160/30Hz.
*Plug and play, easy to operate
*Transmission distance up to 20M
*Transmission distance up to 20M
HDMI version\tHDMI 1.4b
HDMI resolution\tup to 3840x2160/30Hz
Support video format\t8/10/12bit deep color
Support audio format\tDTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
Max bandwidth\t340MHz
Max baud rate\t3.4Gbps
Input cable distance\t(1080p resolution) ≤10m,(4K resolution)≤5m
AWG26 HDMI standard cable
Output cable distance\t(1080p resolution) ≤20m,(4K resolution)≤10m
AWG26 HDMI standard cable
Max working current\t1.58A
Power adapter format\tinput AC (50HZ, 60HZ) 100V-240V; output: DC5V/2A
Operating Temperature range\t(-15 to +55℃)
Dimension (L x W x H)\t276x136x24 (mm)
Weight\t660g
HDMI resolution\tup to 3840x2160/30Hz
Support video format\t8/10/12bit deep color
Support audio format\tDTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
Max bandwidth\t340MHz
Max baud rate\t3.4Gbps
Input cable distance\t(1080p resolution) ≤10m,(4K resolution)≤5m
AWG26 HDMI standard cable
Output cable distance\t(1080p resolution) ≤20m,(4K resolution)≤10m
AWG26 HDMI standard cable
Max working current\t1.58A
Power adapter format\tinput AC (50HZ, 60HZ) 100V-240V; output: DC5V/2A
Operating Temperature range\t(-15 to +55℃)
Dimension (L x W x H)\t276x136x24 (mm)
Weight\t660g

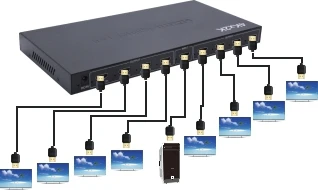

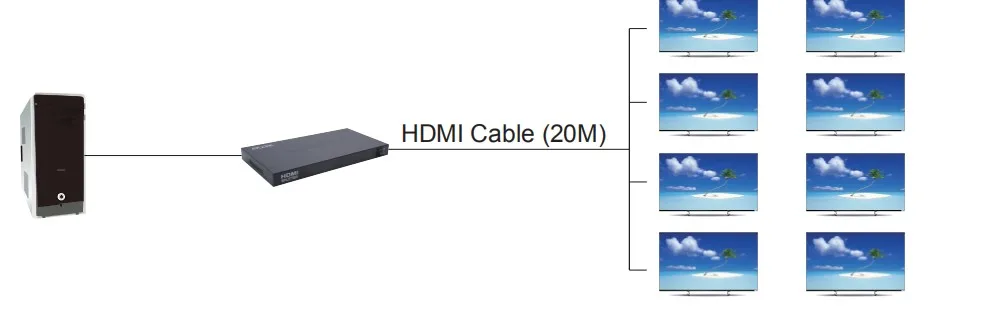

Connection diagram:
1: connect the HD source to the splitter input with one hdmi cable 2: connect the splitter output to the displays with 8 hdmi cables
3: connect 5V/2A power adapter to the splitter
3: connect 5V/2A power adapter to the splitter
