Full Functional used duct board grooving machine for aluminum steel
- Категория: Chamfering Machines >>>
- Поставщик: Maanshan,Durmapress,Machinery,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 35105.22 $* | 36860.37 $* |
| Aug-19-2025 | 34810.85 $* | 36551.9 $* |
| Jul-19-2025 | 29205.43 $* | 30665.61 $* |
| Jun-19-2025 | 34220.75 $* | 35931.49 $* |
| May-19-2025 | 29795.96 $* | 31285.69 $* |
| Apr-19-2025 | 33630.72 $* | 35312.88 $* |
| Mar-19-2025 | 33335.50 $* | 35002.21 $* |
| Feb-19-2025 | 33040.77 $* | 34692.29 $* |
| Jan-19-2025 | 32745.53 $* | 34382.2 $* |
Характеристики
Product Description
The first class groover machine in the world(export Japan,Holland,Canada,Singapore,Thailand,Vietnam,Pakistan,Lebanon and other countries)
AHK CNC sheet metal V groover machine(high speed percision servo drive)
Main feature and special function v grooving machine cardboard manual
1.Bevelling available ; grooving machine v grooving machine wall groove cutting machine
2.Available to groove not from one side of plate an end not at another side;
3.The minimum distance from the side of plate to the first groove line is 10-12mm;
4.The minimum size of plate to groove is 100x100mm;
5.Grooving from one point to another point
6.Power saving; wall grooving machine tongue and groove machine
7.Environmental protection (without hydraulic oil)
Main Device V v groover achin
High precision ball screw | Taiwan TBI | ||||||
Precision linear guide rail | Taiwan HIWIN | ||||||
Angular contact ball bearings | NSK of Japan | ||||||
Planing white steel blade | SECO of Sweden | ||||||

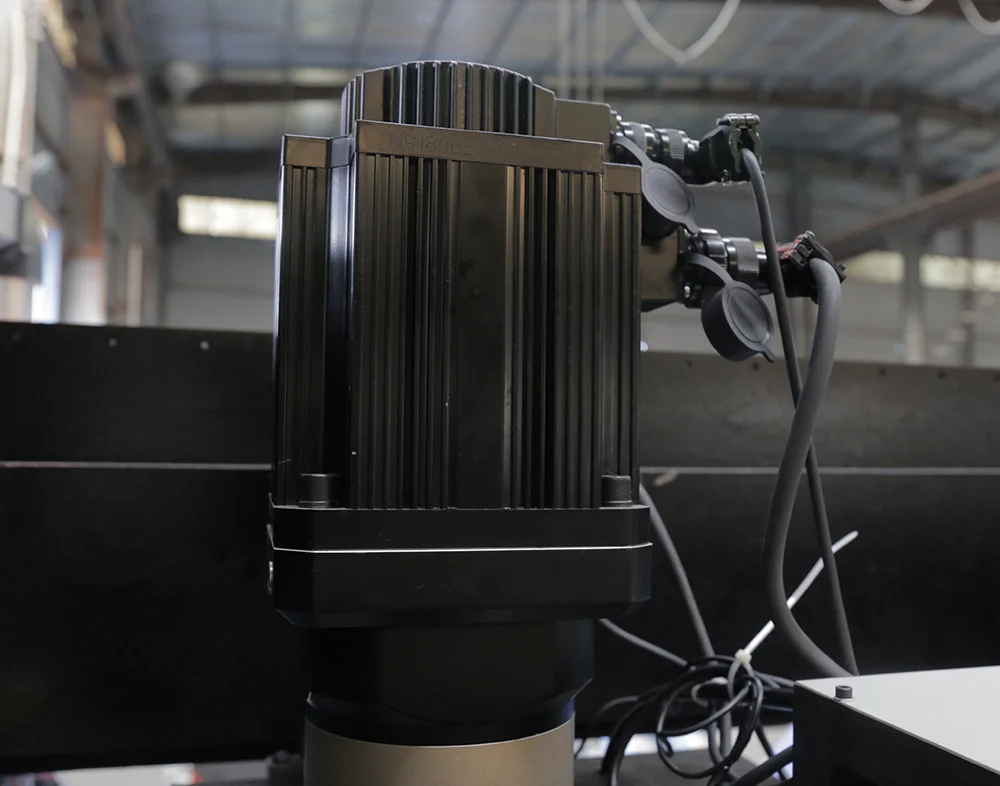

Servo motor | Yaskawa of Japan | ||||||
PLC | Yaskawa of Japan | ||||||
Electrical components | Schneider of France | ||||||
Power cable | IGUS of Germany | ||||||
Pneumatic components | Taiwan AIRTAC | ||||||
Main parameters
Name | 4Ax4000mm | 6Ax6000mm | |||||
Processing Width | 850-1500mm | 850-1500mm | |||||
Processing Length | 4000mm | 6000mm | |||||
Processing Thickness | 0.5-6mm | 0.5-6mm | |||||
The back and front moving distance of beam | 850-1500mm | 850-1500mm | |||||
Moving speed of beam | 50-5000mm/min | 50-5000mm/min | |||||
The maximum left and right moving distance of carriage | 4300mm | 4300mm | |||||
The maximun moving speed of carriage | 50mm/min | 50mm/min | |||||
Deviation of length | ±0.05mm | ±0.05mm | |||||
Location percision | ±0.05mm | ±0.05mm | |||||
The maximum travel of knife rest | 100mm | 100mm | |||||
Machine size | 5900*2050*2300mm | ||||||
All steel welding structure, vibration to eliminate stress, high strength, high rigidity.
Certification
Packing&Shipping
After Sales Service
Company Introduction
Nanjing Bosslaser CNC Technology Co., Ltd. Boslaser is a famous brand company in China, which is dedicated to development, production and sales of sheet metal equipment . Located in Nanjing , Jiangsu Province ,After 15 years development , it has been a famous and influential modern enterprise which owns two Subsidiary corporations ; They are Maanshan Durmapress Machinery Technology Co,.Ltd and Nanjing Bosslaser CNC Technology Co.,Ltd .
Adhering to the advanced European design concept,Boslaser follow the technology of Belgian R&D center, combine with the actual needs of customers, and make well-structured and high-quality sheet metal fabrication equipment. Most importantly, it makes us be the professional sheet metal processing equipment supplier.
Adhering to the advanced European design concept,Boslaser follow the technology of Belgian R&D center, combine with the actual needs of customers, and make well-structured and high-quality sheet metal fabrication equipment. Most importantly, it makes us be the professional sheet metal processing equipment supplier.
FAQ
Q: How to get a accurate quotation from us ?
A:Prvide us the details of material , such as metal thickness and width .
Q:You are manufacturer or trading company ?
A: We are 100% manufacturer with 17 year's manufaturer experience.
Q:Can you do OEM service ?
A:Yes, we can. your design is accepted , your own logo can be used on the machine.
Q:What's the shipping cost from china to your country ?
A:We can send machine to your port or door address by sea or airplane. please kindly tell us your nearest port or address with postcode. we have reliable shipping agent to insure the safe convenient and time delivery.
Q:Do you accept LC payment ?
A:Yes, normally our payment is 30%+70% ,LC payment is also acceptable
Q:How to operate this machine ?
A:Video line of our factory or we send you the moive directly.
Q:What about commissioning service ?
A: We can offer commissioning service , the buyer need to afford plane tickets.
Q:Do you offer teaching & training ?
A:Training at supplier's plant
A:Prvide us the details of material , such as metal thickness and width .
Q:You are manufacturer or trading company ?
A: We are 100% manufacturer with 17 year's manufaturer experience.
Q:Can you do OEM service ?
A:Yes, we can. your design is accepted , your own logo can be used on the machine.
Q:What's the shipping cost from china to your country ?
A:We can send machine to your port or door address by sea or airplane. please kindly tell us your nearest port or address with postcode. we have reliable shipping agent to insure the safe convenient and time delivery.
Q:Do you accept LC payment ?
A:Yes, normally our payment is 30%+70% ,LC payment is also acceptable
Q:How to operate this machine ?
A:Video line of our factory or we send you the moive directly.
Q:What about commissioning service ?
A: We can offer commissioning service , the buyer need to afford plane tickets.
Q:Do you offer teaching & training ?
A:Training at supplier's plant
