Характеристики
Products Description

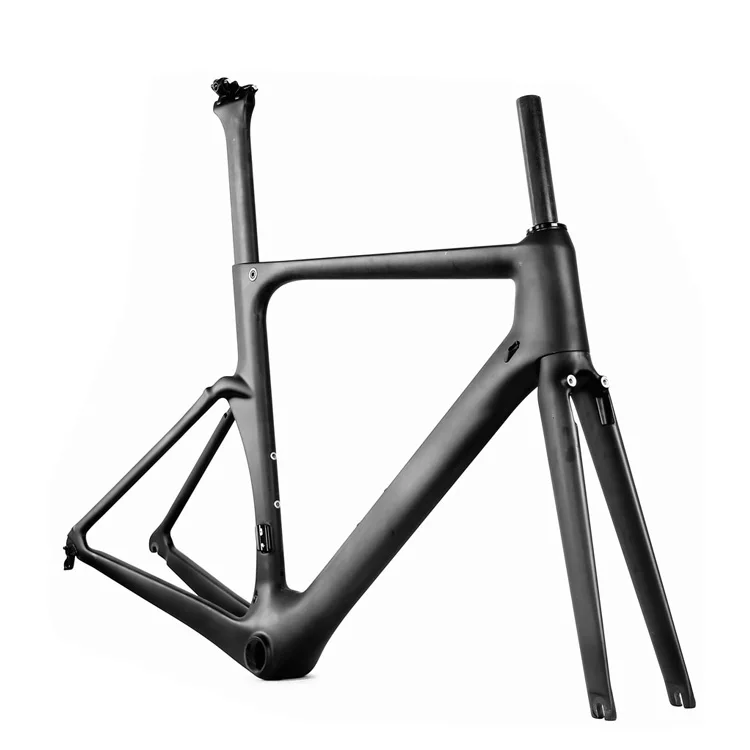

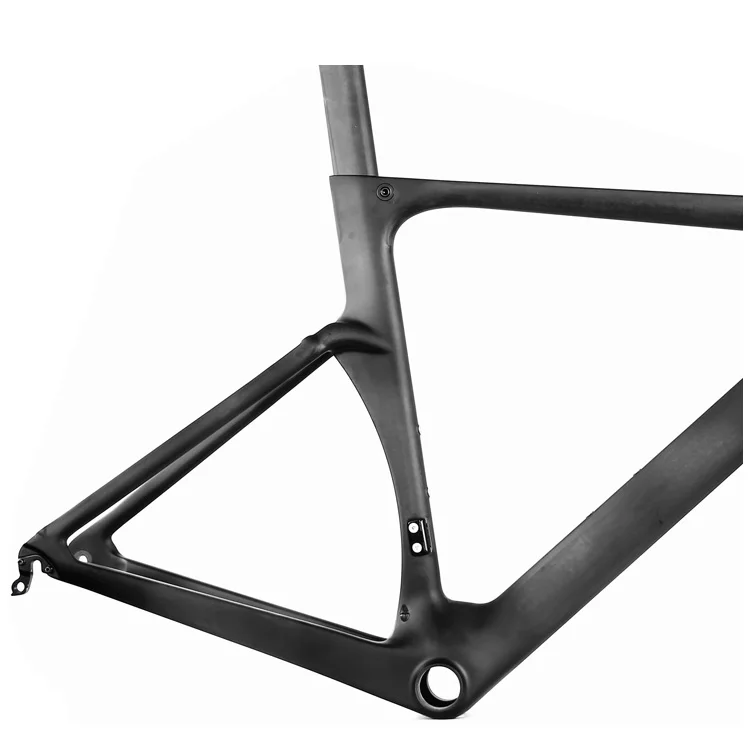

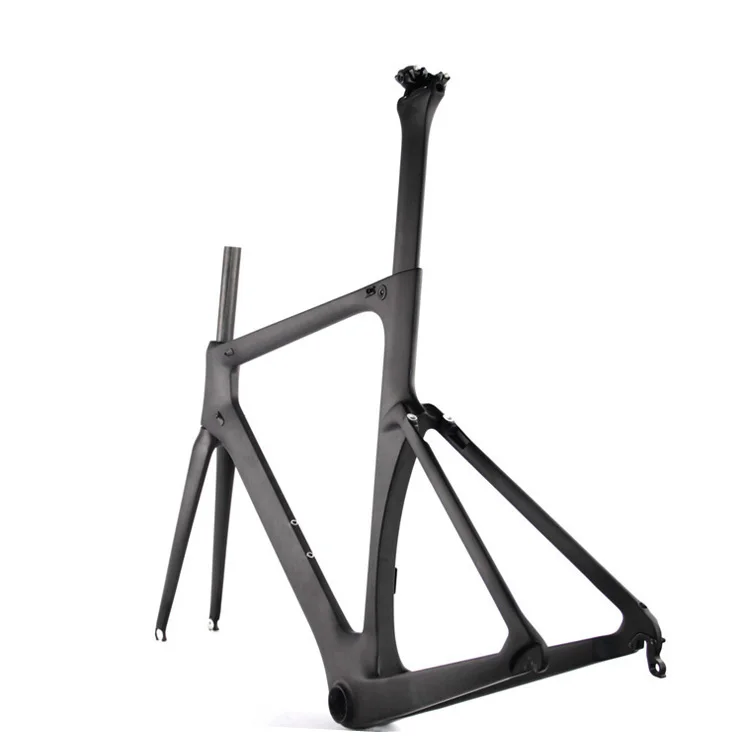

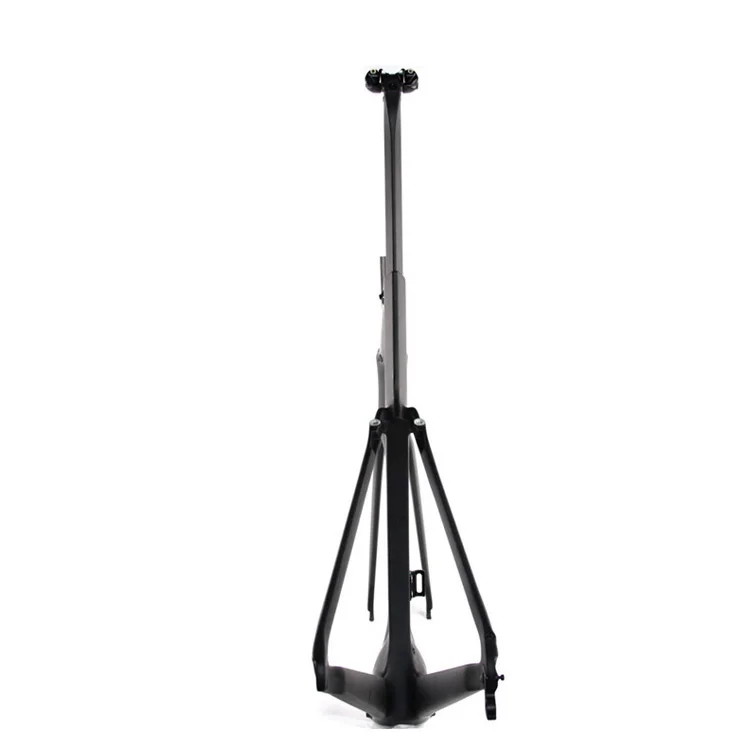

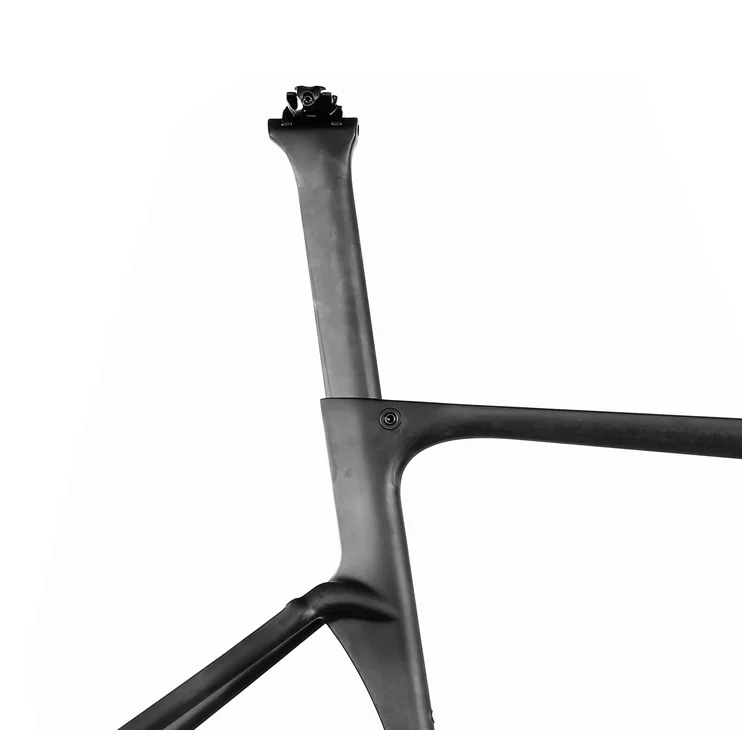

LightCarbon Aero Road Direct Mount Caliper Brake Frameset LCR006-V
- Aerodynamic design tube shape
- Direct mount brake types
- Direct mount brake types
Frame | LightCarbon aero road direct mount caliper brake frameset |
Material | High modulus Toray T700 carbon fiber |
Size | 49, 52, 54, 56, 59 |
Fork | Lightcarbon specify carbon fork |
Headtube | Tapered 1 1/8-1 1/2'' head tube |
Weight | 1150g/54cm |
Seatpost | Specify seat post |
Bottom bracket | Press fit BB86 |
Max tire clearance | 700*28c |
Brake mount type | Direct caliper brake(Shimano 9010/6810/5810-RS) |
Dropout | Normal F9*100mm QR/R9*130mm QR |
Groupset | Machanical and Di2 compatible |
Test Standard | ISO4210 |
Warranty | 2 years |
Geometry
490 | 520 | 540 | 560 | 590 | |
SEATPOST INSERT LENGTH | 170mm | 190mm | 210mm | 230mm | 250mm |
REACH | 366.9mm | 375.4mm | 378.6mm | 378.9mm | 386.8mm |
TOP TUBE LENGTH, HORIZONTAL | 514mm | 524mm | 535mm | 545mm | 560mm |
STACK | 529.8mm | 536.3mm | 542.8mm | 563.6mm | 582.8mm |
WHEELBASE | 966mm | 972mm | 972.8mm | 973.5mm | 988.4mm |
CHAINSTAY LENGTH | 405mm | 405mm | 405mm | 405mm | 405mm |
FRONT CENTER | 570.8mm | 576.8mm | 577.6mm | 578.3mm | 593mm |
BB DROP | 68mm | 68mm | 68mm | 68mm | 68mm |
BB HEIGHT | 272mm | 272mm | 272mm | 272mm | 272mm |
SEAT TUBE ANGLE | 74.5° | 74.5° | 74° | 73.5° | 73.5° |
HEAD TUBE ANGLE | 71.5° | 72° | 72.5° | 73° | 73° |
SEAT TUBE LENGTH | 480mm | 500mm | 520mm | 540mm | 560mm |
HEAD TUBE LENGTH | 130mm | 135mm | 140mm | 160mm | 180mm |
BIKE STANDOVER HEIGHT(700C*28C) | 762.2mm | 774.8mm | 786.9mm | 806.3mm | 825mm |
FORK RAKE/OFFSET | 43mm | 43mm | 43mm | 43mm | 43mm |
FORK LENGTH | 370mm | 370mm | 370mm | 370mm | 370mm |
TRAIL | 68.4mm | 65.3mm | 62.1mm | 58.8mm | 57.5mm |
Technology & Test
