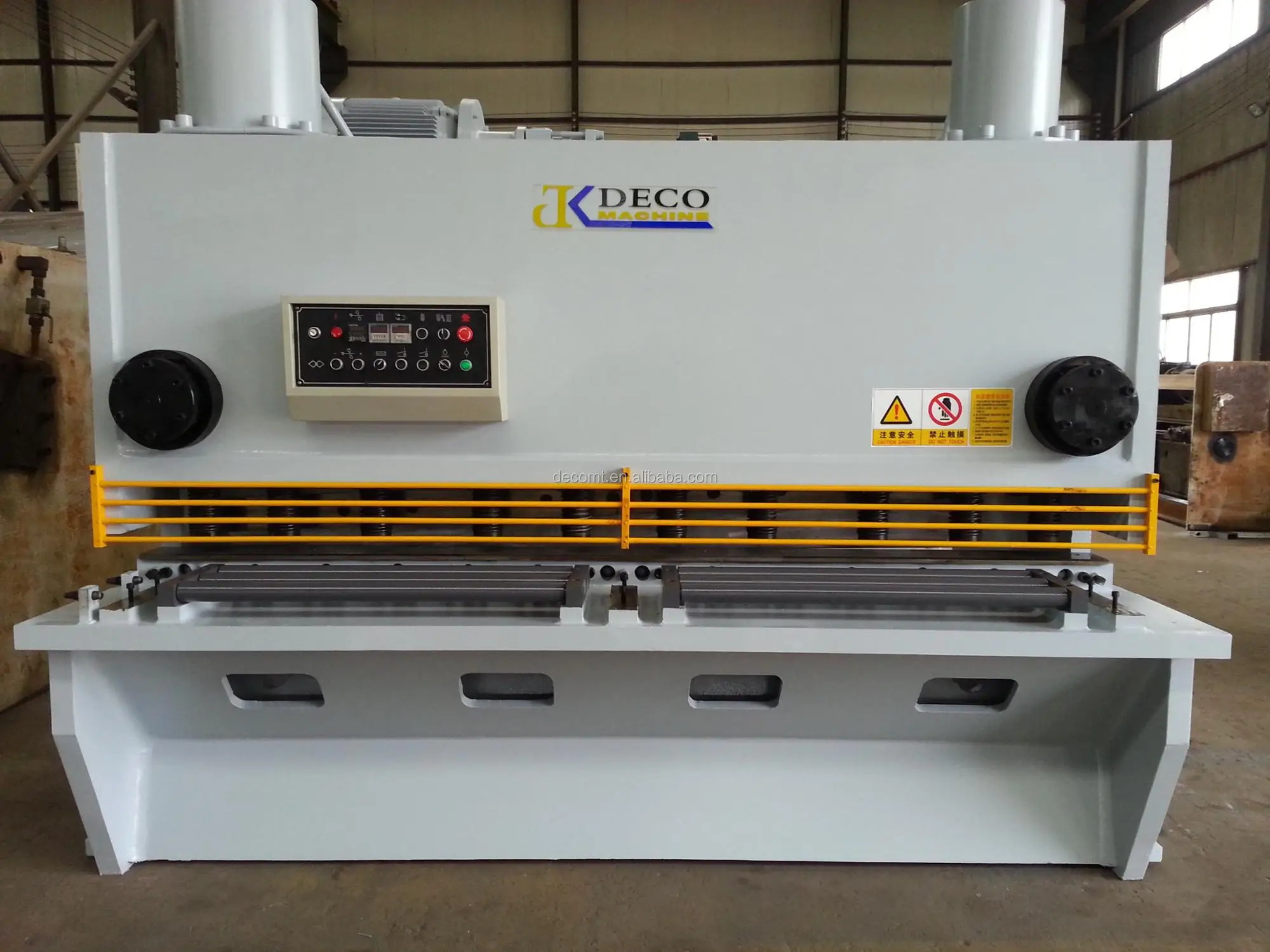

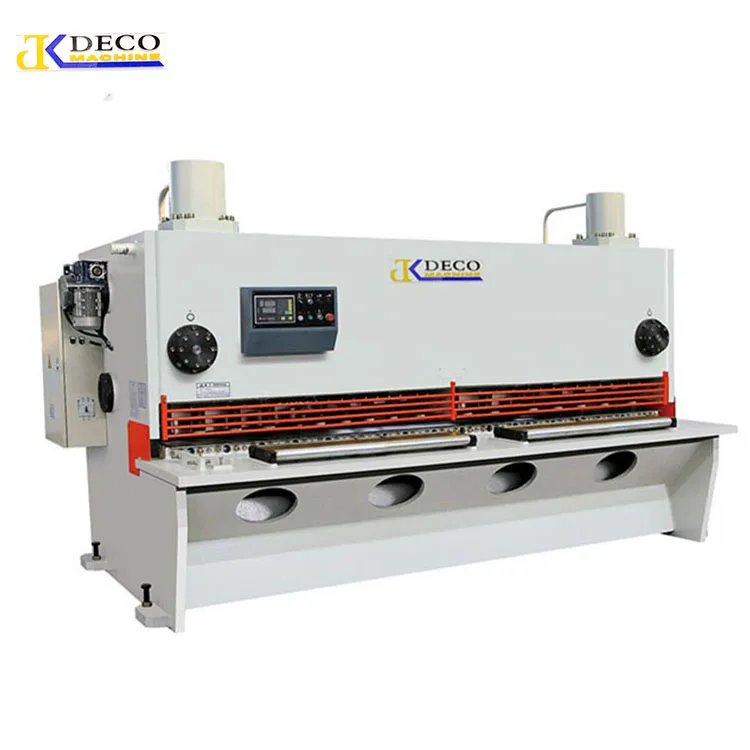

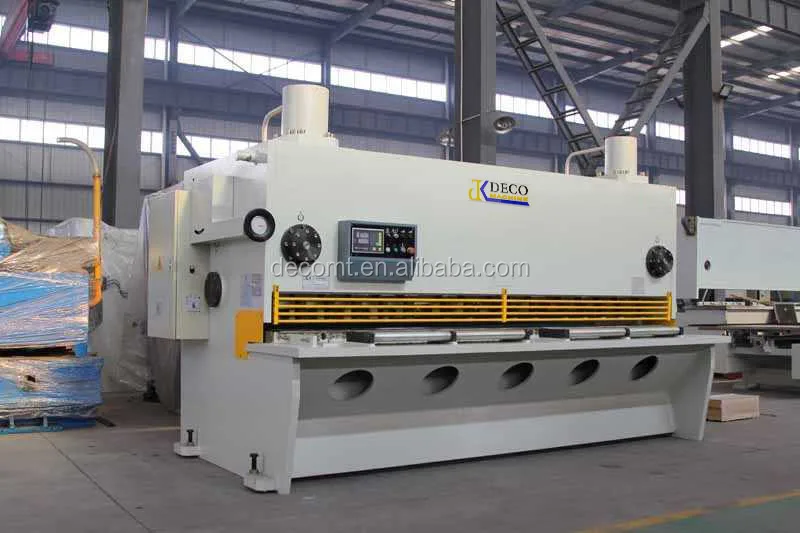

Heavy Duty Automatic CNC hydraulic guillotine shearing machine





1. Standard Equipment:

-HONGKONG MD11 NC control System/Estun E21S NC control System

-Unidirectional position warning of backgauge

-Lead screw and pitch error compensation

-Special-purpose time relay

-Memory capacity after power off

-Counting

-Manual regulation, automatic function

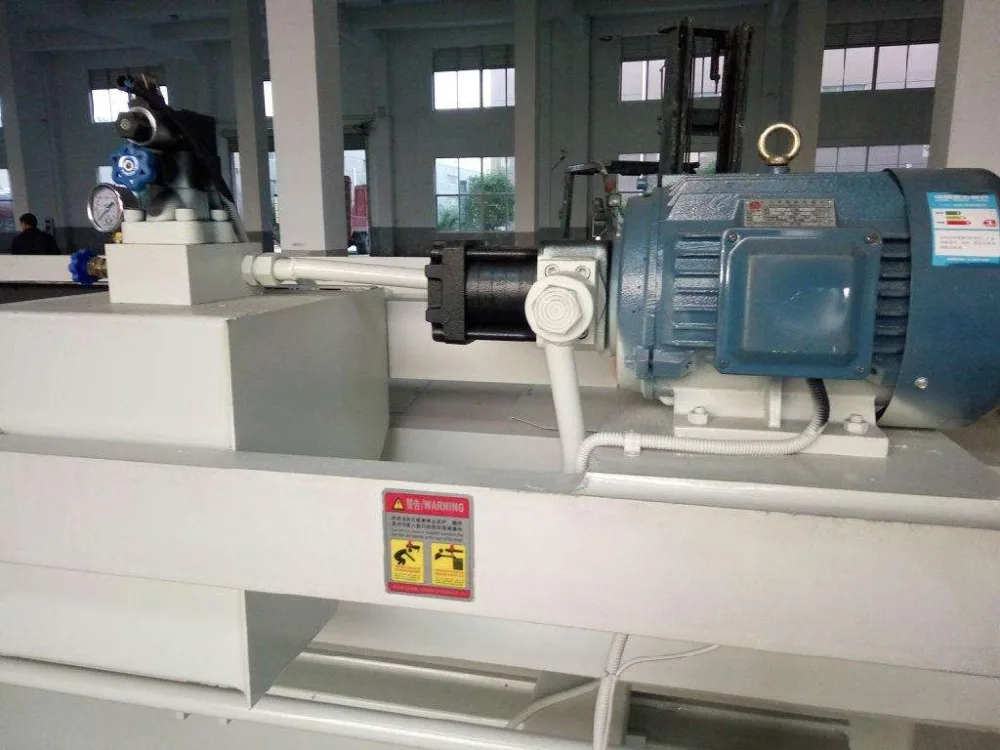

-Germany Siemens Main Motor

-Tele mecanique/Schneider Electrics

-HIWIN Ball screws & Polished rod with 0,05mm accuracy

-Powered Back gaugeX-axis

-DELTA Inverter controlled back gauge

-Squaring Arm and Front Support Arms

-Germany Bosch-Rexroth Hydraulic

-Germany EMB Tubing connector

-Hydraulic &Electrical overload protection

-Cutting Line Illumination and wire for shadow line cutting

-Top blade with two cutting edges and bottom blade with four cutting edges.(6CrW2Si)





2. Main Features:

1. sheet plate welded structure is adopted, with hydraulic transmission and accumulator return, typical of an easy operation, reliable performance, and nice appearance. fitted with digital display system.

2. Indication by indicator is provided for adjustment of blade clearance, for a handy and prompt adjustment.

3. Alignment device with lighting and control device for shearing stroke are set, with a handy and prompt adjustment.

4. Rolling material support ball is provides , to minimize fish tail with sheet bar and to reduce frictional resistance.

5. The machine toll is provided with the functions of digital display , soft limit, as well as prompt for one-resistance

6. The rear stopper is fitted with coder and digital display system, so that the position of rear stopper is displayed more accurately, thus to further enhance the shearing precision of this machine.



About E21S control system:

1.Totally EU streamlined design,Monoblock by welding robots & aparatus and stress relief process by Annealing treatment.

2.Adopt integrated hydraulic system, more reliable and easy for maintenance.and the hydraulic system from Bosch-Rexroth, Germany.

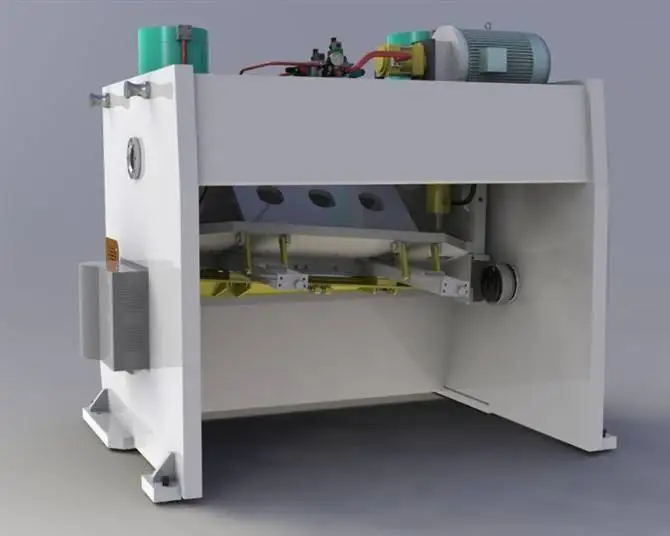

3.The Hydraulic Guillotine is a Swing Beam Action machine which is produced in a variety of cutting lengths and capacity options.

4.The distance of the backgauge is adjusted by the motor and is well adjustment is displayed by E21with Delta inverter.

5.Equipped with lighting-alignment, so as to align when shearing. The stroke of knife beam can be adjusted in stepless mode.

6.Safe fence and the electric inter locker have been designed for the machine to ensure the operation safety to CE regulation.

3. Safety Equipment:

-Safety Standards(2006/42/EC):

1.EN 12622:2009 + A1:2013

2.EN ISO 12100:2010

3.EN 60204-1:2006+A1:2009

-Front finger Protection(Safety light curtain)

-South Korea Kacon Foot Switch(Level 4 of safety)

-Back metal safe fence with CE standards

-Safety relay with Monitor the pedal switch and safety protection







Features:

                        E21s:

                                                              -Control for general AC motors,frequency inverter

                                                              -Intelligent positioning

                                                              -Double programmable digital output

                                                              -Stock counter

                                                              -Program memory of up to 40 programs, Up to 25 steps per program

                                                              -One side positioning

                                                              -Retract function

                                                              -One key backup/restore of parameters

                                                              -mm/inch

                                                              -Chinese/English



             MD-11:

                                                          -Unidirectional position warning of backgauge

                                                               -Lead screw and pitch error compensation

                             -Special-purpose time relay

                             -Memory capacity after power off

                             -counting

                             -manual regulation, automatic function
