Высокоскоростной автоматический секционный деформирующий станок AS22 для ткацкого
- Категория: Weaving Machines >>>
- Поставщик: Wuhu,Aris,International,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 35700.90 $* | 37485.1 $* |
| Aug-17-2025 | 35400.43 $* | 37170.32 $* |
| Jul-17-2025 | 29700.78 $* | 31185.47 $* |
| Jun-17-2025 | 34800.40 $* | 36540.84 $* |
| May-17-2025 | 30300.59 $* | 31815.16 $* |
| Apr-17-2025 | 34200.55 $* | 35910.38 $* |
| Mar-17-2025 | 33900.78 $* | 35595.74 $* |
| Feb-17-2025 | 33600.9 $* | 35280.54 $* |
| Jan-17-2025 | 33300.72 $* | 34965.80 $* |
Характеристики
Product Description

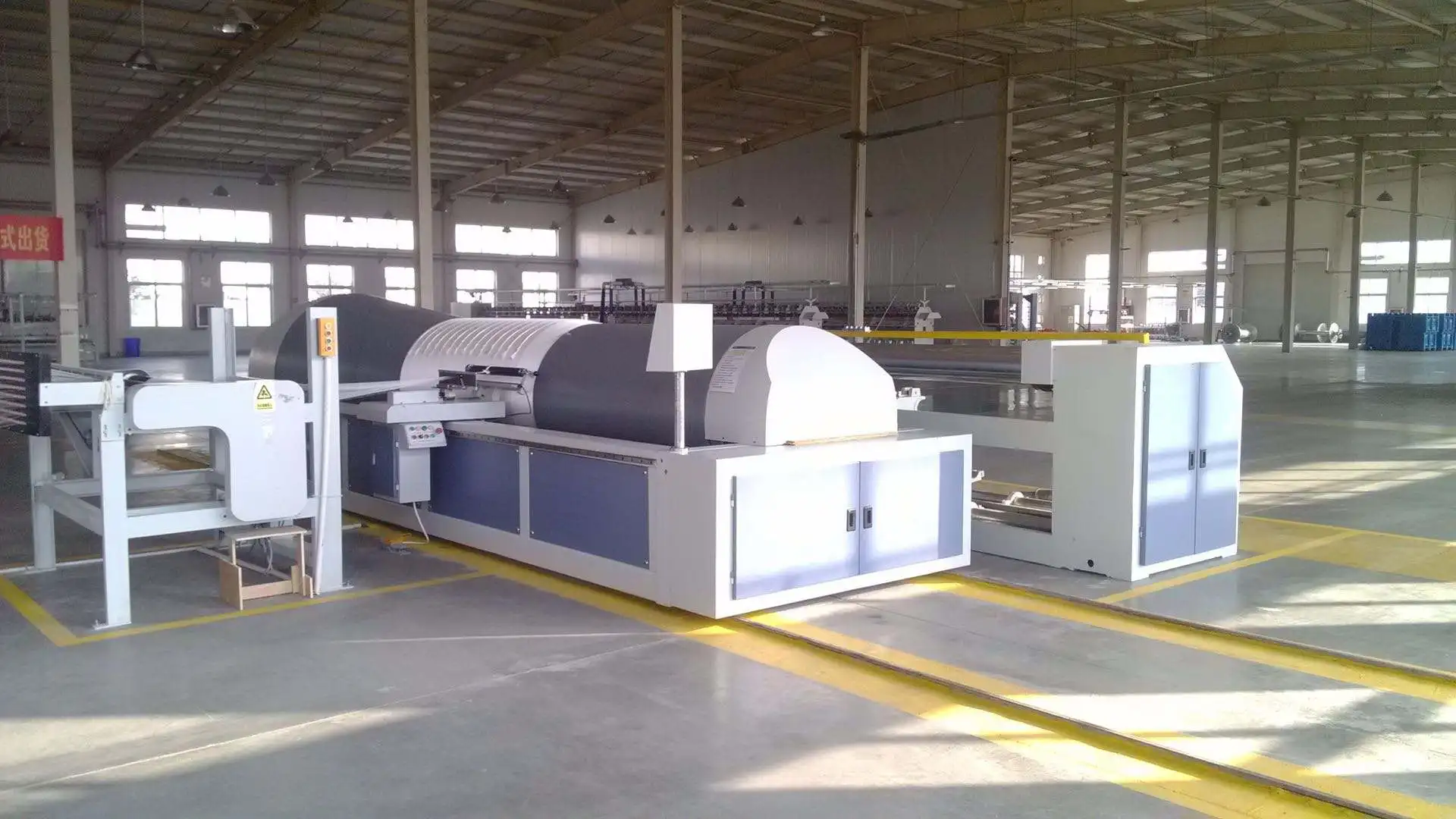

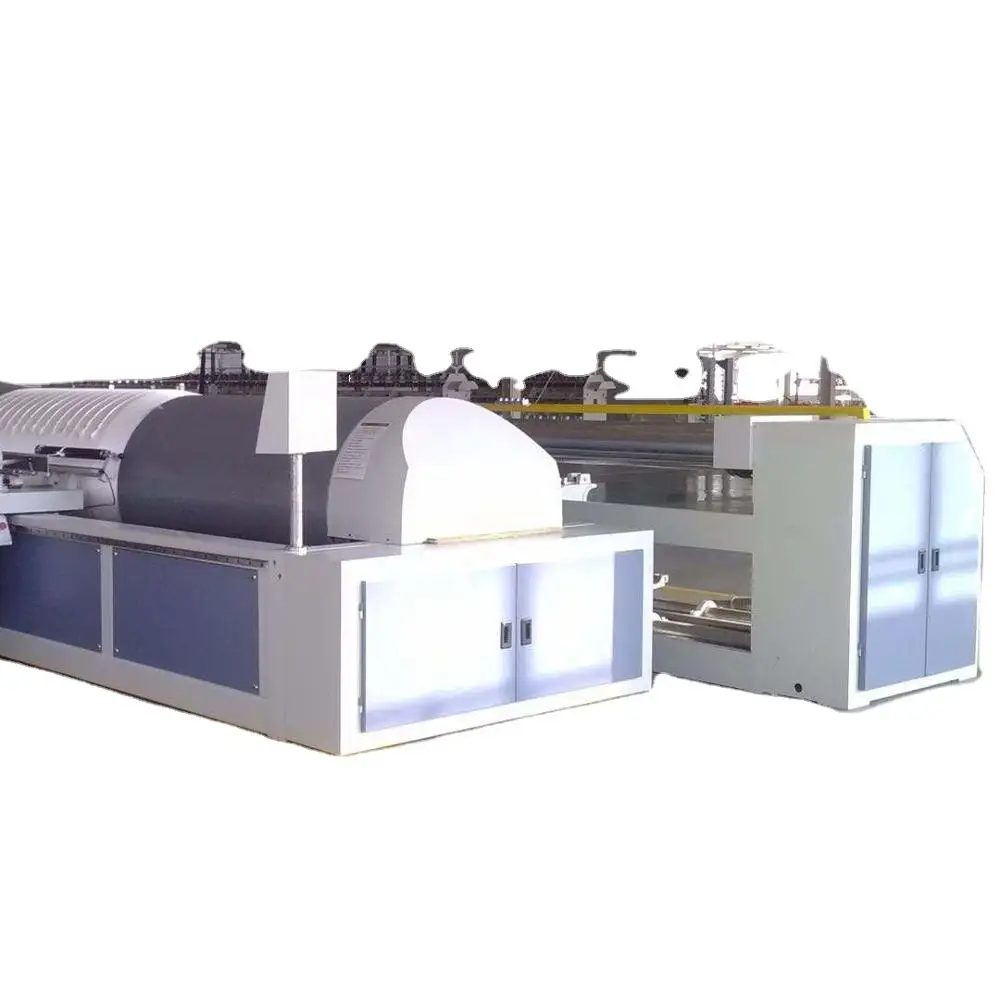

AS22 sectional warping machine is suitable for sectional warping various kinds of yarns,including worsted yarn,PP yarn, high twisted flaments,yarn for color woven fabrics, silk fabrics, toweling fabrics and fabrics in special industry. This machine can be matched for water-jet,air-jet,rapier and projectile loom as preparation before weaving.
Beam Width | 2200mm |
Beam Diameter | 1000mm |
Spindle QT’Y | 720 ends...... |
Spindle Pitch | 300x300mm |
Number of plies | 8 |
Warping Speed | 600m/min |
Reverse Speed | 100m/min |
Tension of Reverse | ≤6000 N |
Strip width | 0~400mm |
Braking Length | ≦3.0 m |
The operating display | Various process parameters |
Type of warping operation table | Constant distance winding, Spacing reed automatically move. |
Transmission Power | 1 KW |
Speed | Automatic tracking |
Starting Point | Automatic |
Spacing reed | Type“一” |
Guiding Roller | Precision Aluminum Alloy |
Cylinder Diameter | 1 m |
Cylinder Length | 2250mm |
Cylinder Thickness | 10mm |
Angle of Cone | 1:8 |
Warping Motor Power | 15 KW |
Frequency Converter Power | 22 KW |
Reverse Motor Power | 22 KW |
Frequency Converter Power | 22KW |
Control of reverse tension | Steel belt damp |
Way of Doff | Pneumatic |
Safeguard | Laser Beam |
Tensioners | Ring tensioners |
Automatic Stop | Infrared stop motion |
Bobbin Change | Revolution Door |
Creel | H creel |
Warping Tension Control | Tensioners on the Creel |
Separator | Yes |
Reeds Bar | Yes |
Clamper | Yes |
Spacing Reed | Yes |
Product Paramenters
CPU | Siemens |
Inverter | Yaskawa |
Motor | WNM |
Touch Screen | Weilun |
Pneumatic parts | Airtac |
Bearing | TWB |
Power supply and related electric parts | Siemens/ schneider |
Servo motor | Yaskawa |
Packing&Shipping
The machine will be packed in pallet
