Tfb-28 ионизатор генератор отрицательных ионов для фен фабрика в
- Категория: Прочие запчасти для бытовой техники >>>
- Поставщик: Tianchang,Trumpxp,Electronic,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 1.67 $* | 1.49 $* |
| Jul-16-2025 | 1.50 $* | 1.74 $* |
| Jun-16-2025 | 1.91 $* | 1.63 $* |
| May-16-2025 | 1.4 $* | 1.97 $* |
| Apr-16-2025 | 1.61 $* | 1.9 $* |
| Mar-16-2025 | 1.86 $* | 1.96 $* |
| Feb-16-2025 | 1.78 $* | 1.77 $* |
| Jan-16-2025 | 1.64 $* | 1.50 $* |
Характеристики
Product Description

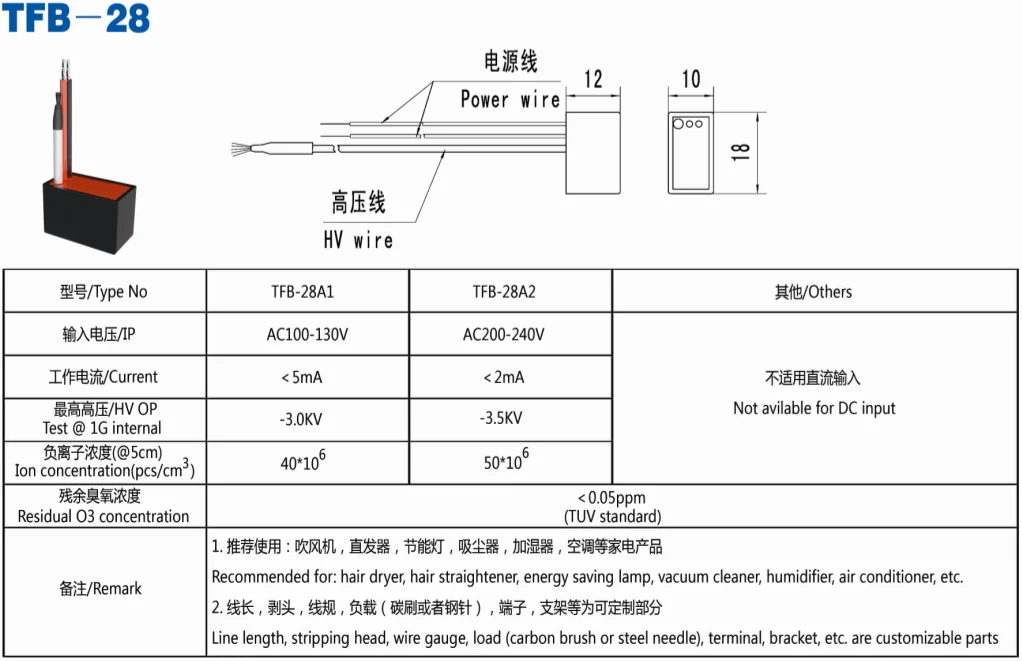

Specification
型号/Type No | TFB-28A1 | TFB-28A2 | ||
输入电压/IP | AC100-130V | AC200-240V | ||
工作电流/Current | <5mA | <2mA | ||
最高高压/HV OP Tester @1G internal resistance | -3.0KV | -3.5KV | ||
负离子浓度 (@5CM) ion concentration （pcs/cm3） | 40*106 | 50*106 | ||
残余臭氧浓度 Residual ozone concentration | < 0.05ppm （TUV standard) | |||
备注/remark | 1. 推荐使用：吹风机，直发器，节能灯，吸尘器，加湿器，空调等家电产品 Recommended for: hair dryer, hair straightener, energy saving lamp, vacuum cleaner, humidifier, air conditioner, etc. 2. 线长，剥头，线规，负载（碳刷或者钢针），端子，支架等为可定制部分 Line length, stripping head, wire gauge, load (carbon brush or steel needle), terminal, bracket, etc. are customizable parts 3. 功能介绍：护发，降尘，减低PM2.5, 净化空气，配合家电等设备使用，提供负高压，负离子，高压放电等功能 Hair care，Dust removal, reduction of PM2.5, air purification, and other，used with home appliances and other equipment, providing negative high voltage, negative ion, high voltage discharge and other functions | |||
Packing & Delivery
SMALL BOX SIZE:22*14*8CM
CARTON SIZE: 45*38*32
PACKING WAY: put anion or ozone products in small box, like above picture, and 20boxes list in a carton. the carton with TRUMPXP logo, made in china, and will with product label on the carton, it tell cusotmer what model and how many quantity in the carton, and customer PO number, total caton for this batch. and also will make different marks according to customer's needs.
We are professional in international deal and shipping.
Company Profile
We are factory with 16949 9001 14001 certification, and hold product certifcation TUV, CE, have products list as below:
1. anion generator for home appliances, for air improve, hair protect...
2. ozone generator for home applinace, for air disinfection, sterilization, and SPA water clean...
3. small negative ion purifiers, ionizer car purifier, personal air purifier,
4. portable ozone generator machine, for housing, office, hospital, commerical mall...
FAQ
1. What is negative ion
The definition of a negative ion is an electrically charged atom, or cluster of atoms, formed by gaining one or more electrons. The number of protons in the atom does not change but theextra electrons gives it a negative charge.
Negatively charged ions, also known scientifically as anions, are the opposite of positive ions and they have directly the opposite effect on your health, mood and energy levels when youare exposed to them.
Negative ions in the air have a strong negative charge. Due to this nature, they are statically attracted to airborne particles like dust, mold spores, pet dander and other floating pollutants and potential allergens.
By attaching to these pollutants and allergens they give them a negative charge and, rather than drifting in the air, they are grounded and fall to the floor or nearest surface.
Negatively charged ions, also known scientifically as anions, are the opposite of positive ions and they have directly the opposite effect on your health, mood and energy levels when youare exposed to them.
Negative ions in the air have a strong negative charge. Due to this nature, they are statically attracted to airborne particles like dust, mold spores, pet dander and other floating pollutants and potential allergens.
By attaching to these pollutants and allergens they give them a negative charge and, rather than drifting in the air, they are grounded and fall to the floor or nearest surface.
2. What is the function of negative ions
In high enough concentrations, negative ions purify the surrounding air of mold spores, pollen, pet dander, odors, cigarette smoke, bacteria, viruses, dust and other hazardous airborne particles.
They do this by attaching to these positively charged particles in large numbers. This causes the germs, mold, pollen and other allergens to become too heavy to stay airborne.
At this point they drop to the floor or attach to a nearby surface. This removes them from the air you breathe and prevents them from causing respiratory problems, such as asthma and allergies, and even more serious pollution related illnesses in the long term, like lung cancer.
They do this by attaching to these positively charged particles in large numbers. This causes the germs, mold, pollen and other allergens to become too heavy to stay airborne.
At this point they drop to the floor or attach to a nearby surface. This removes them from the air you breathe and prevents them from causing respiratory problems, such as asthma and allergies, and even more serious pollution related illnesses in the long term, like lung cancer.
3.How to install negative ions
Input line connection: usually red is positive, black is negative, and green is ground
Output line: High-voltage line. It is recommended to be installed at the position of the air outlet of the ventilation pipe. There must be no obstruction in front. The material of the air outlet is not recommended to be metal, otherwise it will cause negative ion loss.
Ground wire: It is recommended that all DC input negative ion generators are grounded
Different household appliances have different installations. Please combine your own products and design to avoid losses and improve the efficiency of negative ions as much as possible.
4. What is the minimum order quantity
Our company accepts 1~Max orders, but the quotation will be adjusted according to the order quantity. The more the quantity, the more favorable the price.
5. Do you have stock?
Hot products will have a small amount of inventory for customers to buy samples for testing. For bulk orders, we start arranging materials preparation and production after receiving payment and receiving orders. It is recommended that you make an order plan in advance
6. How long is the delivery time
If there is inventory, delivery will be arranged immediately after payment. Bulk orders usually take 15 to 30 days. In case of busy season or special circumstances, the delivery period may be extended. Please consult with our sales staff for details.
7. do you accept customization
Yes, we accept customization, ordinary wire length modification, connector modification, etc. are relatively simple; if you need to customize the module size, circuit adjustment, etc. are relatively complicated and take a long time. We also accept project development, OEM production, etc.
