20 K non-continuous ultrasonic welding equipment for face mask machine

Application

Ultrasonic generator and transducer is used for 20K non-woven welding mask machine assembly.

product description

1.Function details

The source of radium ultrasonic welding equipment is composed of intelligent ultrasonic generator and ultrasonic transducer. The ultrasonic generator converts low frequency alternating current into high frequency alternating current, and converts electrical energy into high frequency vibration mechanical energy through a transducer. When the welding head acts on the contact surface of the thermoplastic, it generates tens of thousands of high frequency vibrations per second. High frequency vibration transmits the ultrasonic energy to the welding area through the upper weldment, and the upper and lower weldments in this area. Local high temperature due to friction. After the ultrasound is applied, the pressure lasts for a few seconds to make it set Type, forming a strong molecular chain to achieve welding.

2.Product Features

(1)Automatic frequency sweep and automatic matching transducer;



(2) Power feedback, better welding quality;



(3) Adjustable energy, stronger welding adaptability;



(4)Precise frequency modulation to optimize the efficiency of the transducer;



(5)Adapt to continuous welding and intermittent welding;



(6)The welding time and pressure holding time can be set, and the welding effect is further improved;



(7)Large screen display, touch operation, more intuitive and convenient to use;



(8)Flexible setting of welding frequency and frequency,  saving more effort



(9)Ultrasonic generators, ultrasonic transducers, complete sets, single products all can be purchased;



(10)National high-tech enterprises, listed companies, quality assurance, service in place;

Technical Parameters



Model	ULT2000P-20K 2000W/20KHZ
Working mode	Discontinuous welding
Out Power	≥2000W
Working frequency	20 KHz
External dimension(L x W x H)	295mm x 282mm x 101mm
Ambient temperature	-20° C to 45° C
Input power factor	≥80%
Operating frequency	20KHz
Working power supply	AC220V±10% 50-60hz
Mold frequency range	± 400HZ
Automatic frequency tracking accuracy	±2HZ
Over current protection current	17A
Over current protection time	50ms

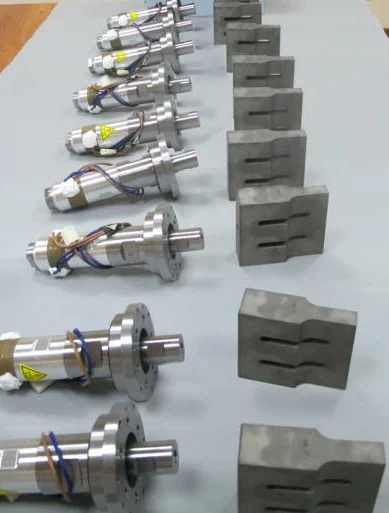

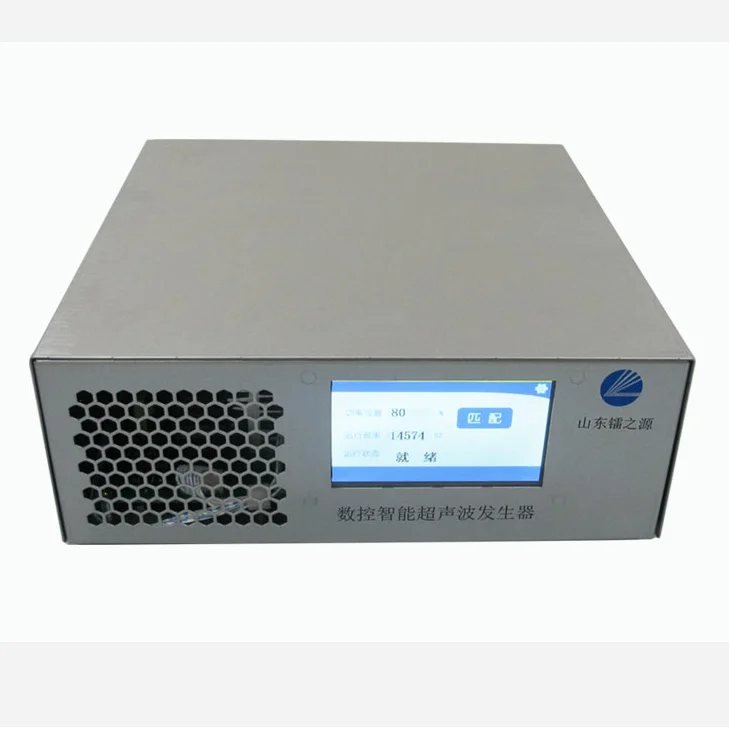

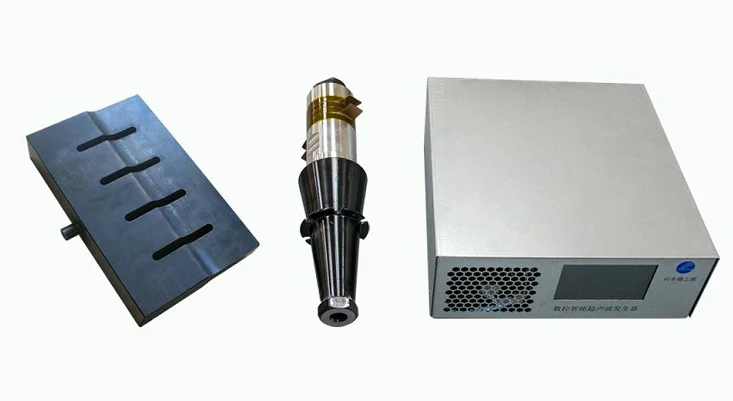

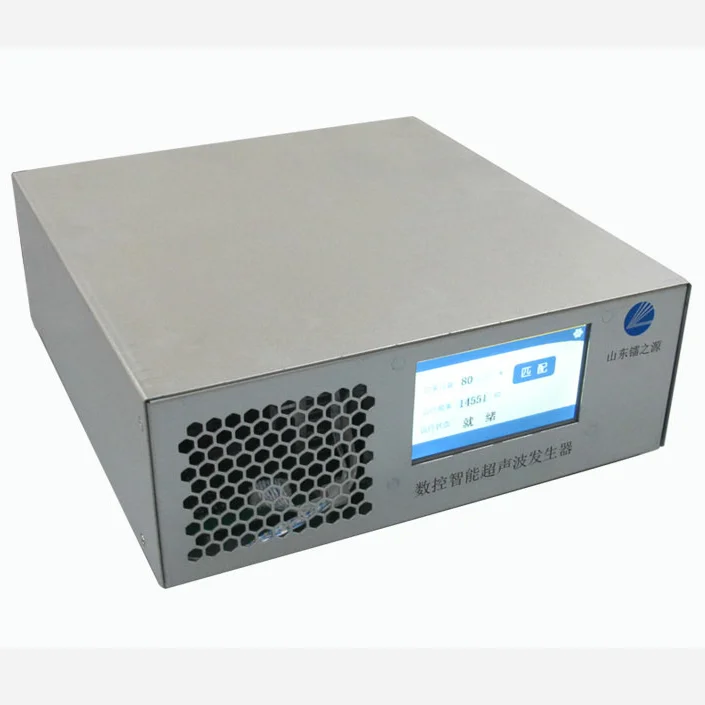

Packing List:	<1> ULT2000P-20K ultrasonic generator with screen*1pc;   <2> 2000W/20KHZ ultrasonic transducer*1pc;, <3>Horn 110*20mm *1pc <4> Flange*1pc <5> matched cables*1pc
weight	13 kg





installation steps

(1)After fixing the transducer and the die head, install it in the work area on site.

(2)Plug the male connector of the connector on the transducer with the female connector of the connector connected to the generator output (OUT).

(3) Connect the aviation plug to the control end of the ultrasonic generator and tighten the screws on the plug.

(4)Connect to single-phase 220V±10%, 50/60Hz power frequency AC.

Fault alarm information

Alarm status and description

(1) Output overvoltage alarm: the "output overvoltage" fault is displayed in the running status bar of the main interface;

(2)Output over-current alarm: the running status bar of the main interface displays the "output over-current" fault;

Operation method after alarm

During the use of the user, if the generator alarm is encountered, please be sure to turn off the power supply, After removing the fault, power on the generator again. If it is determined that the cause of the alarm is caused by a generator failure, please contact a professional or factory directly.
