Китай Вэньчжоу лидер продаж низковольтовый станок тип CD RCCB безопасный автоматический выключатель с остаточным
- Категория: Circuit Breakers >>>
- Поставщик: Yueqing,Yougu,Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.57 $* | 0.25 $* |
| Aug-20-2025 | 0.23 $* | 0.65 $* |
| Jul-20-2025 | 0.19 $* | 0.33 $* |
| Jun-20-2025 | 0.99 $* | 0.65 $* |
| May-20-2025 | 0.33 $* | 0.40 $* |
| Apr-20-2025 | 0.3 $* | 0.28 $* |
| Mar-20-2025 | 0.60 $* | 0.55 $* |
| Feb-20-2025 | 0.12 $* | 0.38 $* |
| Jan-20-2025 | 0.41 $* | 0.26 $* |
Характеристики
Product Parameters
CD CE CF Residual Current Circuit Breaker
Residual current circuit breaker devices provide the function of isolation switching and earth larkage protection of electrical circuits.they open a circuit automatically in the event of an earth fault between phase and earth and /or netural and earth. A wide rang of current ratings and sensitivities are acailable .suitable for domestic .commercial and industrial applications.
Technical data
• sensitivity: High sensitivity: 30mA
instantaneous tripping (ixed) / Medium sensitivity: 100mA, 300mA instantaneous or selective tripping (ixed) • current rating: 25 to 100A • voltage rating: 230V AC (2P) and 400V (4P)
• poles: 2P and 4P
• type: A
• frequency: 50Hz
Connection capacity
• sensitivity: High sensitivity: 30mA
instantaneous tripping (ixed) / Medium sensitivity: 100mA, 300mA instantaneous or selective tripping (ixed) • current rating: 25 to 100A • voltage rating: 230V AC (2P) and 400V (4P)
• poles: 2P and 4P
• type: A
• frequency: 50Hz
Technical information
A type suitable for residual pulsating direct currents, whether suddenly applied or slowly rising. They are used whenever fault currents are not sinusoidal.
Complies with EN61008-1.
Rated Current In | 25A 32A 40A 63A 80A 100A |
Poles | 2P 4P |
Rated residual operating current( In) | 10, 30, 100, 300, 500mA |
Rated residual non-operation Current( Ino) | 0.5In |
Rated Voltage(Un) | AC 2P: 230/240V 4P: 400/415V |
Residual operating current scope | 0.5In~In |
Residual current off-time | ≤0.3s |
Type | A, AC |
Ultimate short-circuit breaking capacity (Inc) | 10000A |
Endurance | ≥4000 |
Terminal protection | IP20 |

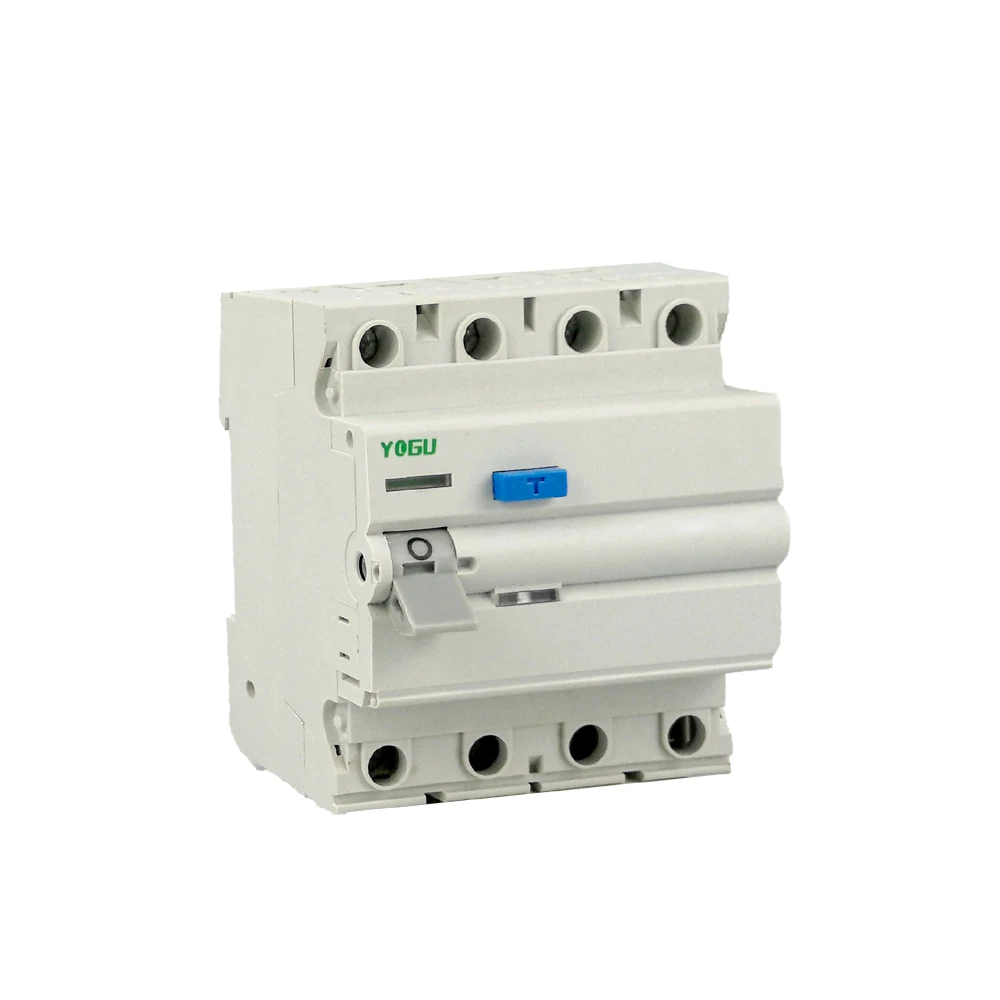

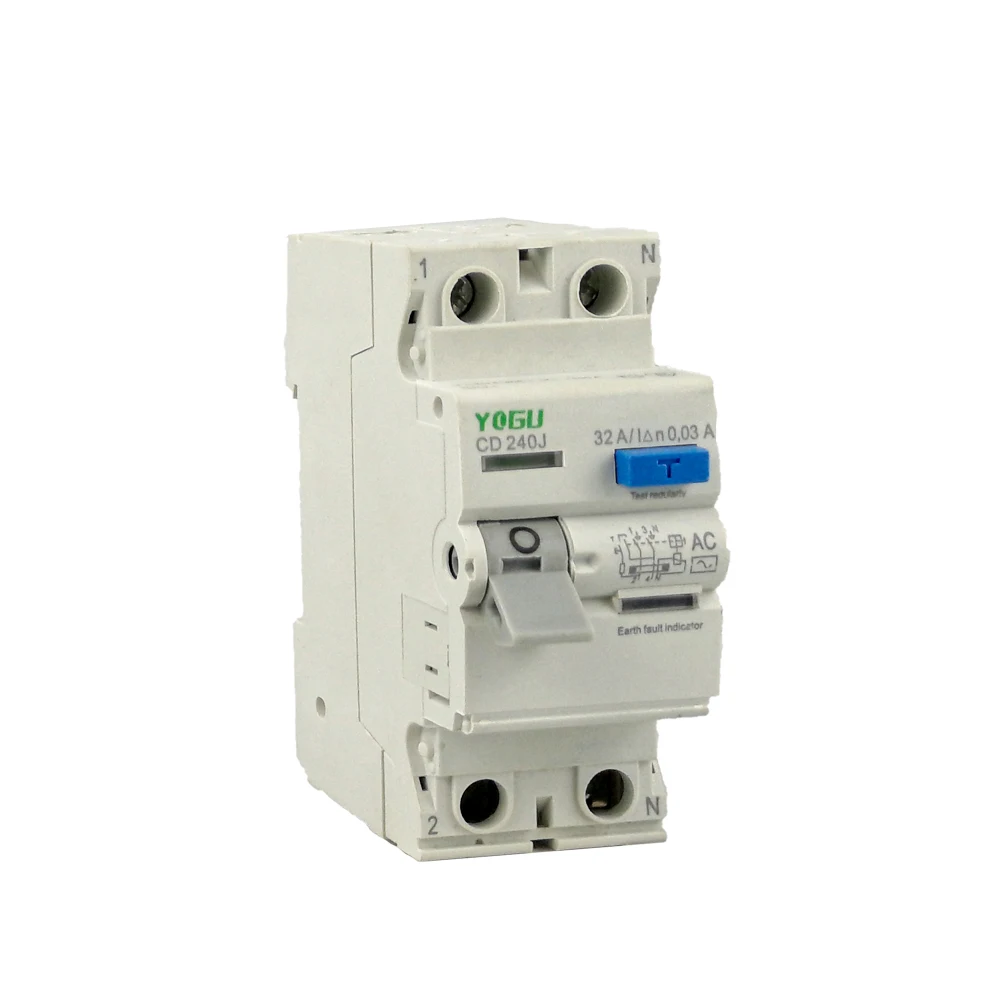

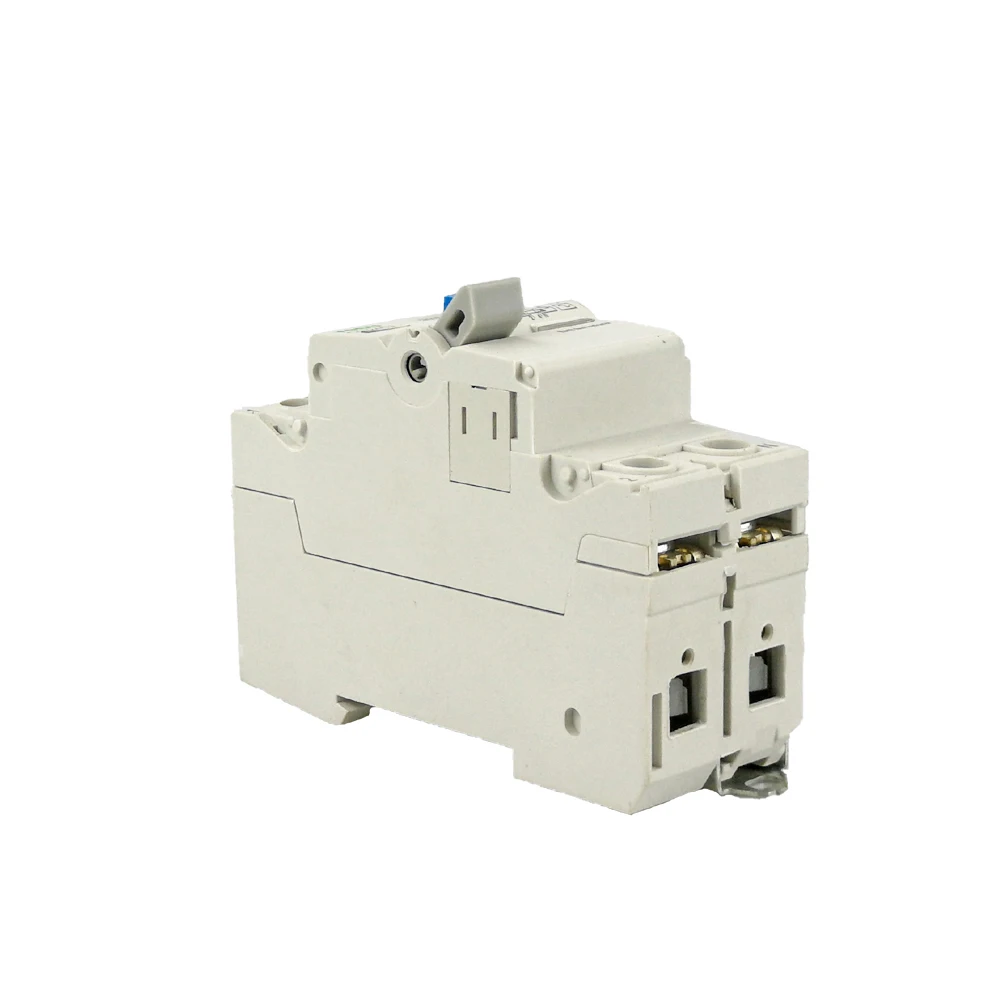

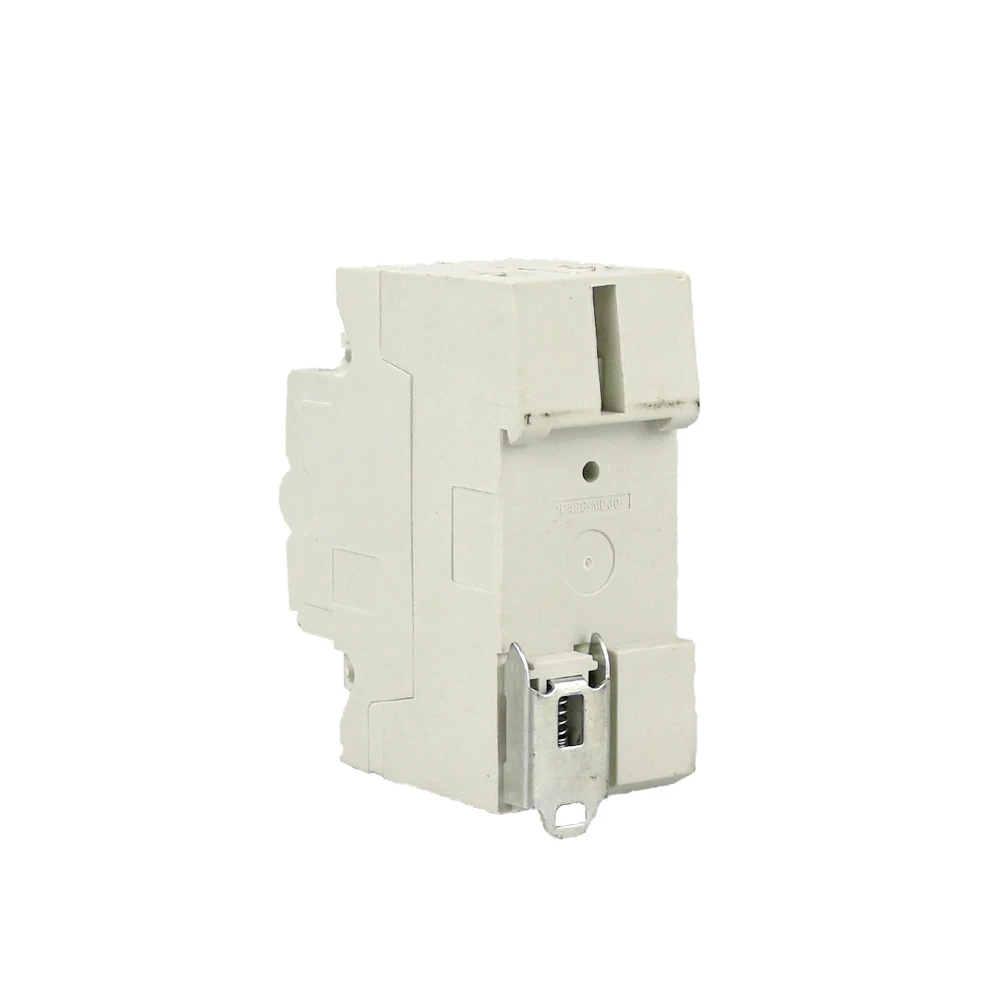

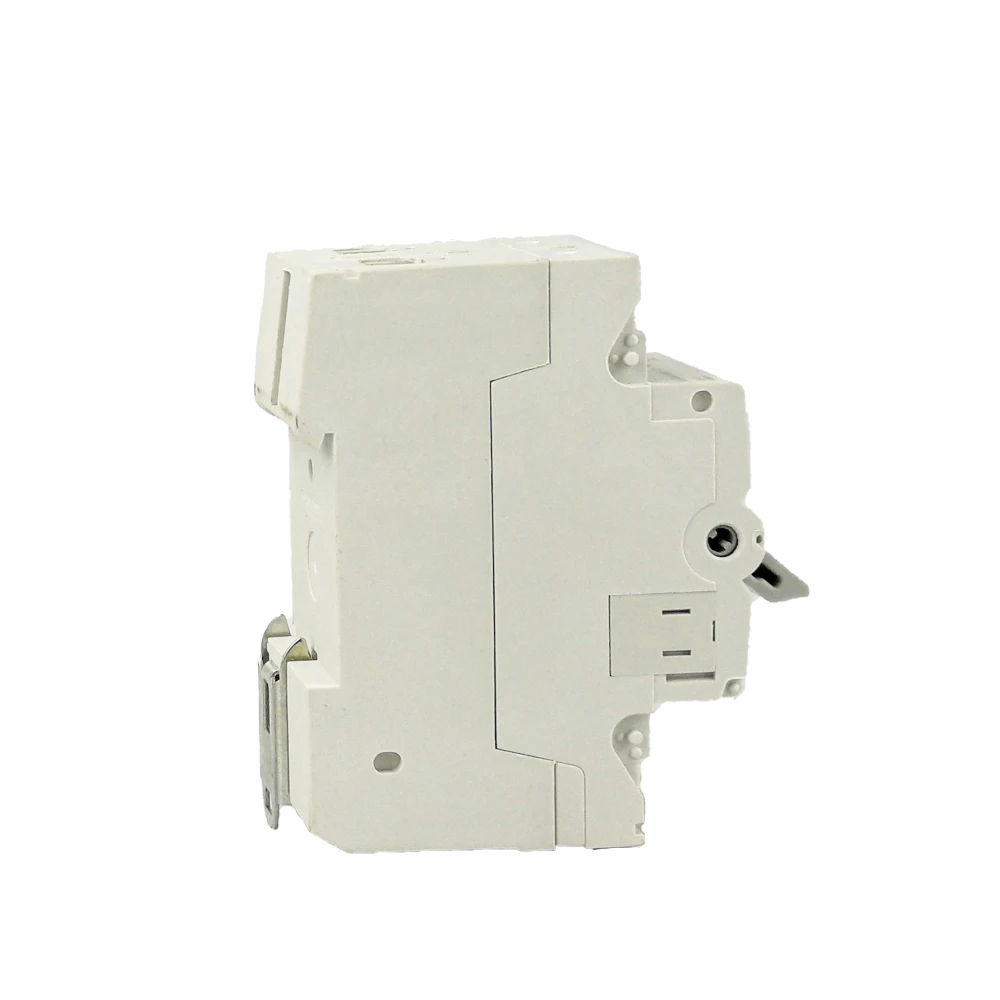

Product Details
Product Inspection
Company Information
Yueqing Yougu Electric Co., Ltd
is a professional manufacturer of kinds of circuit breakers, ac contactors, SPD, motor protectors, and distribution boxes, etc. We specialized in the field of low-voltage electric appliances for more than 15 years. Providing customers with quality products and professional services is our goal.
We are a professional low-voltage electric OEM/ODM manufacturer.
FAQ
1. How long does it take to get a reply after sending an inquiry?
A: We will reply within 24 hours, even at the weekend or holidays.
2. Is OEM/ODM pack available?
A: Yes, OEM/ODM packs are welcome. We are professional on OEM/ODM work.
3.Do you offer samples if we want to test?
A: Yes. We think that samples are very important for bulk orders. We can send samples.
4.Do you offer guarantee for the products?
A: Sure, we offer 1 or 2 years warranty for our products. That depends on different products.
