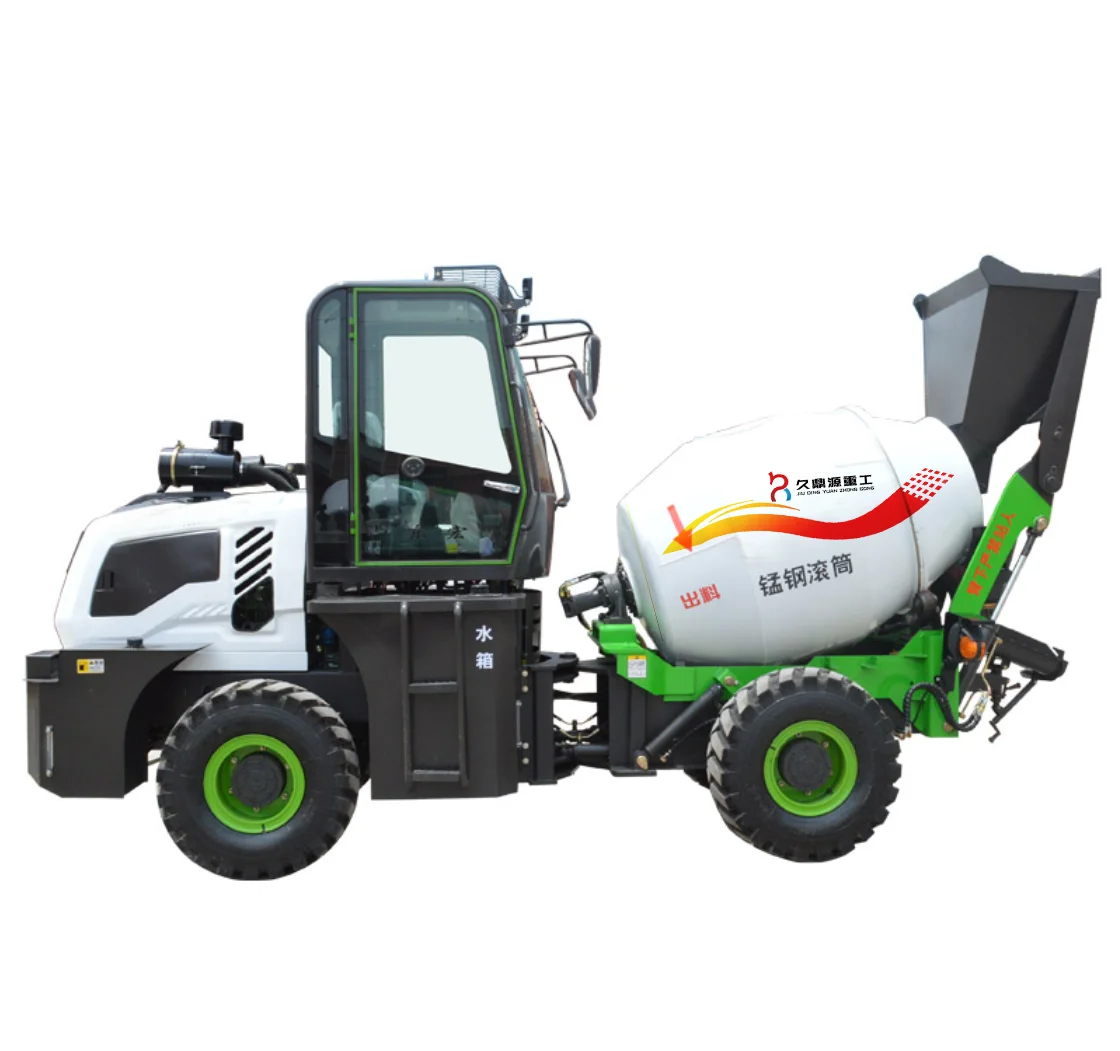

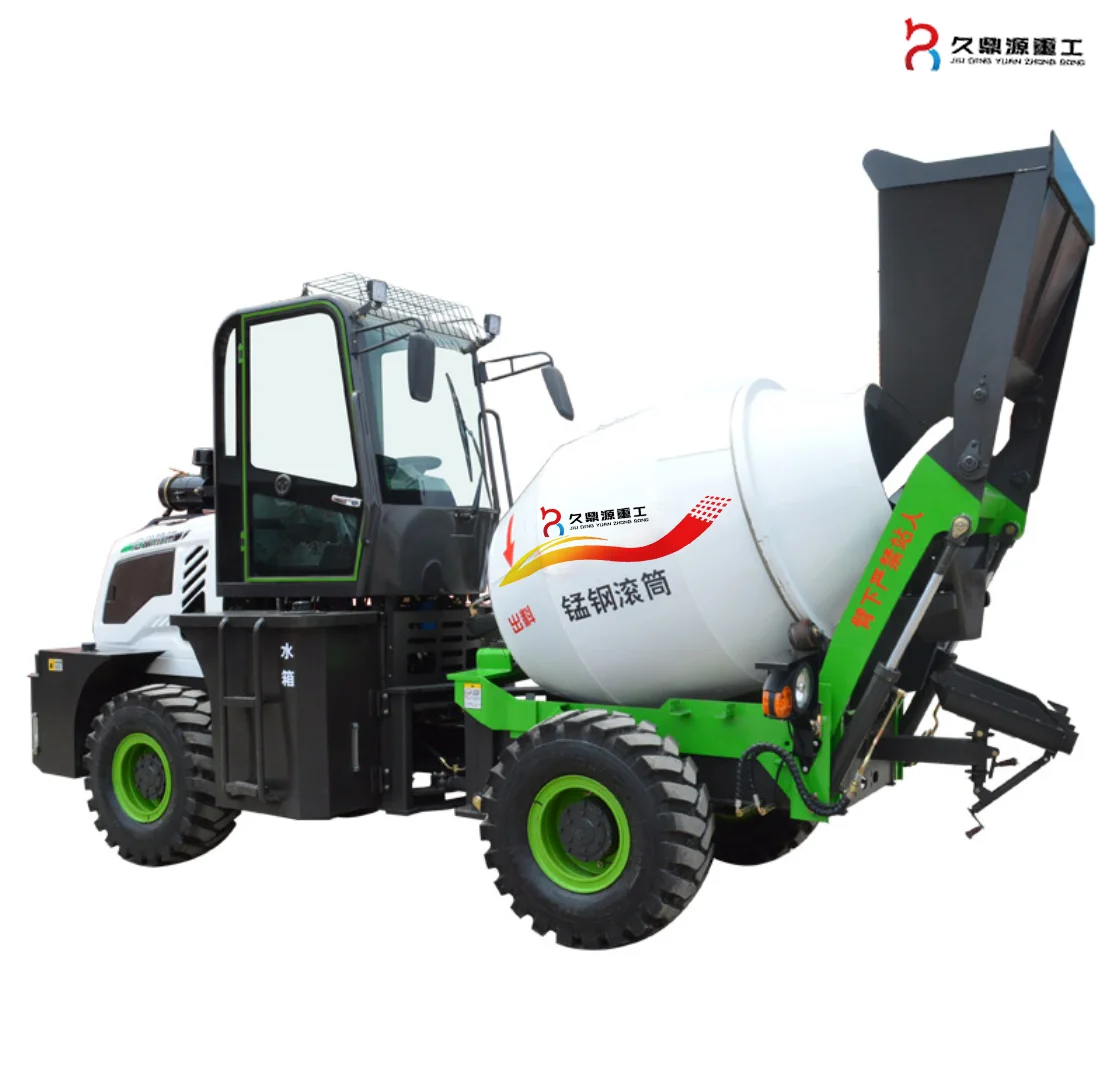

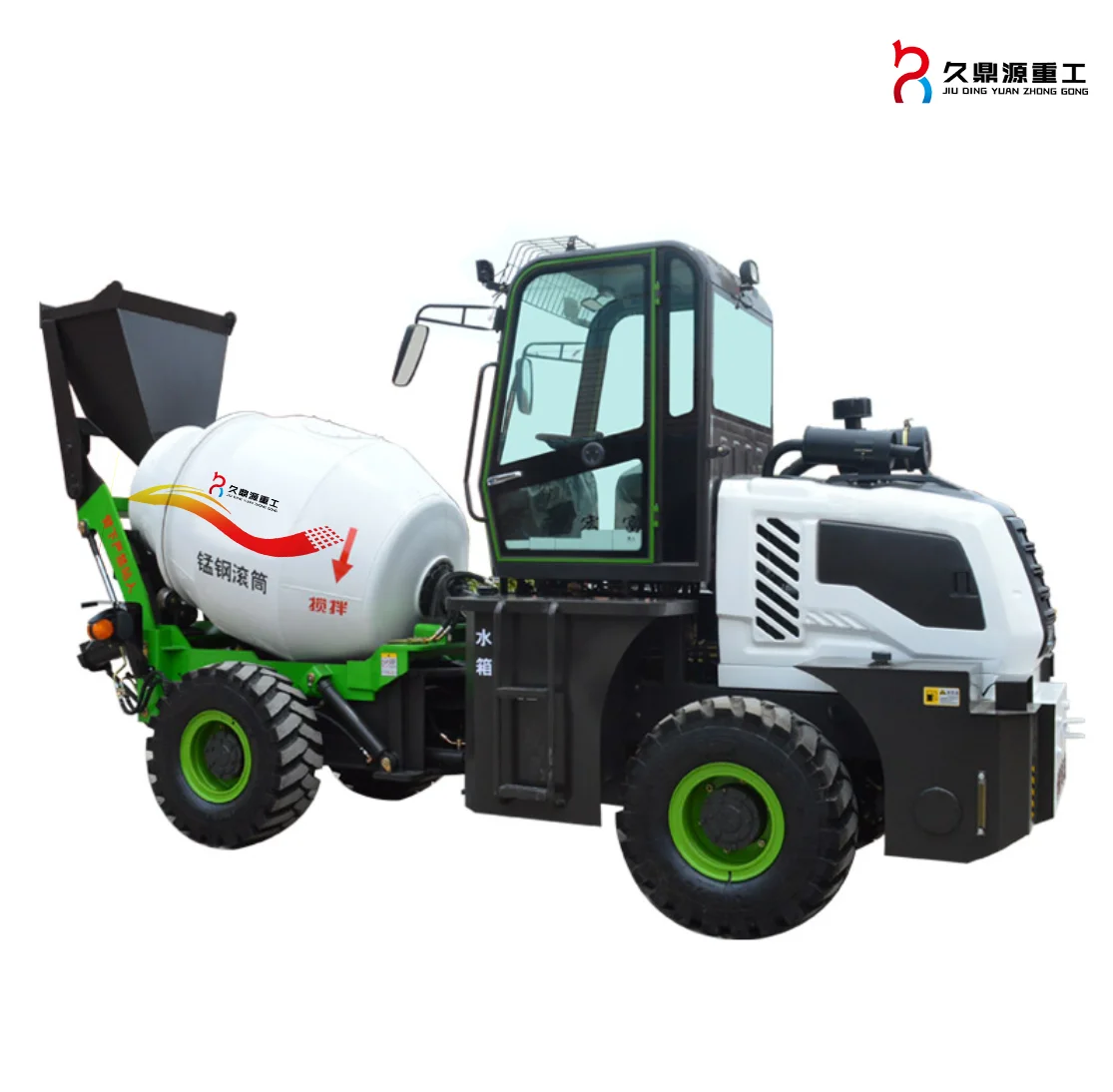

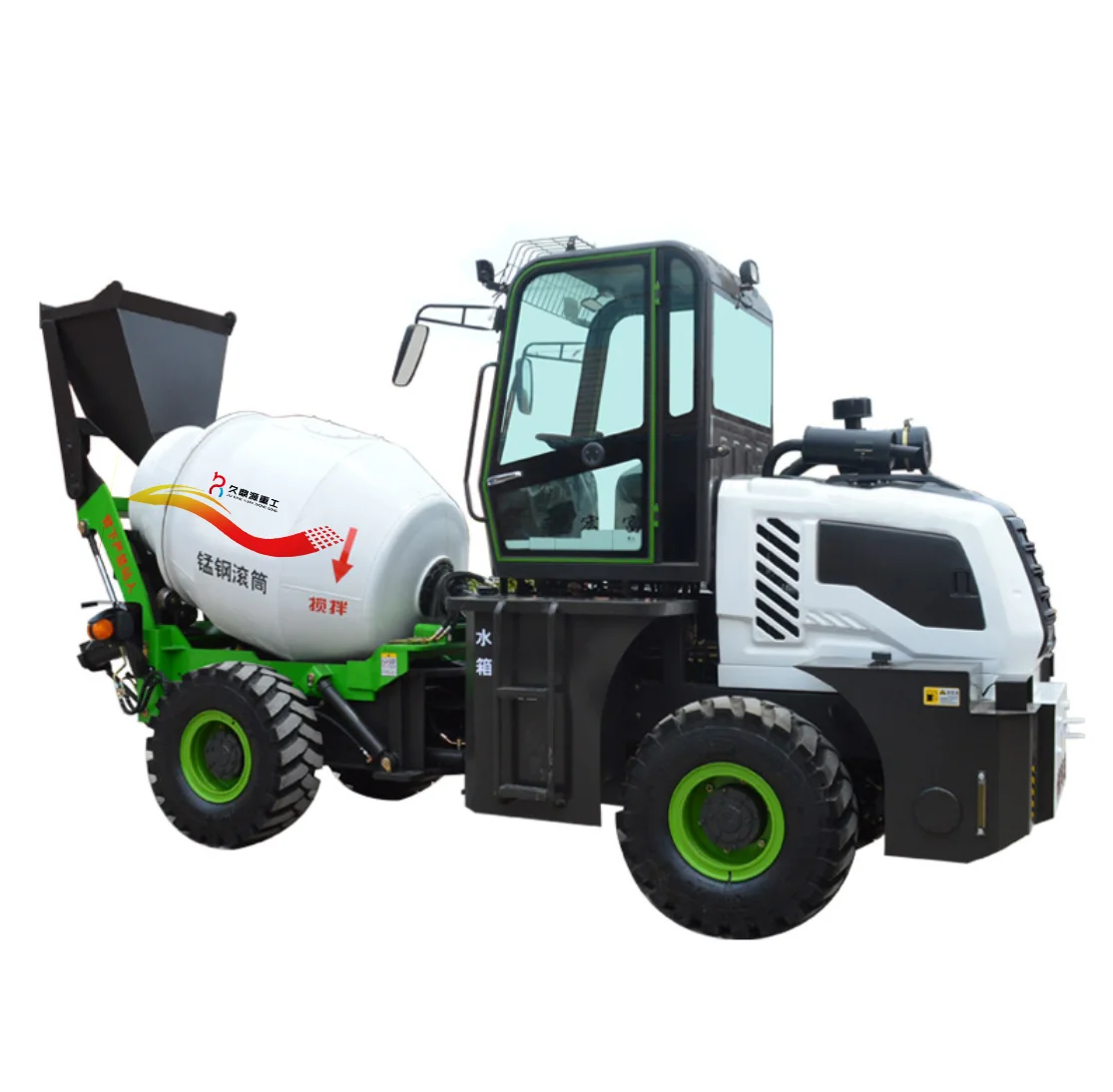

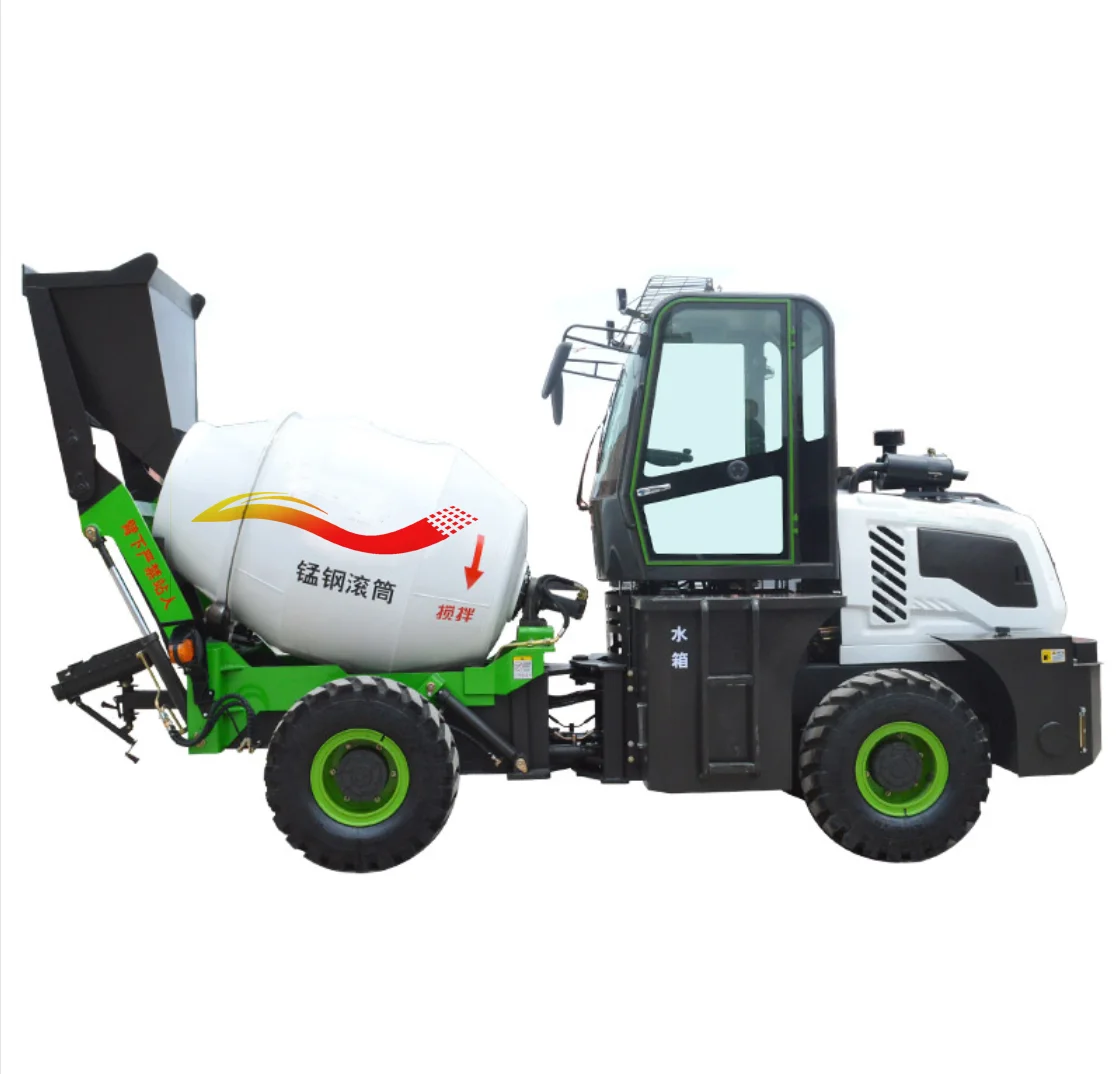

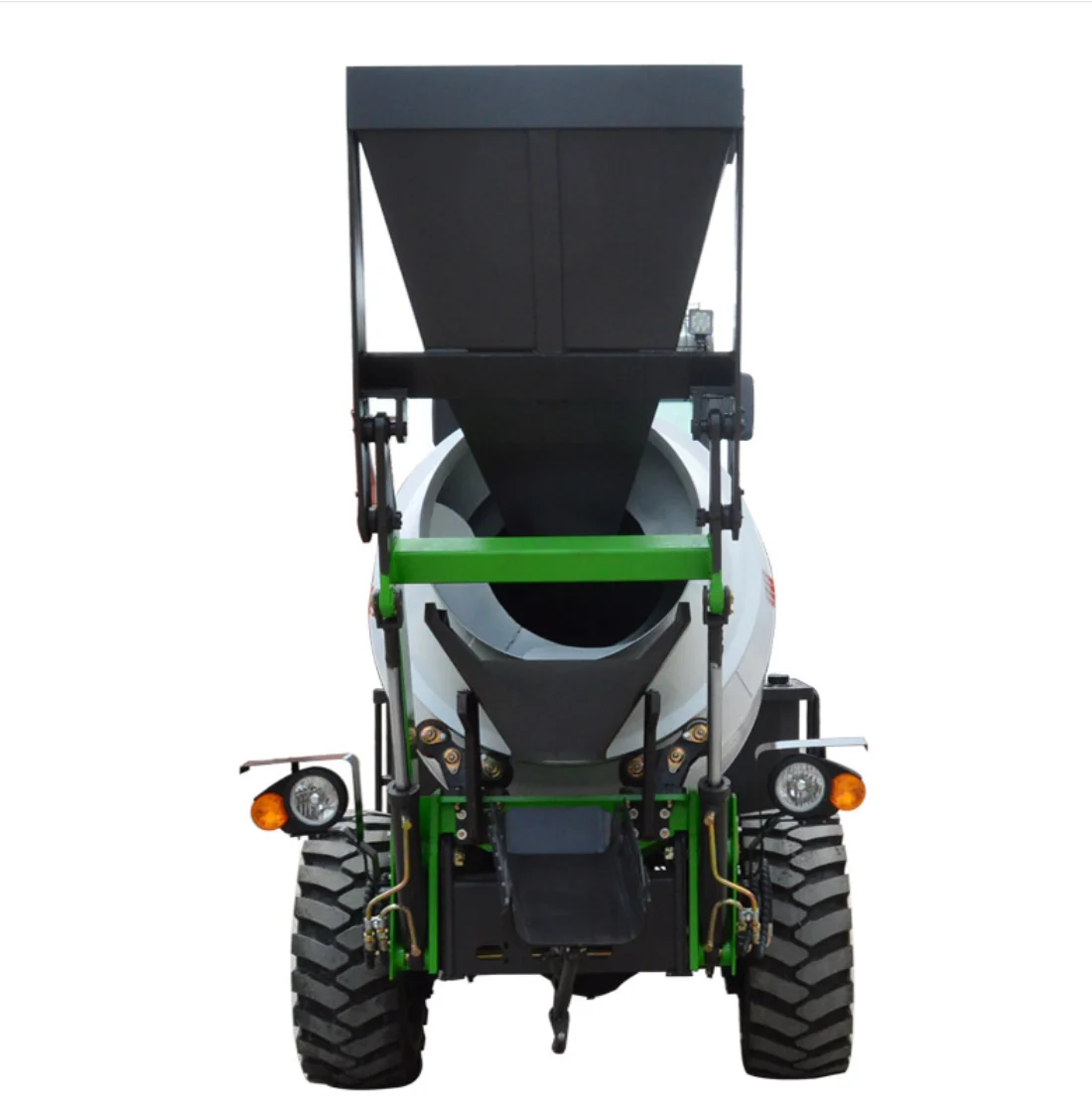

Автобетономешалка на выходе 1M3 для продажи дизельная мини-Бетономешалка

Описание и отзывы

Трекер стоимости

Характеристики

Product parameters
Specificatons	Unit	Parameter
Equipment model		JDY-10
Actual stirring capacity	m3	1.2
Rotary drum capacity	m3	1.4
Degree of bias	°	16
Rotational speed	r/min	0-14
Direction of rotation		Feed:clockwise putput:counter clockwixe
Mixing drum blade		Two sets of spiral blades and four sets of auxiliary blades
Slump of concrete	mm	70-260
Hydraulic Power Transmission System
Pump model		CBGV-4025
Hydraulic motor model		BMSS-250
Reducer ratio		1:10
Water supply
Tank capacity/water supply form	L	540/automatic timing water supply mechanism with automatic timing
The main performance paprameters of the chassis and the main performance parameters of the engine
Engine type/displacement	L	CF4B68G-Z-13B2/CF4C100T-Z-13B2
Model		Straight injection type four stroke water cooled supercharged diesel engine
Rated power	kw/r/min	55KW/2400 78KW/2400
Max torque	N.m/r/min	255/1500-1800 380/1500-1800
Max running speed	km/h	24
Min steering radius	mm	5000
Climbing capacity	%	26
Tire		23.5/70-16
Driving way		4×4
Weight	kg	4580
Maximum load capacity	kg	2800
Whole machinery weight	kg	7380
Overall size(L*W*H)	mm	6100*1850*3000
