Product Description

main Features:

1. The condensing units use Danfoss ,Copeland ,Dorin, Bitzer compressor, Hitachi,Boyang, other famous or appointed brand.

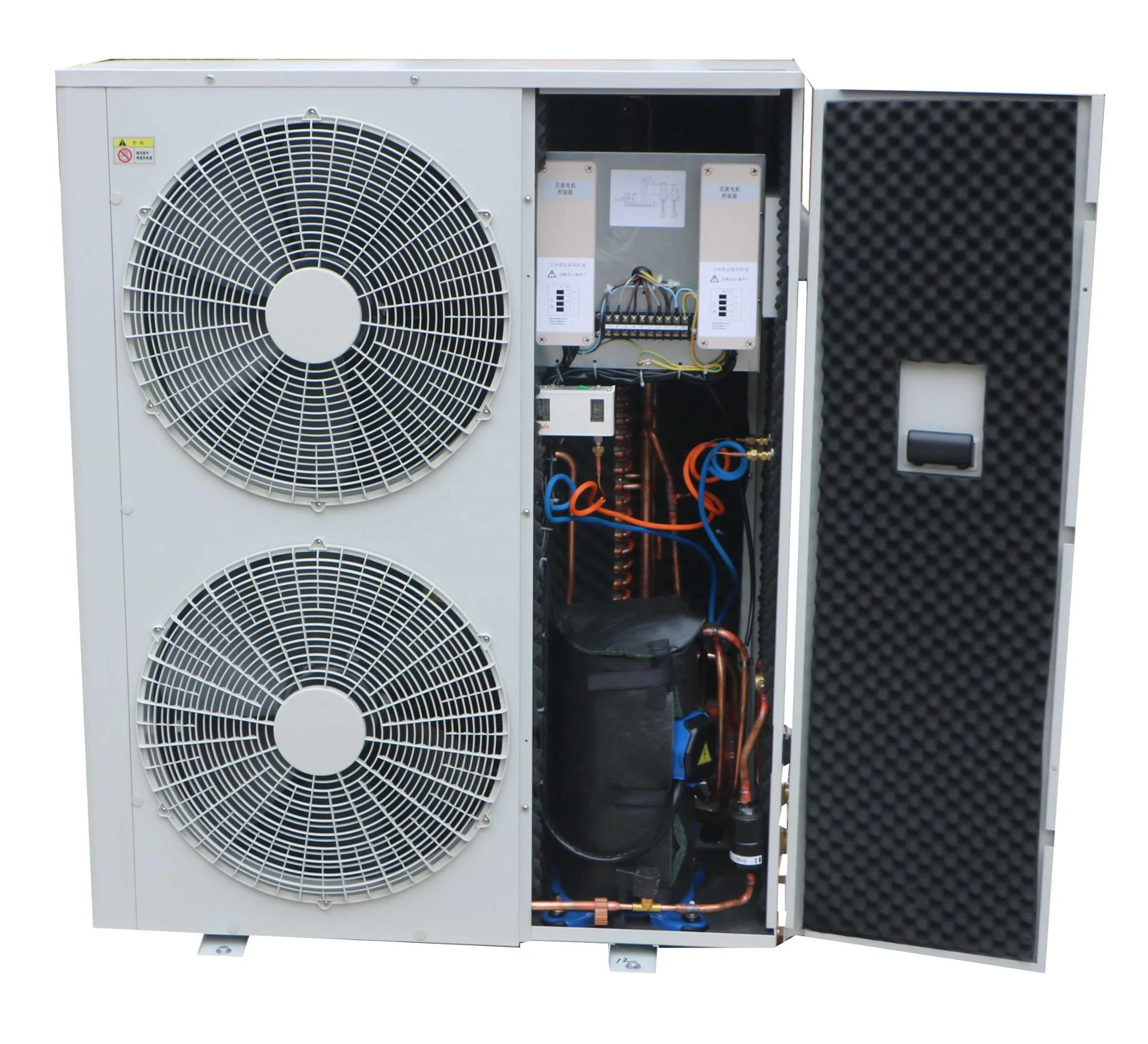

2. The refrigeration condensing unit accessories include liquid receiver, pressure gauge, vibration absorber, solenoid valve, oil separator, suction accumulator, dual pressure controller, sight glass, dry filter, junction box, DC fan motor etc.



3.The refrigeration condensing units pass through at least three steps detection:One is filled with 2.6 Mpa nitrogen in the system and immersed in water more than 5 minutes for leak detection, two is filled with freon and use halogen detector to leak detection,the leakage is less than 2g per year; three is online operation test to ensure every unit is normal state before leaving factory.



4. Condensing unit refrigerating capacity rangs from 0.5 KW to 40KW and evaporating temperature:-25℃— +5℃, run steady under the ambient temperature +43℃.



5. According to your needs, we can configure extra high quality electrical components for you, to improve the availability and reliability of the unit.



6.The condensing unit power and structure can be OEM as your drawing and request.

Our advantage:

1. High quality material, New technology production machine and professional technician to make sure condensing unit quality.



2. We have professional technical team,so we can design and OEM special products for you.



3. Responsible QC and QA system make sure each condensing units to conform the production standard.

















Model                                              Technical Date NF200DGM NF200SGM NF250DGM NF250SGM NF300DGM NF300SGM      NF350DGM NF350SGM NF400DGM NF400SGM NF500SGM NF600SGM NF700SGM NF800SGM Nominal Capacity(kW) 3.76 4.12 5.48 6.02 6.82 8.67 10.15 11.17 13.38  Horse Power (HP) 2 2.5 3 3.5 4 5 6 7 8 Compressor ZB15 ZB19 ZB21 ZB26 ZB29 ZB38 ZB45 ZB48 ZB58  Fan Quantity 1 1 1 1 1 2 2 2 2 Fan Diameter (mm) 490 Air Flow (m³/h) 6300 6300 6300 6300 6300 10800 10800 10800 10800  Fan Motor Power (W) ≤170 ≤170 ≤170 ≤170 ≤170 ≤340 ≤340 ≤340 ≤340 Connection Pipe Diameter  Liquid Line (inch) 3/8 3/8 3/8 1/2 1/2 1/2 1/2 1/2 5/8  Gas Line (inch) 3/4 3/4 3/4 3/4 3/4 7/8 7/8 7/8 7/8  Power Sourch 220V/1/50Hz 220V/1/50Hz 220V/1/50Hz 220V/1/50Hz 220V/1/50Hz 380V/3/50Hz 380V/3/50Hz 380V/3/50Hz 380V/3/50Hz 380V/3/50Hz 380V/3/50Hz 380V/3/50Hz 380V/3/50Hz 380V/3/50Hz  Rated Current (A) 12.2/5.1 13.7/5.1 17.2/6.5 17.9/7.9 20.1/8.7 11.5 13.0  13.6 17.9 External Dimensions Width (mm) 1050 1050 1050 1050 1050 1050 1050 1050 1200  Height(mm) 845 845 845 845 845 1245 1245 1245 1245  Deep(mm) 430 430 430 430 430 430 430 430 580  Net Weight (kg) 65 68 78 91 96 106 119 123 147
