Хит продаж 2020 золотистый и Алмазный земснаряд типа
- Категория: Земснаряд >>>
- Поставщик: Shandong,Haijie,Dredging,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 36890.62 $* | 38735.49 $* |
| Aug-17-2025 | 36580.77 $* | 38409.68 $* |
| Jul-17-2025 | 30690.62 $* | 32225.84 $* |
| Jun-17-2025 | 35960.85 $* | 37758.7 $* |
| May-17-2025 | 31310.46 $* | 32876.66 $* |
| Apr-17-2025 | 35340.98 $* | 37107.2 $* |
| Mar-17-2025 | 35030.3 $* | 36782.58 $* |
| Feb-17-2025 | 34720.6 $* | 36456.6 $* |
| Jan-17-2025 | 34410.24 $* | 36131.17 $* |
Характеристики
Alluvial gold plant washing plant/alluvial gold wash machine from China

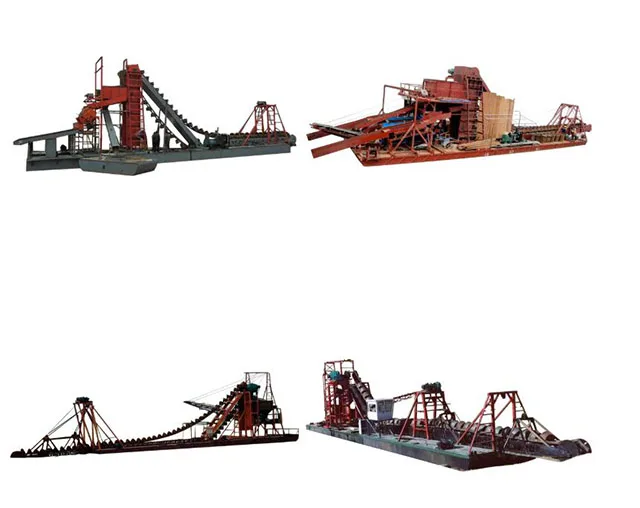

Products Show
Product Application

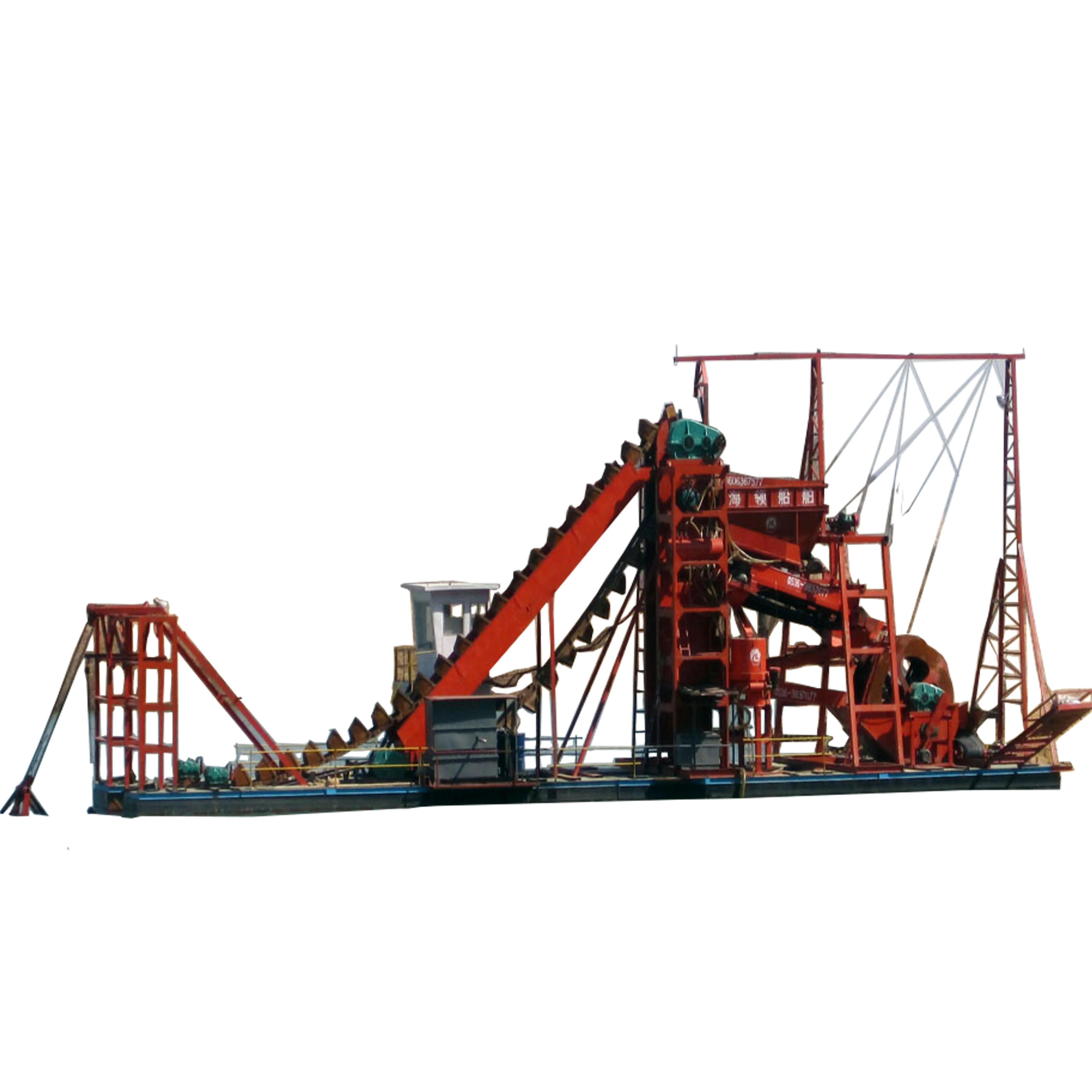

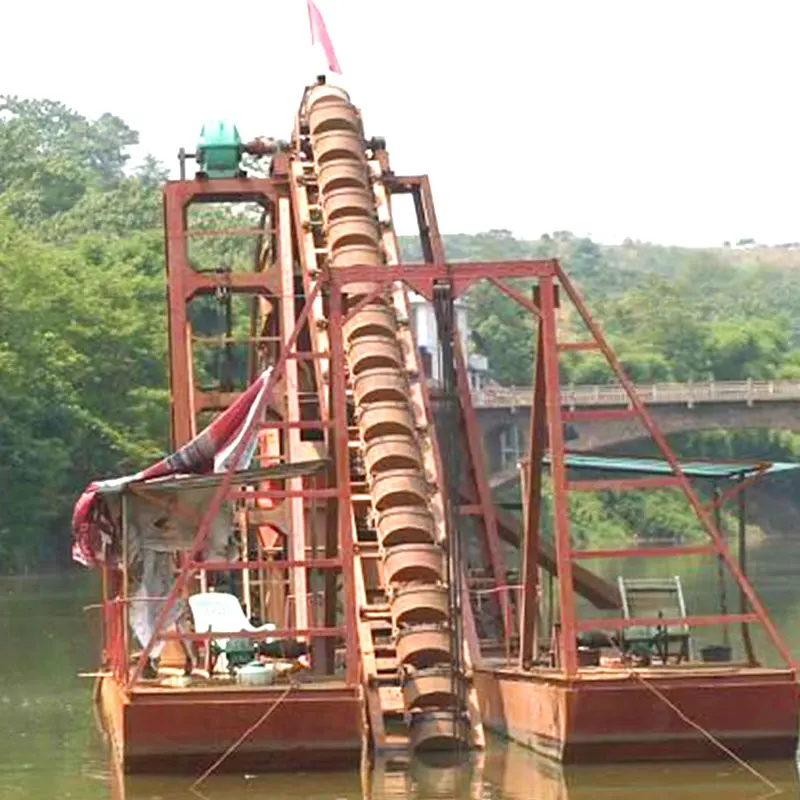

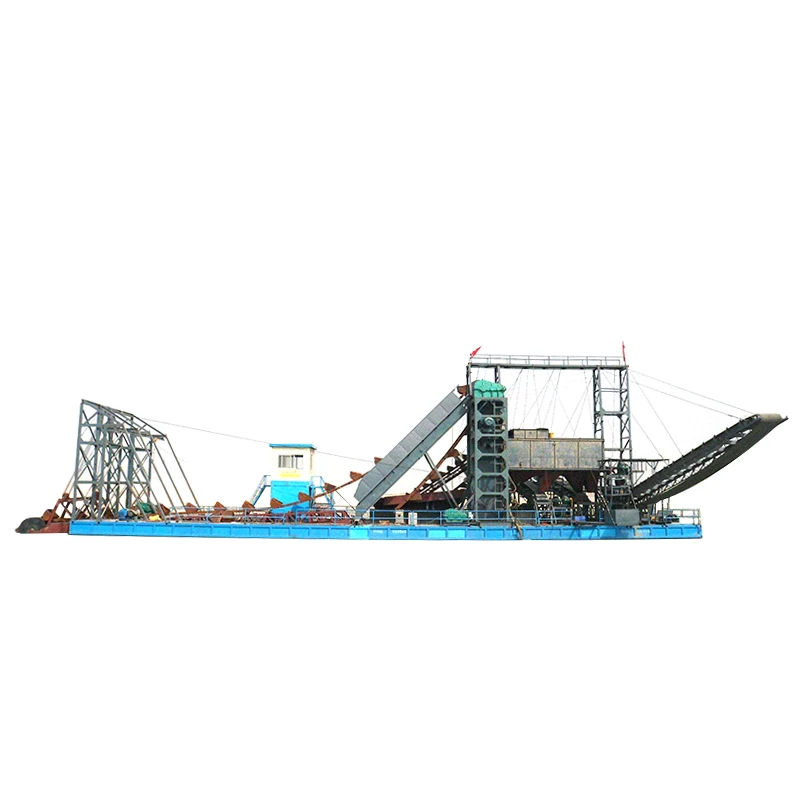

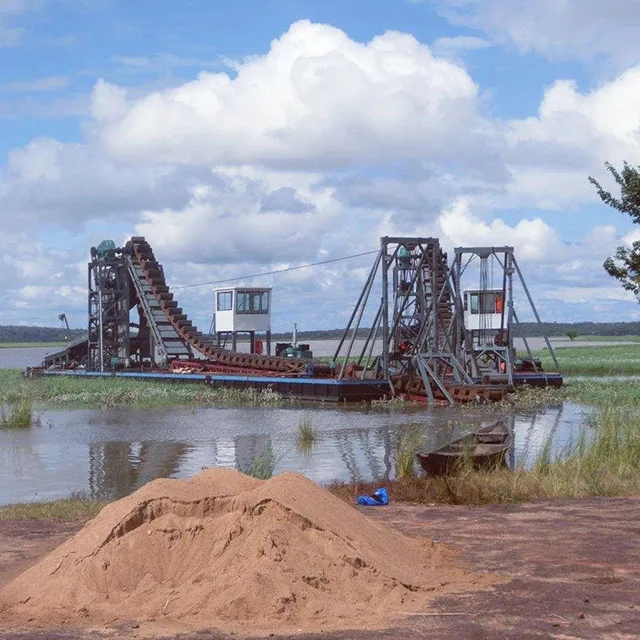

Chain Bucket Dredger is one of the company's main product, the main technical personnel took part in research and development of sand dredging ship, and transform many times to make it more perfect. This machine is a chain bucket sand mining machinery, which can complete the yellow sand extraction, screening, cleaning, grading and other at the same time. One-time to produce qualified, clean gravel products, equipped with power is diesel or motor, it can screen sandy stone, cleansing work. And it can be installed on the pebble crusher broken to the second washing.
Main Features
1) The HAIJIE series of gold bucket chain dredger are designed according to clients specific mining conditions and requirements.
2) Dredging depth could be min 5 meters and max 30 meters.
3) Processing capacity could be 50tph-400tph.
4) The chain bucket system digs the materials from river/sea bottom, convey it up and feed into the trommel.
5) Double sieve trommel screen with NSK bearings and high pressure water spray pipes on both sides for washing, screening and separating.
6) Double gold recovery systems to ensure highest recovery rate of gold (up to 98%).
7) Water supplying systems with multiple sets of big power submersible slurry pumps, hoses, valves, etc.
8) Powering system with Cummins diesel generator with all batteries, cables and wires.
9) Gold refinery plant to make final product of gold bars.
10) Easy for installation, operation and maintaining.
11) One-Sop gold mining solutions from A to Z.
Model | Capacity (m³/h) | Max.dredging depth (m) | Total power (kw) | Recovery (%) |
HJ-B60 | 60 | 1-28 | 95-125 | 95 |
HJ-B80 | 80 | 1-28 | 95-125 | 95 |
HJ-B100 | 100 | 1-28 | 95-125 | 95 |
HJ-B150 | 150 | 1-28 | 125-145 | 95 |
HJ-B200 | 200 | 1-28 | 145-167 | 95 |
HJ-B300 | 300 | 1-28 | 167-225 | 95 |
HJ-B400 | 400 | 1-28 | 225-260 | 95 |
Detailed Images
Name: chain and bucket system
Chain material: forged high-manganese steel
Bucket material: High-Manganese steel with forged lips, anti-tearing
Bucket size: depending on the dredger processing capacity
Function: to dig the materials from pond/river/sea bottom
Chain material: forged high-manganese steel
Bucket material: High-Manganese steel with forged lips, anti-tearing
Bucket size: depending on the dredger processing capacity
Function: to dig the materials from pond/river/sea bottom
Name: Vibrating Sluice + sluice box
Vibrating sluice type: Hydraulic type
Size: 1m*6m
Sluice box carpet: Mitsubishi brand, imported from Japan
Function: for coarse gold recovery
Recovery rate: 99%
Vibrating sluice type: Hydraulic type
Size: 1m*6m
Sluice box carpet: Mitsubishi brand, imported from Japan
Function: for coarse gold recovery
Recovery rate: 99%
Name: Cummins diesel Generator
Power: 100Kw-3000Kw
Brand: Cummins, Weichai,Jichai or as required
Function: supplying power to all the systems
Power: 100Kw-3000Kw
Brand: Cummins, Weichai,Jichai or as required
Function: supplying power to all the systems
Name: Control desk
Type: buttons type
Control person: 1 person
Funciton: to control all the equipment in the dredger
Control person: 1 person
Funciton: to control all the equipment in the dredger
Name: Test Pool
Type: Pool for test
Funciton: Machine be tested in tested pool to make sure our products performance will work well before customer use them
Funciton: Machine be tested in tested pool to make sure our products performance will work well before customer use them
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample sand dredger testing support.
* View our Factory.
* Sample sand dredger testing support.
* View our Factory.
After-Sales Service
* Training how to install the sand dredger boat, training how to use the sand dredger boat.
* Engineers available to service sand dredger boat overseas.
* Office in Nigeria, India, Bangladesh, Colombia etc for 24h sand dredger boat after-sale service
* Engineers available to service sand dredger boat overseas.
* Office in Nigeria, India, Bangladesh, Colombia etc for 24h sand dredger boat after-sale service
Packing&Shipping
Small size dredger boatwill be transported by 40inch HC to save your cost
Big size dredger boat will be transported by bulk cargo ship.
Related Products
Jet Suction Dredger
Service Boat
Cutter Suction Dredger
Customer Visiting
Company Introduction
HAIJIE Environmental Equipment Co., ltd is located Masong Industrial Park, QIngzhou, Weifang City, Shandong Province, China. Our major products: Cutter Suction Dredger, Sand pumping dredger, gold dredger, mining machinery, sand washing plant, etc. Our products have advantges with high efficient, low cost, and convenient operation, over the years, Haijie has provided sand extraction, ore mining equipment for many mining compaines, in addition, Haijie has exported equipment to Negiera, Cote d'lvoire, Cameroon, Libera, Ghana, Indoesia, Malaysia, Israel, etc.
