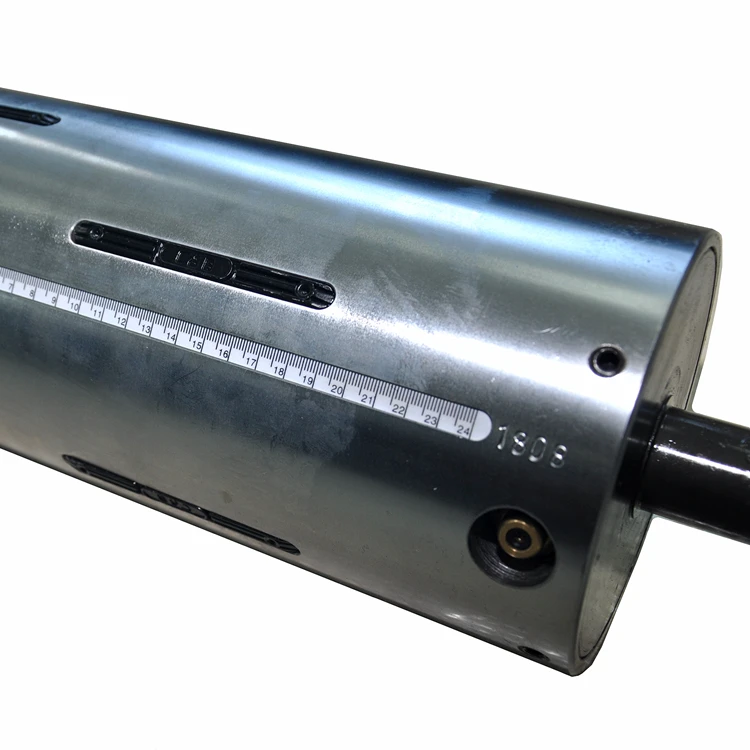

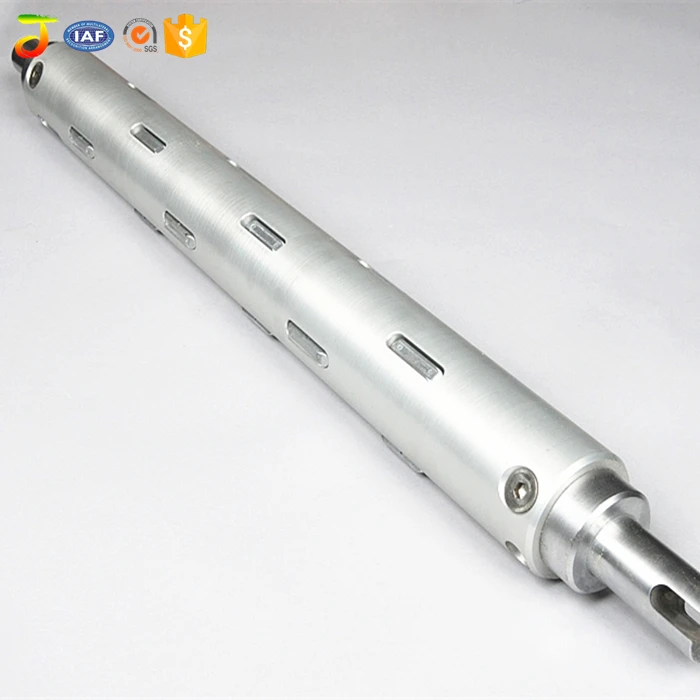

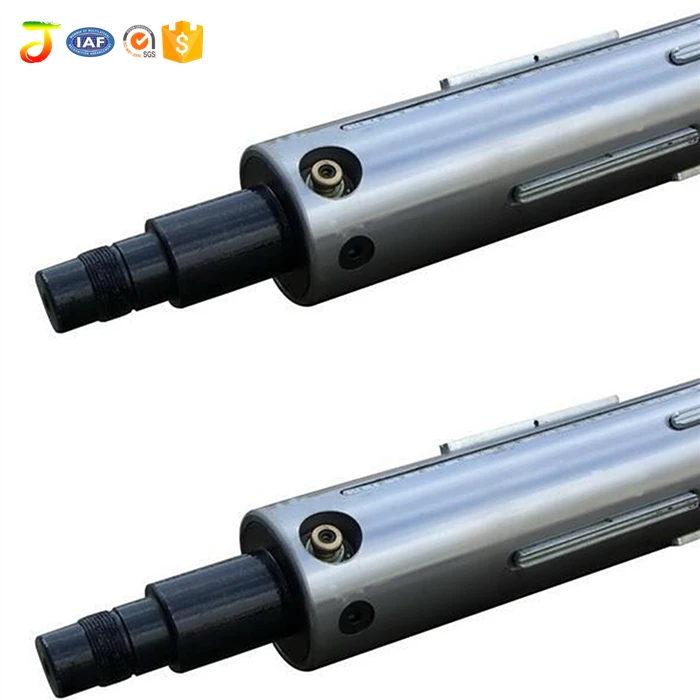

3inch aluminum key strip leaf type air inflatable

1.The connection of spindle head and steel tube is interference fit

We are using a high power press machine which can produce 80T thrust to realize all the combination of spindle head and steel tube. While other suppliers knock the spind head into the steel tube with a big hammer,no quality and accuracy.

2. Adopting  hi-precision cold-drawn steel tube as the shaft body

We adopt  hi-precision cold-drawn steel tube as the shaft body.The thickness of this kind of tube is uniform so when the rubber balloon inside is inflated ,all key strips will stick out at same height and good material can help keep a better dynamic balance .

3. Adopting whole long key bar and pagoda springs for key type air shafts

For the key strip,we adopt a whole piece of aluminum plate to make it.And it can form a good protective ring around the air  bladder. We adopt the pagoda springs to support the air  bladder which can bear 300000 times.

4.The connection between our air bladder and shaft head have good sealing performance and very stable.

We use special equipment to connect the air bladder and the shaft head and then lock the outside by iron ring,,which will realize tight seal.

While,many other suppliers fasten both ends by iron wire,this operation is easy to leak ,has badly sealing performance.

5. Quality control

We have the quality control system during the whole production from the very beginning to the end and our principle is to make sure each shaft  is qualified.

6.Packaging

Our air shafts are usually packaged by standard wooden box,plywood wooden box and carton,also can be packaged as customer's requirement.
