4 POE RJ45 сервер PCIe 4X сетевая карта Gigabit PCI Express PCI-E X4 сетевой адаптер 1000
- Категория: Сетевые карты >>>
- Поставщик: Shenzhen,Bojiada,Technology,Co.,Ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 129.90 $* | 135.46 $* |
| Aug-17-2025 | 127.0 $* | 133.49 $* |
| Jul-17-2025 | 107.3 $* | 112.42 $* |
| Jun-17-2025 | 125.11 $* | 131.65 $* |
| May-17-2025 | 109.96 $* | 114.32 $* |
| Apr-17-2025 | 123.48 $* | 129.86 $* |
| Mar-17-2025 | 122.18 $* | 128.5 $* |
| Feb-17-2025 | 121.42 $* | 127.20 $* |
| Jan-17-2025 | 120.4 $* | 126.82 $* |
Характеристики
4 POE RJ45 Server PCIe 4X Network Card Gigabit PCI Express PCI-E X4 Network Adapter 1000Mbps
Product Description

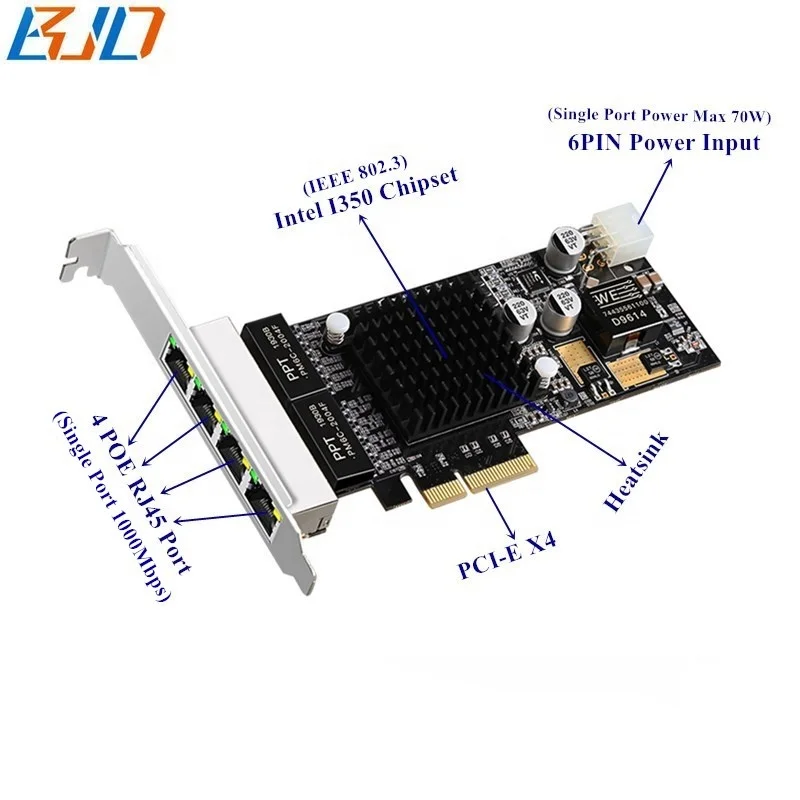

4 Ports Gigabit RJ45 POE Network Card PCI-E PCIe 4X Network Adapter Intel I350 10/100/1000Mbps

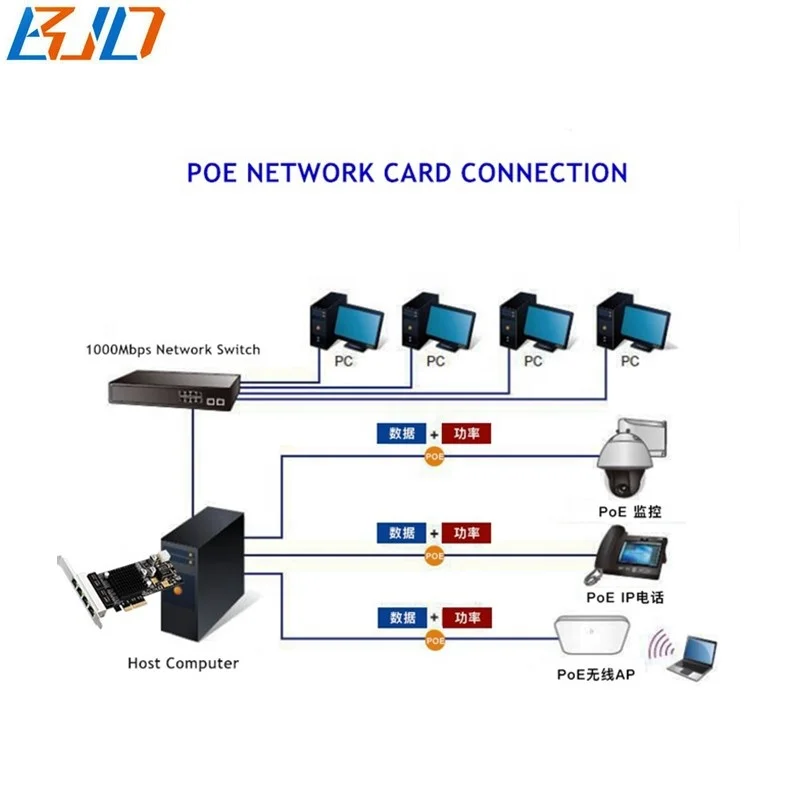

This is a 4-Port Gigabit 802.3at PoE+ PCI Express Server Adapter with a maximum of up to 70 watts of power output over Ethernet cables. Complied with PCI- E standard, it can be installed on any IPC or server motherboard with PCI-E socket to make the IPC or server able to communicate other Ethernet devices and deliver power to PD devices.
Each port of the BJD-A072 can deliver 30W of power and 1000 Mb/s bandwidth over a networking cable of up to 100 meters. Its 30W PoE+ can now power not only PTZ (pan, tilt and zoom) cameras for surveillance applications but also 802.11ac AP for ultra-high-speed wireless application.
Features
• Intel server-grade GbE Mac Controller
• PCI Express (PCIe) x4 slot
• Supports 4 Gigabit Ethernet MAC Controller
• IEEE 802.3at compliant with up to 30W power per port

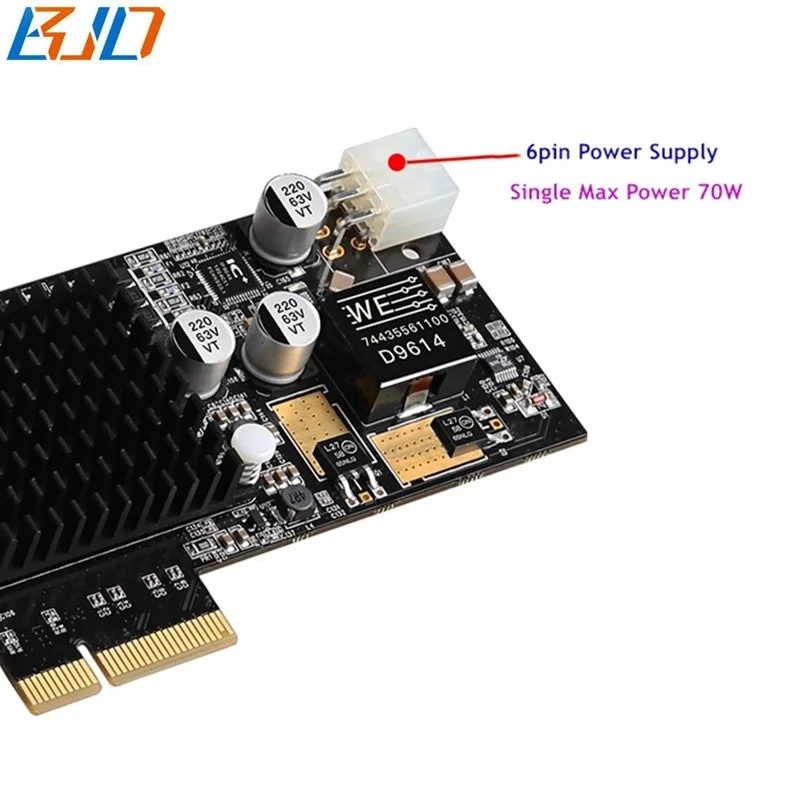

• 12V 6-Pin power connector input
• Powered device (PD) auto detection and classification
• IEEE 802.1q VLAN ID tagged
• 9.5K jumbo frame size
• Complies with Microsoft, Linux and MAC platforms
Package Contents:
1 * POE Server Network Card
1 * Low profile bracket
1 * Drive CD
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
| Hardware | |
| Model | BJD-A072 |
| Chipset | Intel I350 |
| Industry Standard | IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T,IEEE 802.1Q VLANs, IEEE 802.3x Flow Control, IEEE 802.3af Power over Ethernet, IEEE 802.3at Power over Ethernet Plus |

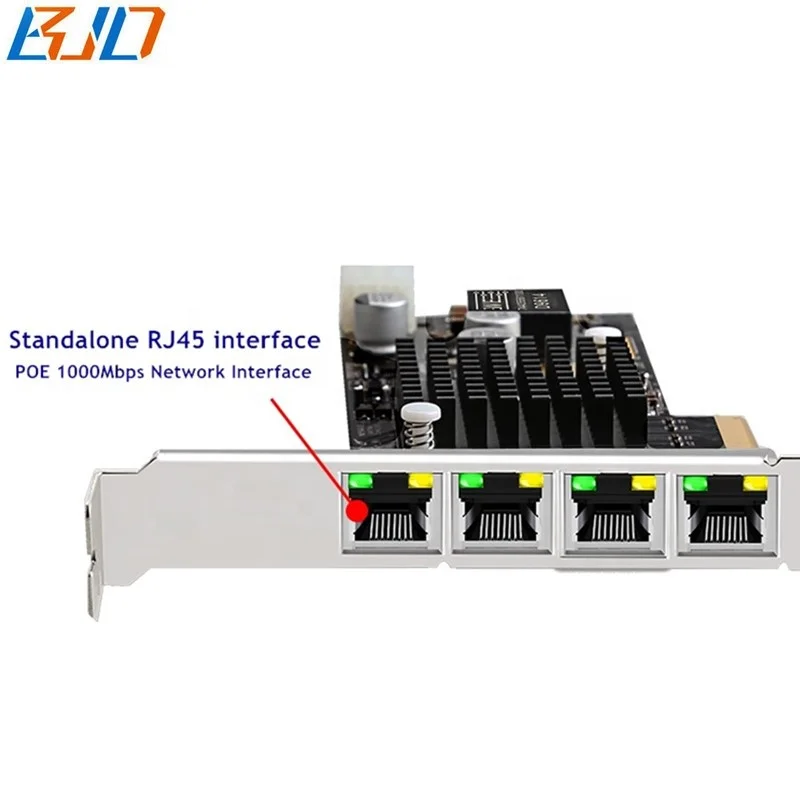

| Interface | 4 * POE RJ45 port |
| Power supply | 12V 6-Pin power supply |
| Single POE output | 30 watts max |
| POWER OVER ETHERNET | |
| POE standard | IEEE 802.3at/af |
PoE Power Supply Type | End-span |
| Poe Power supply | Per port up to 52V DC, max. 30 watts |
| Power Pin Assignment | 1/2 (+), 3/6 (-) |
| Poe Power Budget | 70W maximum with 12V 6-Pin power connector |
Maximum number of PDs | 4 |
| Support OS | Windows 7, 8.x, 10 Windows Server 2008 R2, 2012, 2016 Linux 2.6.x to 4.x |
