Характеристики
Product Description

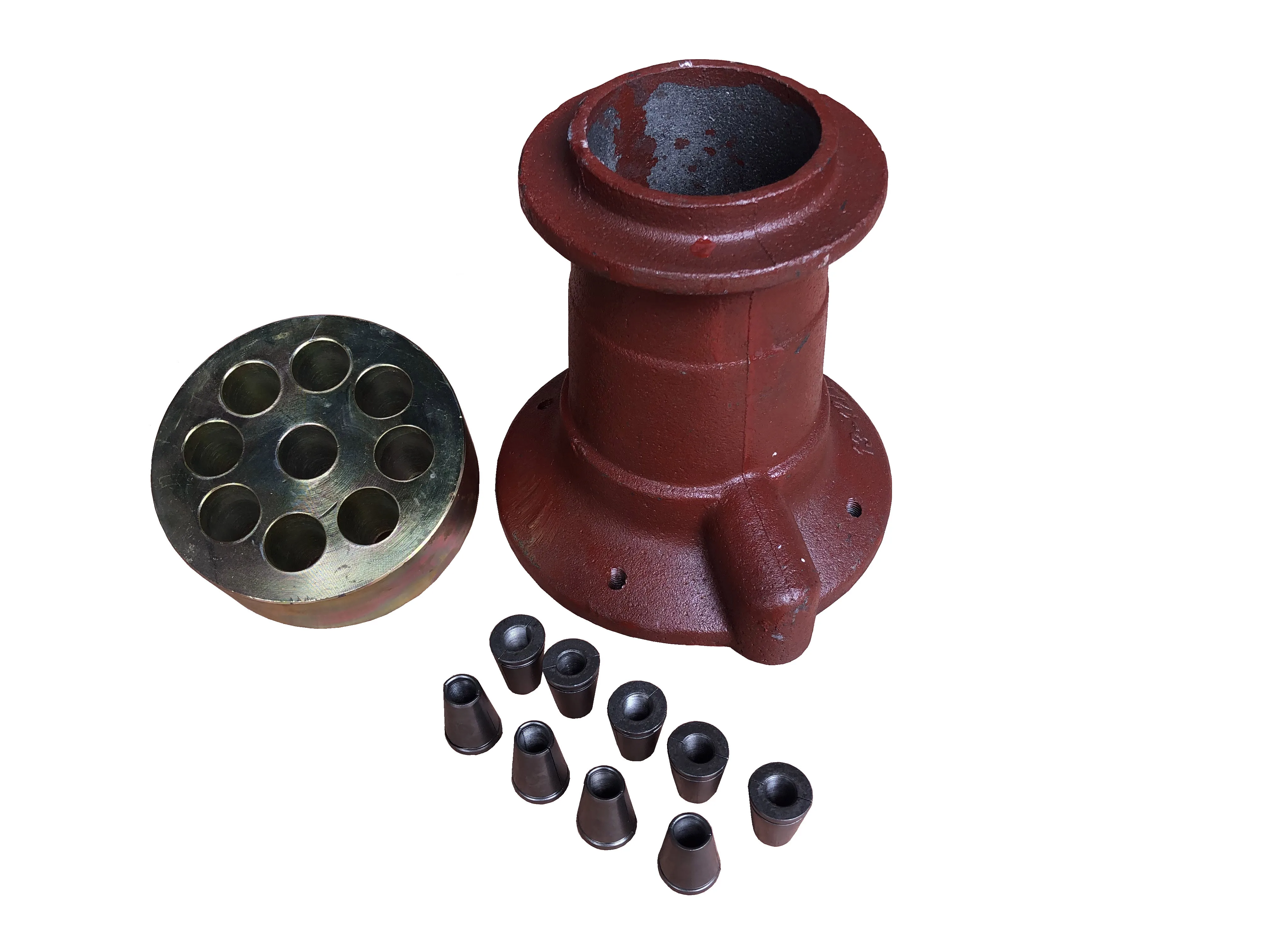

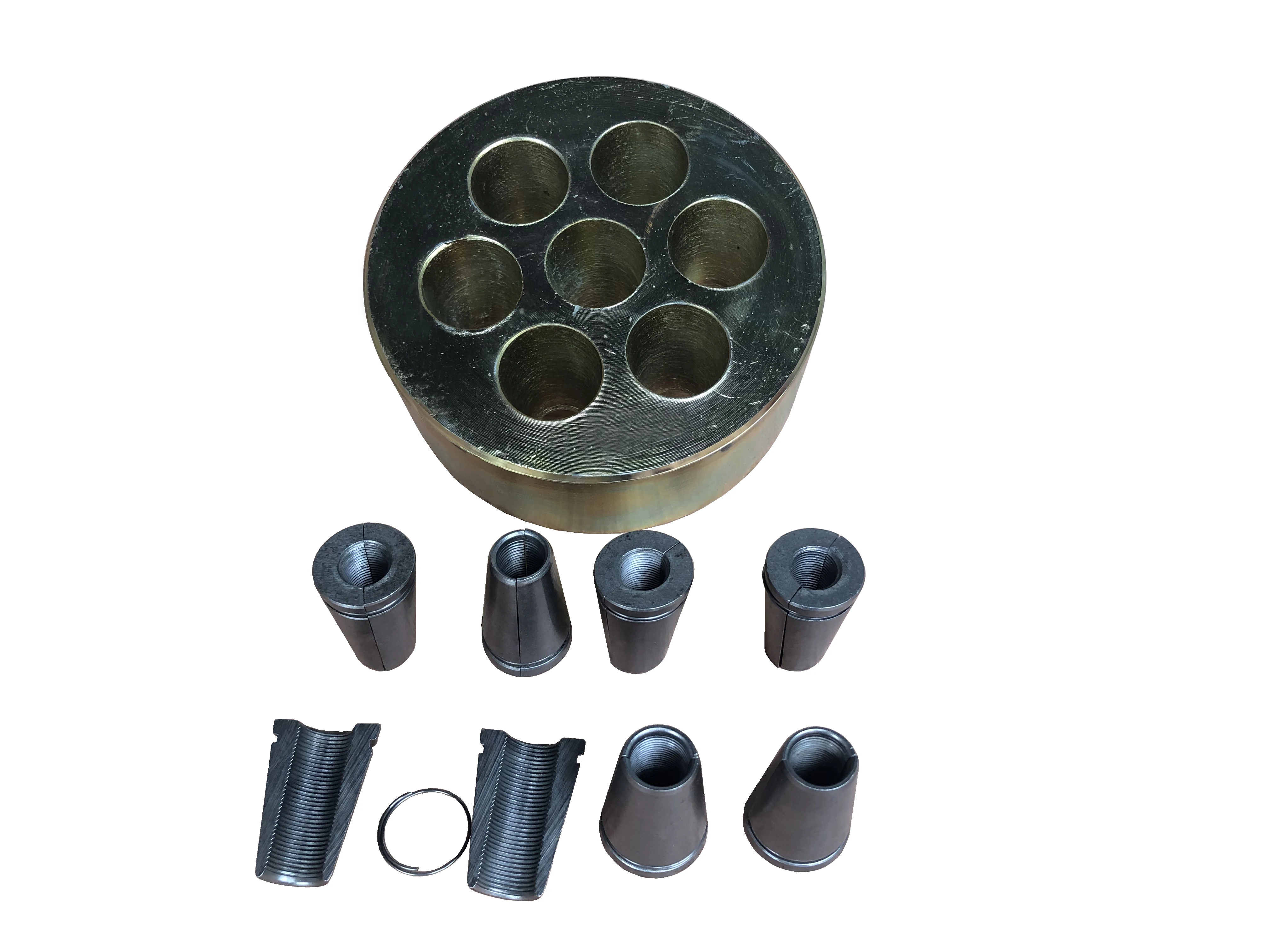

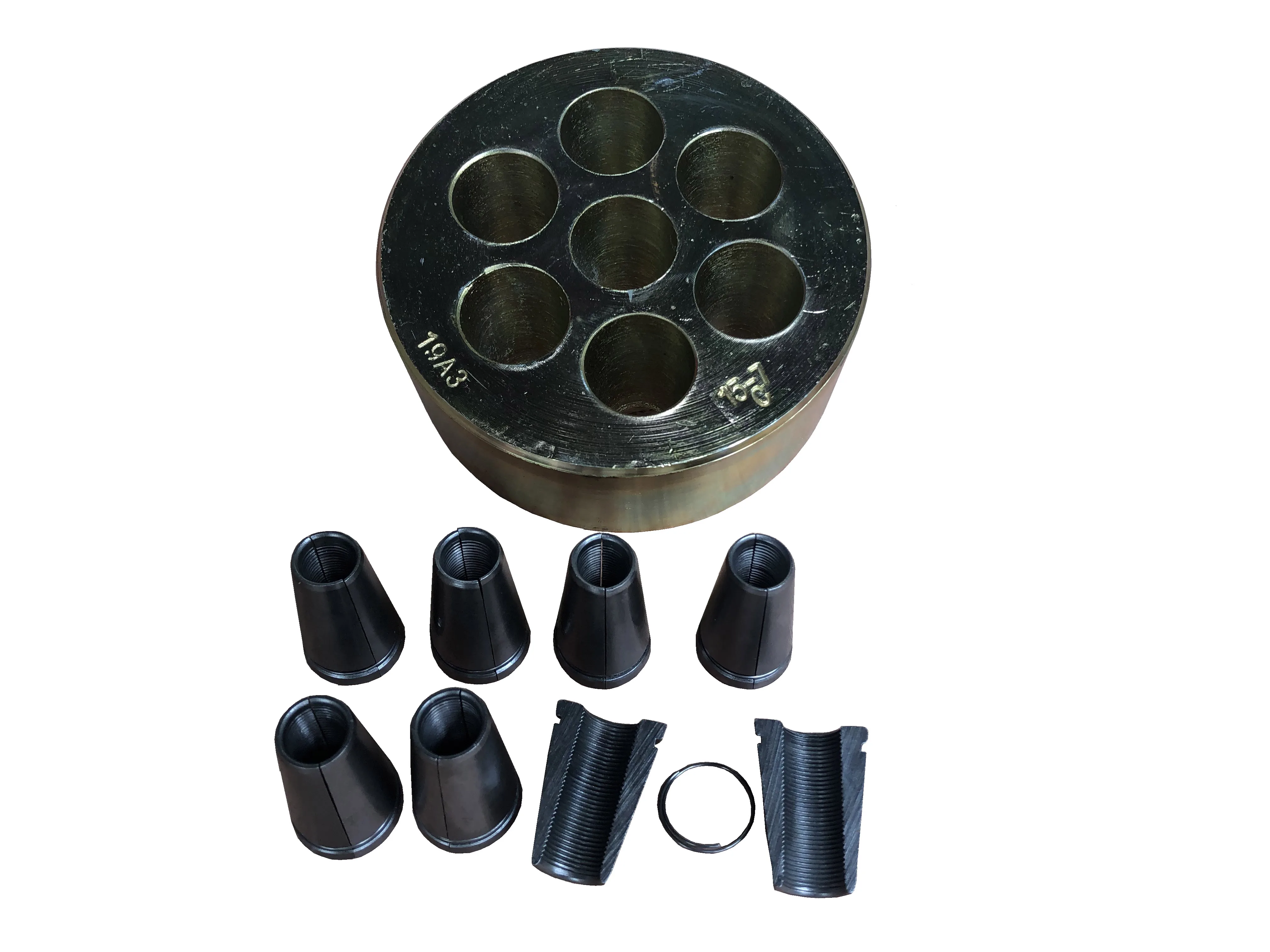

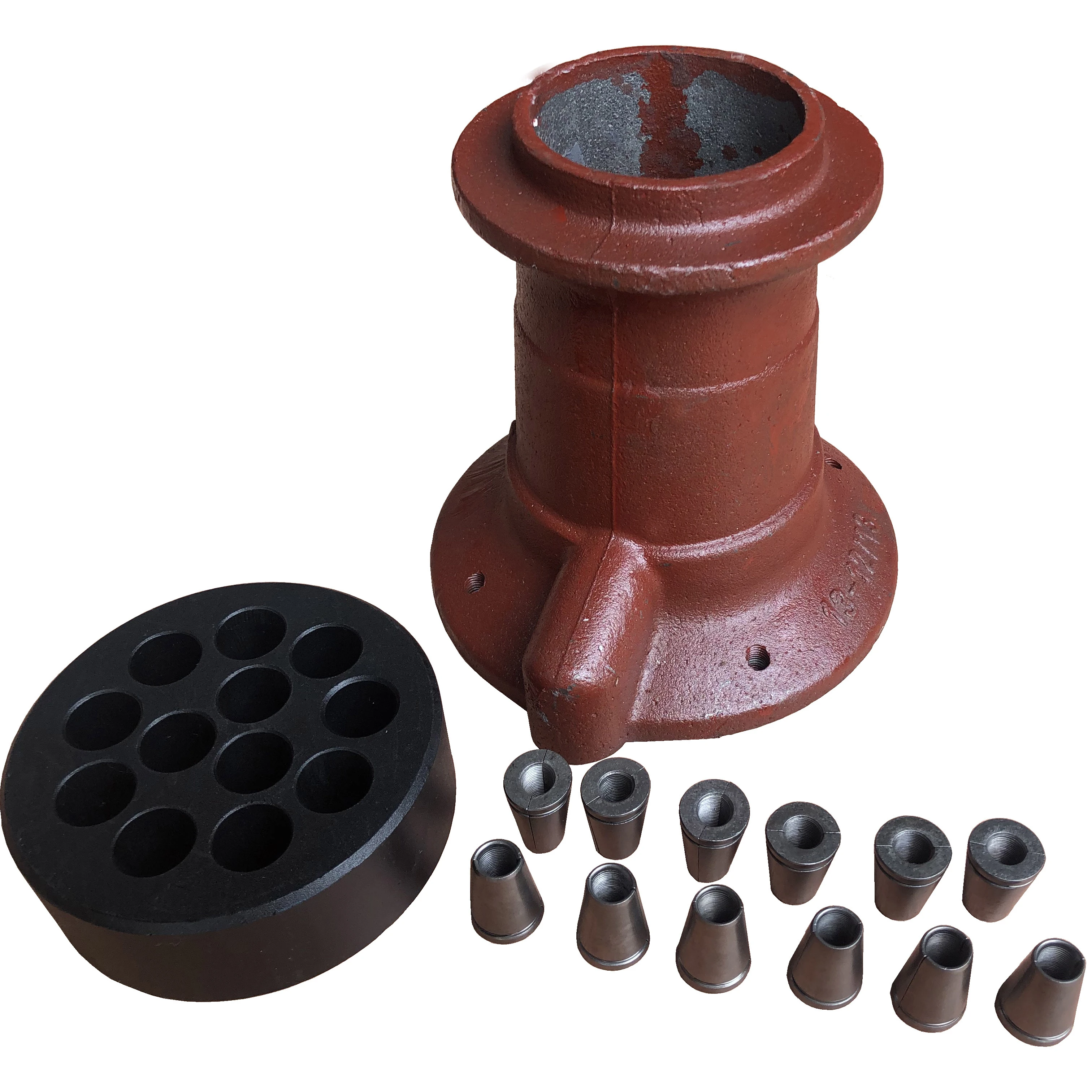

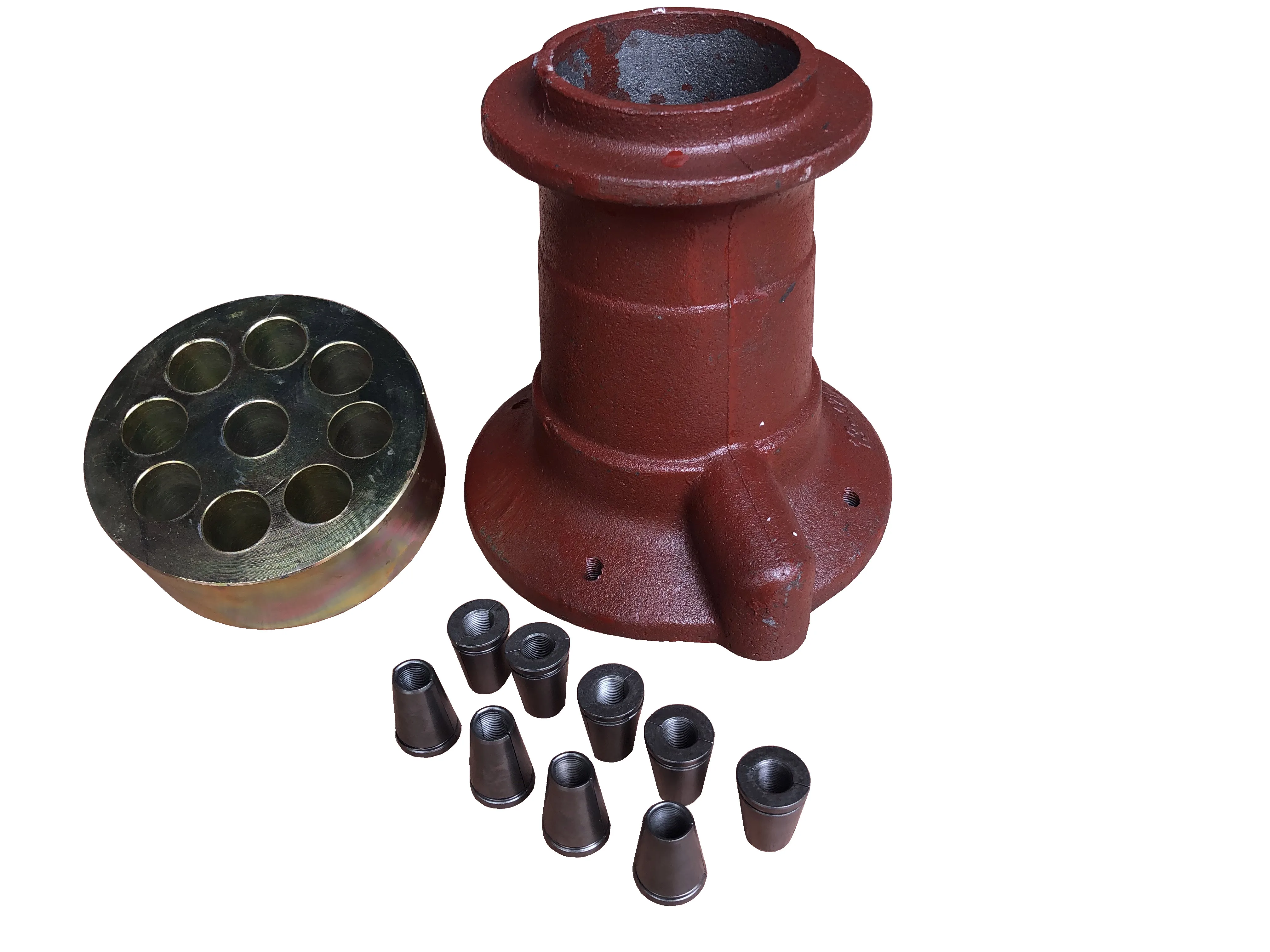

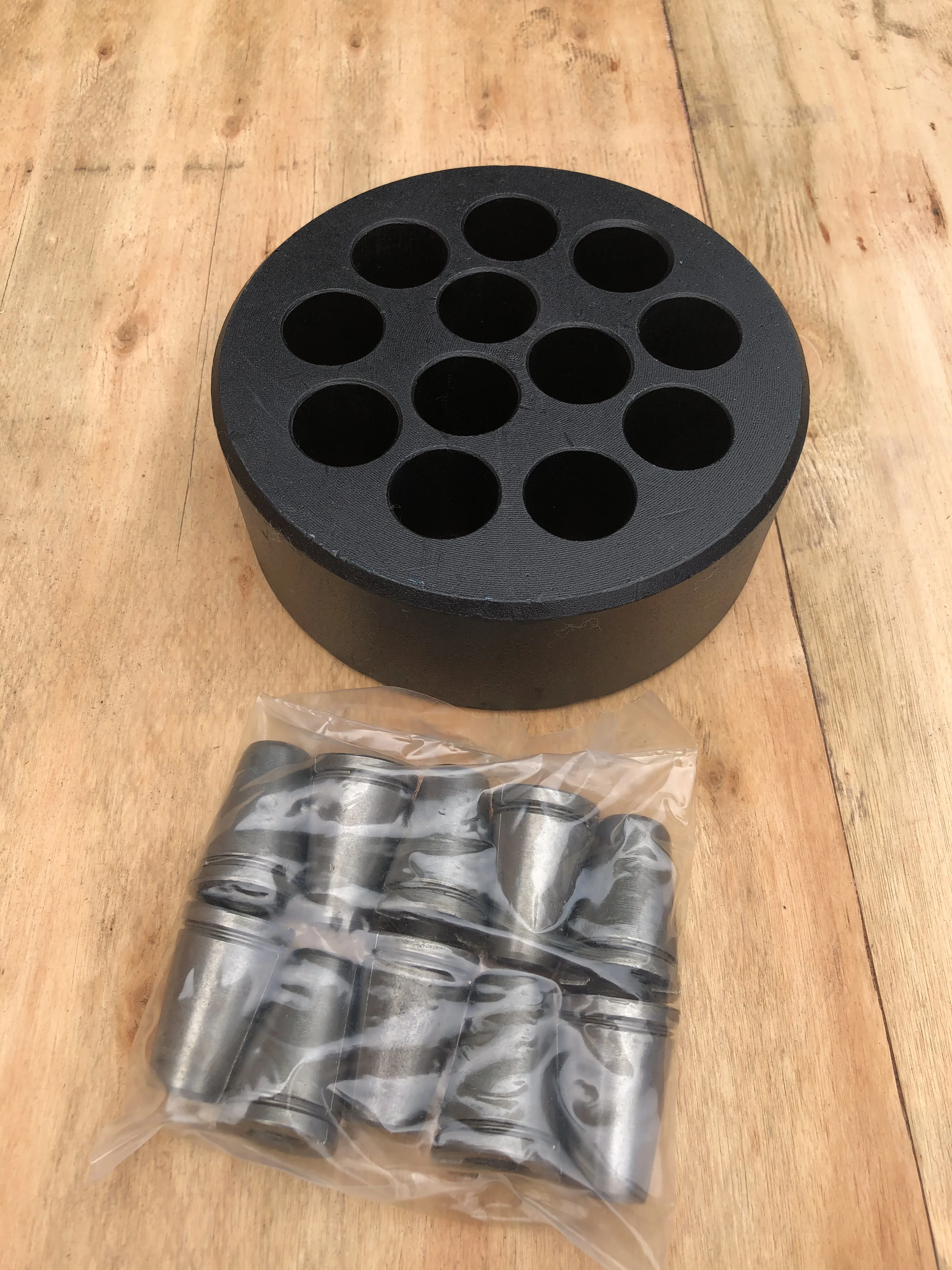

Wedge Anchor Prestressed Anchorage Liuzhou PT anchorage wedge plate anchor head
GCM prestressed anchorage System consists of anchorage (anchor head, bearing plate, wedge and spiral), coupler, strand, duct, etc.
GCM prestressed anchorage match strand with various diameters: 0.5” and 0.6”
GCM prestressed anchorage System feature as follows:
1.Comply with the international specification and recommendations ASTM, FIP, BS, etc. Simple and reliable
equipment for installation, tensioning and grouting.
2. Full range of tendon sizes are available, from 1 to 55 strands and other sizes can be customized upon demands.
3. Adaptable for strand with various strand strength such as 1570Mpa, 1670Mpa, 1770Mpa, 1860Mpa and 2000Mpa.
4. High anchoring coefficient, reliable and stable.
Prestressed anchorage parameter for 0.6" PC strand
| Spec. | Φa×b | ΦA | B | ΦC | ΦG | ΦH | I | N | Dia.of Duct |
| YJM15-5 | 107×45 | 150 | 115 | 70 | 130 | 10 | 50 | 4 | 55 |
| YJM15-6 | 126×49 | 165 | 130 | 80 | 150 | 12 | 50 | 4 | 70 |
| YJM15-7 | 126×49 | 165 | 130 | 80 | 150 | 12 | 50 | 4 | 70 |
| YJM15-8 | 136×53 | 185 | 145 | 90 | 160 | 12 | 60 | 4 | 80 |
| YJM15-9 | 146×53 | 200 | 155 | 90 | 160 | 12 | 60 | 4 | 80 |
| YJM15-10 | 156×54 | 210 | 185 | 100 | 180 | 14 | 60 | 4 | 90 |
| YJM15-11 | 156×54 | 210 | 185 | 100 | 180 | 14 | 60 | 4 | 90 |
| YJM15-12 | 166×60 | 218 | 195 | 100 | 190 | 14 | 60 | 4 | 90 |
Quality Certificate
Quality Certificate for Raw Material
Anchor head Raw Material 45#
Wedge Raw Material 20CrMnTi
2. Factory Inspeciton
Porject Case
Our products used on projects
Packing and shipping
Packed by wooden case
Delivery Time
Decided order specification and quantity .Usually 10 days for one order.
Company Information
Our company
Established on year 2010, Liuzhou Tongzhu prestressing Machinery Co., Ltd. is one of the pioneer
manufacturers specialized in prestressed anchorages, wedges, couplers, hydraulic jack, hydraulic oil pump,
mixer, grouting pump and etc.
Our products spreads all over China and Vietnam, Malaysia, Indonesia, Iraq, Bolivia, Chile etc., which has
come up to the international standard.
We also undertake prestress construction.
One corner of workshop
Certifications
Our Advantage
1. With expertise on bridge construction appliance.
2. With sophisticated experience in prestressing field.
3. With ISO9001 quality management system.
FAQ
Q1: Are you a trading company or a factory ?
A: We are professional factory focus on prestress material for more than 10 years.
Q2: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample but not free, and also the cost freight should be paid by client.
The sample's charge will be returned to you when you place first order.
Q3: How long is your delivery time?
A: Generally it will be 5 to 15 days according to quantity and specification of the products.
Q4: What is your terms of payment ?
A: All by T/T. 30% should paid in advance as deposit, and 70% before shipment.
If you have any other questions, please feel free to contact us.
