95t полный автомат для резки гидравлической сваебойная машина SWCH390-90M с Цена по прейскуранту
- Категория: Сваебойная установка >>>
- Поставщик: Sinomada,Heavy,Industry,(Changsha),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 165767.97 $* | 174055.18 $* |
| Aug-15-2025 | 164374.17 $* | 172593.25 $* |
| Jul-15-2025 | 137907.40 $* | 144802.4 $* |
| Jun-15-2025 | 161588.12 $* | 169667.45 $* |
| May-15-2025 | 140693.77 $* | 147728.94 $* |
| Apr-15-2025 | 158802.63 $* | 166742.30 $* |
| Mar-15-2025 | 157409.50 $* | 165279.3 $* |
| Feb-15-2025 | 156016.93 $* | 163817.19 $* |
| Jan-15-2025 | 154623.93 $* | 162354.99 $* |
Характеристики

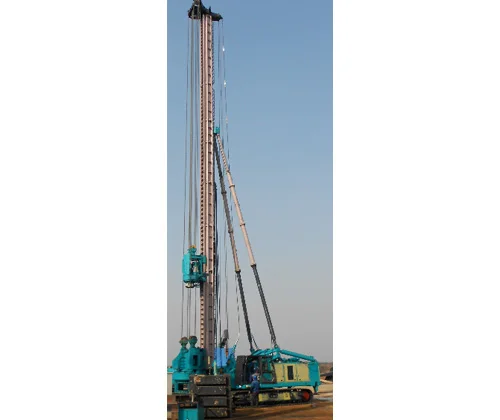

95t Full Hydraulic Track Pile Driver SWCH390-90M With Factory Price
| Engine | Model | QSB6.7-C220 | |
| Rated power | kW | 164 | |
| Maximum torque | N.m/rpm | 949/1500 | |
| Column of pile frame | Length | m | 12,15,18,21,24,27 |
| Diameter | mm | Φ 610 | |
| Spec. of main rail | mm | Φ 102×600 | |
| Specification of auxiliary slideway | mm | Φ 70×330 | |
| Front/rear inclination | ° | ±5 | |
| Left/right inclination | ° | ±1.5 | |
| Maximum lifting force | kN (t) | 372 (38) | |
| Main winch | Single rope speed | m/min | 96/48 |
| Single rope tension | kN | 49 | |
| Rope diameter | mm | 20 | |
| Rope capacity | m | 265 | |
| Auxiliary winch | Single rope speed | m/min | 96/48 |
| Single rope tension | kN | 49 | |
| Rope diameter | mm | 20 | |
| Rope capacity | m | 265 | |
| Hoisting winch (1) | Single rope speed | m/min | 43 |
| Single rope tension | kN | 49 | |
| Rope diameter | mm | 20 | |
| Rope capacity | m | 150 | |
| Hoisting winch (2) | Single rope speed | m/min | –– |
| Single rope tension | kN | –– | |
| Rope diameter | mm | –– | |
| Rope capacity | m | –– | |
| Mast erecting winch | Single rope speed | m/min | –– |
| Single rope tension | kN | –– | |
| Rope diameter | mm | –– | |
| Rope capacity | m | –– | |
| Basket winch | Single rope speed | m/min | –– |
| Single rope tension | kN | –– | |
| Rope diameter | mm | –– | |
| Rope capacity | m | –– | |
| Crawler chassis | Maximum width of extended crawlers | mm | 4560 |
| Maximum width of retracted crawlers | mm | 3300 | |
| Crawler width | mm | 760 | |
| Crawler length | mm | 5660 | |
| Central distance of crawlers | mm | 4800 | |
| Traveling speed | km/h | 0.8~1.3 | |
| Slewing rpm of upper structure | r/min | 1~2 | |
| Climbing capacity | ° | 21.8 | |
| Boundary dimension | In working status | m | 7.65×4.56×29.2 |
| In transport status | m | 17×3.3×3.52 | |
| Counterweight | t | 12 | |
| Machine weight | t | 38 | |
| Maximum allowed traveling weight of the | t | 95 | |
| Ground contact area | m2 | 7.296 | |
| Ground contact pressure | Mpa | 0.128 | |
