Шэньчжэнь полиимидная медный гибкий pcb Сделано в

Описание и отзывы

Трекер стоимости

Характеристики

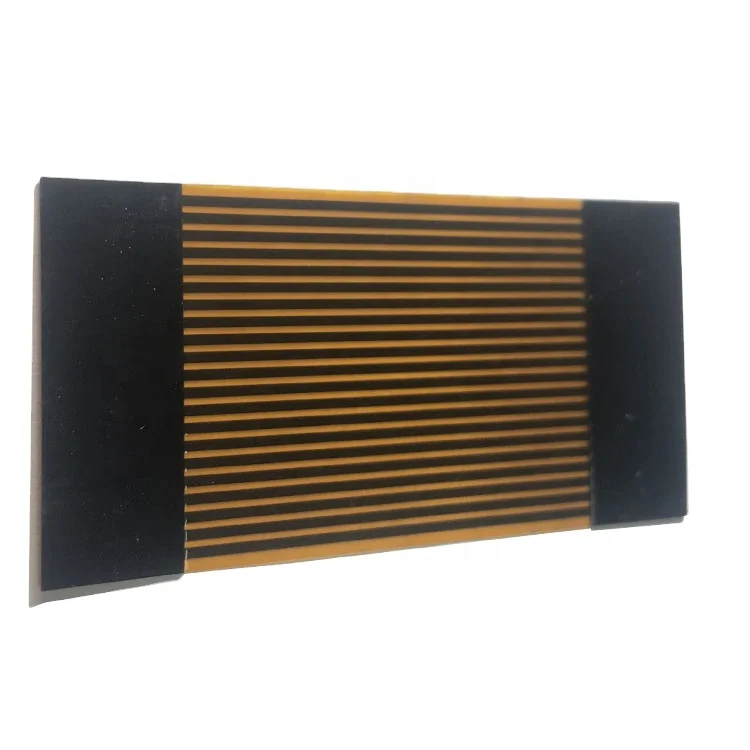

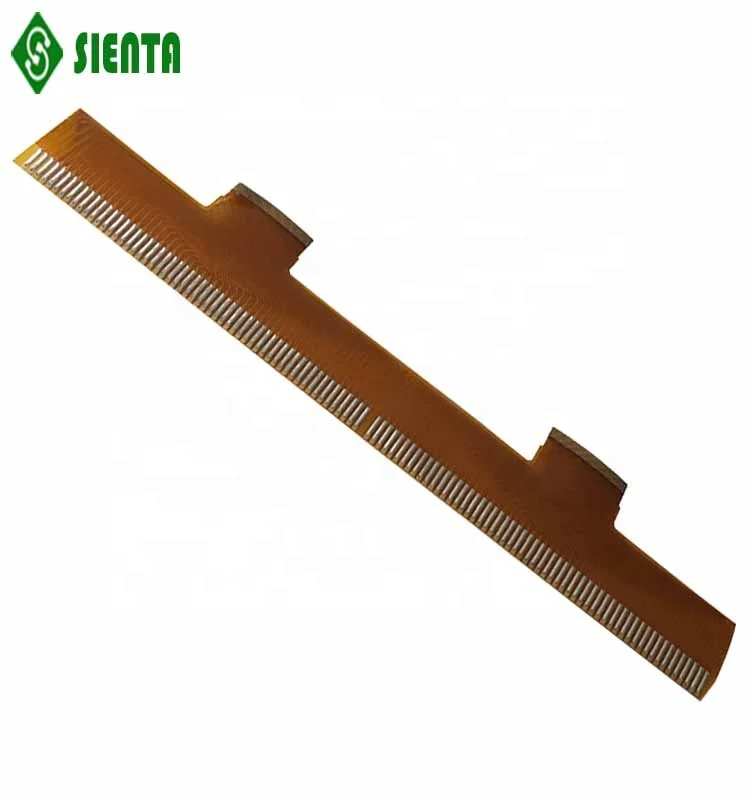

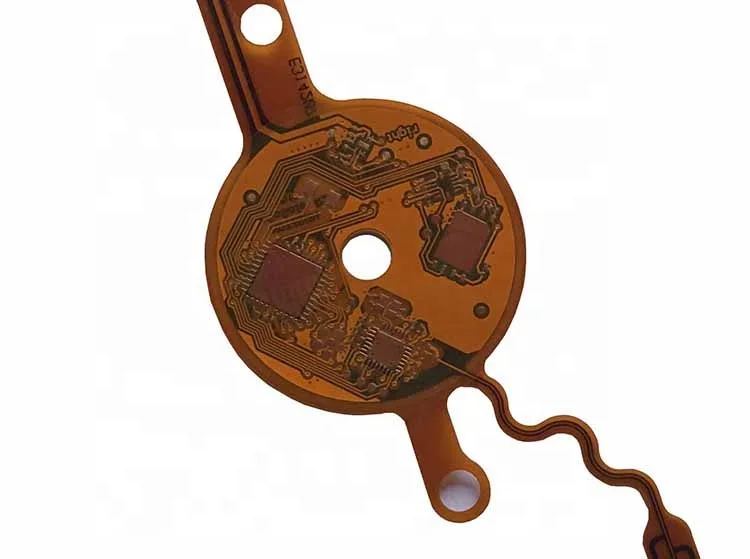

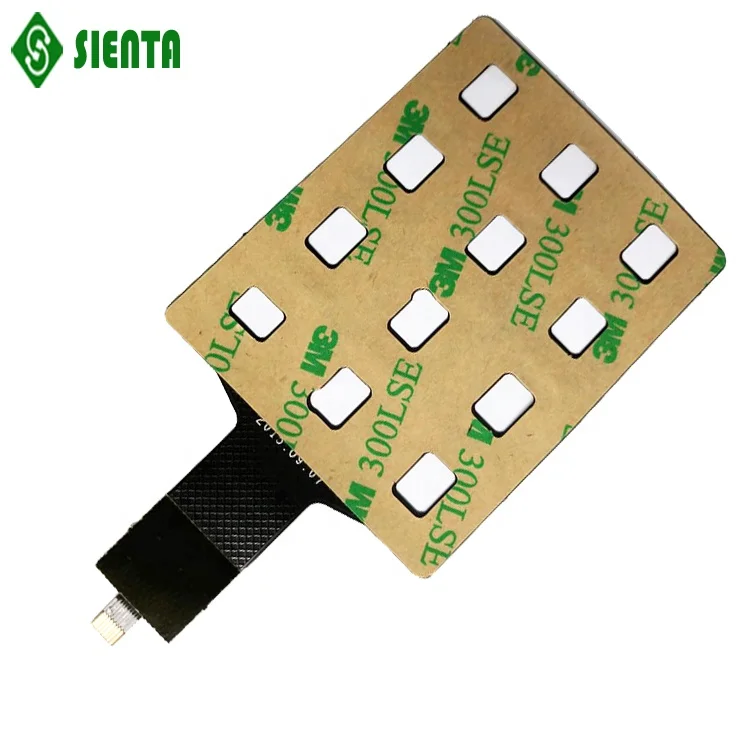

Products Show





Other Products



Lead Time

Item	Sample	Mass production
Single layer Flexible PCB	3-5 working days	8-10 working days
Double-sided Flexible PCB	3-5 working days	8-10 working days
Multilayer Flexible PCB	7-12 working days	15-20 working days
Rigid-flexible PCB	7-15 working days	15-20 working days

Production Capacity



PROCESS	Item	Unit	Limit tolerance	Normal tolerance
Drilling	Min drilling hole size	mm	0.1	0.2
	hole diameter	mm	±0.075	±0.1
Exposure	Min. line width/space	mm	0.05/0.05	0.075/0.075
	hole ring	mm	0.125	0.20
	offset tolerance	mm	0.10	0.15
	Line with tolerance	mm	±0.03	±0.04
Profile	R  angle for etching	mm	0.5	0.5
	steel die tol	mm	LS:±0.075 HS:±0.01	LS:±0.075 HS:±0.01
	cutting die tol	mm	Etching:±0.20 Wooden:±0.30	Etching:±0.30 Wooden:±0.50
	Laser tol	mm	±0.05	±0.05
	offest tol for fingers	mm	±0.10	±0.10
Surface treatment	Immersion gold	um	Ni:2.0~5.0 Cu:0.03~0.8	Ni:2.0~5.0 Cu:0.03~0.8
	Plating tin	um	8~20	8~20

Our Company

Workshops & Equipment



Our certufications

Payment

Packing & Delivery

FAQ

Q: How long is your delivery time?

A: As FPC is belong to customized products,generally it is 3-5 days for samples and 10-15 days for mass products.The actual delivery date according to difficulty of the products, the quantity and etc.



Q:What service do you provide?

A: We provide below service:

1.EMS-Electronic Manufacturing Service

2.PCB/FPC Supply and Layout

3.FPC/PCB Assembly on SMT, BGA and DIP

4.Cost Effective Components Sourcing

5.Fast Turn Prototype and Mass Production

5.Box Build Assembly

6.Engineering Support

7.Tests(X-ray, 3D Paste Thickness, ICT, AOI and Functional tests)

8.Logistics and After-sales Service



Q: Which files do you accept for offer ?

A: We accept Gerber file, CAD file, brd file, PCB file, pdf file, BOM list and etc.



Q: Which type of orders do you accept ?

A: We accept small order even 1 piece and also big orders.
