220 В Вибрационный двигатель для машины
US $22.00-$45.00
4 2 v 614 Мини DC Вибрационный Мотор для зубной
- Категория: Вибрационный Мотор >>>
- Поставщик: Yichang,Wingfong,Industry,&,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.25 $* | 0.49 $* |
| Aug-19-2025 | 0.63 $* | 0.69 $* |
| Jul-19-2025 | 0.16 $* | 0.53 $* |
| Jun-19-2025 | 0.71 $* | 0.74 $* |
| May-19-2025 | 0.42 $* | 0.15 $* |
| Apr-19-2025 | 0.1 $* | 0.78 $* |
| Mar-19-2025 | 0.82 $* | 0.49 $* |
| Feb-19-2025 | 0.83 $* | 0.41 $* |
| Jan-19-2025 | 0.69 $* | 0.14 $* |
Характеристики
dc brush motor 0614 6mm 4.2V 7500 rpm for medical vibrator
Motor Paramenters
Outline
№ | Item | Specifications | Remark | ||||||||||
1 | Rated Voltage | 4.2 V DC | |||||||||||
2 | Operating Voltage | 1.5~4.2V DC | |||||||||||
3 | Rotation Direction | CW | |||||||||||
4 | Operating Conditions | -10℃～60℃≤60%RH | |||||||||||
5 | Rated Current | 20 mA Max | |||||||||||
6 | Rated speed | 7500 ± 2000 rpm | Under the rated voltage motor operates on rated load | ||||||||||
7 | Rated Load | Counter-Weight | |||||||||||
8 | Counter Weight Details | Material | Tungsten Alloy | ||||||||||
Size | R2.5*L4.0 mm | ||||||||||||
Weight | 0.75 g | ||||||||||||
Center of gravity | 1.01 mm | ||||||||||||
9 | Vibration Force | 0.45 N | Using calculate method | ||||||||||
10 | Stall Current | 169 mA | Under the rated voltage | ||||||||||
11 | Starting Voltage | 1.0 V DC | In any one position, voltage slowly rises | ||||||||||
12 | Terminal Resistance | 94± 5%Ω | Ohmmeter, Measure between two terminals | ||||||||||
13 | Insulation Resistance | 10MΩ | Ohmmeter, measure between the wires and the shell | ||||||||||
14 | Appearance | The machine no damage and rusting | |||||||||||
15 | Motor Weight | About 2.6 g | |||||||||||
18 | Clearance between shafts | 0.05~0.30mm | |||||||||||

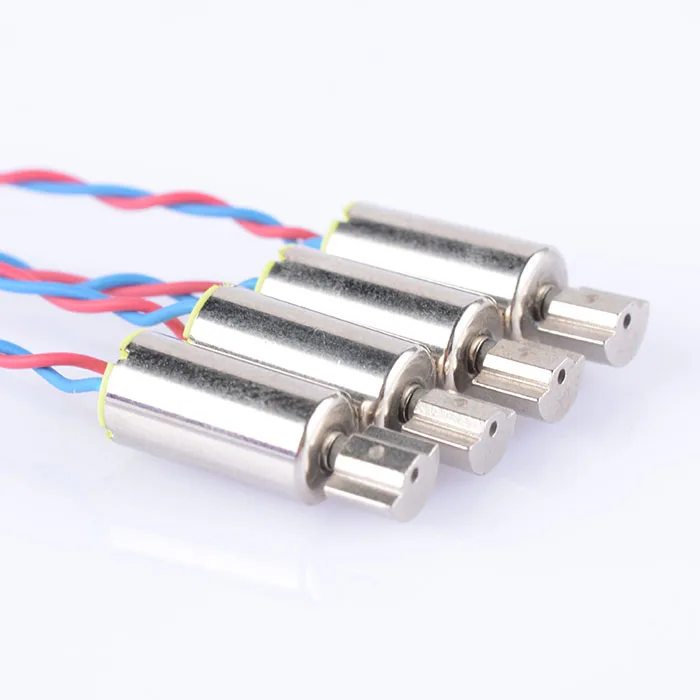

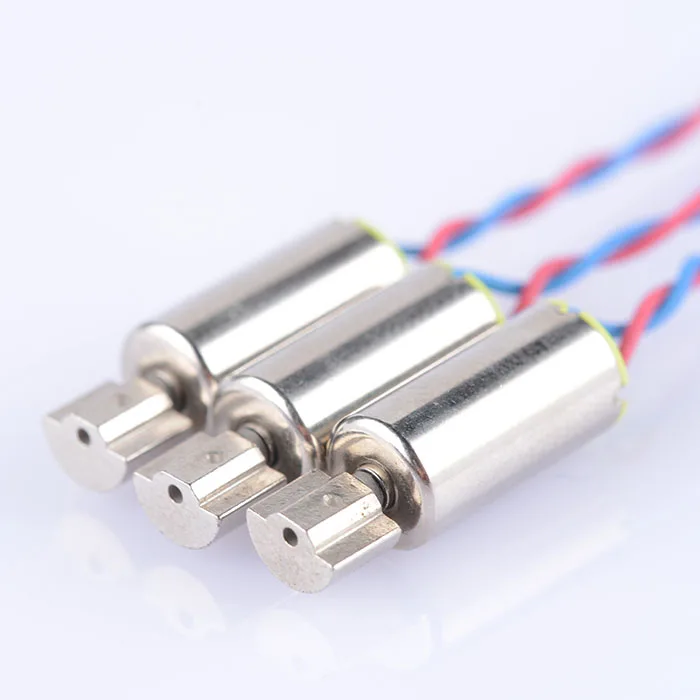

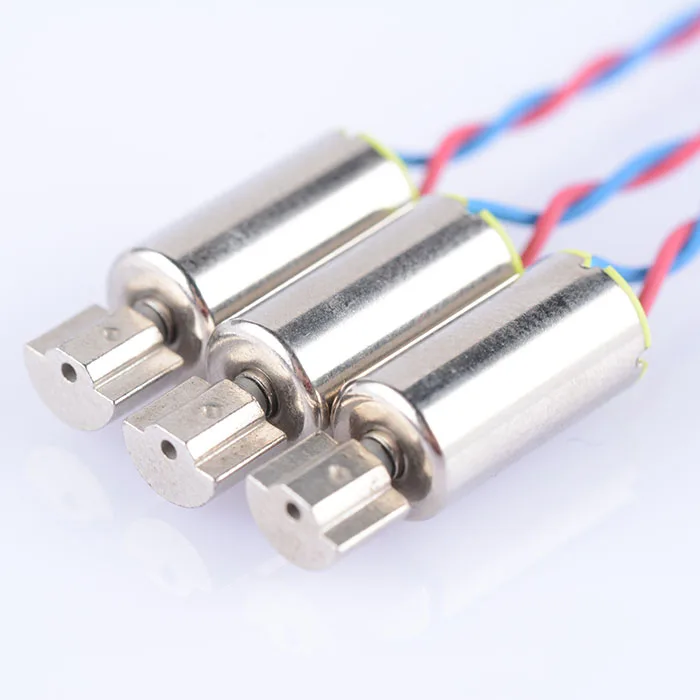

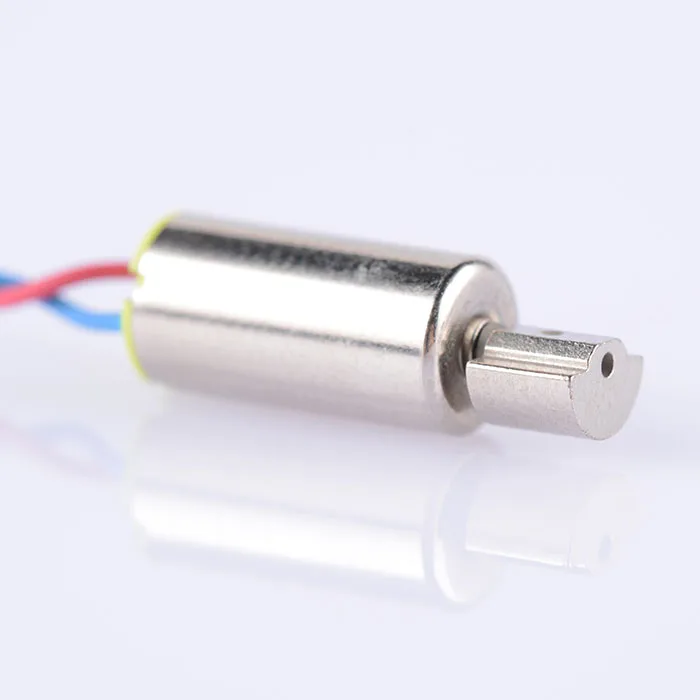

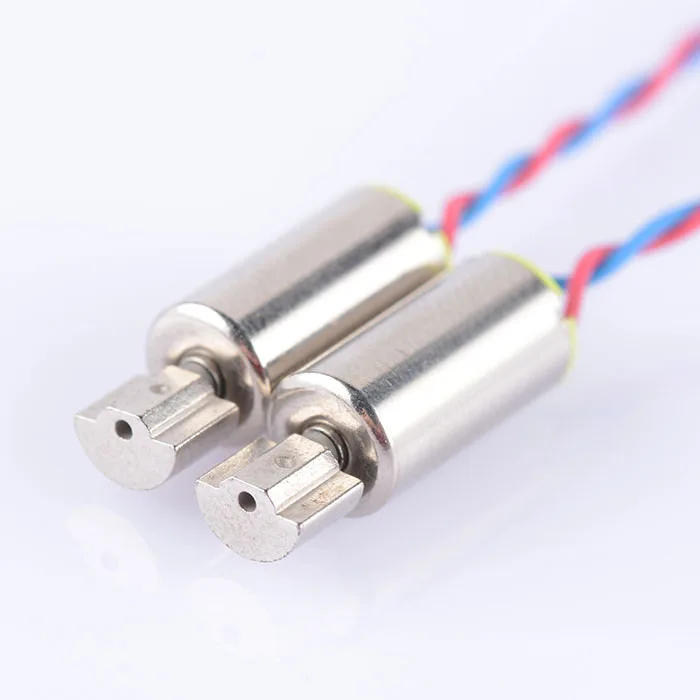

Product Show
Application
Mainly used in :
1. Toys, RC toys, Electrical Toys, advanced toys, Electric Toys,
2. Game Machine, Game Handle, Game Controller,
3. UAV of Model Airplane or Four-axis Flight,
4. Household Appliances, Video, Audio, Electric Appliances, Vibrating Toothbrush,electric toothbrushes,
5. Sex Toys, Adult Products, Sex products,
6. Mobile Phone, PHS, BP, walkie-talkie, cordless phones,Cell Phone,
7. Massager, Massage Rod, Eye Massagers,Personal care,Body Massager,
8. Medical Products,Dental Equipment,
9. Beauty Product,
10. PCS (Personal Communication by Satellite), PDA (Personal Digital Assistants)
11. Cars, Cameras, Communication Equipment,Office Machines,Pager
12. Fire Security Systems, Health Product Equipment, Vibrator.
Also used in the scope of aerospace, Aviation, transportation, energy, machinery, light industry, textiles, medical equipment, instruments, etc.
1. Toys, RC toys, Electrical Toys, advanced toys, Electric Toys,
2. Game Machine, Game Handle, Game Controller,
3. UAV of Model Airplane or Four-axis Flight,
4. Household Appliances, Video, Audio, Electric Appliances, Vibrating Toothbrush,electric toothbrushes,
5. Sex Toys, Adult Products, Sex products,
6. Mobile Phone, PHS, BP, walkie-talkie, cordless phones,Cell Phone,
7. Massager, Massage Rod, Eye Massagers,Personal care,Body Massager,
8. Medical Products,Dental Equipment,
9. Beauty Product,
10. PCS (Personal Communication by Satellite), PDA (Personal Digital Assistants)
11. Cars, Cameras, Communication Equipment,Office Machines,Pager
12. Fire Security Systems, Health Product Equipment, Vibrator.
Also used in the scope of aerospace, Aviation, transportation, energy, machinery, light industry, textiles, medical equipment, instruments, etc.
Our Advantages
the special and professional manufacturer of
coreless DC PM Vibrating or Driving Micro Motor in China.
1. We are the company who enjoys the service of TRADE ASSURANCE, to guarantee the safety of buyers’ capital, the quality of goods and timely delivery according to discussion and negotiation.
2. Our monthly capacity of type of Micro Motor is over 800,000 pieces.
3. We have been cooperating with clients from Japan, South Korea, USA and European countries for many years, our quality and service are highly praised by the clients.
Main Features (Advantage) of our Micro Motor
2.Activated,rapid starting and quick braking with fast response, Mechanical time constant is less than 28 milliseconds.Sometimes even measures up to 10ms or less.
3.Less electromagnetic interference
4.Low noise : starting and braking quietly, running with low noise.
5.Reliable operation stability: operates quietly and quickly with high efficiency and low resistance.
6.High speed : the rpm can reach 4500~74000±10%.
Shipping & Packing
Packaging Details:
Polystyrene / Hard paper box / water proof layer
FAQ
Q: Can these motor's parameter from the above list can be modified according to our request ?
A: Yes, motor's parameter can be customized. We can supply motors with the rotation direction, motor's working voltage, lead wire length, lead wire material, rated speed, torque etc at your request, and motor's shaft dimension can be modified too. We are pleased to make those modification, more detailed parameter you provide, the more suitable motors will be made.
Q: How to order?
A: Please send us your purchase order by Email or call us, then we will make quotation according to your requirement. Once terms and conditions confirmed, we will draft PI and arrange timely delivery accordingly.
Q: Sometimes I don't know the exact required parameter, how can I choose a suitable model ?
A: We will make some suggestion if you provide your specific requirement or application such as in what kind of products these motors used. And how about the working condition such as duty cycles and load status? And how long is the motor's expected lifetime ? And so on. Then we will make full assessment accordingly.
Q:Can I get some samples first? How soon can I get the samples?
A: Yes, we can make samples, we think you understand that normally sample is not free (sample cost based on parameters and quantity, posting charges based on the different countries and areas). And for customized motors, the sample making time depends on different types, usually 3-10days is possible to send out, while some gearbox motor will be about 25days.
Q: What is MOQ for your motors?
A: Usually, the MOQ is 1,000 pcs for different models after sample approval. But it's also acceptable if quantity is small, for example lots of a few dozens or hundreds.
Q: Could you send me a price list?
A: For all of our motors, in view of manufacturing customized based on different requirements on size, lifetime, noise, voltage, and shaft etc, the price varies according to the specification and quantity. So it's better for us to made quotation according to detailed parameters and quantity.
If you can share your usage, detailed parameter requirements and annual quantity, we are glad to suggest the best type to you and indicated the price timely.
Q: Is it possible for you to develop new motors if we provide the tooling cost?
A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation and confirm if we can arrange or not .
A: Yes, motor's parameter can be customized. We can supply motors with the rotation direction, motor's working voltage, lead wire length, lead wire material, rated speed, torque etc at your request, and motor's shaft dimension can be modified too. We are pleased to make those modification, more detailed parameter you provide, the more suitable motors will be made.
Q: How to order?
A: Please send us your purchase order by Email or call us, then we will make quotation according to your requirement. Once terms and conditions confirmed, we will draft PI and arrange timely delivery accordingly.
Q: Sometimes I don't know the exact required parameter, how can I choose a suitable model ?
A: We will make some suggestion if you provide your specific requirement or application such as in what kind of products these motors used. And how about the working condition such as duty cycles and load status? And how long is the motor's expected lifetime ? And so on. Then we will make full assessment accordingly.
Q:Can I get some samples first? How soon can I get the samples?
A: Yes, we can make samples, we think you understand that normally sample is not free (sample cost based on parameters and quantity, posting charges based on the different countries and areas). And for customized motors, the sample making time depends on different types, usually 3-10days is possible to send out, while some gearbox motor will be about 25days.
Q: What is MOQ for your motors?
A: Usually, the MOQ is 1,000 pcs for different models after sample approval. But it's also acceptable if quantity is small, for example lots of a few dozens or hundreds.
Q: Could you send me a price list?
A: For all of our motors, in view of manufacturing customized based on different requirements on size, lifetime, noise, voltage, and shaft etc, the price varies according to the specification and quantity. So it's better for us to made quotation according to detailed parameters and quantity.
If you can share your usage, detailed parameter requirements and annual quantity, we are glad to suggest the best type to you and indicated the price timely.
Q: Is it possible for you to develop new motors if we provide the tooling cost?
A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation and confirm if we can arrange or not .
Company Profile
Yichang Wingfong Industry & Trade Co., Ltd. is located next to the Three Gorges Dam, the beautiful national first-class scenic spot and the world's largest hydropower project. Adjacent to Yichang Airport, the location is excellent and the transportation is convenient.
Yichang Wingfong Industry & Trade Co., Ltd. is a national high-tech enterprise specializing in the research, development and manufacturing of hollow-core (coreless) permanent magnet DC micro motors and various core motors.
Yichang Wingfong Industry & Trade Co., Ltd. is a national high-tech enterprise specializing in the research, development and manufacturing of hollow-core (coreless) permanent magnet DC micro motors and various core motors.
We have independent office buildings and standard modern dust-free workshops, more than 10 automatic assembly lines, 5 technical developers, more than 20 various administrative staffs. Our company is committed to improvement of quality , production technology , research and development of production equipment, we are focusing on intellectual property protection, possessing a number of invention patent and utility model patent,with an annual output up to 30 million of micro motors of Φ4, Φ6, Φ7, Φ8, Φ10, Φ12 Φ14, Φ16, Φ20.
The products are mainly used in mobile phones for silent signal hint, and can also be widely used in PHS, BP, walkie-talkie,cordless phones, advanced toys, massager, electric toothbrushes, and in the scope of aerospace, aviation, transportation, energy, machinery, light industry, textiles, medical equipment, instruments, etc.
The company's existing production equipment and technology conditions have reached the industry level, we have the ability of independent research and development of new products, together with the ability of improvement of technology and quality according to customers’ requirement, and we have strict control of quality. We can solve the problems from customers, and all of our management is rigorous and orderly. We abide by the business philosophy of "Quality First, Customers First, Cooperation and Win-Win". We have good business relations with many well-known enterprises at home and abroad. The product quality and service attitude are well approved by customers. We successfully passed ISO 9001 :2008 Quality System Certification in 2016.
We provide professional design, stable quality, reasonable price, timely delivery and sincerely service to every customer!
The company's existing production equipment and technology conditions have reached the industry level, we have the ability of independent research and development of new products, together with the ability of improvement of technology and quality according to customers’ requirement, and we have strict control of quality. We can solve the problems from customers, and all of our management is rigorous and orderly. We abide by the business philosophy of "Quality First, Customers First, Cooperation and Win-Win". We have good business relations with many well-known enterprises at home and abroad. The product quality and service attitude are well approved by customers. We successfully passed ISO 9001 :2008 Quality System Certification in 2016.
We provide professional design, stable quality, reasonable price, timely delivery and sincerely service to every customer!
