Китай, Мраморная дробильная установка, Щековая камнедробилка
US $7851-$8851
100-тонное аллювиальное оборудование для обработки золота промывка скруббер
- Категория: Оборудование для добычи энергии и минералов >>>
- Поставщик: Shandong,Eterne,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.75 $* | 0.68 $* |
| Aug-19-2025 | 0.56 $* | 0.37 $* |
| Jul-19-2025 | 0.70 $* | 0.6 $* |
| Jun-19-2025 | 0.97 $* | 0.34 $* |
| May-19-2025 | 0.11 $* | 0.45 $* |
| Apr-19-2025 | 0.97 $* | 0.96 $* |
| Mar-19-2025 | 0.55 $* | 0.52 $* |
| Feb-19-2025 | 0.43 $* | 0.53 $* |
| Jan-19-2025 | 0.69 $* | 0.18 $* |
Характеристики
Product Description

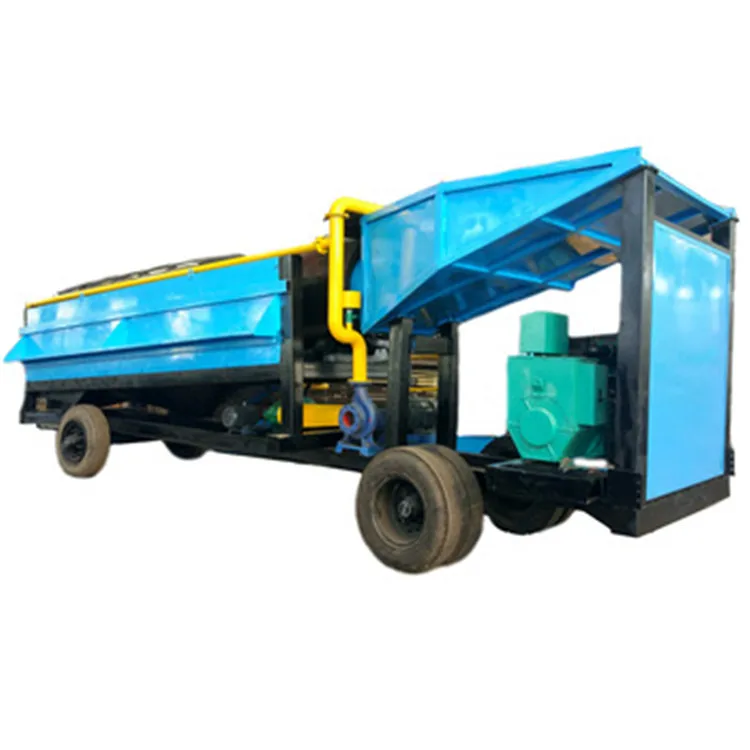

Portable Gold Mining Machine Trommel Wash Plant
1.Mobile gold trommel is a new type screening equipment, mainlyapplied in sand screening, widely used in 2.alluvial gold miningwashing.
Has advantage of high capacity, convenient to move,easy operation characteristic etc, is popular in home and abroad.

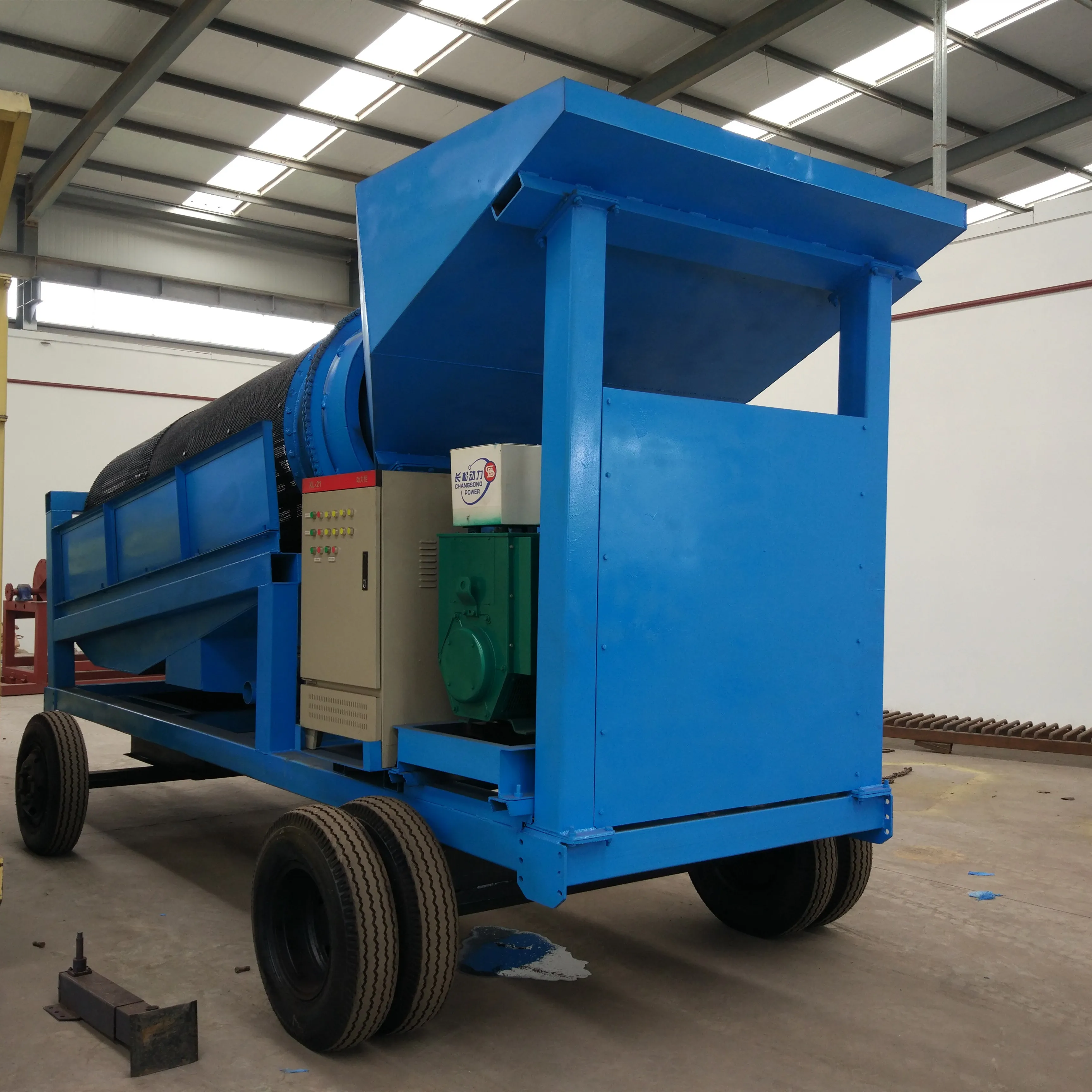

1.Portable gold trommel
Model: MGT150Quantity:1 Set
Dimension: 9800x3000x4000mmMotor power:75 kw
Hopper size:3500x3000mm
Weight:14000 kg
Capacity: 150tph
Dimension: 9800x3000x4000mmMotor power:75 kw
Hopper size:3500x3000mm
Weight:14000 kg
Capacity: 150tph
2.Screen System
Name: Gold Trommel ScreenQuantity: 1Set
Size (mm): according to processing capacity
Remark: 2 layer trommel screen
Function: for washing, screening and separating the minerals
Water spray pipes: on both sides of the trommel
Mesh size: `12mm and 6mm or according to clients requirement
Size (mm): according to processing capacity
Remark: 2 layer trommel screen
Function: for washing, screening and separating the minerals
Water spray pipes: on both sides of the trommel
Mesh size: `12mm and 6mm or according to clients requirement

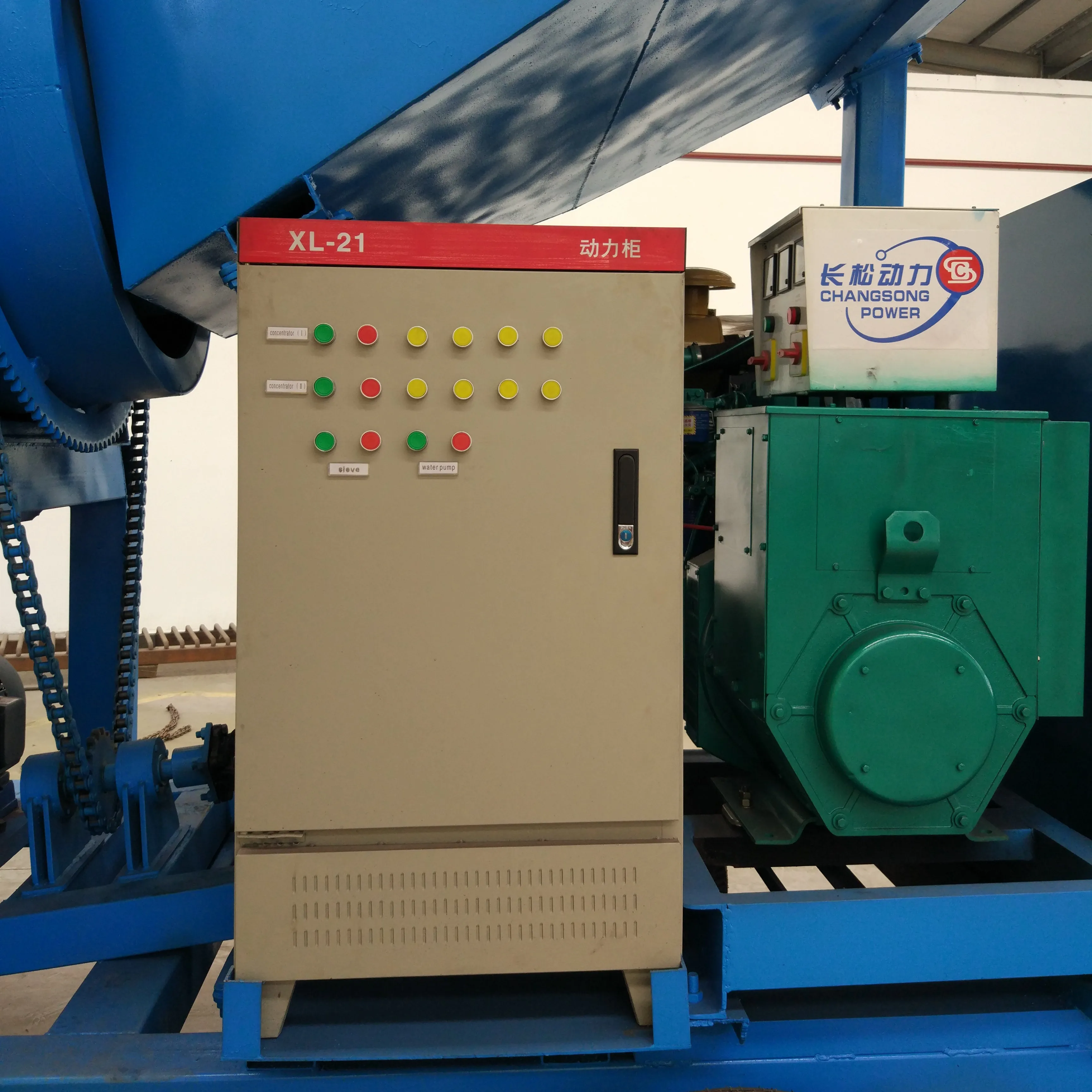

3.Power System
Name:Cummins diesel GeneratorQuantity:1 Set
Power: 100kw
Brand: Cummins ,or as required
Function: supplying power to all the systems
Power: 100kw
Brand: Cummins ,or as required
Function: supplying power to all the systems
Details Images
SPECIFICATION OF ALLUVIAL GOLD MINING MACHINE TROMMEL WASH PLANT | ||||||||
Model | Working capacity | Dimension | Screen System | Power System | ||||
ET-10 | 10-20t | 2500*1000mm | 800*1500mm | 11KW | ||||
ET-30 | 20-30t | 5000*1400mm | 1200*2500mm | 35KW | ||||
ET-50 | 50t | 6500*1800mm | 1500*3000mm | 50KW | ||||
ET-100 | 100t | 8300*2200mm | 1500*4500mm | 100KW | ||||
ET-150 | 150t | 9200*2200mm | 1600*4800mm | 120KW | ||||
ET-200 | 200t | 11500*2250mm | 1800*5000mm | 150KW | ||||
Case
Model: ET-150
Related Equipment: Gold Chute
Export Country: Ghana
Year Of Built: 2014.2
Application: Gold washing

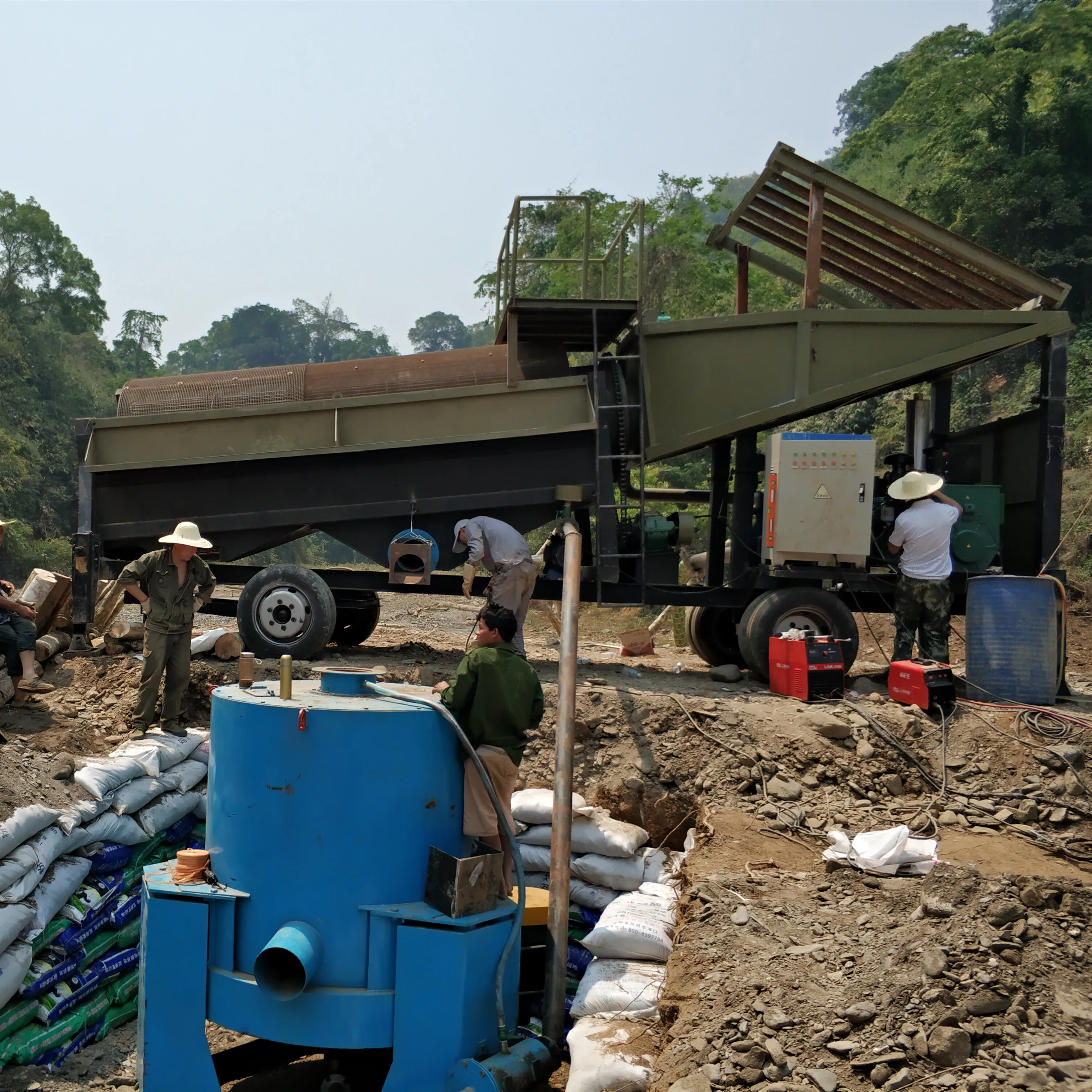

In 2011-2015, there are gold mining hot in Ghana, such as Accra, Kumasi etc, many foreigners went there to invest alluvial gold mine, we are choosen as gold supplier by Lebanon client.
As we can see in the picture, the raw material is with much sticky clay, but the material was washed very clean and can get 30g gold in half an hour, the buyer is very satisfied with it.
As we can see in the picture, the raw material is with much sticky clay, but the material was washed very clean and can get 30g gold in half an hour, the buyer is very satisfied with it.
Model: ET-100
Related Equipment: Vibrating Sluice
Export Country: Myanmar
Year Of Built: 2013.2
Application: gold washing

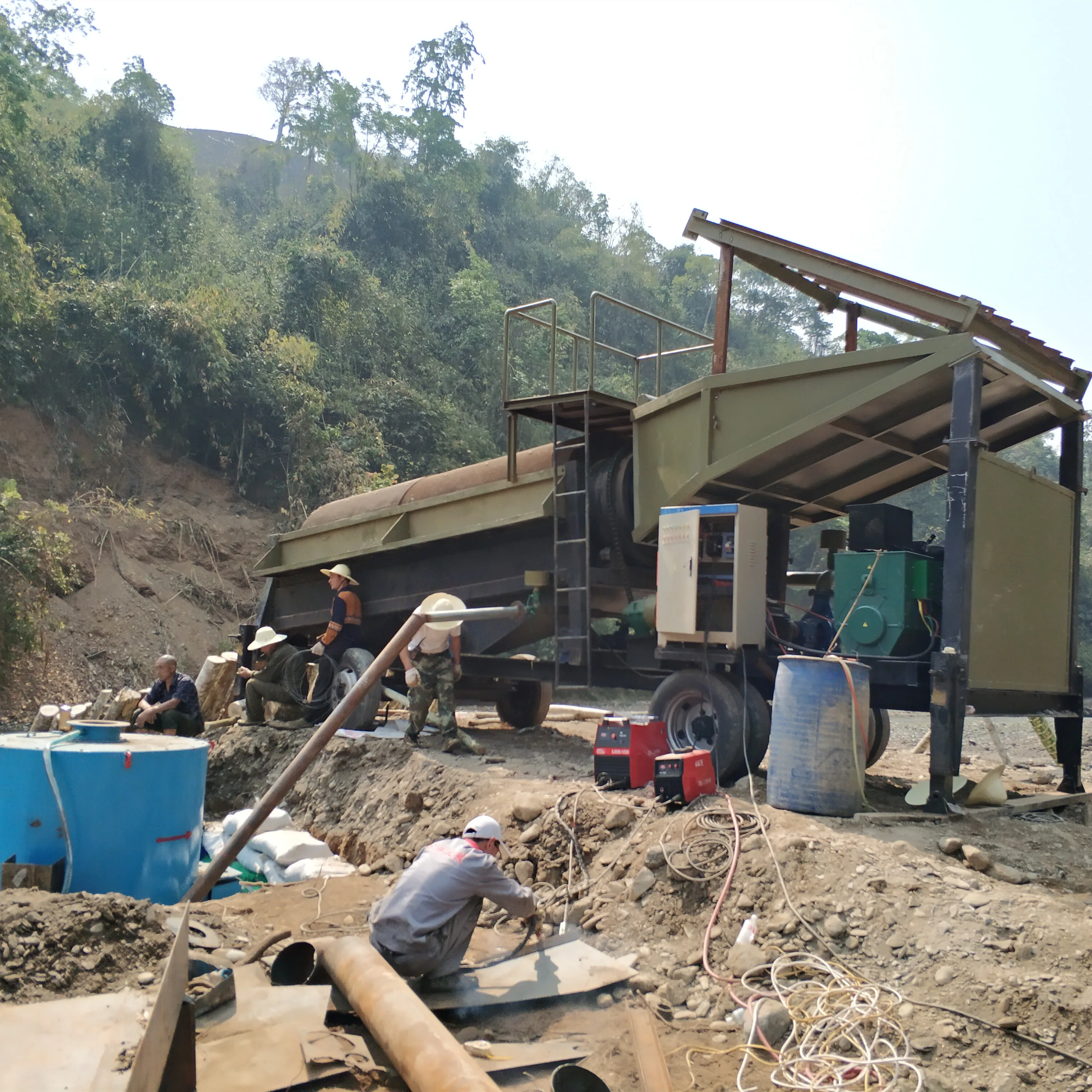

Myanmar is rich of gold too, but there are lots of clay, which is big obstacle in gold washing process, so clay removing is very important progress during work.
According to this situation, we designed the machine with long scrubber to make sure clay can be removed and gold can be released from clay.
The machine is equipped with vibrating chutes, compared with traditional gold felt, it can move up and down so the clay will not hardened, after testing the gold recovery rate had reached 95%.
The machine is equipped with vibrating chutes, compared with traditional gold felt, it can move up and down so the clay will not hardened, after testing the gold recovery rate had reached 95%.
Customer Photos
Company Introduction
Shandong Eterne Machinery Co., Ltd.
1. Shandong Eterne Machinery Co., Ltd. is a modern enterprise comes from Weifang city, Shandong Province, China.
2.which is integrating R & D, production and service including mining equipment and woodworking equipment.
3.The related companies are Ninjing Country Wanfa Woodworking Machinery Co.,Ltd.(Wanfa), Weifang Jintong Envrionment Protection Company (Jintong).
4.Wanfa is our mother company which was built in 2003, who produce woodworking machinery such as kinds of edge banding machine, sliding panel saw, CNC router etc.
FAQ
1. Are you factory?
Yes, established in 2002, over 15 years facto
2. How big are you?
In total 6 work shops, 15,000㎡, office 3000㎡, 80 workers
3.What other products do you have?
Our company also has Gold Dredger，Weed Harvester，Concentrator，Pulsating Sluice Box，etc
4. What equipment do you build?
Specialized in alluvial/placer gold/diamond mining equipment
5. Whats the capacity of the gold/diamond mining equipment
from 5TPH to 450TPH
6. What brand engine/diesel generator do you use?
Cummins, Weichai, Yuchai, etc, or as required
Yes, established in 2002, over 15 years facto
2. How big are you?
In total 6 work shops, 15,000㎡, office 3000㎡, 80 workers
3.What other products do you have?
Our company also has Gold Dredger，Weed Harvester，Concentrator，Pulsating Sluice Box，etc
4. What equipment do you build?
Specialized in alluvial/placer gold/diamond mining equipment
5. Whats the capacity of the gold/diamond mining equipment
from 5TPH to 450TPH
6. What brand engine/diesel generator do you use?
Cummins, Weichai, Yuchai, etc, or as required
