Applications of the milling machineplastic grinderplastic pulverizer

SMF series Plastic Milling machine is a prefect machine for processing and grinding thermoplastics material, such as PVC, PE, PP, EVA, PLA, ABS etc, with high output and thin powder.

The SMF series plastic automatic plastic grinding mill is disc-type plastic grinding mill series, which has the advantages of high-yield and low-power.

Characteristics of the milling machineplastic grinderplastic pulverizer

With water cycle and wind cooling, the machine can be applied into processing heat sensitive material.

With the tail-wagging air stream (partly eddy flow) produced by the tail-wagging of the main shaft capstan of the machine, the input tail-wagging materials collide strongly with the board and the cutting blade, and was grinded into powdery (without sieving).

Both the board and the cutting blade are made of abrasion-resistant steel, with excellent performance after heat treatment.

With severeness of framework, the volume of the machine is quite small. If you open door closure, you can maintain it. It is completely airproof and without any dust leakage.

With winding reclaiming equipment, the machine is features by cooling materials evenly, quick cooling and some other characteristics.

Advantages of the milling machineplastic grinderplastic pulverizer

The new disc design is used, high-yield, strong resistance and the life of this grinding disc is double the ordinary.

The use of newly designed professional bearings, and reach a high rotation rate. At the same time using only one drive motor, to ensure the efficient grinding crash, which greatly saves the time and operation of machinery and control engineering.

Installation and maintenance easy, open the door to cover clean-up.

Milling process of the whole seal, without dust leakage.

Full automatic feeding, the materials and sorting.

Grinding gap adjustment is simple, just use the plug-foot bolts and adjustments can be fine-tuning (10-120 mesh).

The host used the water and wind double system; Rational design of smaller cross-section of the grinding chamber, grinding is almost flat vertical surface. Material entered the grinding chamber as soon as caught, groud, and then rapidly removed, which eliminates the grinding chamber of the surge in materials, heating materials to avoid decomposition, resulting in improved production.

Specifications

1. high capacity
2. Working stably
3. Lower energy consumption

It is applied for PVC, PE, LDPE, LLDPE, ABS, EVA, PS, PET and rubber

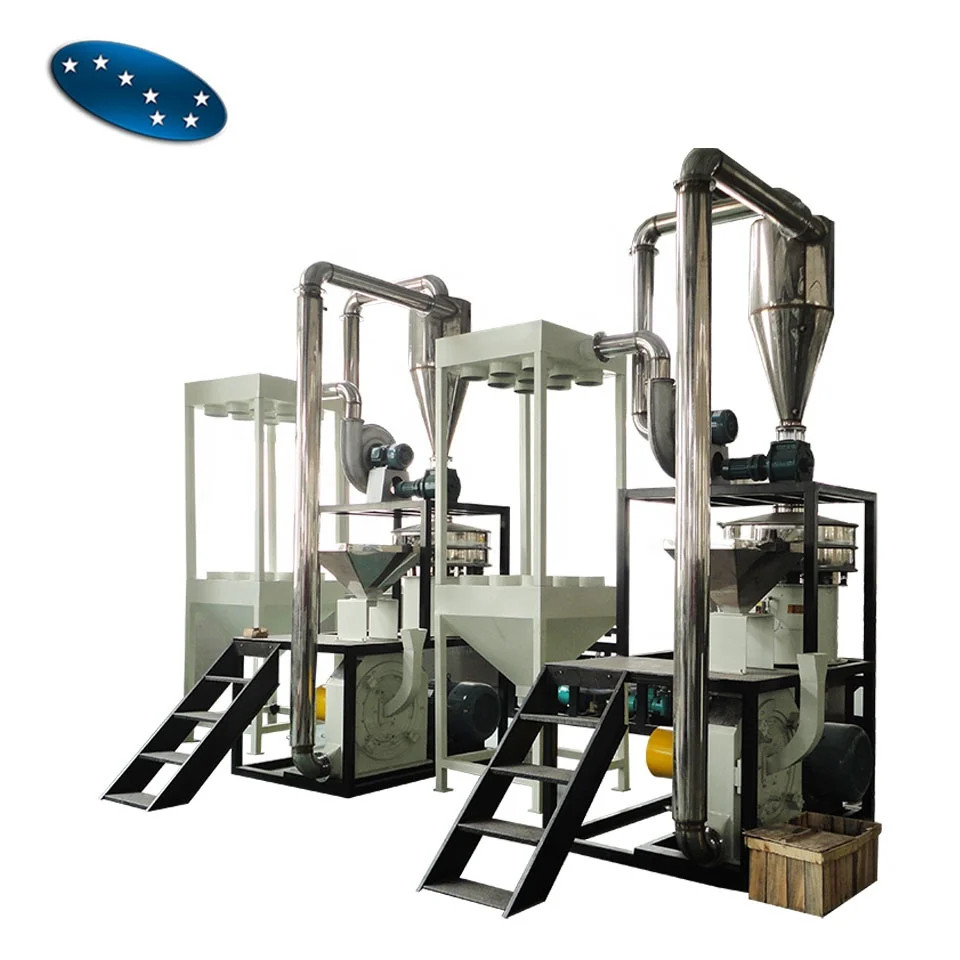

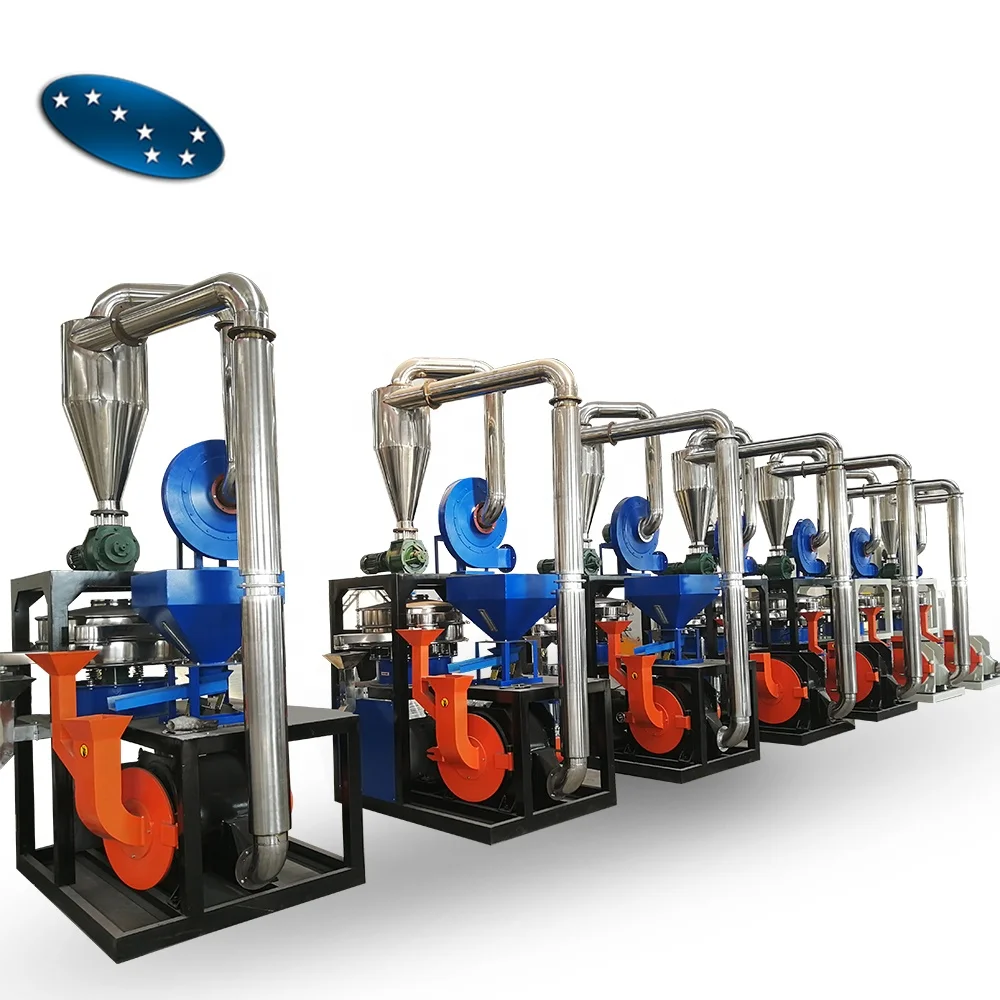

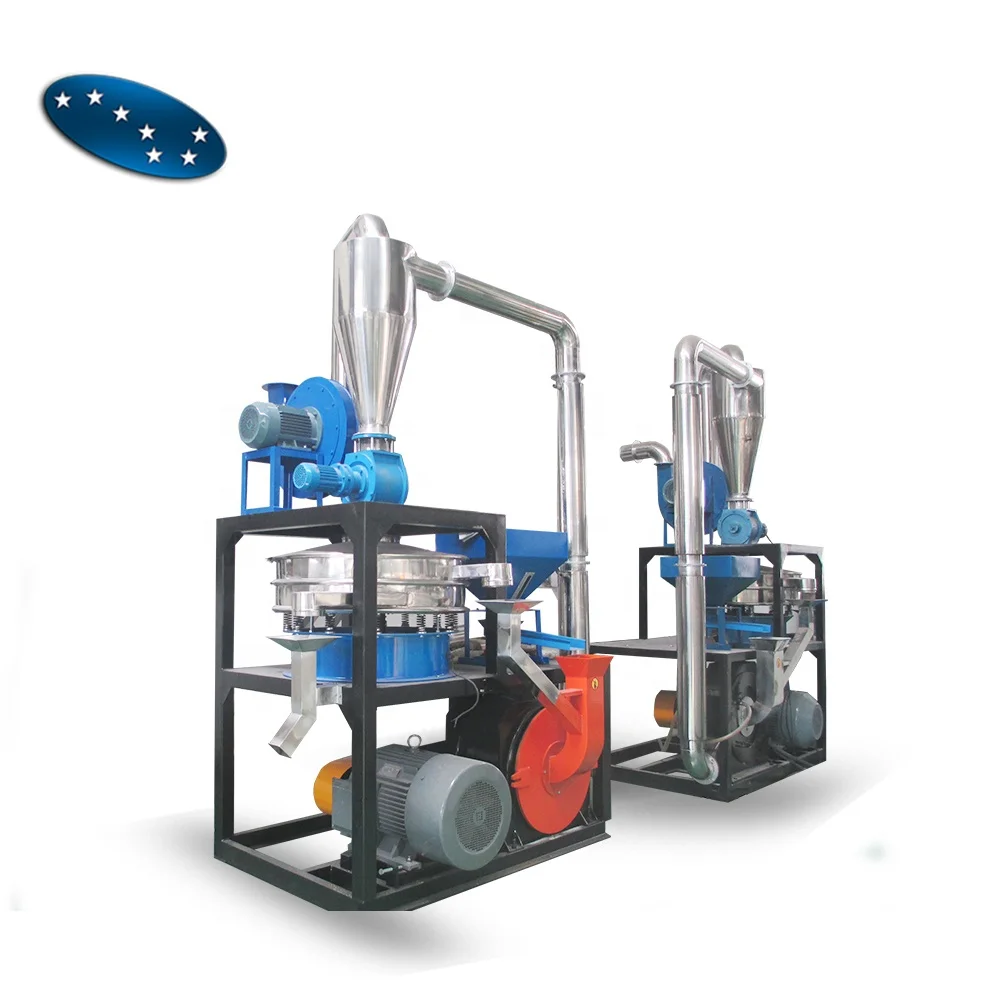

components:
1. Grinding room
2. Main motor
3. Wind-sending pipeline
4. Hopper
5. Shaking feeder
6. Rotundity vibrating sieve
7. Cyclone wind butterfly valve
8. Cyclone separater
9. Blower
10. Electrical control cabinet
11. Dust catcher.



Features of miller grinder:

1.The machine is adapt for heat-sensitive material processing by circulating water cooling

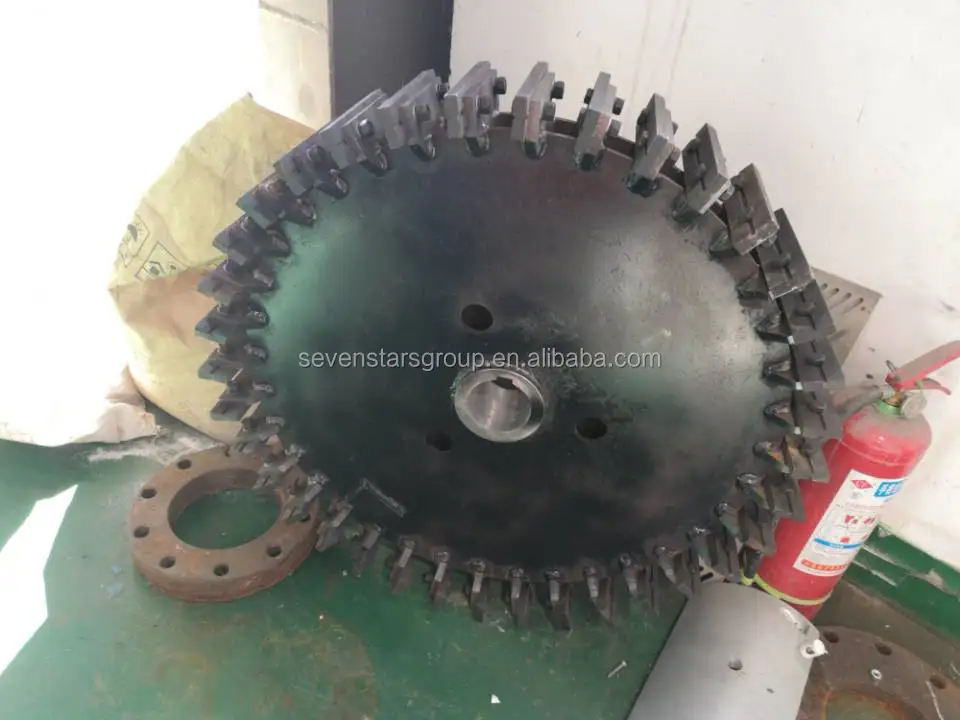

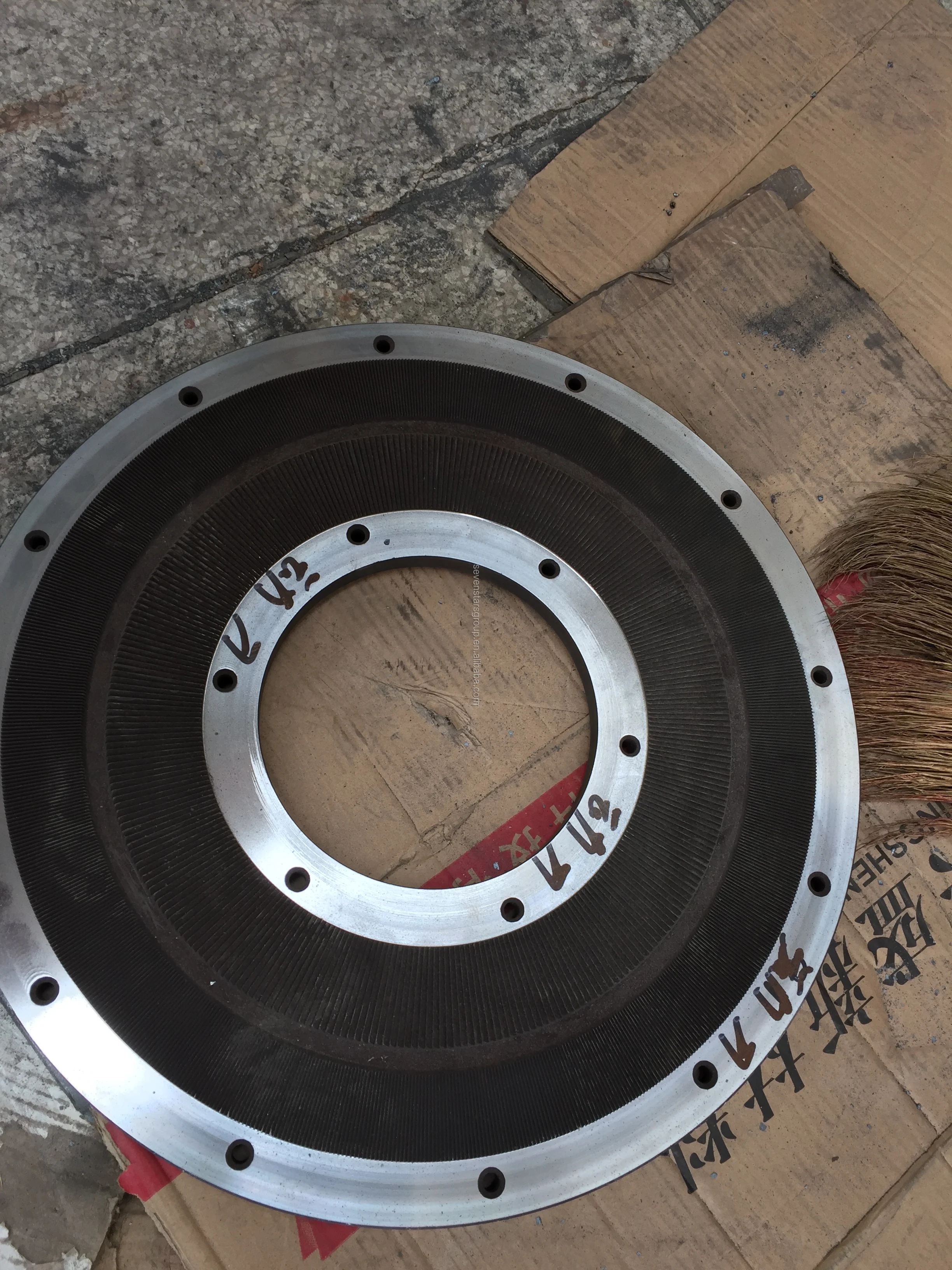

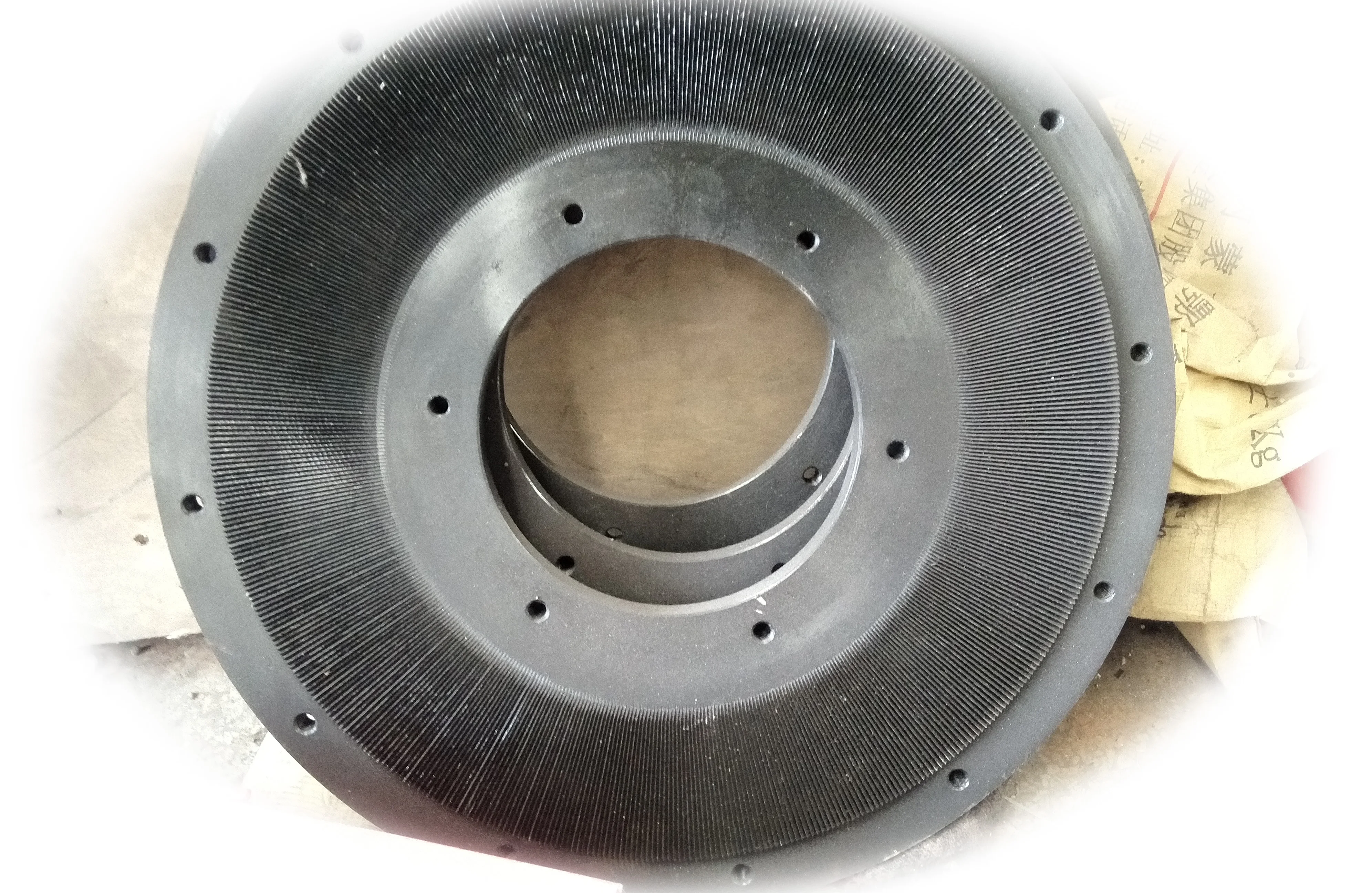

2.The machine is using two grind disc to smash material. Collision two disc and change input material into powder.Without sieve.

3.The disc is made of wear-resistant steel,which is through heat treatment.

4.High tight-compact,small size,maintenance should be happen before opening cover.all-sealed,dust-free spill.

5.The machine is equipped with wind blow device to ensure cool average.fast cooling characteristic.

6.The machine is equipped with vibra sieve which can select material according to diameter of material.

7.Equipped with dust-free device to decrease dust.

This machine is used for PVC, PE, LDPE, LLDPE, ABS, EVA, PS, PET and rubber.

The Equipment characteristics: high-quality tool is easily to replace, long life, low power consumption, high output, simple structure, easy installation, the host has the wind and water cycle cooling system, automatic feeding device,dust removal equipment, aircraft high degree of automation, effective, significantly reduced labor intensity.

Our factory developed the SMF Series rotor automatic plastic milling machine on the basis of advanced Foreign technology, mainly used in plastics, mining, chemical, and metallurgical industries for micro-milling equipment. Especially, used for recycled PVC plastic grind. Improved by the plastic manufacturer in practice, add 20% -30% of its grinding powder in the process, the chemical and physical data keep the same as 100% first hand raw material.
