1 дюйм м x 30 оцинкованная сварная проволочная сетка с ПВХ покрытием по низкой цене от

1 дюйм м x 30 оцинкованная сварная проволочная сетка с ПВХ покрытием по низкой цене от

Категория: Железная проволочная сетка >>>
Поставщик: Anping,County,Jingzhi,Wire,Mesh,Products,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	0.74 $*	0.65 $*
Aug-19-2025	0.34 $*	0.98 $*
Jul-19-2025	0.65 $*	0.72 $*
Jun-19-2025	0.52 $*	0.95 $*
May-19-2025	0.2 $*	0.27 $*
Apr-19-2025	0.12 $*	0.71 $*
Mar-19-2025	0.11 $*	0.33 $*
Feb-19-2025	0.48 $*	0.20 $*
Jan-19-2025	0.58 $*	0.41 $*

Характеристики

Product Description

You can get a easier talk by my skype: Max Wei

Green Color PVC coated Welded Wire Mesh 1/2" 3/4" 1/4"

Welded Wire Mesh

1.Brief introduction

welded wire mesh made of high quality low carbon steel wire,welded wire mesh divides into hot dipped galvanized and electro galvanized.The adoption plates the zinc craft after welding,it is made from high-quality iron wire by automatic equipment .The products have smooth mesh surface ,well-proportioned meshes ,strong welded points and bright luster.The mesh does not come loose even if cut in parts or being exerted force on parts .Compared with general iron wire,the products are better in respects of anti-corrosive and anti rust.

2.Use:

used in the industry ,agriculture ,construction,transport and mining .Such as machine protection cover ,ranch fender ,garden fender ,window protection fender ,passage fender ,fowl cage ,egg basket and foodstuffs basket.

3.surface treated:

Galvanized and PVC coated,stainless steel wire

4.Weaving and characteristics:

Hot dipped galvanizing after weaving
Weaving with hot dipped galvanized iron wire

Electric galvanizing after weaving
Weaving with electric galvanized iron wire

PVC coated wire mesh

5.The specification of the wire mesh

Specification List of Wire Mesh:
Opening		Wire Diameter<BWG>
In inch	In metric unit(mm)	Wire Diameter<BWG>
1/4" x 1/4"	6.4mm x 6.4mm	22,23,24
3/8" x 3/8"	10.6mm x 10.6mm	19,20,21,22
1/2" x 1/2"	12.7mm x 12.7mm	16,17,18,19,20,21,22,23
5/8" x 5/8"	16mm x 16mm	18,19,20,21,
3/4" x 3/4"	19.1mm x 19.1mm	16,17,18,19,20,21
1" x 1/2"	25.4mm x 12.7mm	16,17,18,19,20,21
1-1/2" x 1-1/2"	38mm x 38mm	14,15,16,17,18,19
1" x 2"	25.4mm x 50.8mm	14,15,16
2" x 2"	50.8mm x 50.8mm	12,13,14,15,16
Technical Note: 1.Standard roll length: 30m;width: 0.5m to 1.8m 2.Special sizes available at request 3.Packing: in waterproof paper in rolls. Custom packing available at request.

Galvanized Fencing Mesh:
Opening		Wire Diameter<BWG>
In inch	In metric unit(mm)	Wire Diameter<BWG>
2" x 3"	50mm x 75mm	2.0mm,2.5mm,1.65mm
3" x 3"	75mm x 756mm	2.67mm,2.41mm,2.11mm,1.83mm,1.65mm
2" x 4"	50mm x 100mm	2.11mm,2.5mm
4" x 4"	100mm x 100mm	2.0mm,2.5mm
Technical Note: 1.Standard roll length: 30m;width: 0.5m to 1.8m 2.Special sizes available at request 3.Packing: in waterproof paper in rolls. Custom packing available at request.

PVC Coated Mesh:
Opening		Wire Diameter<BWG>
In inch	In metric unit(mm)	Wire Diameter<BWG>
1/2" x 1/2"	12.7mm x 12.7mm	16,17,18,19,20,21
3/4" x 3/4"	19mm x 19mm	16,17,18,19,20,21
1" x 1"	25.4mm x 25.4mm	15,16,17,18,19,20

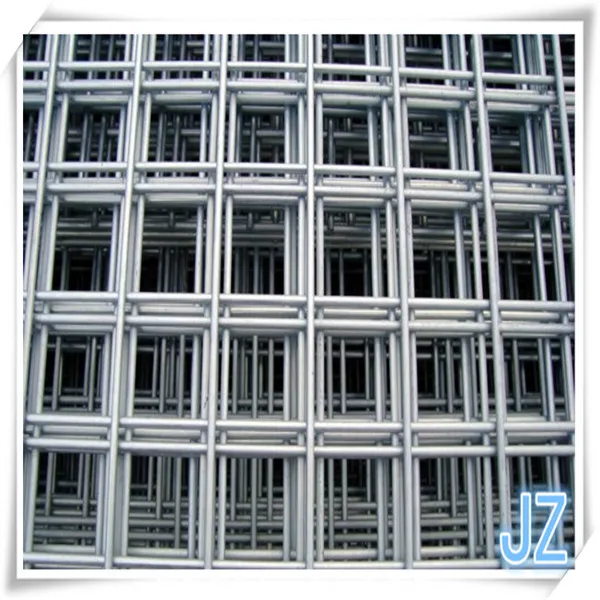

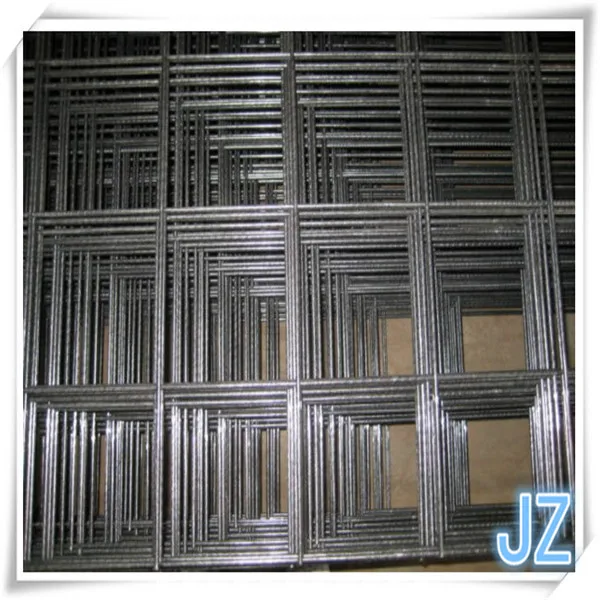

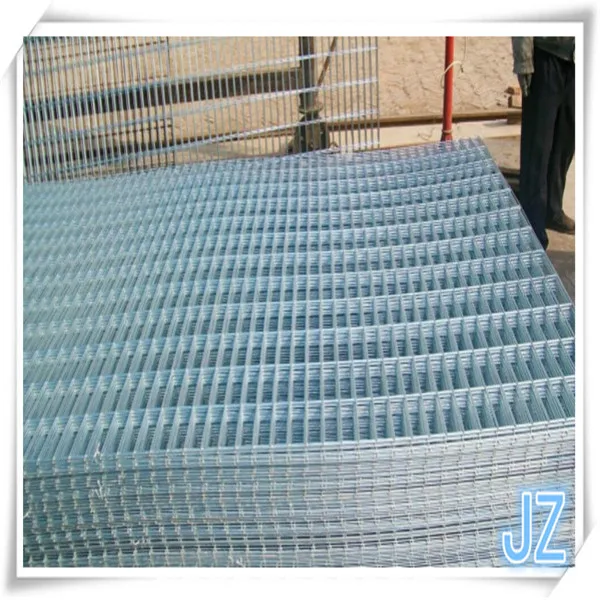

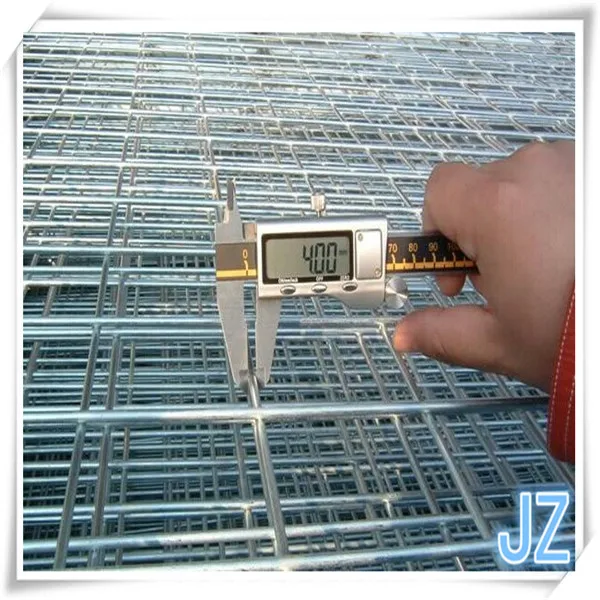

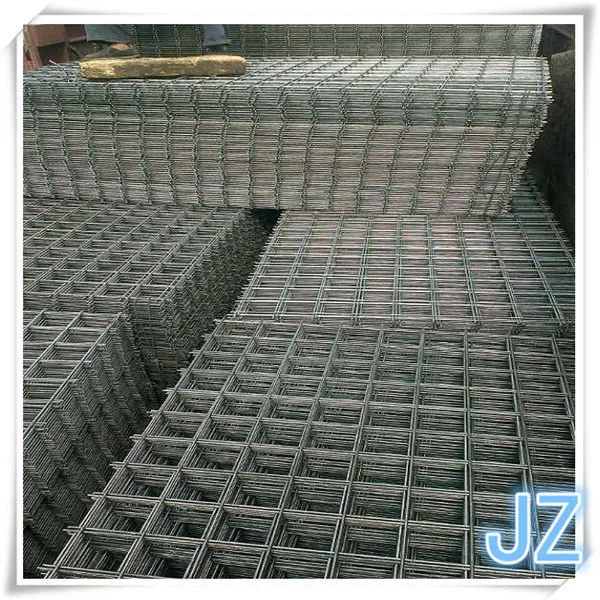

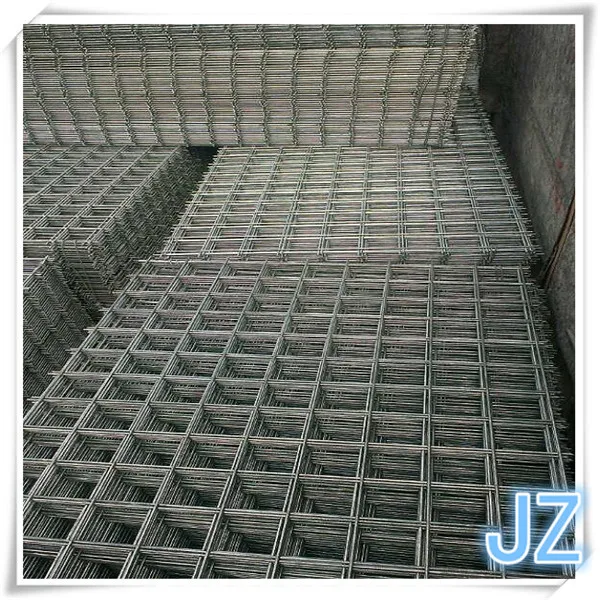

welded wire mesh display

PVC: plain, twill, dutch

Galvanized: plain, twill, dutch

welded wire mesh applications

welded stainless steel mesh and heavy type weld mesh with extra big wire gauge and extra roll width are also available. Some welded mesh uses include construction, leakage prevention underground, breaking prevention and animal feedind.

1, used in constructions
