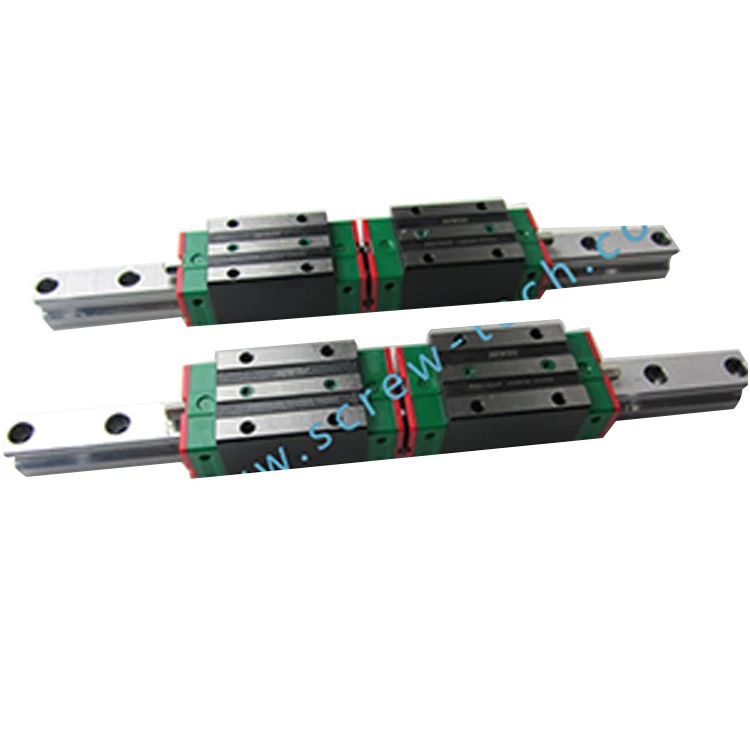

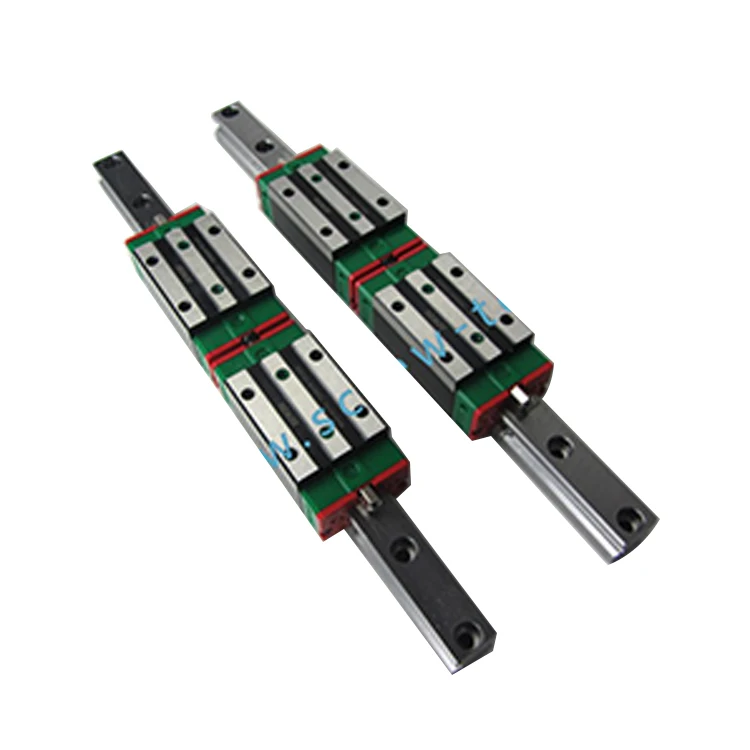

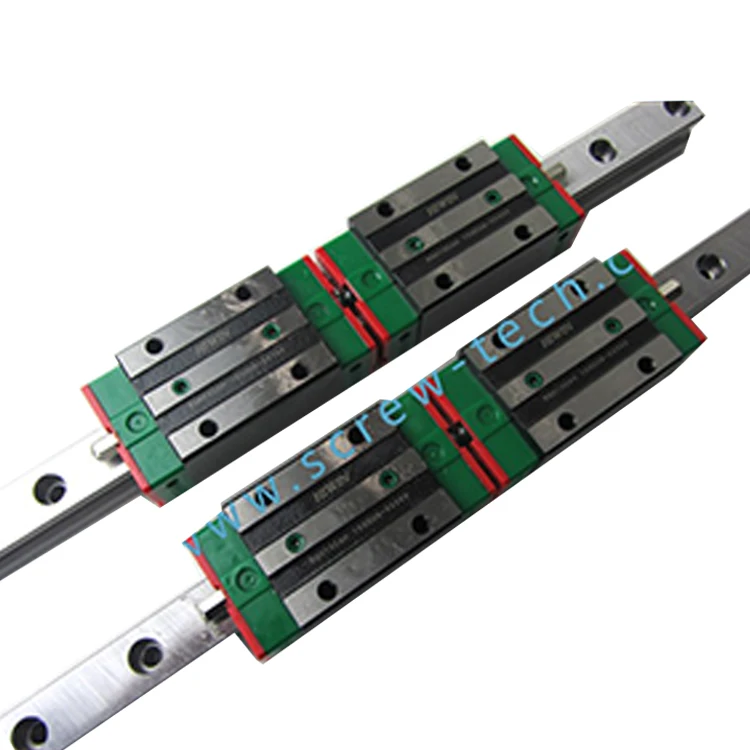

Высокое качество EGH20SA линейной

◊High quality:  Screwtech designs, manufactures, supplies a complete selection of inch and metric linear mechanical parts and systems to the Linear Motion and Power Transmission Industries.

◊Competitive price: We are factory supply that can export directly to customer. so there is no intermediary cost involved

◊Fast response:Your request will get response within 12 hours in any case.

Key Features

1.Built-in long life lubrication

2.High positional accuracy

3.High speed motion is possible with a low driving force

4.Equal loading capacity in all directions

5.Easy installation

6.Inter change ability

Specification

The new RG series from Hiwin features a roller as the rolling element instead of steel balls. The roller series offers super high rigidity and very high load capacities. The RG series is designed with a 45-degree angle of contact. Elastic deformation of the linear contact surface, during load, is greatly reduced thereby offering greater rigidity and higher load capacities in all 4 load directions.The RG series linear guideway offers high performance for high-precision manufacturing and achieving longer service life.

Rolling circulation system: Block , Rail , End cap , Circulation path, rollers
Lubrication system: Grease nipple and piping joint
Dust protection system: End seal, Bottom seal, Cap, Double seals and scraper

Advantages

(1) Optimal design
fEM analysis was performed to determine the optimal structure of the block and the rail. The unique design of the circulation path allows the RG series linear guideway to offer smoother linear motion.
(2) Super high rigidity
The RG series is a type of linear guideway that uses rollers as the rolling elements. Rollers have a greater contact area than balls so that the roller guideway features higher load capacity and greater rigidity.
(3) Super high load capacity
With the four rows of rollers arranged at a contact angle of 45-degrees, the RG series linear guideway has equal load ratings in the radial, reverse radial and lateral directions. The RG series has a higher load capacity in a smaller size than conventional, ball-type linear guideways.

(4) Operating life increased
Compare with the ball element, the contact pressure of rolling element is distributed on the line region. Therefore, stress concentration was reduced siginificantly and the RG series offers longer running life. The nominal life of RG series can be calculated by using Eq.

Application

Automation Device
Transportation equipment
CNC machining centers
Heavy duty cutting machines
CNC grinding machines
Injection molding machines
Electric Discharge Machines
Plano millers
Devices requiring high rigidity and high load capacity

Types

(1) Block types
HIWIN offers two types of guide blocks, flange and square type. Because of the low assembly height and large mounting surface, the flange type is excellent for heavy moment load applications.
(2) Rail types
In addition to the standard top mounting type, HIWIN also offers the bottom mounting type of rails.

Standard and Maximum Lengths of Rail

HIWIN offers a number of standard rail lengths. standard rail lengths feature end mounting hole placements set to predetermined values (E). for non-standard rail lengths, be sure to specify the E-value to be no greater than 1/2 the pitch (p) dimension. An E-value greater than this will result in unstable rail ends.

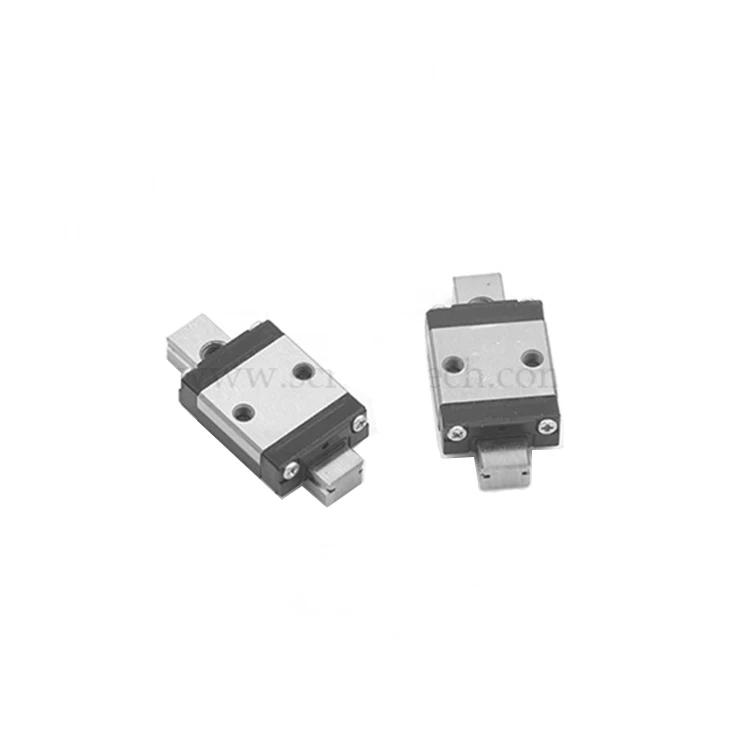

 Other HIWIN linear guide rail
