Production

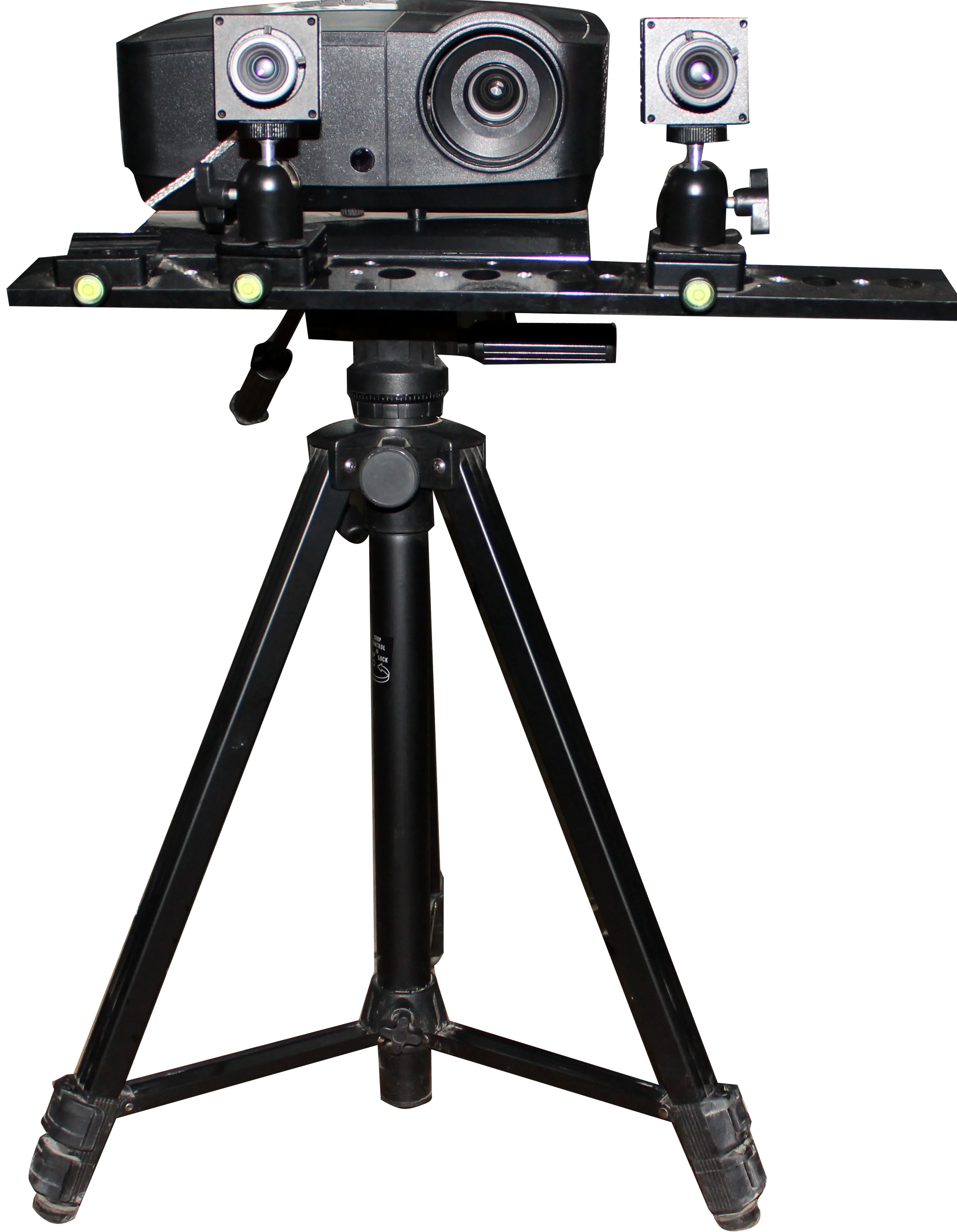

3D scanner is mainly applied to the object contour, 3D digital data is a very effective and efficient tool, which has the high precision speed,no damage to the object, no contact deformation.

The three-dimensional scanning system in Jinan Lu Diao has the the world's leading Grating technology, which could obtain the three dimensional data of the object surface in short time.

It is widely used in mold design and manufacturing, three-dimensional sculpture carving, carving handicraft processing, stereo industrial products manufacturing, quality inspection and control, measurement and other fields.

Technical Parameters

Model	AE-3D
Scanning way	Non-contact surface scanning
Single frame accuracy	<=+/-0.03mm
Single frame Speed	<=3s
Dot-pitch	0.1-0.3mm
Alignment	Fully automatic stitching alignment and manual alignment
Scanning range	objects as small as 10 mm in diameter, large objects to 2m high, can precision scanning
Scanning depth	not only meet the general object scanning, suitable depth scan larger objects (0 ~ 180mm)
System support	WINDOWS XP/WINDOWS 7/ WINDOWS 7 X64
Supporting software	International large-scale software fully compatible (can generate a variety of data formats for use in other software, including stl,stp,stl, ply, asc, ac, pif, igs,iges,obj,etc., can be converted to AutoCAD, Geomagic Studio, Rapid Form,UG Pro E, ImageWare other software for post-processing.)
Driver support	Microsoft Certified driver, easy to install
Software	Scanning software and editor software
Net weight	20KG
Packaging dimension	80*60*30cm
Packaging	Aviation packaging
Delivery time	3 working days
Payment terms	TT with 100%
Warranty	2 years

Features

1Fast scanning speed, high precision: single scan time less than 3 seconds, automatic stitching, stitching precision can reach 0.03mm/m (3um).

2 Excellent machine hardware: the machine hardware is excellent, the original imported, reliability, good durability, ensure the products are excellent stability.

3 Scan widely:10mm diameter objects to 2m tall objects, scan Precisely.

4 Non injury: raster scanning technology, no damage, no deformation of the objects, suitable for all kinds of objects.

5 Easy to use and operate: interface concise, beginners in short time can be skilled operation, the package will package.

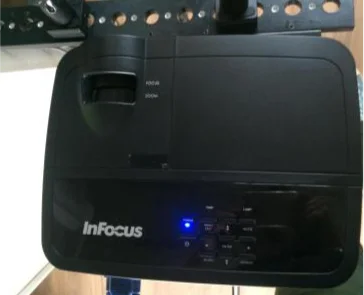

6 No harm to human body: strong adaptability to the environment, the American digital grating, high brightness, good heat dissipation; no damage to the eyes, working terms low.

7 Many automatic splicing ways: manual splicing ways,automatic mosaic method.the automatic mosaic using a unique ICP (Iterative Closest Point) sign automatic splicing technology, all the data points are scanned for the best matching, automatic operation, high precision, fast calculation speed, so that the error on object is small.solving the problem of delamination may occur in the process of stitching. the complex objects can be viewed in different directions to get three-dimensional data integrity.

8 Strong compatibility: output format supports STL/ OBJ /IGES /DXF

3DS... With the globalization of software interface, to adapt to the international large software, as well as the domestic software. Such as: mastercam, powermill, ug, pro/e, geomagic studio......

Domestically such as carved, manufacturing engineer, wentai.

Application

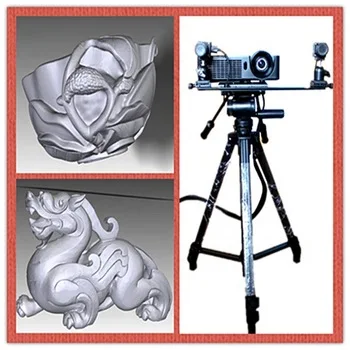

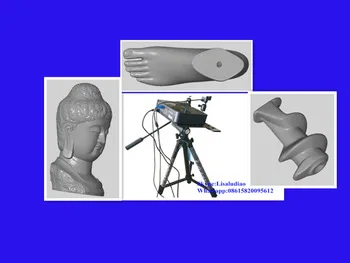

For generating high resolution digital 3D models accurately, and are great for manufacturers of furniture, arts & crafts, molds industry, advertising, visual effect studios, and research labs that require 3D scan data for applications such as inspection, measurement, visualization, reverse engineering, or rapid prototyping.
