frp высокое напряжение ружье палки
US $0.01-$0.50
Работающего на постоянном токе 12 В в JSO-0420S-1 тестовая редукционный
- Категория: Other Electronic Components >>>
- Поставщик: Ningbo,Jinsun,Magnetoelectric,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 2.90 $* | 2.37 $* |
| Aug-16-2025 | 2.3 $* | 2.15 $* |
| Jul-16-2025 | 2.2 $* | 2.35 $* |
| Jun-16-2025 | 2.39 $* | 2.47 $* |
| May-16-2025 | 2.0 $* | 2.77 $* |
| Apr-16-2025 | 2.12 $* | 2.51 $* |
| Mar-16-2025 | 2.65 $* | 2.36 $* |
| Feb-16-2025 | 2.74 $* | 2.46 $* |
| Jan-16-2025 | 2.22 $* | 2.64 $* |
Характеристики
Products Features
12V dc JSO-0415 push pull open frame solenoid for industrial use
- Big force with small size
- Pull or push when power on and go back when power off.
- Wided using
- 20 years of designning and producing experience
- OEM/ODM is welcomed
- Stable Quality and Longlife
- Big force with small size
- Pull or push when power on and go back when power off.
- Wided using
- 20 years of designning and producing experience
- OEM/ODM is welcomed
Technical Data
Product Name | Pull Push Solenoid | Model | JSO-0415-1-12V |
Rated Voltage (V) | 12 | Product Size(mm) | L14.3xW10xH8.3 |
Work Model | Pull | Rated Power(W) | 5 |
Service Life | 500 Thousand Times | Currenct(A) | 0.42 |
Material | Iron | Holding Force (g) | 30 |
Install Style | By Screw | Stroke(mm) | 3 |
Water-proof | IP20 | Duty Cycle | 10% |
Hi-Pot Test | AC 600V 50/60Hz 2s | Max. Power on time(S) | 15 |
Insulation Class | B | N.W.(g) | 5 |
Working Temperature | -10°C~60°C | Install Thread Size(mm) | M2 |
Certification | CE,ROHS,ISO9001 | Lead Wire Length(mm) | 200mm or Customized |
Sample Order | Yes | Reset Time(s) | 0.1 |
MOQ | 10 pcs | Electroplating | Nickel plated |
Delivery Time | 5-10 Days | Payment Term | ALIPAY, TT,PAYPAL |
Port of Loading | Ningbo | Warranty | 3 Year |

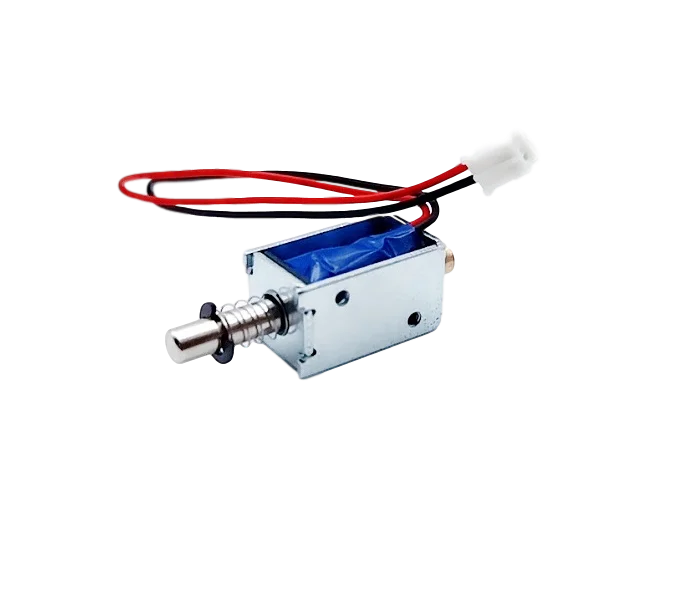

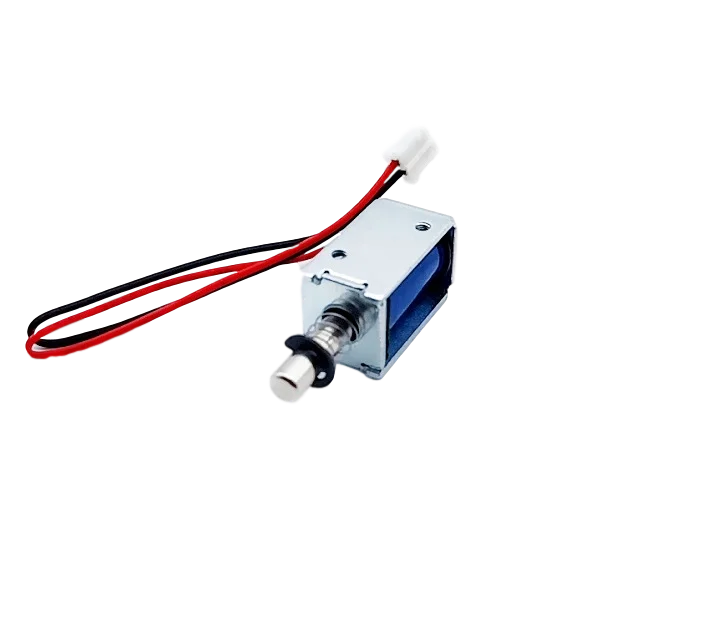

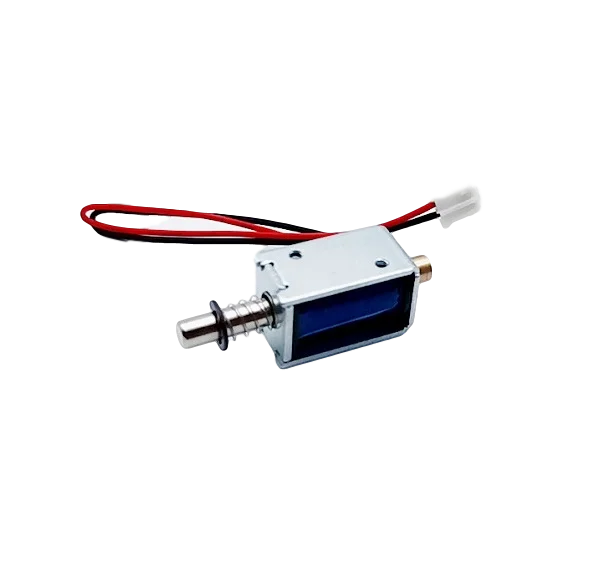

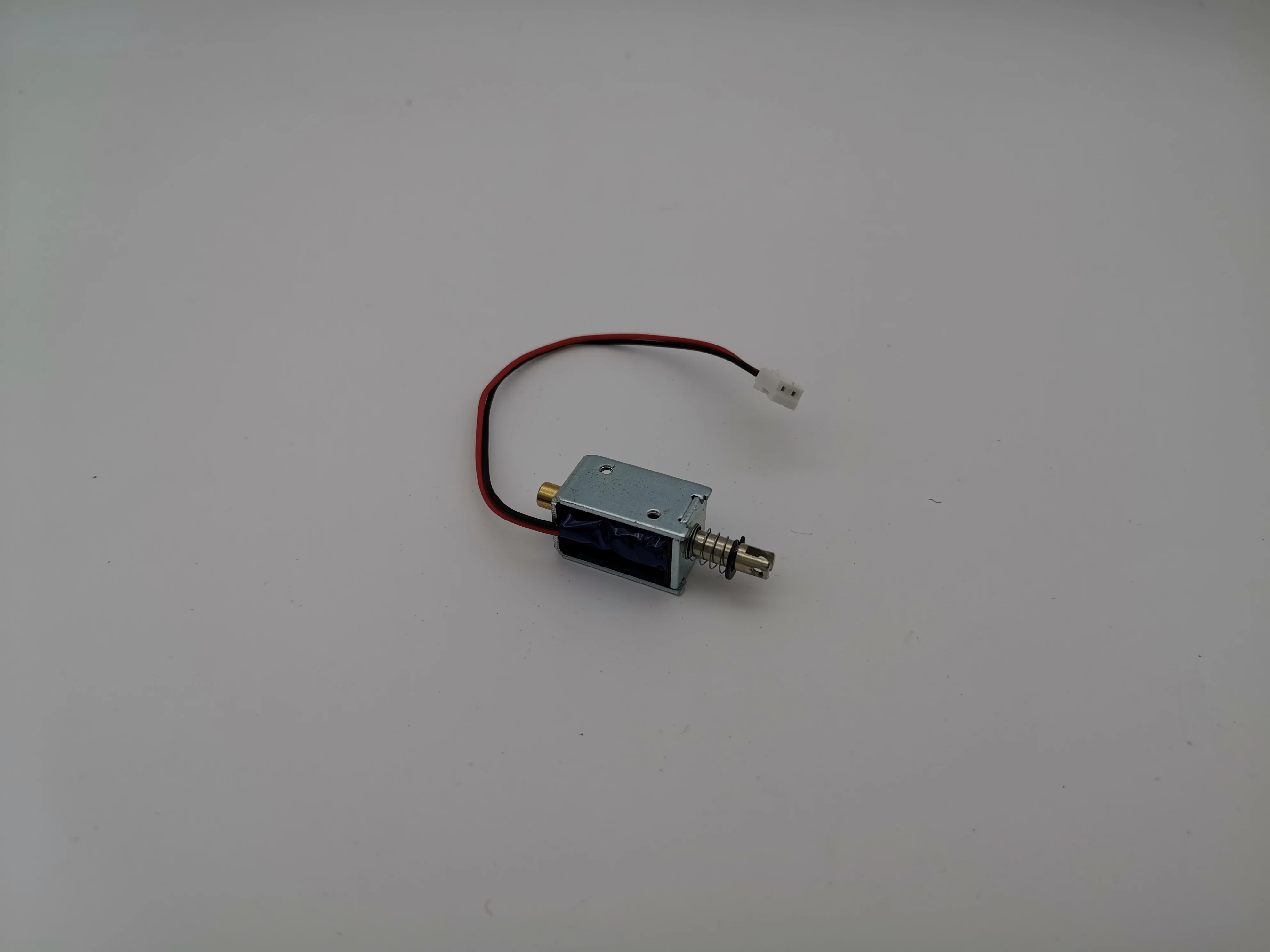

Product Photos
Product Drawing
Remark:
Customized design is welcomed.
Product Series
Circular Holding Electromagnet Series:
Please see below all range which may close to your application:
Model | Type | Voltage(V) | Currency (A) | Stroke (mm) | Begin Force(g) | Max. power on time(s) | Frame Dimension |
JSO-0415-1-5V | Pull | 5 | 1.00 | 3 | 30 | 15 | L14.3xW10xH8.3 |
JSO-0415-1-12V | Pull | 12 | 0.42 | 3 | 30 | 15 | L14.3xW10xH8.3 |
JSO-0415-2-5V | Pull | 5 | 3.20 | 5 | 8 | 5 | L14.3xW10xH8.3 |
JSO-0415-2-12V | Pull | 12 | 1.33 | 5 | 8 | 5 | L14.3xW10xH8.3 |
JSO-0416-12V | Pull | 12 | 1.33 | 5 | 8 | 5 | L14.3xW10xH8.3 |
JSO-0420S-1-12V | Pull/Push | 12 | 1.80 | 4 | 150 | 10 | L20.5xW12xH11 |
JSO-0420-2-12V | Pull | 12 | 0.29 | 4 | 60 | 15 | L20.5xW11.5xH10 |
JSO-0420-2-24V | Pull | 24 | 0.58 | 4 | 75 | 15 | L20.5xW11.5xH10 |
JSO-0420L-2-5V | Pull | 5 | 5.00 | 4 | 80 | 5 | L20.5xW13xH10 |
JSO-0420L-2-12V | Pull | 12 | 2.00 | 4 | 80 | 5 | L20.5xW13xH10 |
JSO-0421-12V/24V-JY | Pull | 12/24 | 6.00 | 3 | 80 | 5 | L21xW11.3xH9.8 |
JSO-0520-XH-1-5V | Pull | 5 | 5.00 | 3.5 | 200 | 2 | L27xW24xH17 |
JSO-0520-XH-1-12V | Pull | 12 | 2.00 | 3.5 | 200 | 2 | L27xW24xH17 |
JSO-0520-XH-2-5V | Pull | 5 | 5.00 | 3.2 | 200 | 2 | L27xW24xH17 |
JSO-0520-XH-2-12V | Pull | 12 | 2.00 | 3.2 | 200 | 2 | L27xW24xH17 |
JSO-0520S-3-5V | Pull | 5 | 5.00 | 4.5 | 200 | 2 | L34xW22xH16 |
JSO-0520S-3-12V | Pull | 12 | 3.00 | 4.5 | 300 | 2 | L34xW22xH16 |
JSO-0530-12V | Pull | 12 | 3.00 | 4.5 | 300 | 2 | L34xW22xH16 |
JSO-0537-12V | Pull | 12 | 3.00 | 4.5 | 300 | 2 | L34xW22xH16 |
JSO-0620-1-12V | Pull/Push | 12 | 0.54 | 4.5 | 80 | 20 | L20xW16xH13 |
JSO-0620-2-12V | Pull/Push | 12 | 0.43 | 4 | 80 | 20 | L20xW16xH13 |
JSO-0626-12V | Pull/Push | 12 | 0.54 | 4-4.5 | 80-110 | 5-20 | L20xW16xH13 |
JSO-0630-3-12V | Pull/Push | 12 | 0.43 | 4 | 80 | 20 | L20xW16xH13 |
JSO-0630-3-24V | Pull/Push | 24 | 0.53 | 4 | 110 | 5 | L20xW16xH13 |
JSO-0726HK-12V | Pull/Push | 12 | 2.00 | 10 | 75-350 | 2-10 | L30xW16xH14 |
JSO-0730-12V | Pull/Push | 12 | 2.00 | 10 | 75 | 10 | L30xW16xH14 |
JSO-0730-24V | Pull/Push | 24 | 4.00 | 10 | 350 | 2 | L30xW16xH14 |
JSO-0837-6V | Pull | 6V | 1.00 | 10 | 100 | 300 | L37xW26xH20 |
JSO-0837-12V | Pull | 12V | 2.00 | 10 | 100 | 15 | L37xW26xH20 |
JSO-0837-12V/24V-JY | Pull/Push | 12/24 | 1.00 | 6 | 150 | 15 | L37xW26xH20 |
JSO-0841-12V | Pull | 12V | 2.00 | 10 | 100 | 15 | L37xW26xH20 |
JSO-0946-1-24V | Push | 24 | 2.28 | 9 | 450 | 5 | L46xW23xH18 |
JSO-1040S-1-24V | Pull/Push | 24 | 0.63 | 6.5 | 530 | continue | L40xW29xH24 |
JSO-1047-1-24V | Pull | 24 | 1.37 | 12 | 700 | 20 | L46xW30xH26 |
JSO-1054-6V | Pull | 6 | 1.50 | 10.5 | 200 | 30 | L54xW42xH28 |
JSO-1054-12V | Pull | 12 | 1.10 | 10.5 | 300 | 20 | L54xW42xH28 |
JSO-1054-24V | Pull | 24 | 2.30 | 10.5 | 800 | 4 | L54xW42xH28 |
JSO-1253-12V/24V-JY | Pull | 12/24 | 1.50 | 21 | 1600 | continue | L50xW27xH30 |
JSO-1264-12V/24V-JY | Pull/Push | 12/24 | 9.60 | 13 | 150 | continue | L64xW38xH31 |
JSO-1359-12V/24V-JY | Pull/Push | 12/24 | 7.50 | 21 | 50 | continue | L59xW31xH25.4 |
JSO-1550-24V | Pull | 24 | 5.70 | 15 | 4300 | 2 | L51xW37xH41 |
JSO-1578-24V | Pull | 24 | 1.37 | 10 | 2500 | 70 | L78xW51.5xH44 |
Model | Type | Voltage(V) | Currency (A) | Stroke (mm) | Begin Force(g) | Max. Power on time(s) | Frame Dimension |
