BBA Gantry Тип XYZ автоматическая машина для отвертки 2 система подачи установка крепления винтов


Поделиться:


Цена:5 800,00 $ - 6 200,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-20-2025 6902.98 $* 7247.30 $*
Aug-20-2025 6844.1 $* 7186.80 $*
Jul-20-2025 5742.81 $* 6029.14 $*
Jun-20-2025 6728.8 $* 7064.15 $*
May-20-2025 5858.66 $* 6151.12 $*
Apr-20-2025 6612.79 $* 6943.97 $*
Mar-20-2025 6554.51 $* 6882.43 $*
Feb-20-2025 6496.72 $* 6821.29 $*
Jan-20-2025 6438.34 $* 6760.91 $*

Характеристики

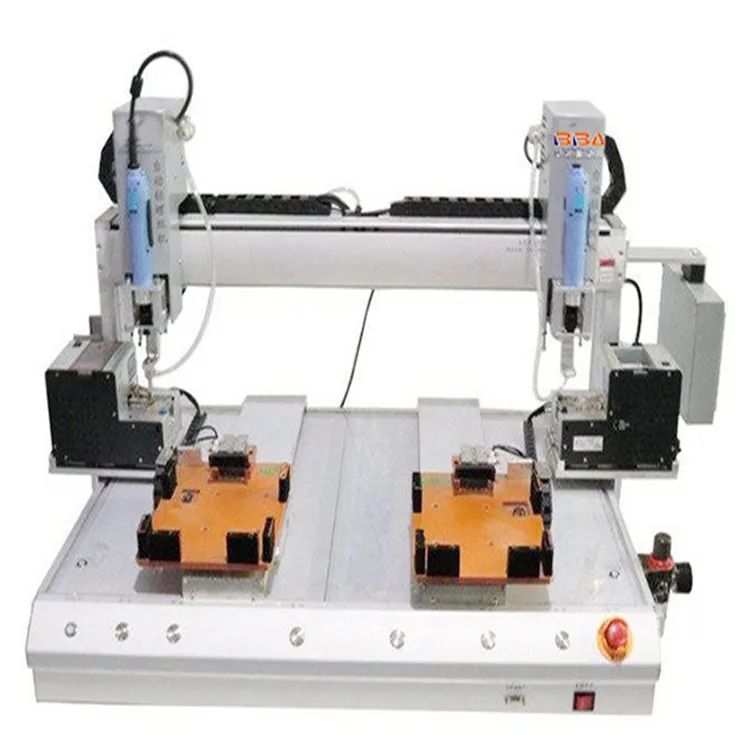

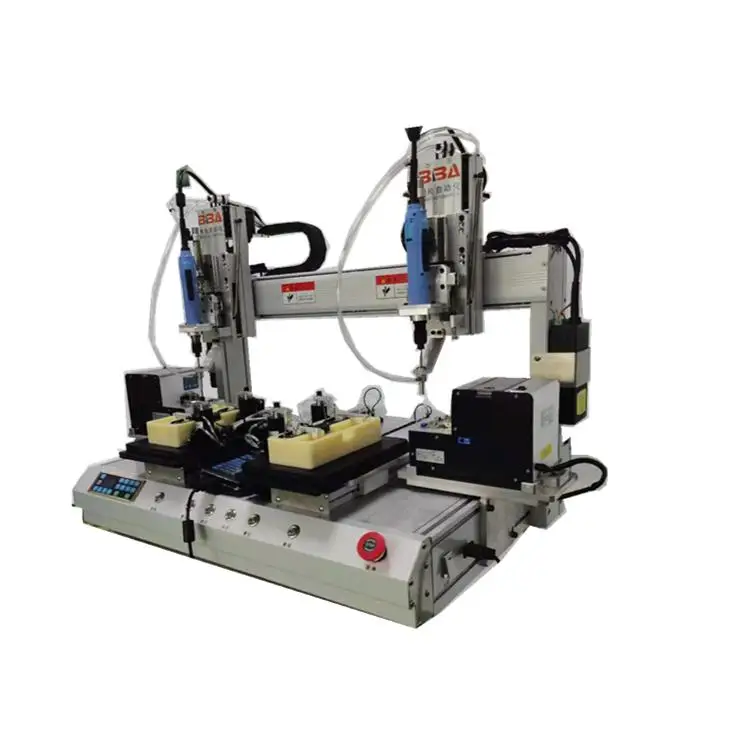

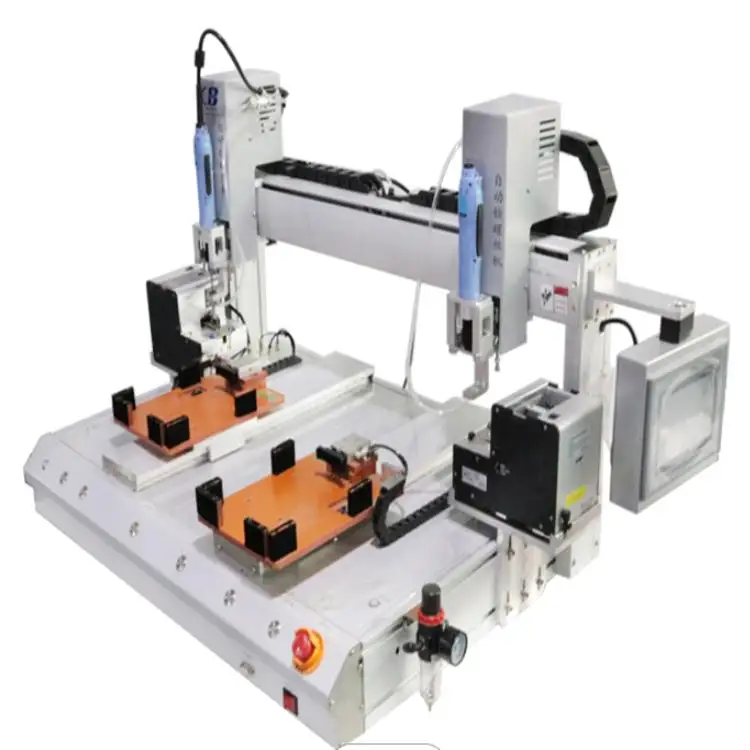

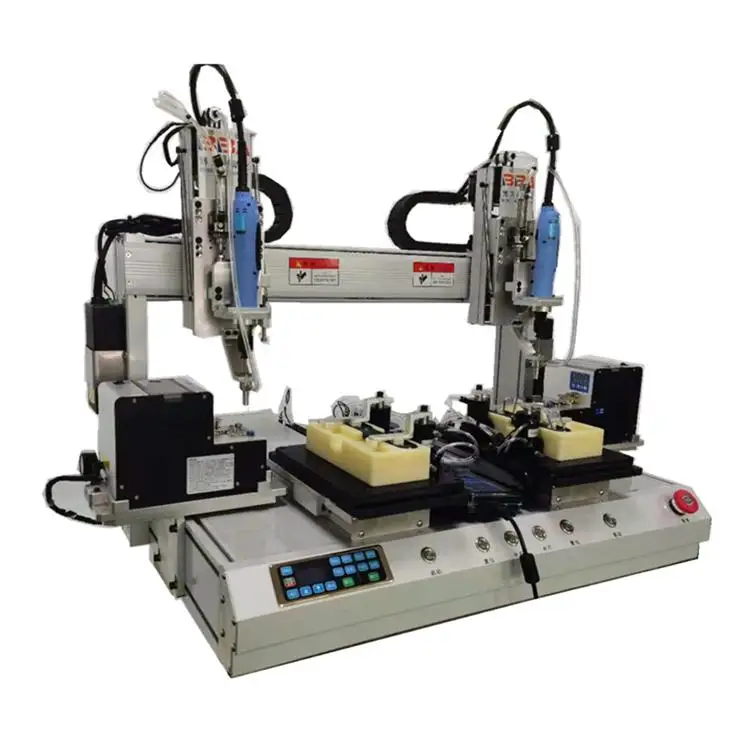

Automatic screw fastening machine is mainly composed of screw automatic conveying system, x-y-z movement platform, control system and fastening system. The work efficiency is much higher than the traditional manual work.
Automatic robot screw tightening machine is with various types: single platform, double platform, dual screw feeding systems, double screw feeder with blowing and pneumatic mode to meet different product requirements. Screw locking feeder machine is programmed by teaching pendant for easy operation with detection functions as leak lock,sliding teeth,floating lock and so on. Robot locking screw machine is applied to M1-M10 screws, mainly applicable for socket, switch, LED, valve, toy, automobile, household appliances, 3C industry etc.




Products Description






Machine external accessories




Detailed operating instructions & videos prepared to teach you step by step




Applicable screws




Customization available






Specification of screwing machine series


Model
BBA-331LS
(Single Y platform)
BBA-5441LS
(Double Y platform)
BBA-6441LS
(Dual screw feeding system
CUSTOMIZED
Power supply
AC 110/220V 50/60HZ
Stroke
X
300mm
X
500mm
X
600mm
To order
Y
300mm
Y1/Y2
400mm
Y1/Y2
400mm
Z
100mm
Z
100mm
Z
100mm
Maximum load weight
8KG(for work platform)
To order
Screwdriver torque
0.015~2.5N.m
More than 3.0N.m
Moving speed
10-800mm/s
Air pressure
0.5~0.7Mpa
Position accuracy
±0.02mm/axis
Program capacity
999 groups/1000 points per group
Motor system
Micro Precision Stepping Motor
Transmission mode
Precision toothed belt+guide rail
Universal screws
M1-M8
Control panel
Teaching pendant with display screen
Work efficiency
1.2~1.5s/pcs
Work environment
Temperature: 5-40℃         Humidity: 20-90%
Weight
100kg
120kg
150kg
To order
External machine Size
(L*W*H)
700*630*700mm
820*730*700mm
920*730*700mm
To order


Customer case




Packing & Delivery






Company Profile




FAQ
