Пневматический роботизированный манипулятор подъемное

Пневматический роботизированный манипулятор подъемное

Категория: Манипулятор >>>
Поставщик: Jiangyin,Tongli,Industrial,Co.,Ltd.

Цена:7 900,00 $ - 8 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-20-2025	9401.18 $*	9871.27 $*
Aug-20-2025	9322.96 $*	9788.68 $*
Jul-20-2025	7821.34 $*	8212.90 $*
Jun-20-2025	9164.36 $*	9622.69 $*
May-20-2025	7979.37 $*	8378.52 $*
Apr-20-2025	9006.75 $*	9456.72 $*
Mar-20-2025	8927.74 $*	9373.57 $*
Feb-20-2025	8848.60 $*	9290.38 $*
Jan-20-2025	8769.90 $*	9207.83 $*

Характеристики

Pneumatic Robot Arm Manipulator Machine Hoist Lifting Equipment

Six reasons why you have to choose our manipulator.

flexible operation & save time and effort
reduce personnel & reduce cost
durable & energy-saving and efficient

Send Inquiry>>

Click for More Information ! ! !

Product Description

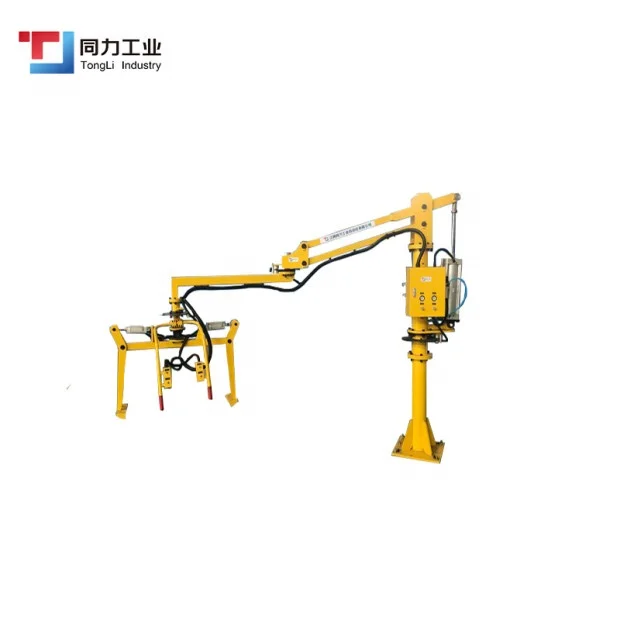

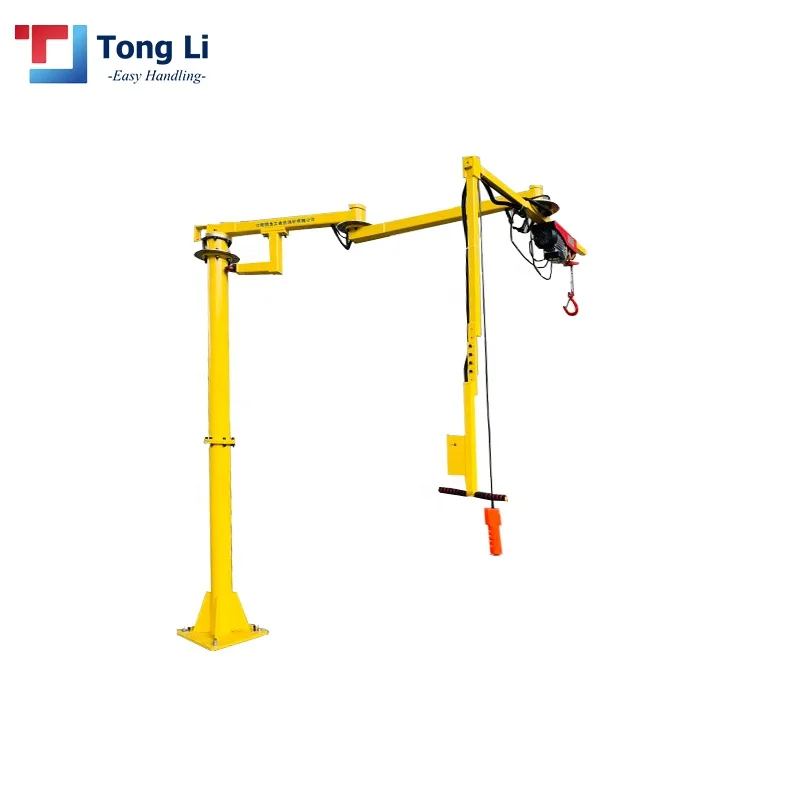

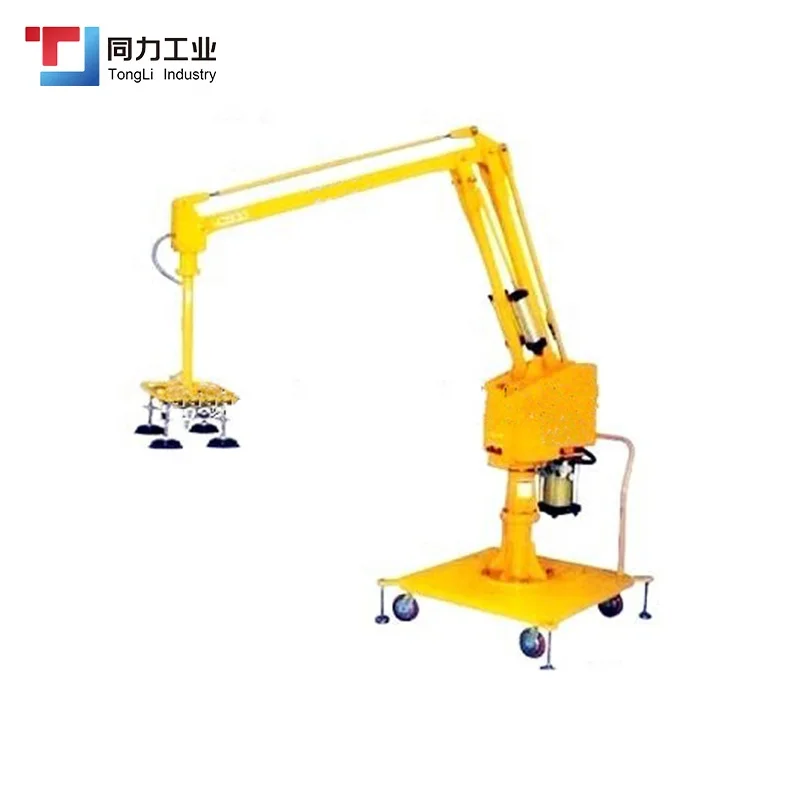

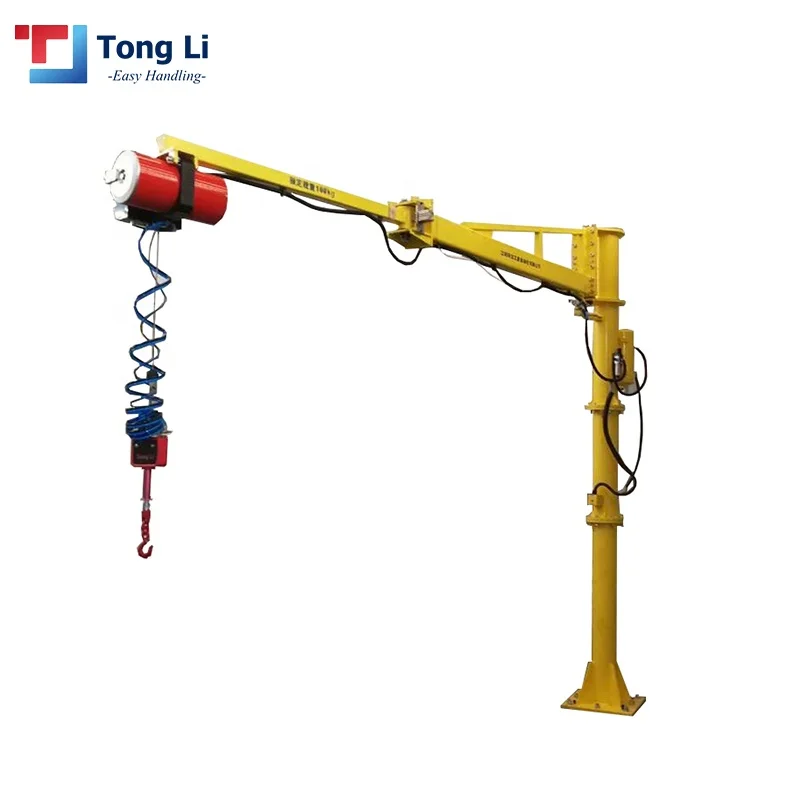

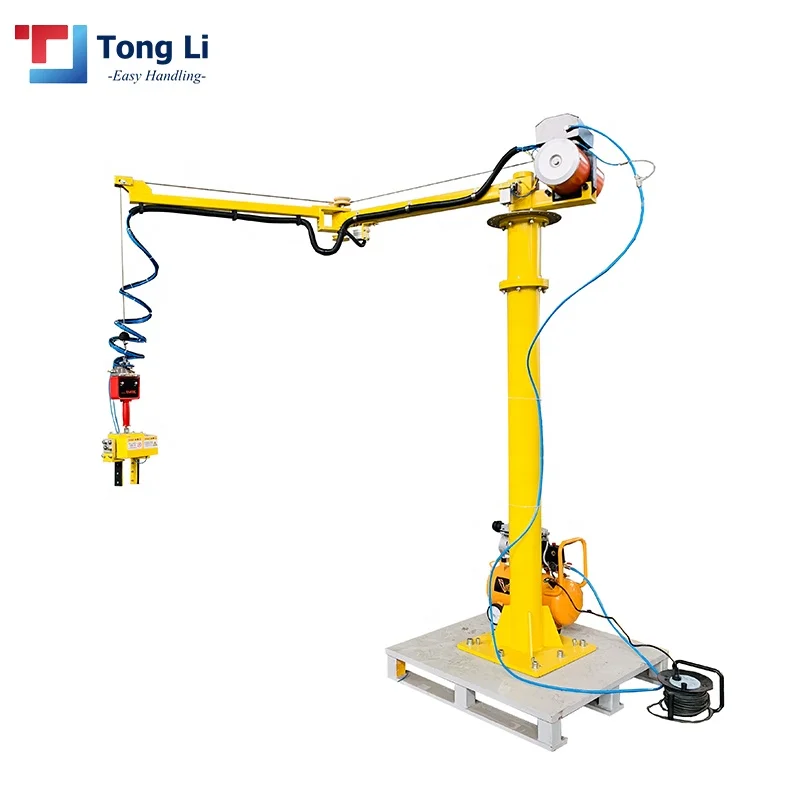

With the high development of modern high-tech power, more and more advanced technologies have been applied to logistics activities, and one of the relevant important applications is the transport manipulator.Pneumatic manipulator, as a kind of manipulator, is widely used because of its advantages including simple structure, light weight, fast movement, stable, reliable, energy saving and environmental protection.Pneumatic arm manipulators with vertical movement by parallelogram. Designed to ensure maximum precision in handling, they are ideal for cantilevered loads or to impress.

Hoist Lifting Equipment

The carrying manipulator usually has the following three characteristics:
1.The pins can be designed with pneumatic or mechanical clamps and vacuum suckers.
2.Each arm is individually designed for practical use. The metal body of the manipulator is suitable for various industrial applications.
3.Watch moves, lifts and clamps by PLC or industrial computer to complete a set task.

Technical Parameter of Industrial Manipulator

Model	Operational air pressure (bar)	Max. Action Radius (m) (It can be adjusted according to actual conditions)	Max payload (Kg)	Maximum lifting stroke (m) (It can be adjusted according to actual conditions)
TLJXS-50	5	2.5	50	2
TLJXS-75	5	2.5	75	2
TLJXS-100	5	2.5	100	2
TLJXS-125	5	2.5	125	2
TLJXS-150	5	2.5	150	2
TLJXS-175	5	2.5	175	1.5
TLJXS-200	5	2.5	200	1.5
TLJXS-250	5	2.5	250	1.5
TLJXS-300	5	2.5	300	1.5
TLJXS-400	5	2.5	400	1.5
TLJXS-500	5	2.5	500	1.5
Working radius and lifting stroke can be set according to workpiece size and site requirements
