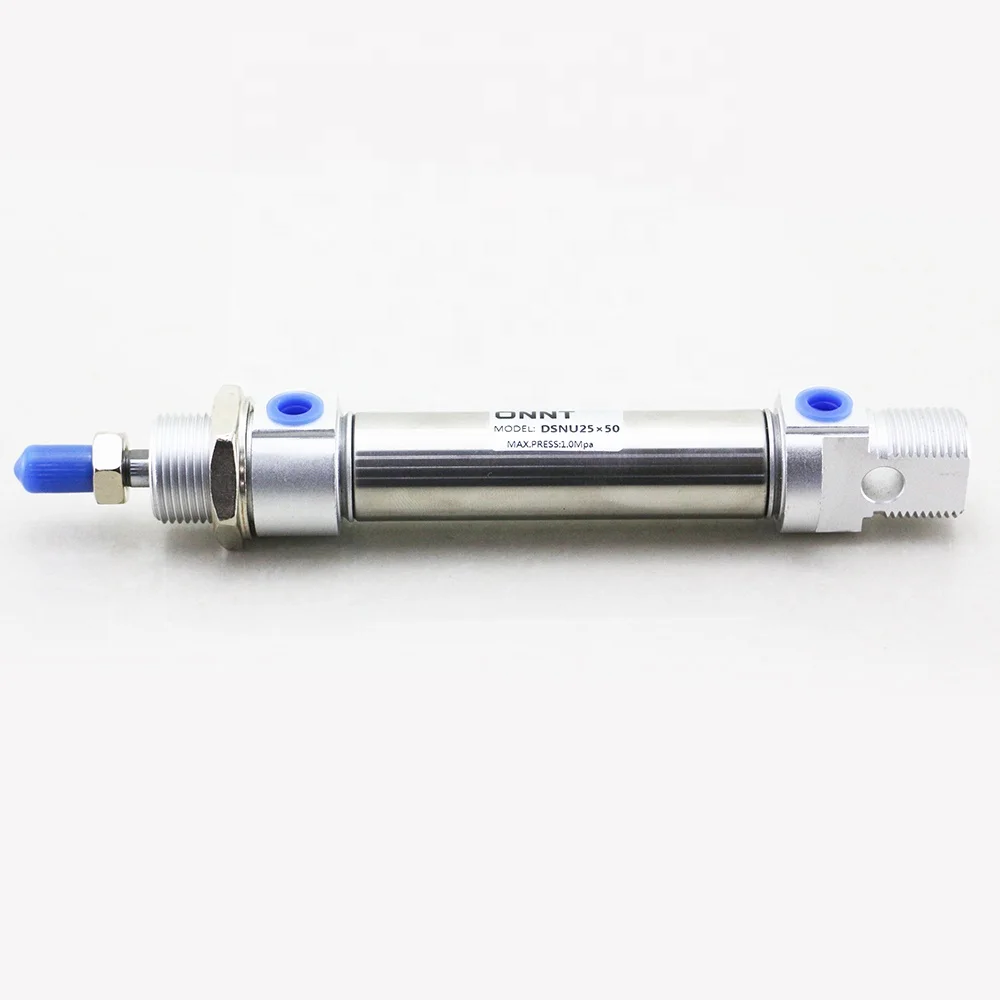

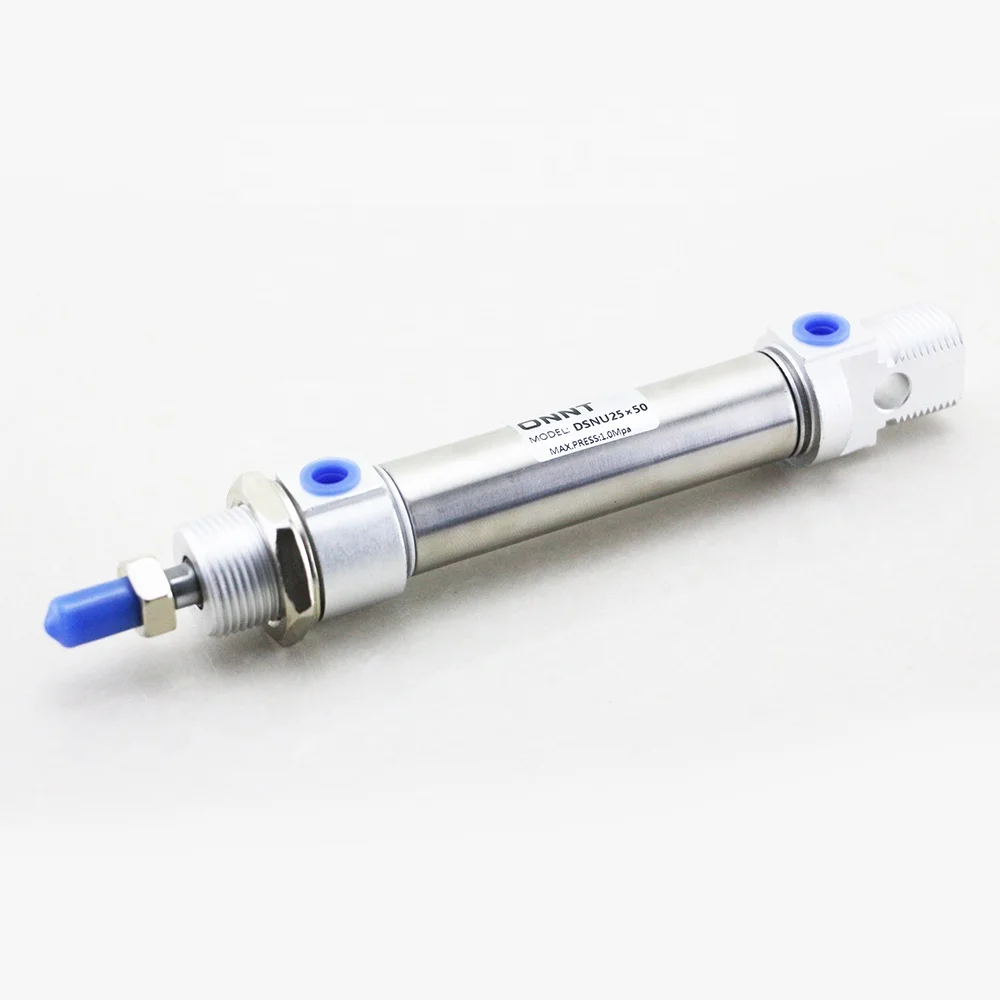

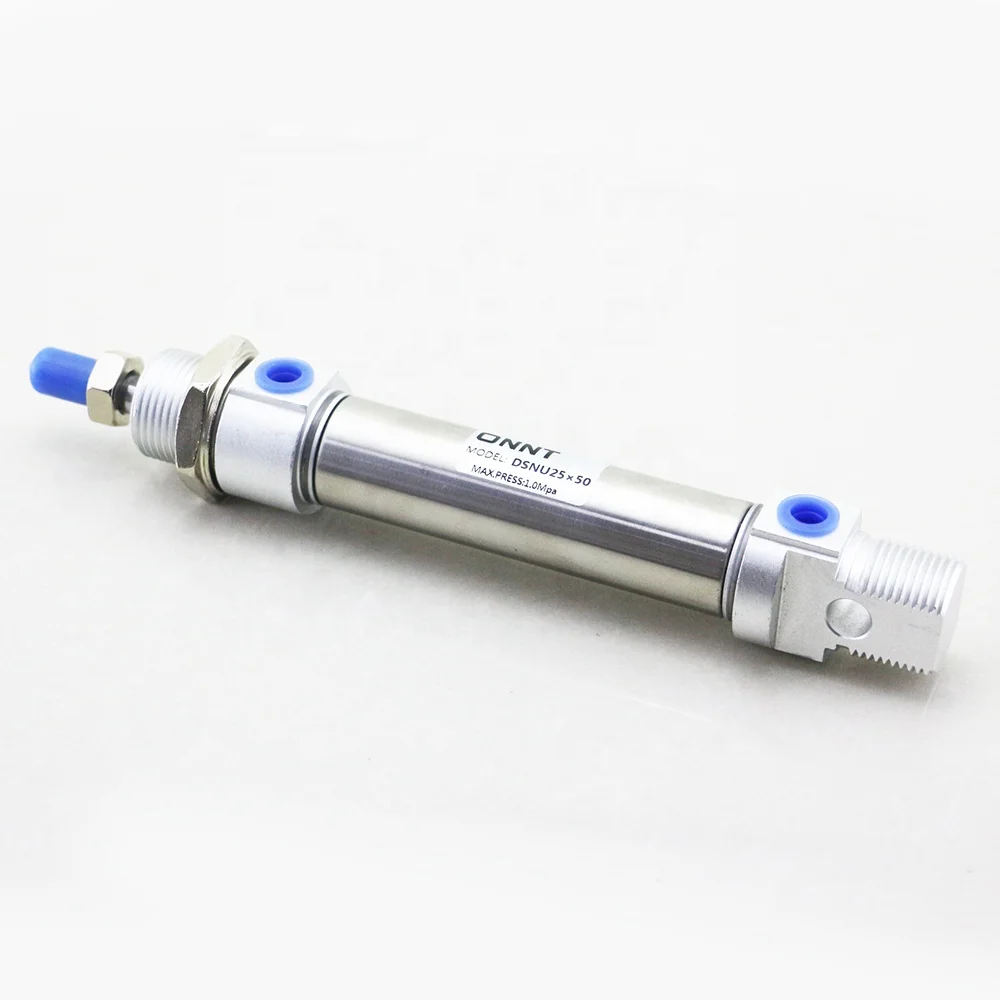

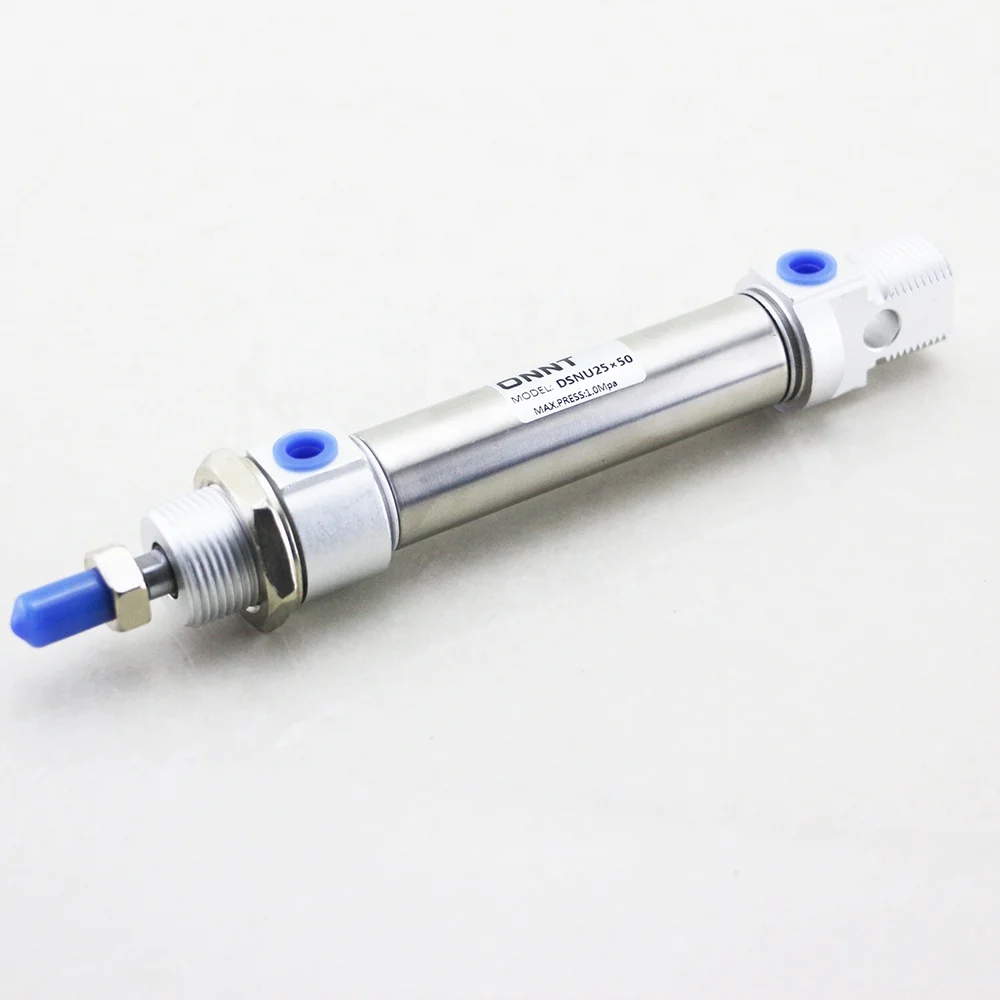

Двойное действие ISO 6432 DSNU мини индивидуальный пневматический цилиндр из нержавеющей стали круглый микро

Двойное действие ISO 6432 DSNU мини индивидуальный пневматический цилиндр из нержавеющей стали круглый микро

Цена:*

Количество:

Double Acting ISO 6432 DSNU Mini Customized Pneumatic Cylinder Stainless Steel Round Micro Air Cylinder

Product Description

-Product Description.jpg

Ordering Code

DSNU 25 × 50 - PPV - A

Series Bore x Stroke Built-in magnets Rear cover type

DSNU: Double-acting type P: Flexible cushioning rings, pads at both ends A:Via proximity sensor

DSN: Double-acting type PPV: Pneumatic cushioning, adjustable at both ends

ESNU: Single-acting type PPS: Pneumatic cushioning, self-adjustable at both ends

ESN: Single-acting type

Inner structure and material of major parts:

Specifications

Bore size	8	10	12	16	20	25	32	40	50	63
Confoms	ISO 6432
Pneumatic connection	M5	M5	M5	M5	G1/8	G1/8	G1/8	G1/4	G1/4	G3/8
Piston rod thread	M4	M4	M6	M6	M8	M10X1.25	M10X1.25	M12X1.25	M16X1.5	M16/1.5
Stroke	1...100		1...200		1...320	1...500
Constructional design	Piston/ Piston rod / Cylinder barrel
Cushioning
DSNU-...-P	Flexible cushioning rings/ pads at both ends
DSNU-...-PPV	-		Adjustable cushioning at both ends
DSNU-...-PPS	-			Self-adjustable cushioning at both ends
Cushioning length
DSNU-...-PPV	-		9	12	15	17	14	18	20	21
DSNU-...-PPS	-			12	15	17	14	18	20	21
Position sensing	Via proximity sensor
Type of mounting	Direct mounting
	Via accessories
Mounting position	Any

Dimensions

Product Details

-Product Details.jpg

DSNU .jpg
