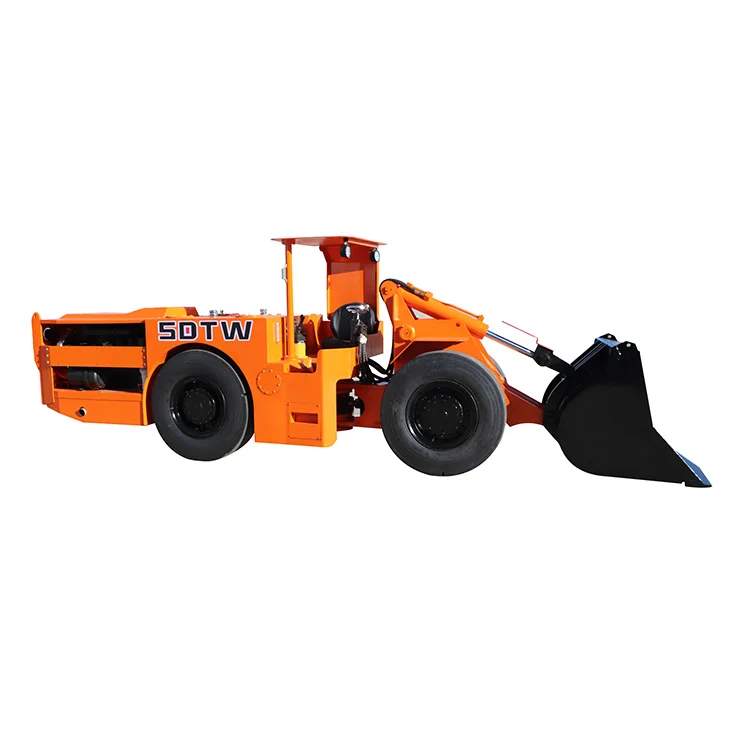

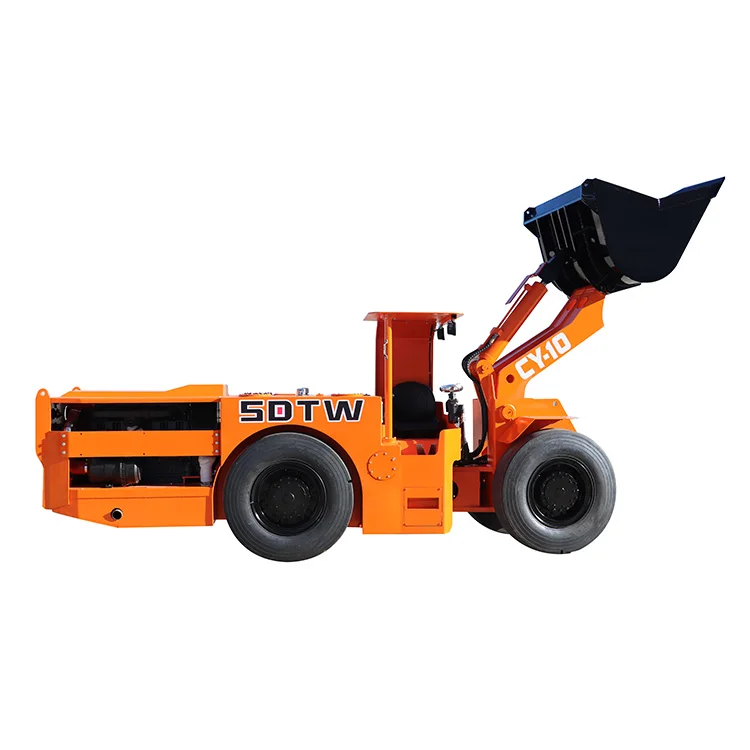

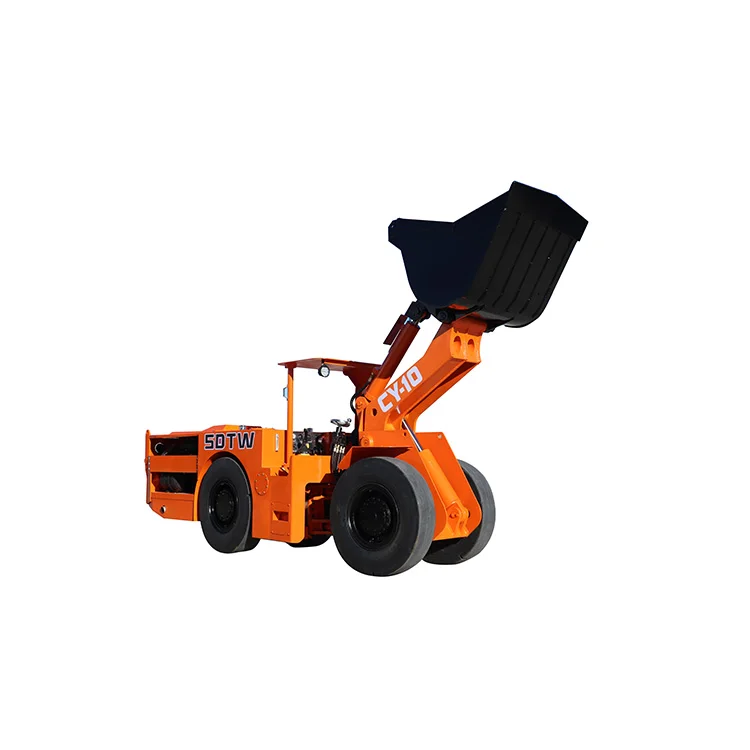

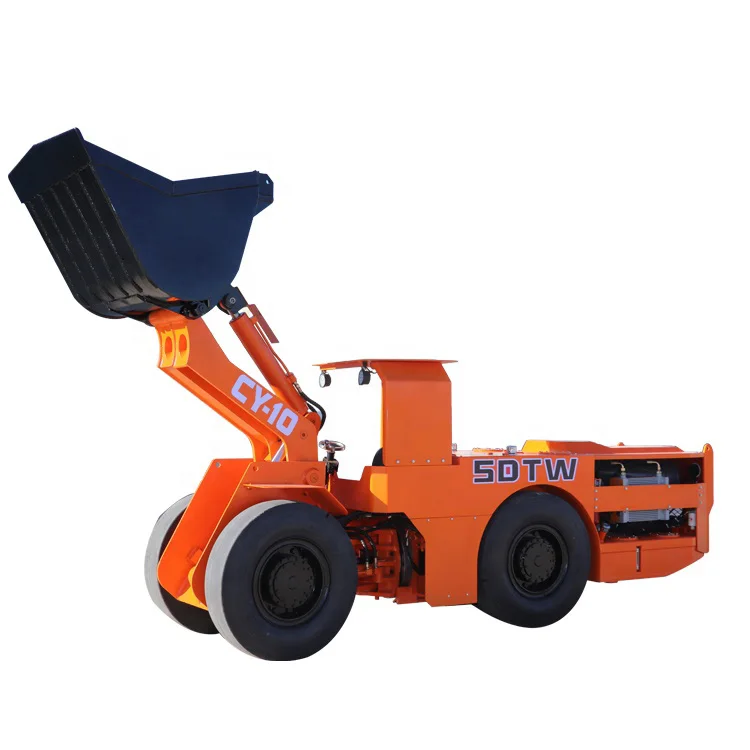

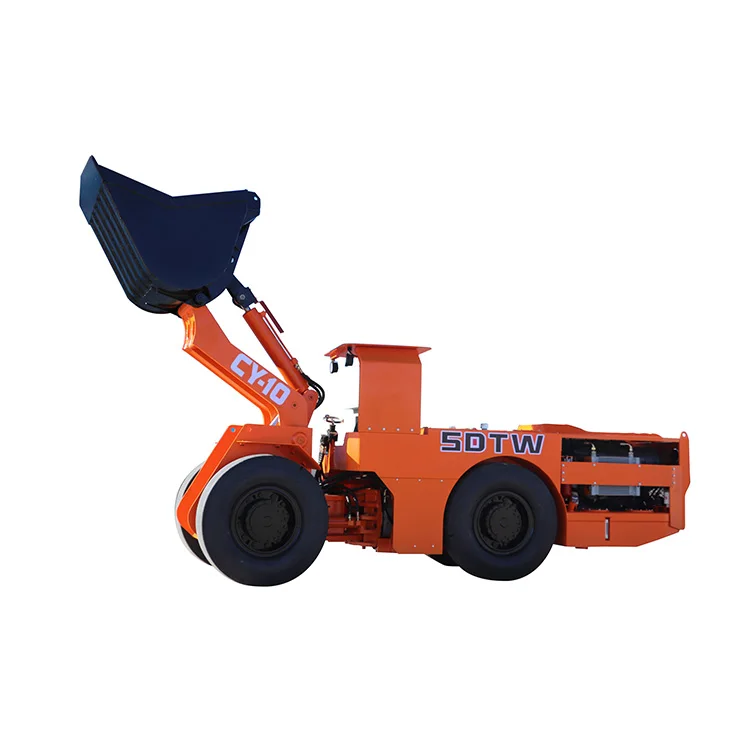

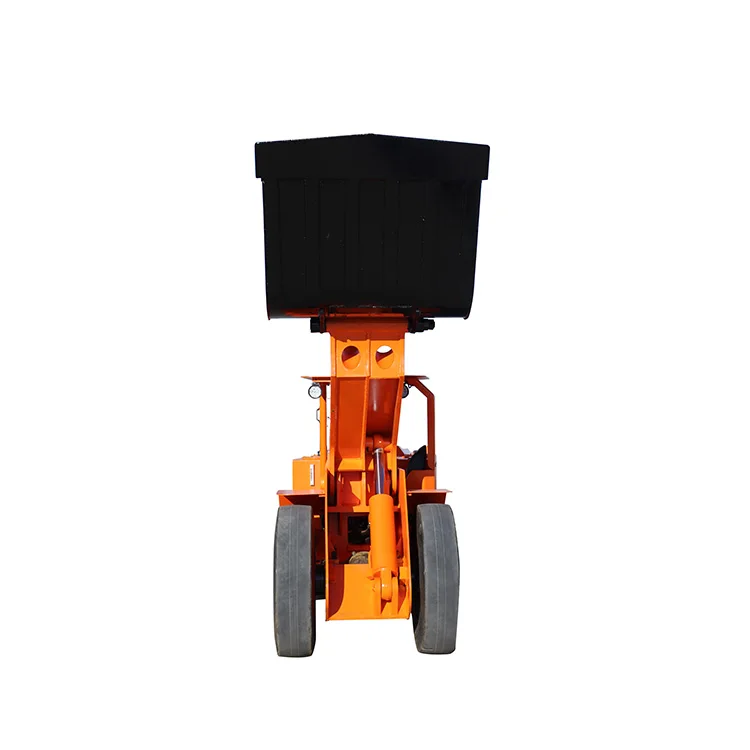

Deutz engine underground mining loader scooptram/electric underground mining loader scooptram
CY-10 is a compact and lightweight Load Haul Dump (LHD) for narrow vein mining, easy to operate and maintain, and it features an operator compartment that is located in the rear frame of the machine to ensure increased operator safety.
We produce the scooptram 0.6 m3, 1 m3, 1.5 m3, 2 m3, 2.5 m3, 3 m3, 4 m3, 6 m3.
Dumper: 4 ton, 6 ton, 10 ton, 15 ton, 20 ton.
Specification
Model |
| CY-10 |
Bucket size | cbm | 1 m3 / 1.2 m3 option |
Payload | kg | 2000 |
Overall Dimension | mm | 5850x1300x1800 / 2000 |
Min Ground Clearance | mm | 200 |
Max Lift Height | mm | 3250 |
Max Unloading Height | mm | 1050 |
Turning radius | mm | 2540 / 4260 |
ENGINE | ||
Engine model |
| DEUTZ made in Germany BF4L2011 / D914L04 / BF4L914w / F6L914 |
Type |
| Air-Cool & Turbocharge |
Engine power | kw | 47.5 / 58 / 66 / 83 |
Filter Brand |
| MANN(Germany) |
Type |
| Two stage & dry type |
Model |
| C16400 |
Purifier Brand |
| ECS(Canada) |
Type |
| Catalytic purifier with silencer |
Model |
| MFM |
Exhaust Gas |
| CO≤500ppm NOx≤262ppm |
HYDRAULIC SYSTEM | ||
Type |
| Hydrostatic of forward & reverse |
Pump brand |
| Danfoss / T-COM |
Multivalve |
| Changjiang |
Transmission |
| Hydrostatic |
Axle brand |
| SDTW |
WEIGHT | ||
Machine weight | kg | 6750 |
Laden Weight | kg | 8750 |
|
|
|
WORKING CAPACITY | ||
Max Breakout Force | KN | 45 |
Max Traction | KN | 50 |
Climbing Ability(Laden) |
| 20° |
Axle Oscillation Angle |
| ±8° |
Alternator |
| 55A / 28V |
Batteries |
| 2 x 12V |
Starter |
| 4kW / 24 V |
Tank Volume | L | 120 |
Hydraulic oil tank | L | 60 |
Shandong Tongwu Machinery Equipment Co., Ltd, is one of the professional total solution supplier of construction machinery and engineering machinery with its many years of production, sales and services. Tongwu keeps on growing with its reliable products and good service, Product coverage continues to expand, like scooptram, mine dump truck, drill jumbo.
Tongwu sales network covers more than 20 provinces and cities, and exported to more than 50 countries, like Australia, Thailand, Indonesia, Brazil, Argentina, South Africa, Germany, England, France, Finland etc, several countries are with agent and distributors. Company adheres service first, quality-oriented management aim, got more and more good reputation these years.
