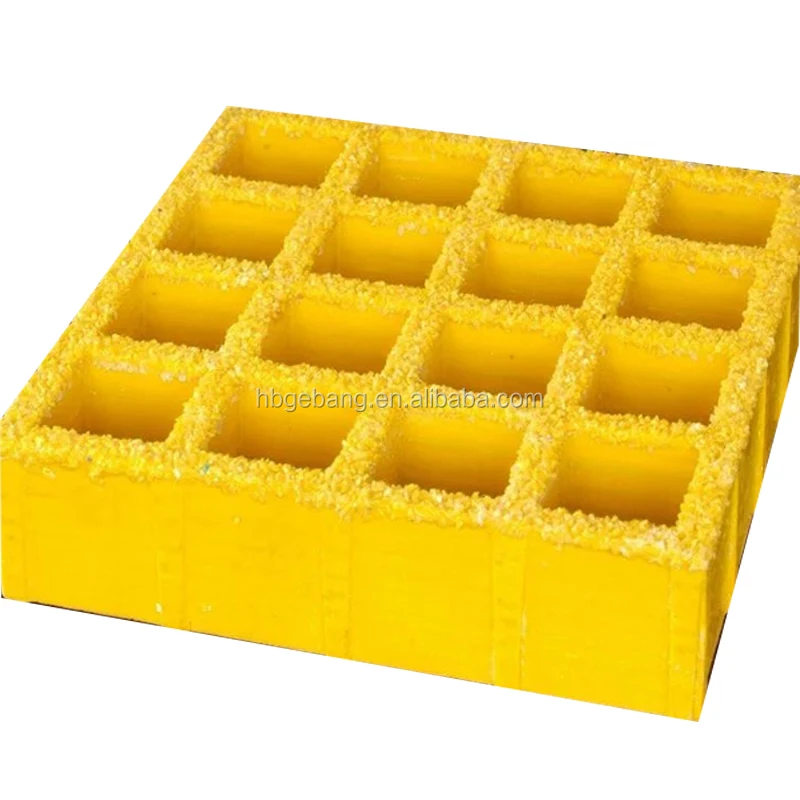

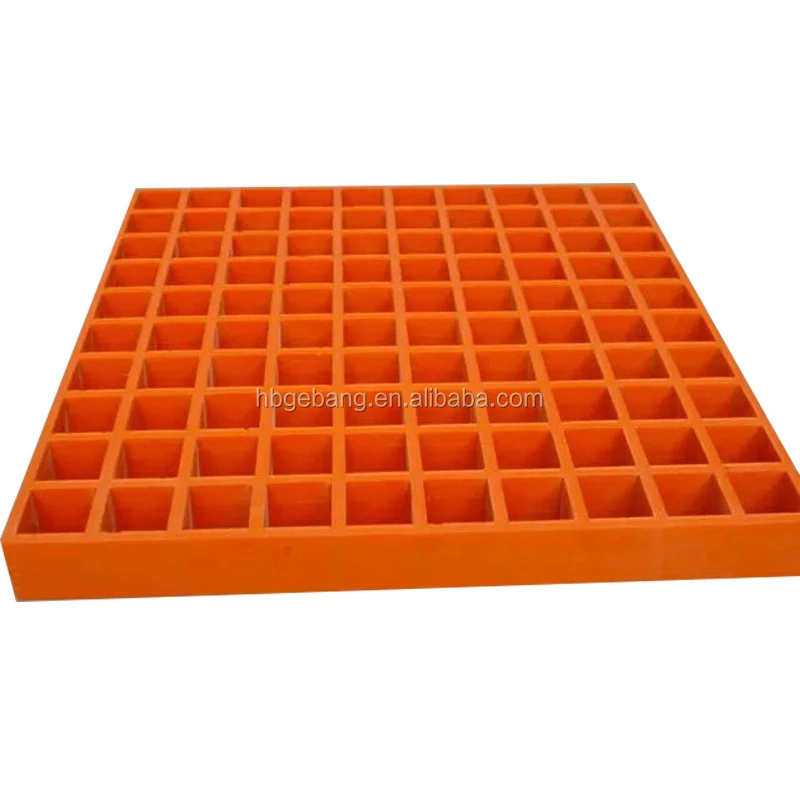

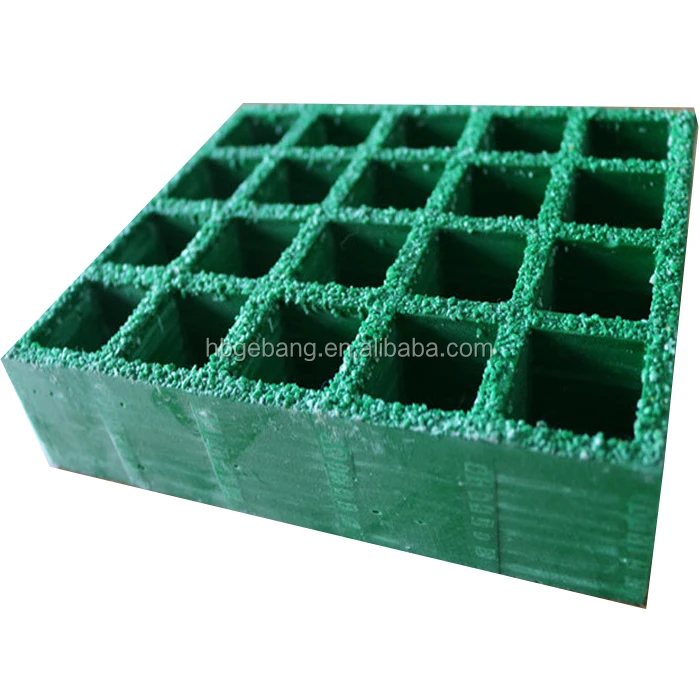

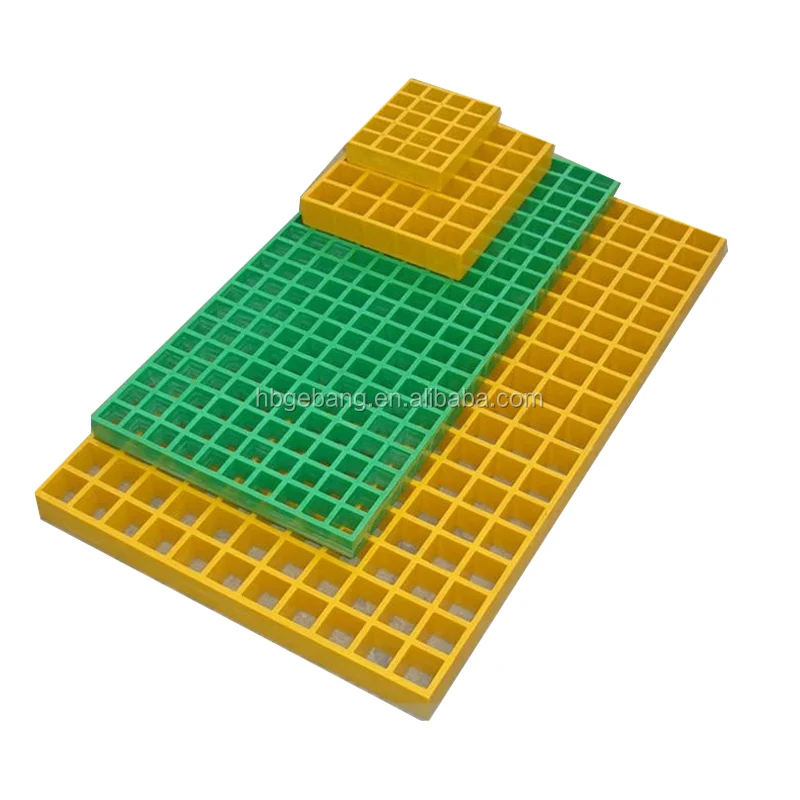

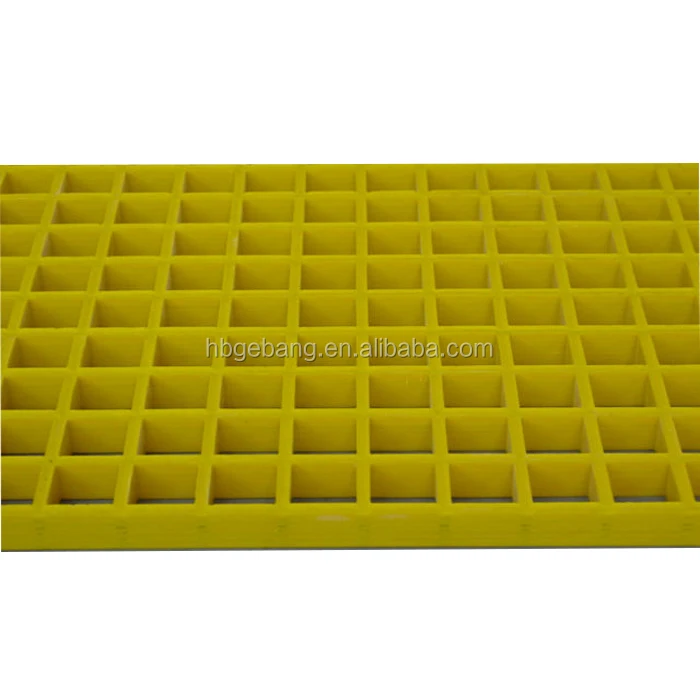

Heavy Duty frp Fiber Reinforced Plastic Grate
Productive process
Molded grating is manufactured by laying continuous glass fibres in the mould in the direction of vertical and horizontal, and thurougly wetted out with resin, layer by layer. When the weaving process is completed, the mould is heated to cure the panel. After curing, the panel is ejected from the mould. The standard panel would have meniscus (concave) top surface. Any process such as post applied grit could be bonded after as a secondary operation. This continuous process produces an integral, one piece panel, which offers excellent corrosion resistance as well as bi-directional strength.
Frp specification:
Mesh Size (mm) | Thickness (mm) | Panel Size (mm) | Bar Thickness (mm) | Open Area (%) | Weight (kg/m2) |
38x38 | 25 | 1220x3660 | 6.4 | 68 | 12.3 |
38x38 | 30 | 1220x3660 | 6.4 | 68 | 12.3 |
38x38 | 38 | 1220x3660 1525x3660 | 7.0 | 68 | 18.5 |
38x38 | 40 | 1525x3660 | 7.0 | 68 | 19.5 |
38x38 | 65 | 1032x2020 heavy duty | 13 | 58 | 50.40 |
50x50 | 50 | 1220x3660 | 8.0 | 71 | 23.51 |
25x100 | 25 | 1007x4007 | 7.0 | 67 | 13.0 |
38x152 | 38 | 1220x3660 | 7.0 | 67 | 15.93 |
25x25/100x100 | 25 | 1000x4000 double layer | 6.4 | 42 | 12.03 |
25x25/50x50 | 30 | 1000x4000 double layer | 8.0 | 42 | 18.03 |
40x40 | 40 | 1220x3660 | 7.0 | 67 | 19.2 |
40x40 | 25 | 1220x3660 | 7.0 | 67 | 12.0 |
100x40 | 25 | 1015x1295 | 7.0 | 72 | 10.5 |
100x40 | 65 | 1015x1295 | 8.0 | 70 | 24.83 |
Frp grating Excellent properties
The glass fiber reinforced plastic grille plate with many regular distributed rectangles and square spaces has two way mechanical properties. Widely used, it is an ideal product in the corrosive environment and also applicable to civil construction facilities. Comparing with other floor materials, FRP moulded grating provides a series of benefits, unmatched impact resistance, while the strength-weight-ratio is only one-fourth of that of steel grating. It is easy to cut and install. FRP moulded grating is made of continuous fiberglass fully soaked in unsaturated polyester resin giving a uniform structure and perfect bi-directional mechanical properties.
FRP grating density is about 1.8, is only a quarter of the steel, aluminum two-thirds.10 times the strength of rigid polyvinyl chloride (PVC), absolute strength more than aluminum and the level of the ordinary steel.
Wooden tray
Hebei Gebang International Trade Co., Ltd. We offer a complete line of Powergrid brand products such as grating, covered grating, conductive grating, stair treads, stair tread covers, plates, and other accessories. Our high-quality fiberglass grating products are designed and manufactured to provide long lasting performance for industrial and offshore applications. Since our inception, Powergrid has been dedicated to the ideal of making best value Fiberglass grating products in the world through the combination of wide selections, high quality and competitive prices.
Contact us to find out the secret to our success and what makes us the preferred partner of many world's leading companies in composite and grating industries.
Advantages:
1. More than 50 pcs molded grating molds & 25 pcs pultrusion lines.
2. 200 employees.
3. DNV,ISO certified. ABS,
4. Any pending order, pls kindly send us your specifications for quotation. We will try our best to give you great service.
