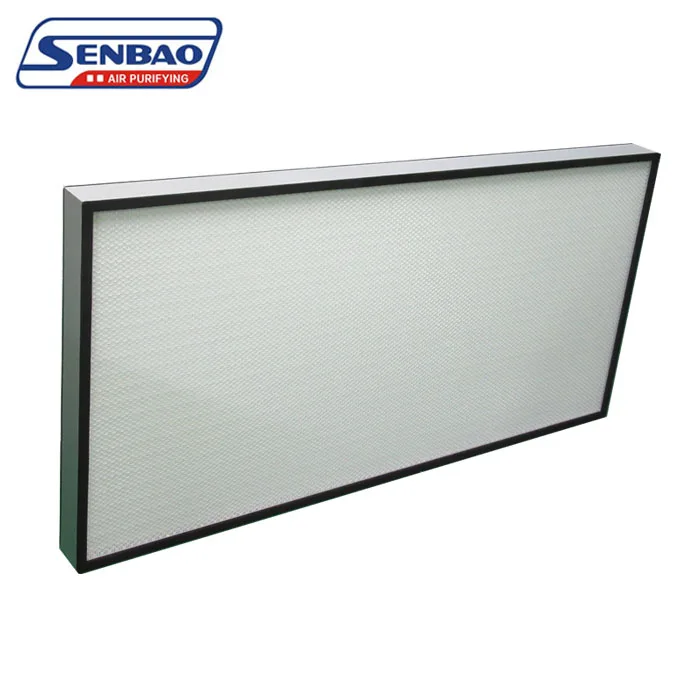

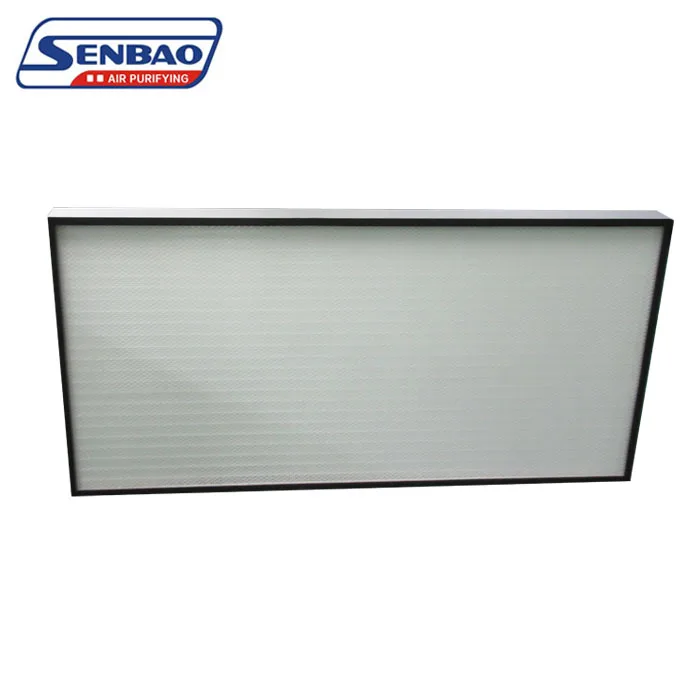

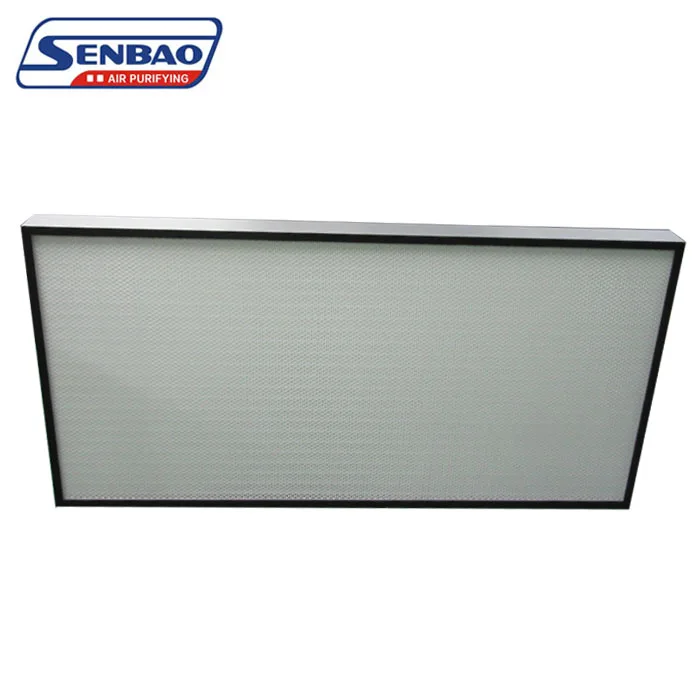

High Efficiency Ventilation Air Filter Mini-pleat HEPA Filter

High efficienc,small in size,light weight,low operation cost,0.1-0.2um efficiency can achieve more than 99.9995%.



Applications

Usable for super-LSL Manufacturing factory, Clean room ect.



Material and performance

External frame	Aluminum
Filter medium	Glass fiber
Partition	Hot melt
Sealant	Polyurethane adhesive
Max. temperature	80°C
Max. humidity	80%RH



Specification and technical parameters

Model NO.	Outsize L*W*H (mm)	Rated air flow (m³/h)	Surface wind speed	Initial resistance (pa)	Efficiency 0.3μm(flame method)
GCW	610*610*50	480	0.35	≤180	≥99.9995%
GCW	915*610*50	700	0.35
GCW	1220*610*50	950	0.35
GCW	610*610*69	600	0.45
GCW	915*610*69	900	0.45
GCW	1220*610*69	1200	0.45
GCW	610*610*80	800	0.6
GCW	915*610*80	1200	0.6
GCW	1220*610*80	1600	0.6
special size can be according to customer special requirement

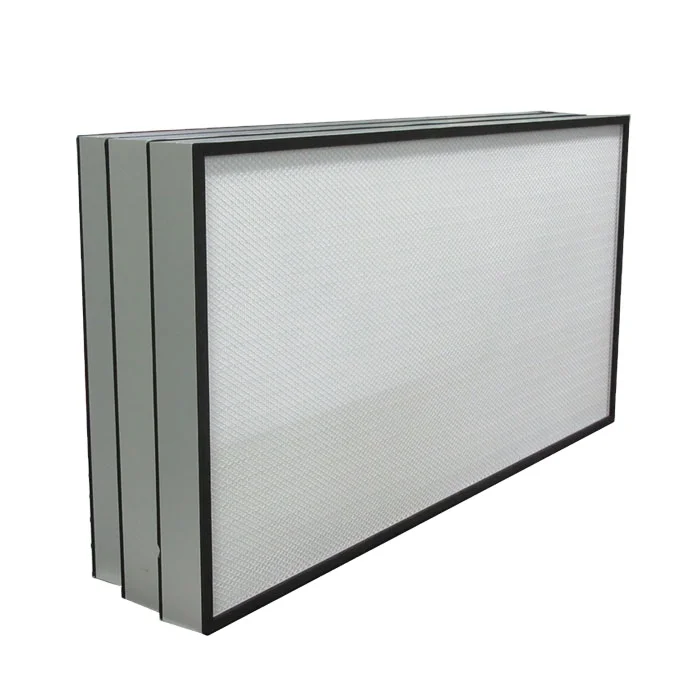

 Product show





Thank you for browsing our site. If you are interested in our air filters and want to know more about the  air filters,  please feel free to contact me for the detail. Waiting  for your inquiry!
