10/100 Base-T 2x2 Port 8P8C Stacked RJ45 Modular Jack for Telecone Equipments Introductions



Quick Details
1.Cat5/5e
2.2x2 Tab-down
3.Through hole RJ45 modular jack
4.27.9 mm length RJ45 Magjack



NOTES:
Machanical:
1.Housing material :Glass filled polyester or high temp. Ul94v-0.
2.Contact material :phosphor bronze t=0.35mm.
3.Plating :contact area-selective gold plating.
tails-plated tin over nickel.
4.Operating life :750 cycles min
5.PCB retention pre-solder :1 lb min
6.PCB retention post-solder :10 lbs mim

Electrical:
1.Voltage rating :125vac rms.
2.Current rating :1.5amp.
3.Contact resistance :50 milliohms max.
4.Insulation resistance :1000megohms min @ 500v dc.
5.Dielectric strength :1000v ac rms 60hz. 1min.
Environmental:
1.Storage :-40℃ +85℃.
2.Operation :-40℃ +85℃.

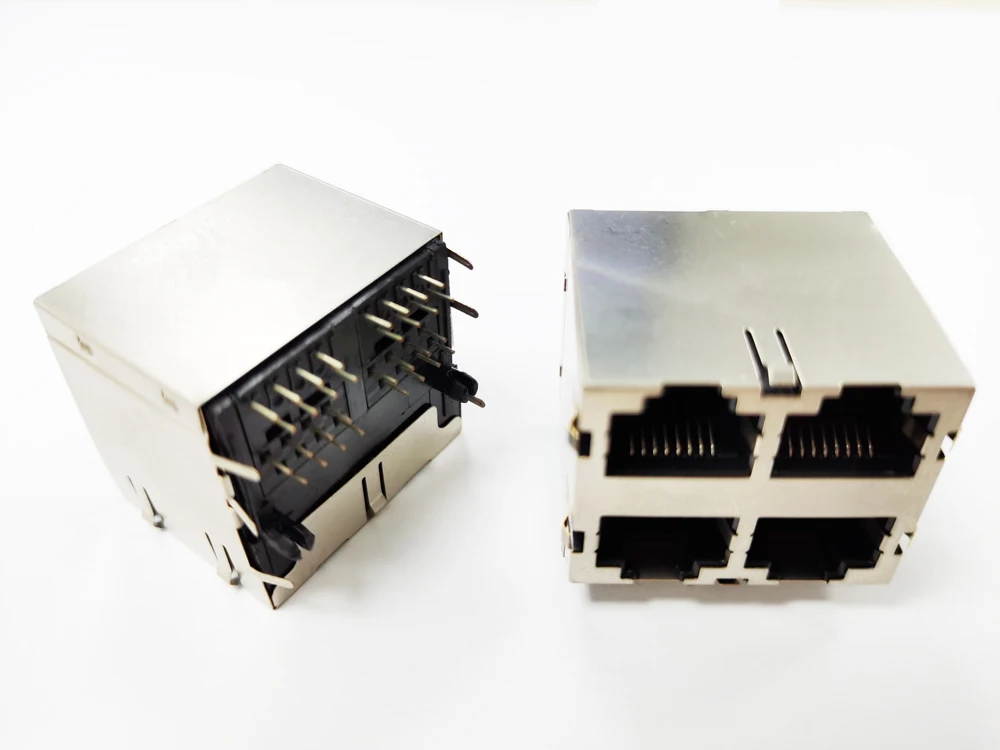

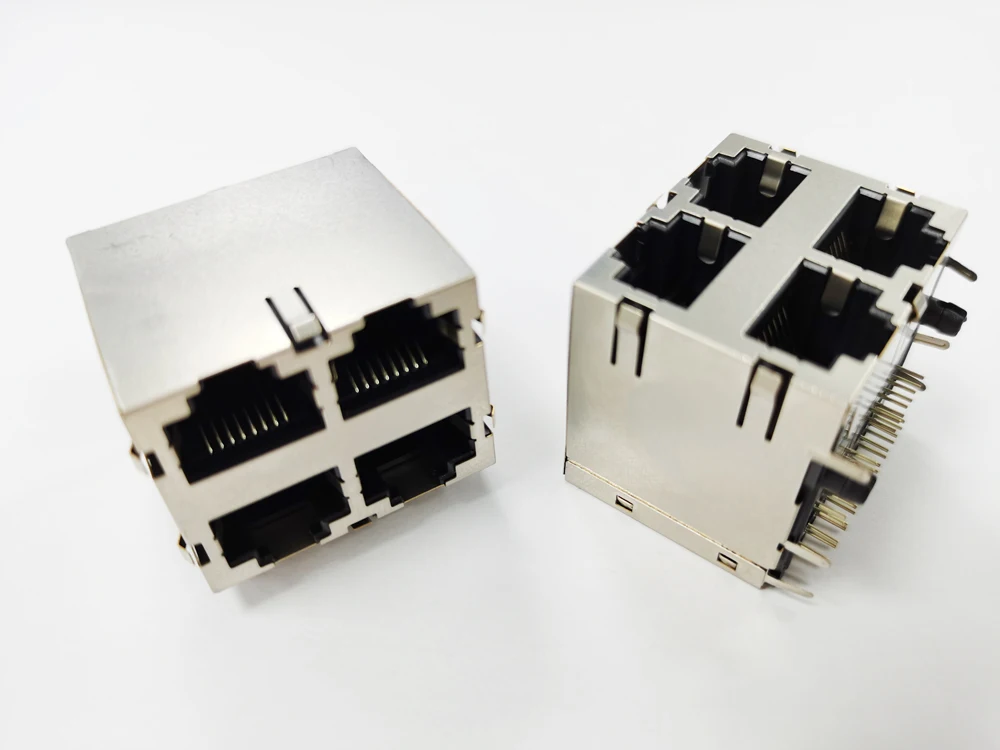

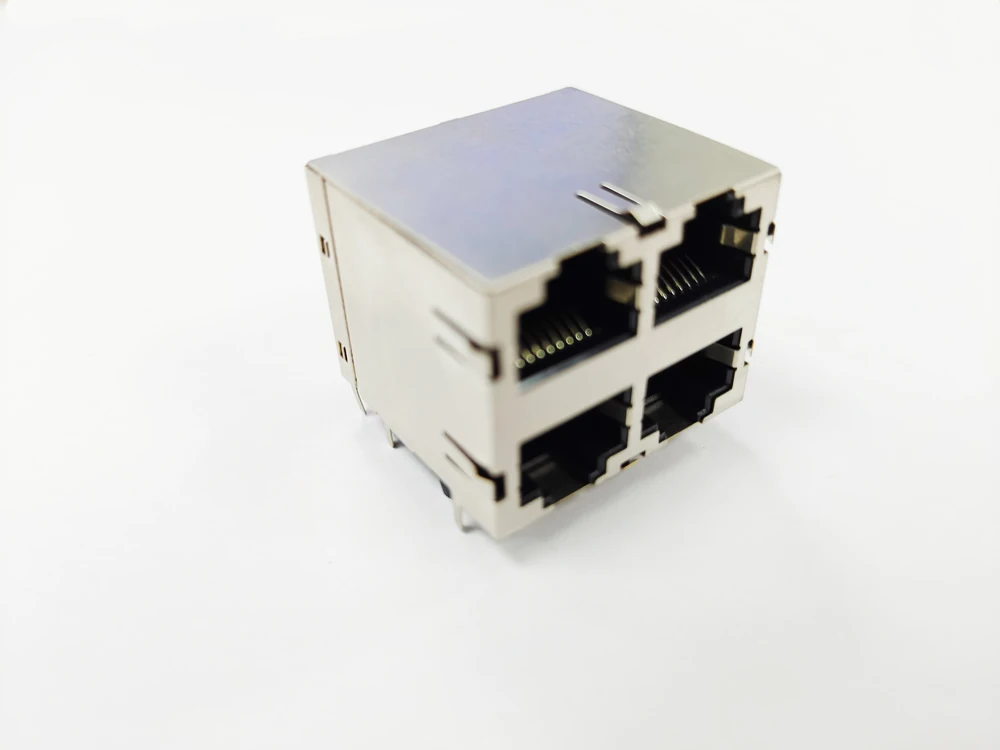

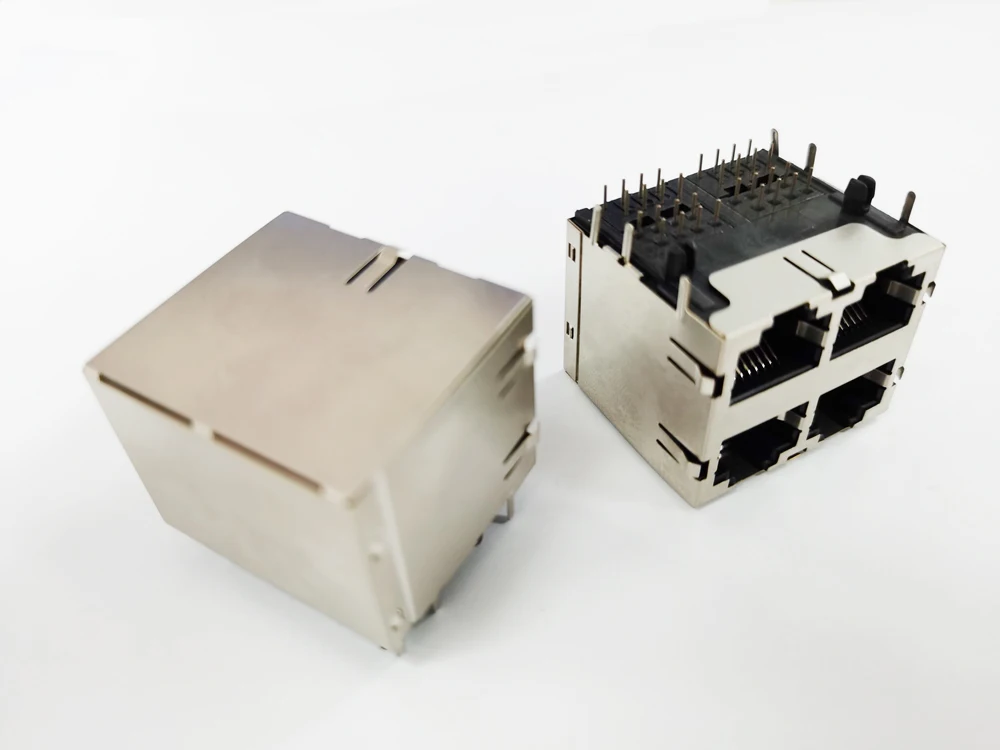

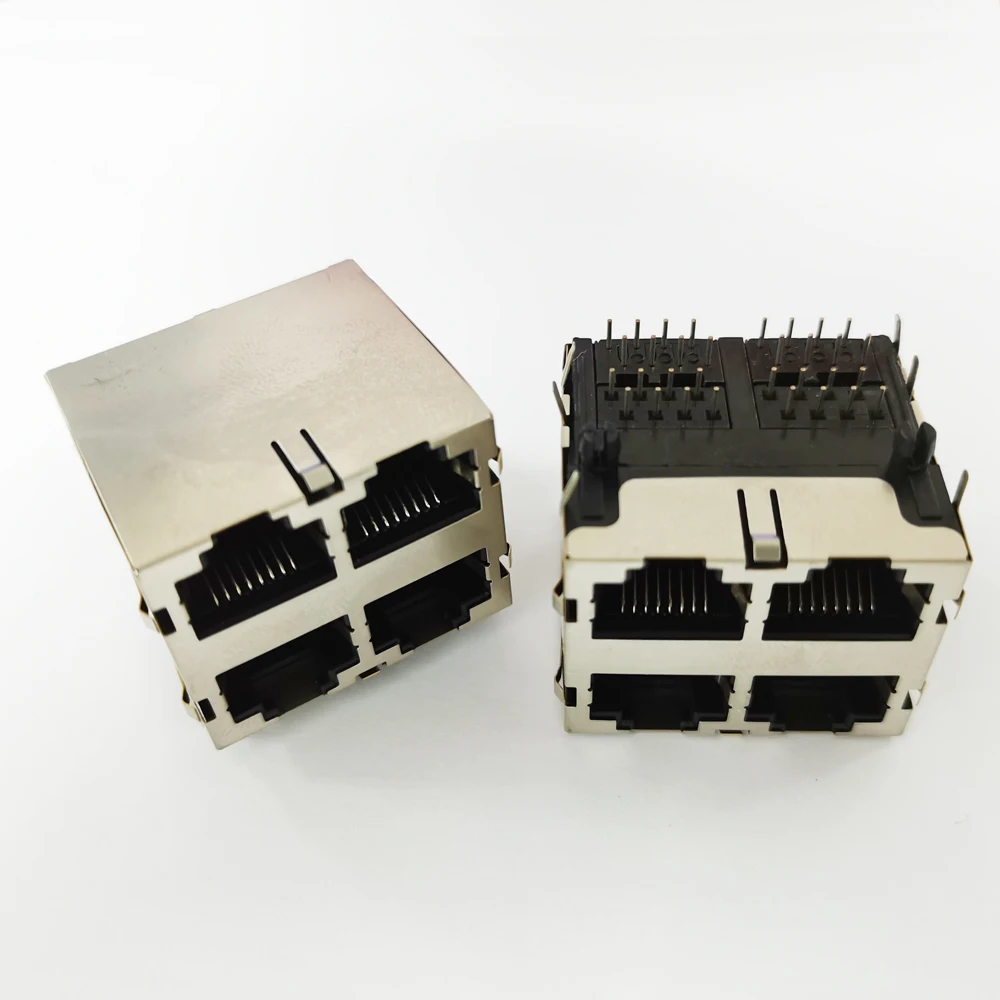

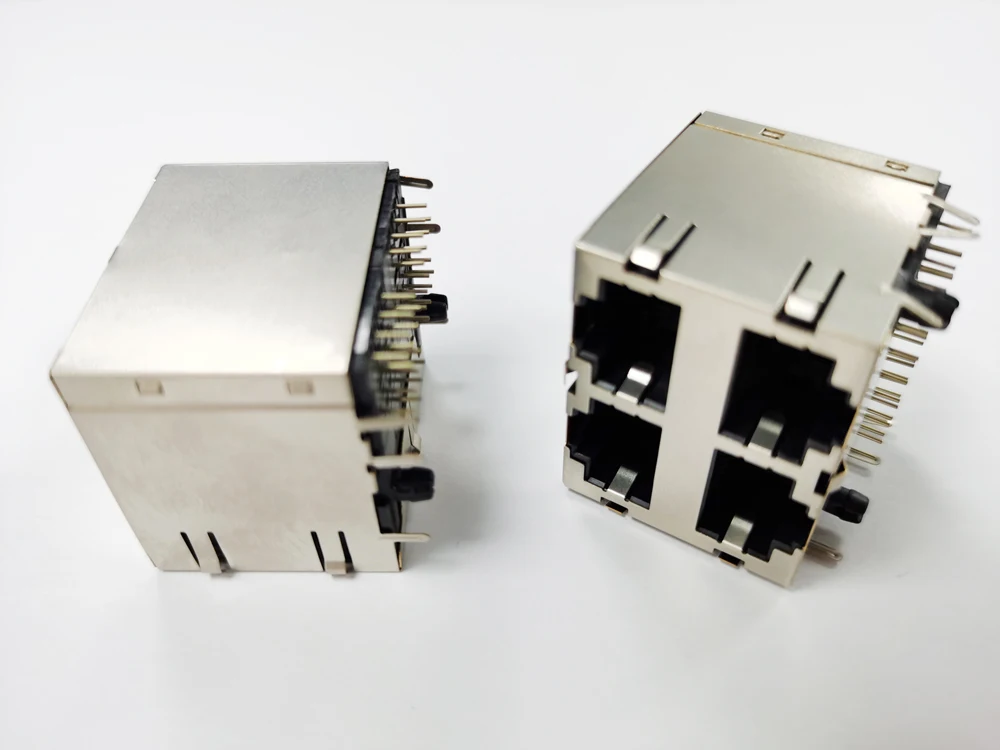

Photos:
