2020 Водонепроницаемый 180-270 градусов 20 кг 25 т рычаг полностью Металлическая Шестерня цифровой RC сервопривод
- Категория: Radio Control Toys >>>
- Поставщик: Shenzhen,FEITE,Model,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.55 $* | 0.22 $* |
| Aug-16-2025 | 0.20 $* | 0.83 $* |
| Jul-16-2025 | 0.3 $* | 0.43 $* |
| Jun-16-2025 | 0.15 $* | 0.60 $* |
| May-16-2025 | 0.54 $* | 0.4 $* |
| Apr-16-2025 | 0.47 $* | 0.26 $* |
| Mar-16-2025 | 0.38 $* | 0.14 $* |
| Feb-16-2025 | 0.7 $* | 0.58 $* |
| Jan-16-2025 | 0.16 $* | 0.43 $* |
Характеристики
Product Description
Product Name | Rc Steering Toy Hobbies Parts 20kg cm Torque Metal Gear Digital Servo Waterproof Motor FT5320M |
Material | Metal |
Size | A:55mm B:20mm C:43mm |
Wiegh | 67g |

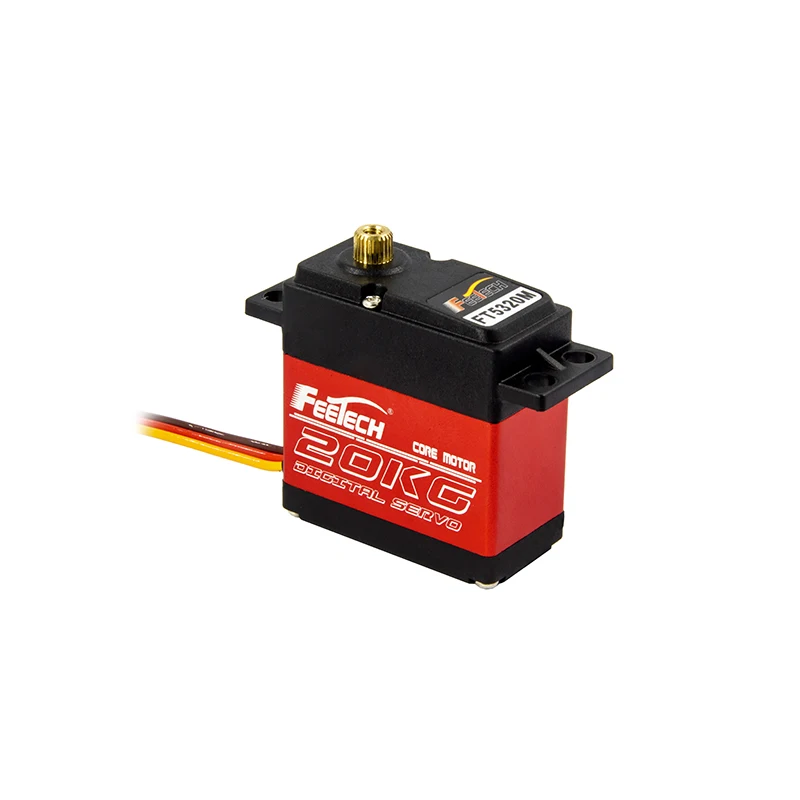

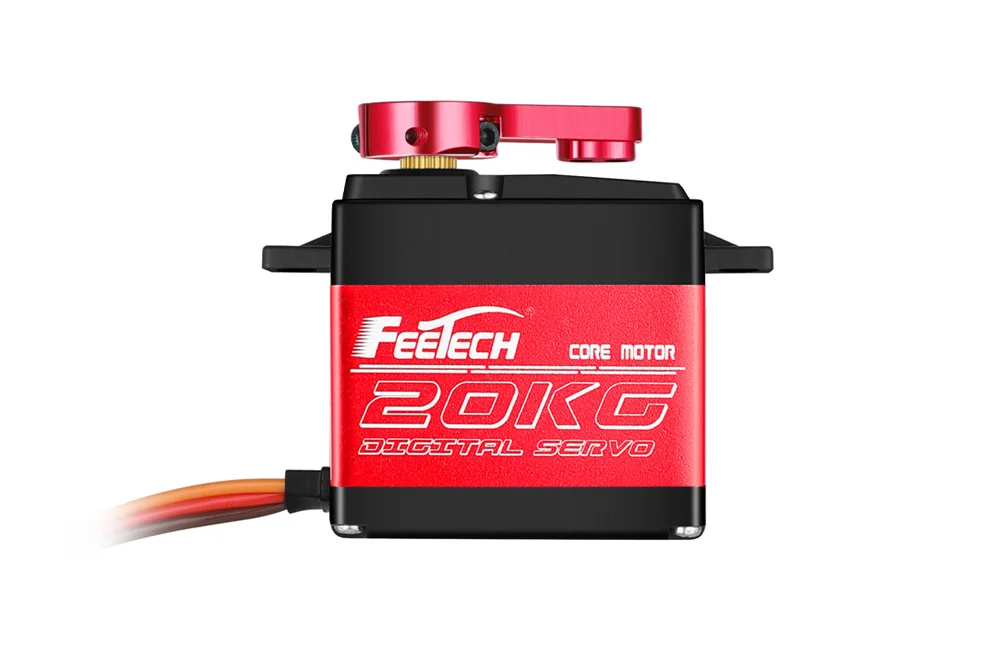

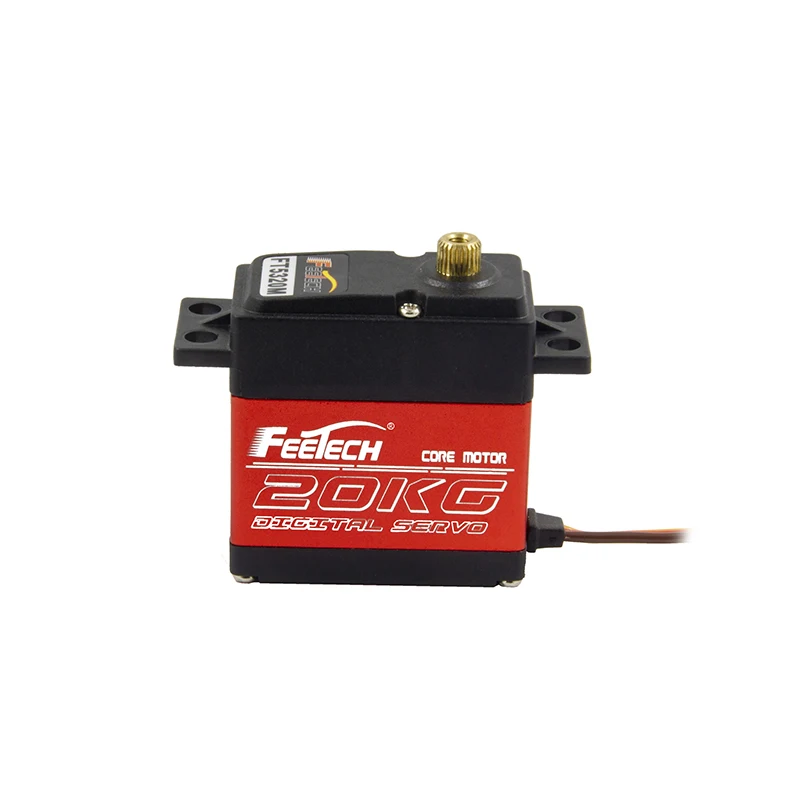

Rc Steering Toy Hobbies Parts 20kg cm Torque Metal Gear Digital Servo Waterproof Motor FT5320M
This Digital servo has metal housing around the middle which allows for heat to rapidly dissipate,
With double ball bearings you will have smooth movement,
and powerful torque with a limited budget.
It is suitable for 1/10, 1/8 scale cars, robot.
With double ball bearings you will have smooth movement,
and powerful torque with a limited budget.
It is suitable for 1/10, 1/8 scale cars, robot.

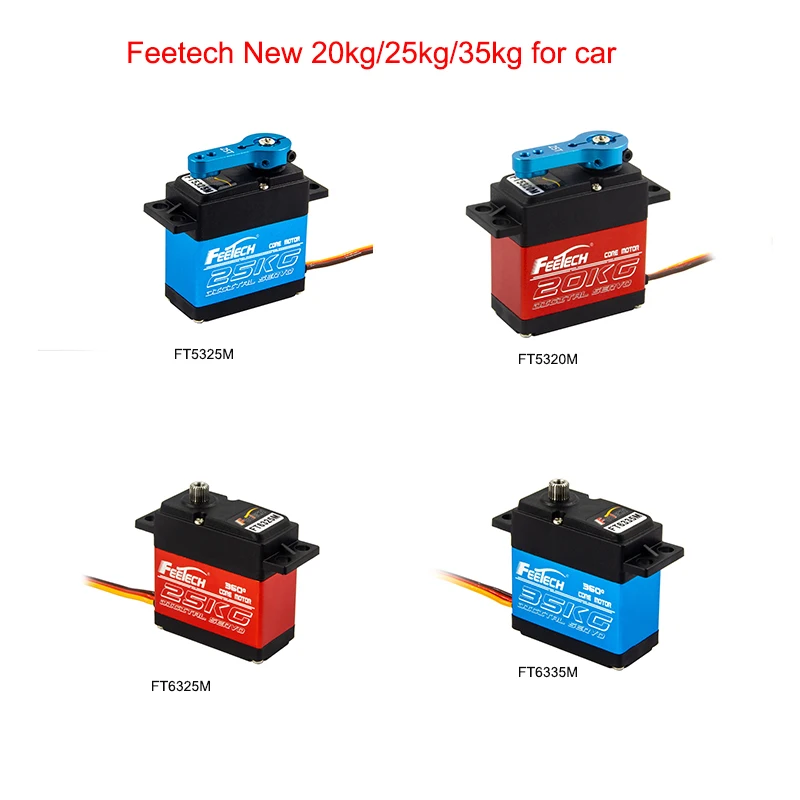

Feetech 20KG Waterproof High Voltage Coreless Digital Servo Motor Robot UAV Hobby Education
Feetech Servo Technology have established a reputation for reliability and value. Feetech Servo produce servos for all applications from RC Modelling, UAV, Robotics to industrial applications. Feetech Servo offer an affordable solutions for all kinds of servo applications and are backed up with years of R&D and production development to ensure reliable quality servos are always delivered quickly.
Size:55X20X43\t\t
Limit Angle:No limit\t\t
Case material:PA+Aluminum\t\t

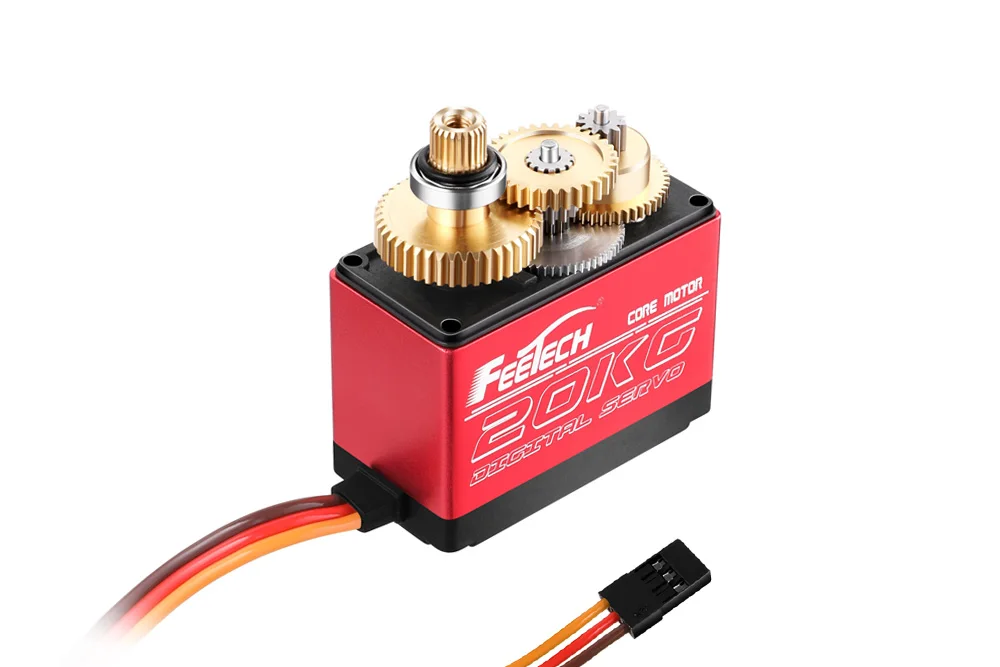

Gear material:Steel\t\t
Bearing type:Ball bearings\t\t
Tooth Count: 25
Weight :67± 1g \t\t
Horn Type:25T/5.9mm\t\t
Gear Ratio:1/275\t\t
Back Lash:≦0.5°\t\t
The rocker screw :M3X6\t\t
Motor:Core Motor\t\t
Command Signal:Pulse width modification \t\t
Control System Type:Digital comparator\t\t
Operating Travel:180° (at 500→2500μsec)\t\t
Left&Right Travelling Angledeviation:≤ 5°\t\t
Centering Deviation:≦1°\t\t
Neutral Position:1500 μsec\t\t
Dead Band Width:≤4 μsec\t\t
Rotating Direction:Counterclockwise(1500→2000 μsec)\t\t
Pulse Width Range :500→2500 μsec\t\t
Electronic Protection:Stall 8sec\t\t
Temperature protection:>70°C\t
Feetech Servo Technology have established a reputation for reliability and value. Feetech Servo produce servos for all applications from RC Modelling, UAV, Robotics to industrial applications. Feetech Servo offer an affordable solutions for all kinds of servo applications and are backed up with years of R&D and production development to ensure reliable quality servos are always delivered quickly.
Size:55X20X43\t\t
Limit Angle:No limit\t\t
Case material:PA+Aluminum\t\t
Gear material:Steel\t\t
Bearing type:Ball bearings\t\t
Tooth Count: 25
Weight :67± 1g \t\t
Horn Type:25T/5.9mm\t\t
Gear Ratio:1/275\t\t
Back Lash:≦0.5°\t\t
The rocker screw :M3X6\t\t
Motor:Core Motor\t\t
Command Signal:Pulse width modification \t\t
Control System Type:Digital comparator\t\t
Operating Travel:180° (at 500→2500μsec)\t\t
Left&Right Travelling Angledeviation:≤ 5°\t\t
Centering Deviation:≦1°\t\t
Neutral Position:1500 μsec\t\t
Dead Band Width:≤4 μsec\t\t
Rotating Direction:Counterclockwise(1500→2000 μsec)\t\t
Pulse Width Range :500→2500 μsec\t\t
Electronic Protection:Stall 8sec\t\t
Temperature protection:>70°C\t
Product Usage
Specialized in ODM and OEM and Custom Made,we can provide electronic design,
structure design and production of0 one-stop customized serive..
structure design and production of0 one-stop customized serive..
1.Your Logo lable or print
2.Servo Wire:length,wire core,wire colour
3.Packing:PE Bag,Colur Box,plastic box wity your Logo
4.Cable connector:1-4 pin JR,JST,XH
5.Output Gear:
The material:Plastic,Copper,steel
Output teeth:25T Spline,hexagonal,and so on
6.CNC case:Case structure,colour
7.Electronic function More......
2.Servo Wire:length,wire core,wire colour
3.Packing:PE Bag,Colur Box,plastic box wity your Logo
4.Cable connector:1-4 pin JR,JST,XH
5.Output Gear:
The material:Plastic,Copper,steel
Output teeth:25T Spline,hexagonal,and so on
6.CNC case:Case structure,colour
7.Electronic function More......
Related Products
Packing&Shipping

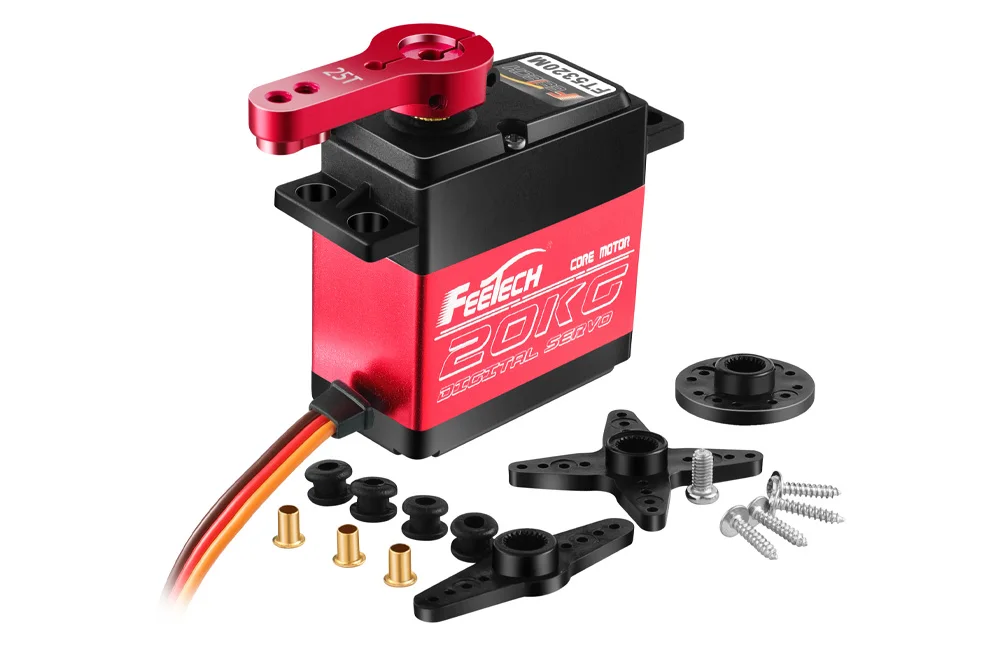

-Servo×1PCS
-Servo arm with Screw setX1bag
-Servo arm with Screw setX1bag
Company Introduction
Shenzhen FEETECH RC Model Co., Ltd was established in 2011, We are a research and development, customization, production and sale of high-quality servos for artificial intelligence products company, Based on the realization of the servo transition curve constant acceleration technology and precision manufacturing technology, take hold in intelligent modular products which are more suitable for position control, The products are related to logistics, urban security, medical, military, education, AR industry,commercial robot and so on. It is committed to providing customized servo and industry solutions for enterprise users, and has been highly recognized and widely adopted by the partners. Since its development, Feetech has established a deep cooperative relationship with famous universities, Chinese Academy of Sciences, University of Hong Kong , and major emerging enterprises.Feetech make arduous efforts to promote the artificial intelligence industry development . The brand of “FEETECH” is based on the concepts of Flying, Excellent, Efficient and Technology. We look forward to working with you to build a better future together!
Our Services & Strength
Specialized in ODM and OEM and Custom Made
Shipping
We adopt EXW term. Generally, we choose, DHL, FedEx, EMS or UPS as our forwarder. Of course, you can choose your own most favorable forwarder, and we would provide the freight bill according to the quantity and weight of the total products, Freight Collect can also be acceptable.
Payment
We adopt T/T payment methods. After we receive your payment, we will arrange shipment. All banking charges and interest are charged to purchasers.
Warranty Procedure
As long as you choose to use FEETECH products, you can enjoy the warranty service that we provide. Please print our Repair Request Form (.PDF, .DOC) and fill it out in its entirety, being as comprehensive as possible, in order to receive the best possible service.
Warranty Period
All FEETECH products are warranted against defects for a period of one (1) years from the date of purchase. During this period we will repair or replace (at our discretion) any defective products. You should always retain your original receipt as proof of the date of purchase.
Shipping
We adopt EXW term. Generally, we choose, DHL, FedEx, EMS or UPS as our forwarder. Of course, you can choose your own most favorable forwarder, and we would provide the freight bill according to the quantity and weight of the total products, Freight Collect can also be acceptable.
Payment
We adopt T/T payment methods. After we receive your payment, we will arrange shipment. All banking charges and interest are charged to purchasers.
Warranty Procedure
As long as you choose to use FEETECH products, you can enjoy the warranty service that we provide. Please print our Repair Request Form (.PDF, .DOC) and fill it out in its entirety, being as comprehensive as possible, in order to receive the best possible service.
Warranty Period
All FEETECH products are warranted against defects for a period of one (1) years from the date of purchase. During this period we will repair or replace (at our discretion) any defective products. You should always retain your original receipt as proof of the date of purchase.
FAQ
Q:How about your quality?
A:Our quality will be good,and the goods have been checked and tested one by one before shipping.
Q:How long for the delivery once we place order?
A:The lead time is declded the item you ordered and the quantity.
For normal order,the lead time is about in 5-7 days,
If big quantity or OEM,the lead time will be some days more.
Q:The price you are offering is with shipping costs included?
A:The price does not include the shipping cost.We offer several
shipping solutions,make sure customers choose the most economical one.
Q:Do you have After-Sales Service?
A:Of course,We have special department to do it,and if you have any technology
problem,our eingeer will give your answer.
A:Our quality will be good,and the goods have been checked and tested one by one before shipping.
Q:How long for the delivery once we place order?
A:The lead time is declded the item you ordered and the quantity.
For normal order,the lead time is about in 5-7 days,
If big quantity or OEM,the lead time will be some days more.
Q:The price you are offering is with shipping costs included?
A:The price does not include the shipping cost.We offer several
shipping solutions,make sure customers choose the most economical one.
Q:Do you have After-Sales Service?
A:Of course,We have special department to do it,and if you have any technology
problem,our eingeer will give your answer.
