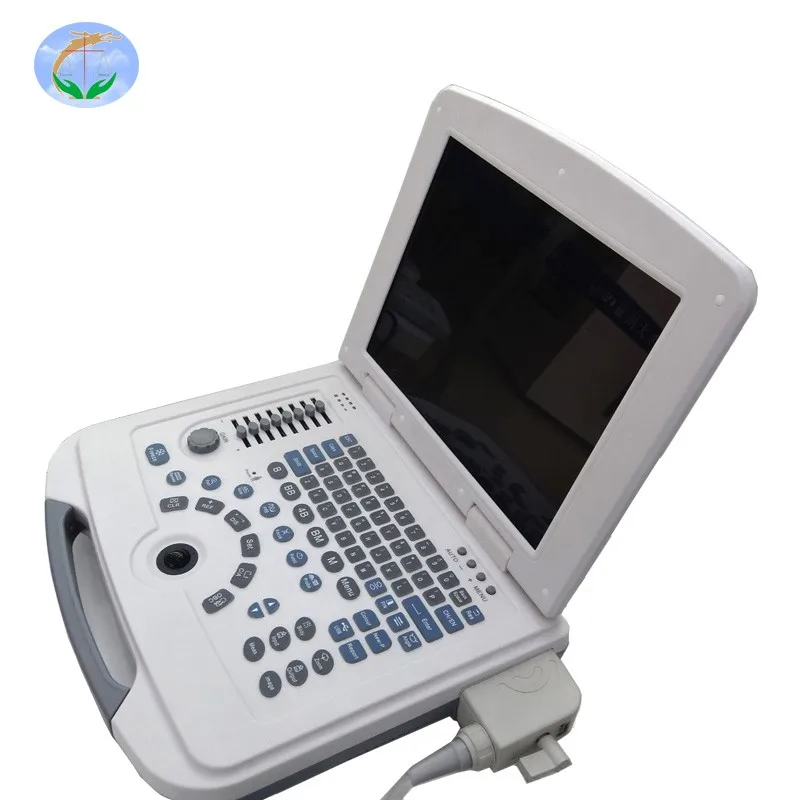

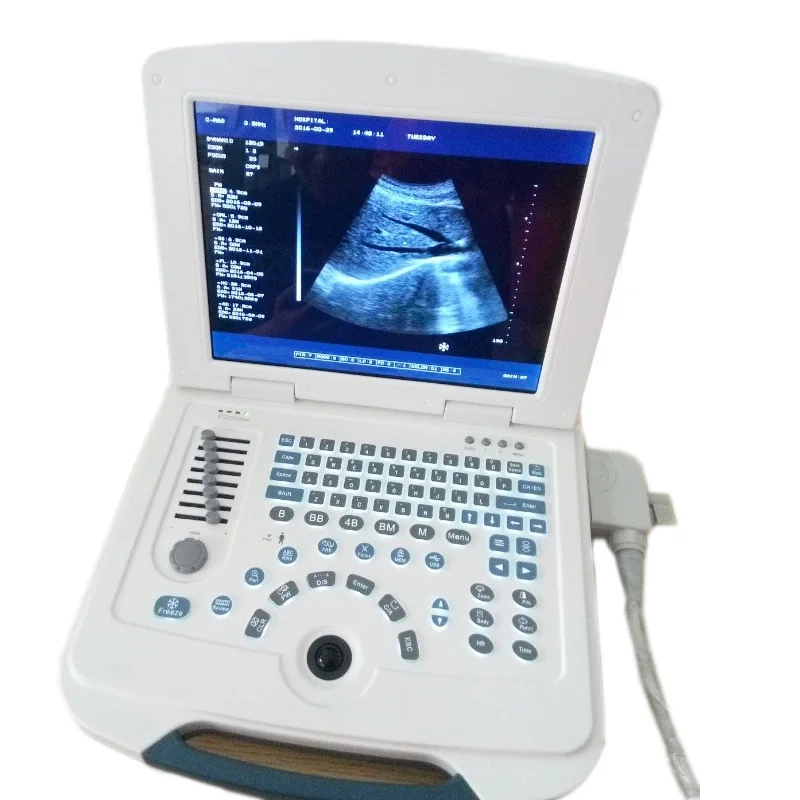

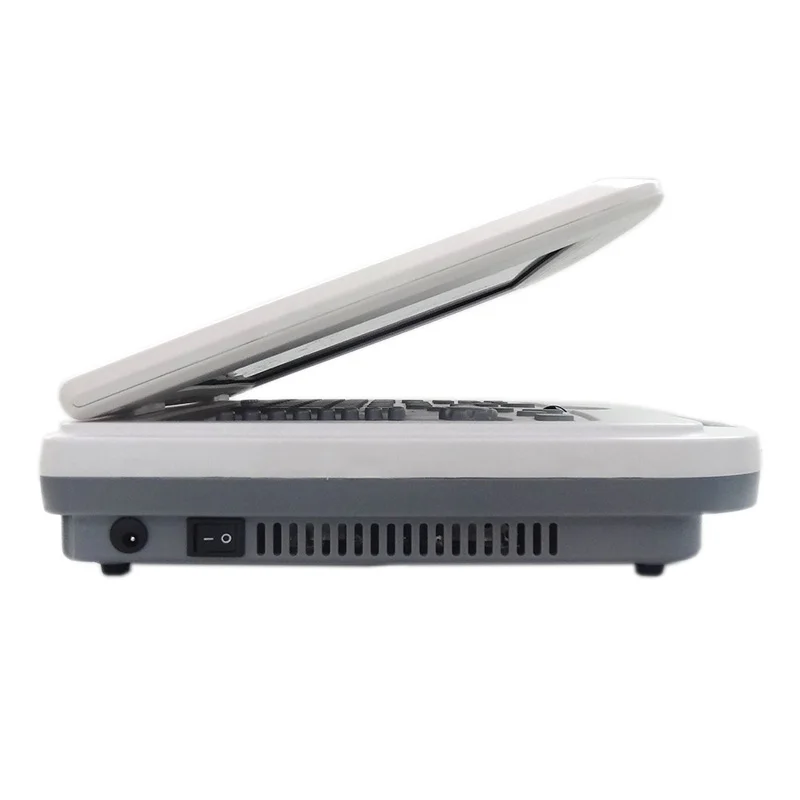

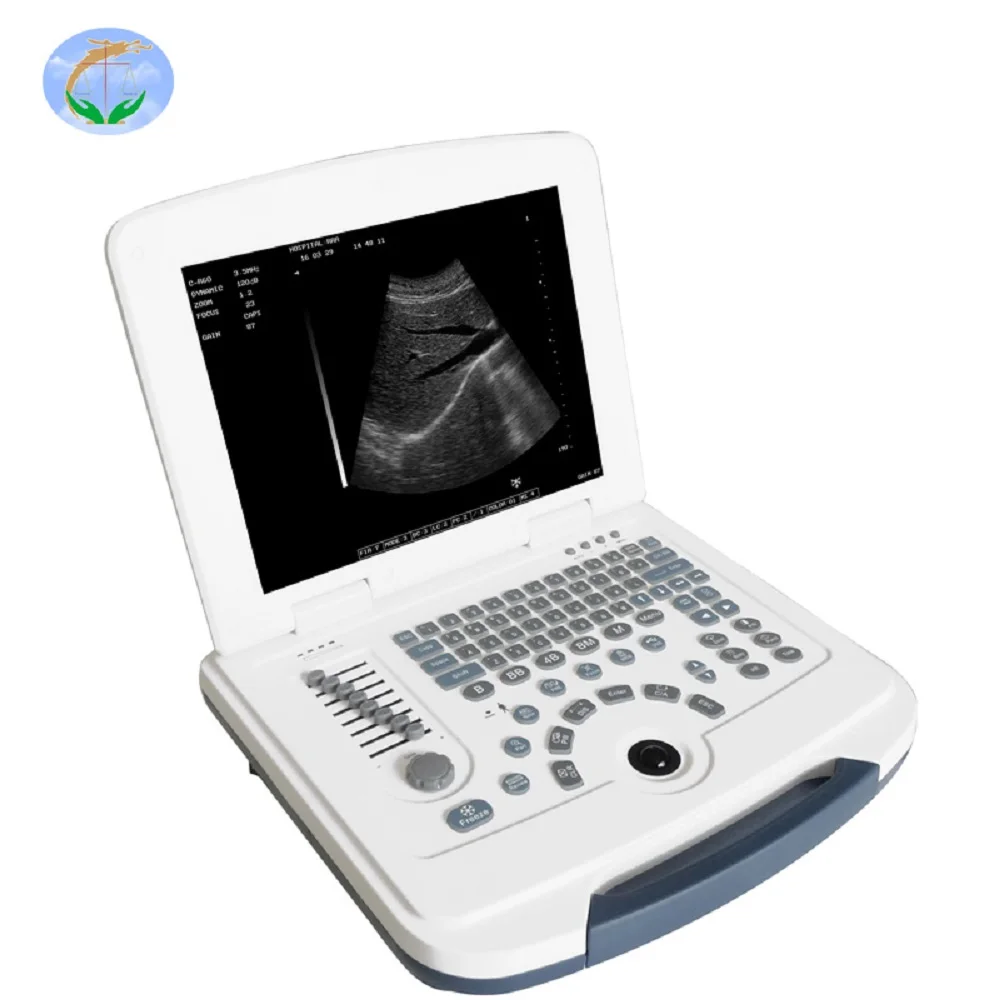

            Full-digital B/W Laptop Ultrasound Scanner  YJ-U580



Product Introduction

Light and portable, much clearer image and convenient to operate.

YJ-U580 has an extra-long battery life with over 8 hours of standby time and 4 hours of working time - useful for consultation in various environment of cities, towns, outdoor. A variety of charging to ensure the examination consultation under different environments.



Features:

* 12 inch HD LCD display

* Rechargeable battery

* THI and Histogram function

* Support OB Report

*Support: Chinese/English/Spanish/French/Portuguese/Russian



Technical Specification

Scanning mode	convex / linear / micro-convex
Probes	80 elements convex probe,trans-vaginal probe, trans-rectal probe, high frequency linear probe
Operation panel	user-friendly, convenient and flexible with back-lit silica gel keyboard & track ball operation
Monitor	12 inch high resolution LED
Display mode	B, B+B, B+M, M, 4B
Detecting depth	≥240mm
Resolution	lateral≤2mm, axial≤1mm
Blind Zone	≤3mm
Geometry precision	lateral≤5%, axial≤5%
Dynamic scope	0~120dB, visible & adjustable
Gray scale	256
Electronical focusing	2 focuses combination randomly
USB port	storable and readable
Permanent Image storage	127
Local zoom	can be used at real time
Body marks	65
Pseudo color	16
Magnification	4 kinds, ( x0.8, x1.0, x1.2, x1.5)
Cine loop	256 frames, realized in automatic successive playback and manual single step forward, backward playback
Image processing	up/ down, left / right, black / white convertion, edge enhancement, gamma correction, frame correlation, pseudo color processor( need external color display).
Measurement	distance, perimeter, area, volume, heart rate, gestational week, FW, AFI, EDD , maternity table,  heart package etc. OB-GYN: BPD, CRL, GS, FL, HC, AC
Note	date, time, name, sex, age, doctor, hospital, comment, Chinese/ English conversion.
Output interface	VIDEO, VGA , USB port *2  With the puncture guiding function, line position can be adjusted With gravel positioning, dynamic target area tracking function
Main power supply	AC220V±22V , 50/60Hz

Standard Configuration
12 inch LED display
3.5MHz Multi-frequency convex probe(2.5MHz-5.0MHz)
Aluminum plastic suitcase package

Options
Ultrasound image workstation
6.5MHz High frequency Trans-vaginal probe (5.5MHz-7.5MHz)
7.5MHz High frequency Liner probe(6.5MHz-8.5MHz)
7.5MHz High frequency trans-rectal probe(6.5MHz-8.5MHz)
6.5MHz micro-convex probe (5.5MHz-7.5MHz)
Trolley



Packaging and Shipping:

Laptop size: 33*29.5*6.5 cm
package size: 47.5*40*21.5 cm
net weight: 4.3kg
gross weight: 8kg
Aluminum plastic suitcase package:44.5*37*18.5cm, 2.95kg

Our Company


Certifications

FAQ:
1).What's your product lead time?
3 working days around if we have the products in stock, if not in stock, 5-7 working days around to finish the production.
2). What's the warranty for the products ?
A: The free warranty is 24 month from the date of commissioning qualified.
3).How to maintenance the product if it has problem?
We have professional engineers,they will solve your problem by communicating with skype or phone, or make video for you. If the machine is totally broken and can not work, send it back to us and we will send a new one to you.
4).What's your shipping terms?
Forermed offers courier,air,sea shipping methods.Client can choose anyone depends on detail situation.
