Характеристики
ROSUN Longer solid retention times Electroplating Wastewater Micro Filtration with Submerged Membrane Bioreactor
4 Top Reasons Why Most Buyers Always Choose US
1.Focus on Personal protection, Water treatment Chemical, equipment R&D and production since 2002.
2.Professional Customer Service Team and we have 200 professional employees.
3.Our products are exported to Russia, Thailand, Malaysia, Indonesia, Philippines, Pakistan, Morocco,Japan, USA, UK and other countries more than 18 years.
4.We have ISO9001, ISO14001, OHSAS18001,NSF,CSR-CU State Registration ,REACH TEST certificate.
Product Description

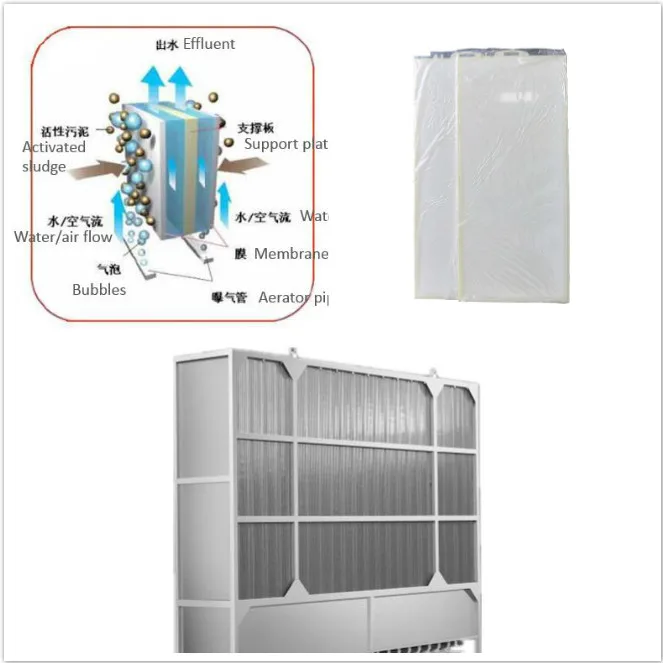

MBR (Membrane Bio-reactor) is a membrane separation technology with biological degradation. The membrane module can take the places of the secondary sedimentation tank, a large number of microorganisms are intercepted, which can increase quantity of micro flora, improve the sewage treatment capacity and efficiency, so that the effluent quality and volume load have been greatly improved, and the water can be used as reclaimed water.
The core component of the MBR is a high-performance submerged membrane components. Compare with the traditional method (pressure filter), membrane negative pressure suction type filtering method using the aeration to operation sable of membrane filter in the system.
The pollutant in sewage water will firstly biodegradation in bioreactor, at the same time, because of the function of the pressure difference, the water and some small molecule solute which smaller than the aperture of the membrane in mixed liquid will pass the membrane, and then become the treated water.
Microorganisms and macro solute will be intercepted by the membrane, so it replaced the sedimentation tank by complete its water treatment and separate function.
Advantages:
Advanced material :
The main material of the membrane is PVDF,which has Excellent chemical stability,permeate flux,permeate quality,and fouling resistance.
Better outlet water quality:
Pore size of Rosun flat sheet membrane is around 0.1micron,and with advanced membrane technology increasedthe effective orifice area of the membrane surface then leadto excellent permeate flux and permeate quality.The outputwater can be reused directly.
| Water quality | Traditinal technology | MBR technology |
| COD ( mg / L ) | <100 | <30 |
| BOD ( mg / L ) | <30 | <8 |
| TSS ( mg / L ) | <30 | <1(near zero) |
| Turbidity ( NTU ) | <2-5 | <1 |
| Bacterial ( MPN / L ) | 103-104 | <100 |
Higher activated sludge adaption:
Compared with the hollow fiber curtain membrane whose activated sludge adaption is only 4000-6000mg/L,Rosun flat sheet membrane can adapt 8000-15000mg/L activated sludge.
Longer service life:
Compared with hollow fiber curtain membrane, Rosun flatsheet have a longer service life 3-6 years compared with 1-3years service life of hollow fiber curtain membrane's.
Less land space:
The MBR reactor tank can replace the function of secondary sedimentation tank with aerobic tank,it can save 30% of land space.
Easy to operate and maintenance:
The flat sheet membrane can belaced each single damaged piece without change the holder when damage and replacement,replace just need 15 minutes.
SPECIFICATIONS:

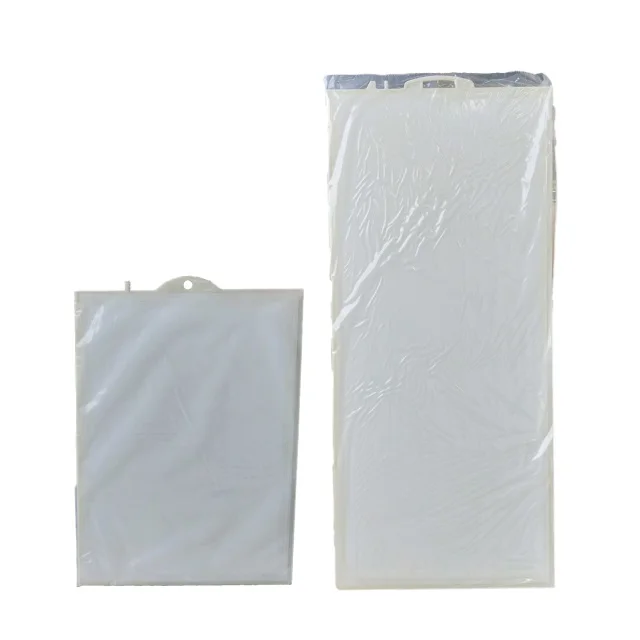

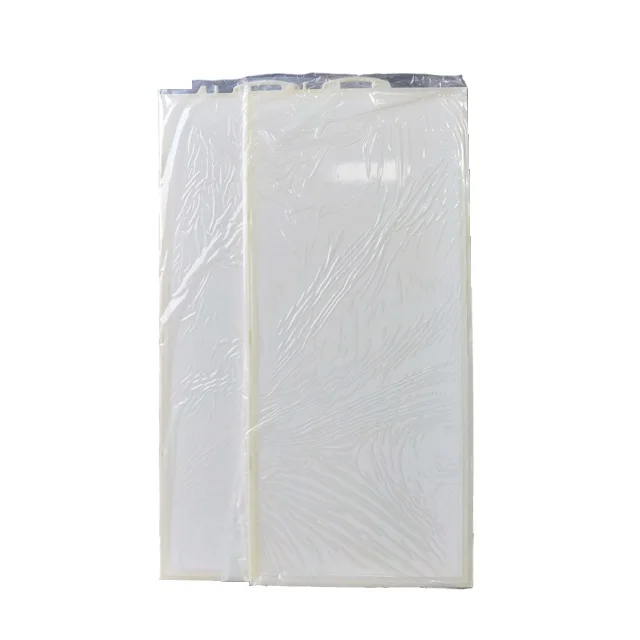

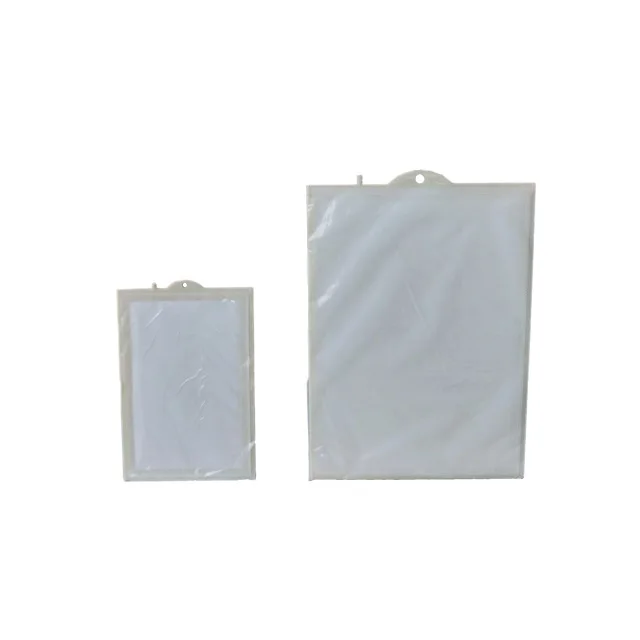

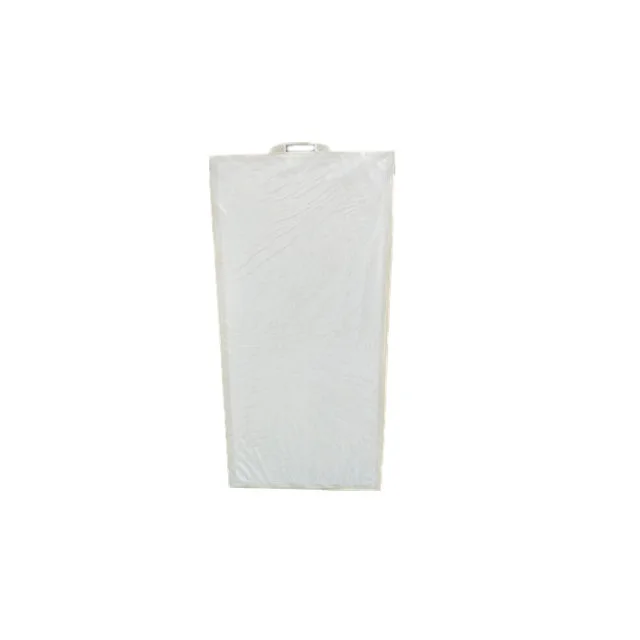

FLAT SHEET MEMBRANE
|
Type |
RF-025 | RF-080 | RF-100 | RF-150 | |
| Effective area(m²) | 0.25 | 0.8 | 1 | 1.5 | |
| Size:H*W*T(mm) | 495*365*7.5 | 1030*490*7.5 | 1190*518*7.5 | 1780*490*7.5 | |
| Production rate ( L / pcs.day ) | 100~230 | 320~480 | 400~600 | 600~900 | |
| Material of components | Membrane | PVDF + PET | |||
| Outer frame | ABS | ||||
| Pore diameter ( μm ) | 0.1 | ||||
| Aeration rate ( L / min.pcs ) | 8 | 8 | 10 | 12 | |
| Weight ( kg ) | 0.8 | 3.2 | 3.6 | 5.8 | |
| Effluent turbidity ( NTU ) | ≤1 | ||||
| Effluent SS ( mg / L ) | ≤3 | ||||

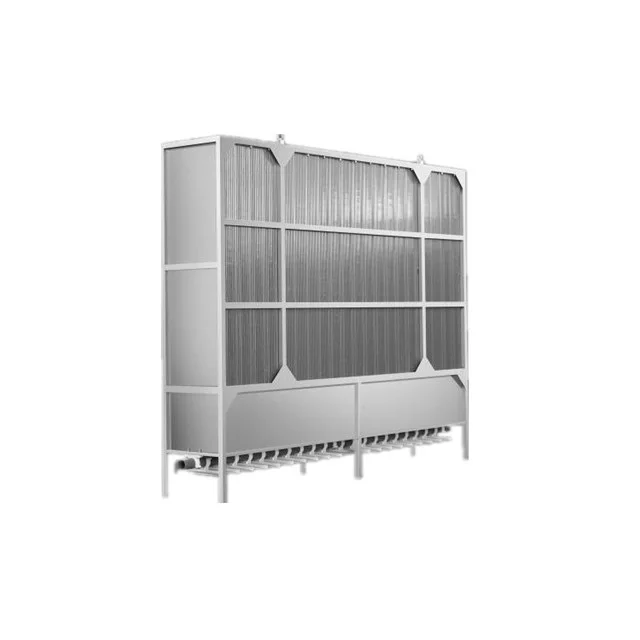

MBR Membrane Module
| Type | RF-080-100 | RF-100-100 | RF-150-100 | RF-150-II-100 |
| Effective area(m²) | 80 | 100 | 150 | 300 |
| Size:L*W*H(m) | 1.7*0.7*1.6 | 1.7*0.7*1.8 | 1.7*0.7*2.4 | 1.7*0.7*4.4 |
| Numbers of membrane(pcs) | 100 | 100 | 100 | 200 |
| Production rate(m/day) | 32~48 | 48~60 | 60~90 | 165~210 |
| Weight(kg) | 420 | 480 | 710 | 1300 |
| Material of stand | 304 stainless steel | |||
| Material of aerator pipe | ABS or 304 stainless steel | |||
| Material of collector pipe | UPVC Or ABS | |||
