Ultrafine Raymond Mill Talc Прямая продажа с завода
- Категория: Mine Mill >>>
- Поставщик: Shanghai,Clirik,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 15239.38 $* | 15544.71 $* |
| Jul-19-2025 | 12359.51 $* | 12606.66 $* |
| Jun-19-2025 | 14999.30 $* | 15299.5 $* |
| May-19-2025 | 14879.54 $* | 15177.58 $* |
| Apr-19-2025 | 11879.55 $* | 12117.30 $* |
| Mar-19-2025 | 14639.72 $* | 14932.93 $* |
| Feb-19-2025 | 14519.98 $* | 14809.44 $* |
| Jan-19-2025 | 14399.28 $* | 14687.45 $* |
Характеристики
Production description of ultrafine raymond mill,talc raymond mill,Factory Sell Directly Raymond Roller Mill
Capacity: 1-20 t/h
Input size: 15-35 mm
Grinding Weight: 1.2 - 11 t
Finished size: 30-425 meshes
Production Models: YGM7815,YGM8314,YGM9517,YGM4121,MTM1600.
Application of ultrafine raymond mill,talc raymond mill,Factory Sell Directly Raymond Roller Mill:

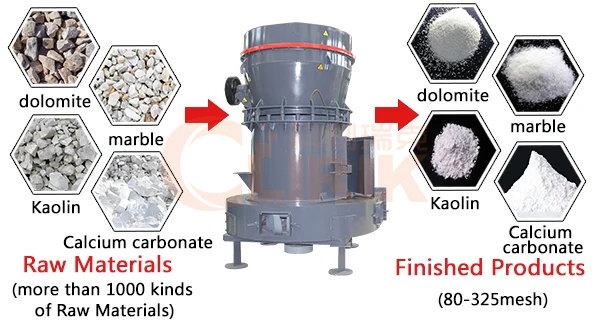

YGM, MTM series raymond roller mill specializing in small and medium mining, chemicals, building materials, metallurgy, refractories, pharmaceuticals, cement and other industries. It is suitable for processing various non-flammable and non-explosive kaolin materials with Moh's hardness less than 9.3 and humidity less than 6%. It is widely used in the fields of metallurgy, construction, chemical industry, mining, highway construction etc,. The granularity of the finished powder size can be adjusted between 30 and 425 mesh. Examples of processing materials include quartz, feldspar, barite, calcite carbonate, limelimestone, talc, ceramic, iron kaolin, carborundum, bauxite, kaolin phosphate, coal and other materials, about 400 kinds of materials in total.
Structure of ultrafine raymond mill,talc raymond mill,Factory Sell Directly Raymond Roller Mill:

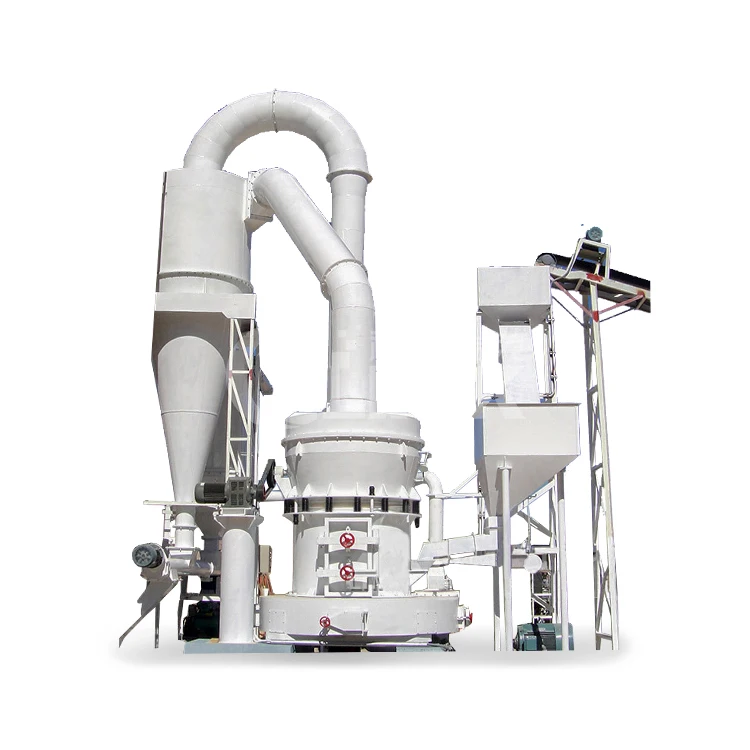

The whole set YGM, MTM raymond roller mill is mainly composed of main unit, analyzer, fan, dischargeing cyclone separator, powder cyclone separator and air duct. Among them, the main unit consists of frame, blow shell, shovel, grinding roller and grinding ring.
Features of ultrafine raymond mill,talc raymond mill,Factory Sell Directly Raymond Roller Mill :
1.High Efficiency
Under the same finished final size and the same motor power, the capacity of the machine is twice as much as jet mill, mixing grinder and ball mill, and energy consumption decreased 30%.
2.Long lifecycle of spare parts
The ring and roller are forged by special material with high utilization,the lifetime can reach 2-5 years for grinding calcite.
3.High safety and reliability
As no rolling bearings or screws in grinding cavity, there are no problems caused by bolts shedding or rapid wear of bearings and seal components.
4.High fineness, flexible adjustment
The final fineness of the grinding materials can be adjusted between 325 meshes and 2500 mesh (47-5 micron), and the product fineness can reach D97≤5μm.
5.Environment-friendly
Technical parameter of ultrafine raymond mill,talc raymond mill,Factory Sell Directly Raymond Roller Mill:
| Type | Roller | Max. feeding size(mm) | Fineness of product(mm) | Output (t/h) | Power of machine(KW) | Size(mm) | ||
| No. | Dimension(mm) | Height(mm) | ||||||
| YGM7815 | 3 | 260 | 150 | 15 | 0.613-0.033 | 1-3 | 18.5 | 4300*3500*5100 |
| YGM8314 | 3 | 270 | 140 | 20 | 0.613-0.033 | 1.2-4.6 | 22 | 5300*4100*5200 |
| YGM9517 | 4 | 310 | 170 | 25 | 0.613-0.033 | 2.1-5.6 | 37 | 7100*5900*7900 |
| YGM4121 | 5 | 410 | 210 | 30 | 0.613-0.033 | 2.8-10.5 | 75 | 9200*7250*9700 |
| MTM1600 | 6 | 440 | 270 | 35 | 0.613-0.033 | 5-20 | 132 | 12550*5700*8350 |
Application of ultrafine raymond mill,talc raymond mill,Factory Sell Directly Raymond Roller Mill:
Our Products
Company Brief
As a leader enterprisewhich is specializing in research, manufacture and sales all kinds of mining equipment, We have many agents that sell our products all over the world.Our products are widely used in the industry of mining, construction materials, chemicals, metallurgy, transportation, hydraulic engineering and so on. Specially we independently developed raymond mill, which are not only renowned in domestic market, but also have been sold widely in Eastern Europe, Middle East, Africa, South Asia, Southeast Asia, Oceania, and America, etc.We still insist on the communication and cooperation with prestigious scientific research institutions from both home and abroad to make our development ability always is in the domestic front. We'll always follow your steps, pursue your value and achieve your profit.
Our Service
Pre-sales Service: Based on the principle of constant innovation and quality guarantee, customer foremost, we are able to provide our customers not only the highest quality products at the most favorable price but also the most reasonable solution, such as the selection of the equipment, optimized process configuration and a full range of technical support.Every customer has the chance to visit the working machine in the site before placing the order,we help to arrange cars, hotels, and translators for every visiting customer.
After-sales Service: Experienced technicians guidance is available on the phone, and on the internet. One or more engineers will be dispatched to the quarry site to help install the customers' plants. Necessary training about machine daily maintenance to local workers is provided also.
Our Technology
Our company has already formed a full set of modern production line, equipped with intelligent, standardized testing and controlling laboratories, owned a professional team for R&D, production, sales and service. We'll give you the most professional service as the manufacturer.

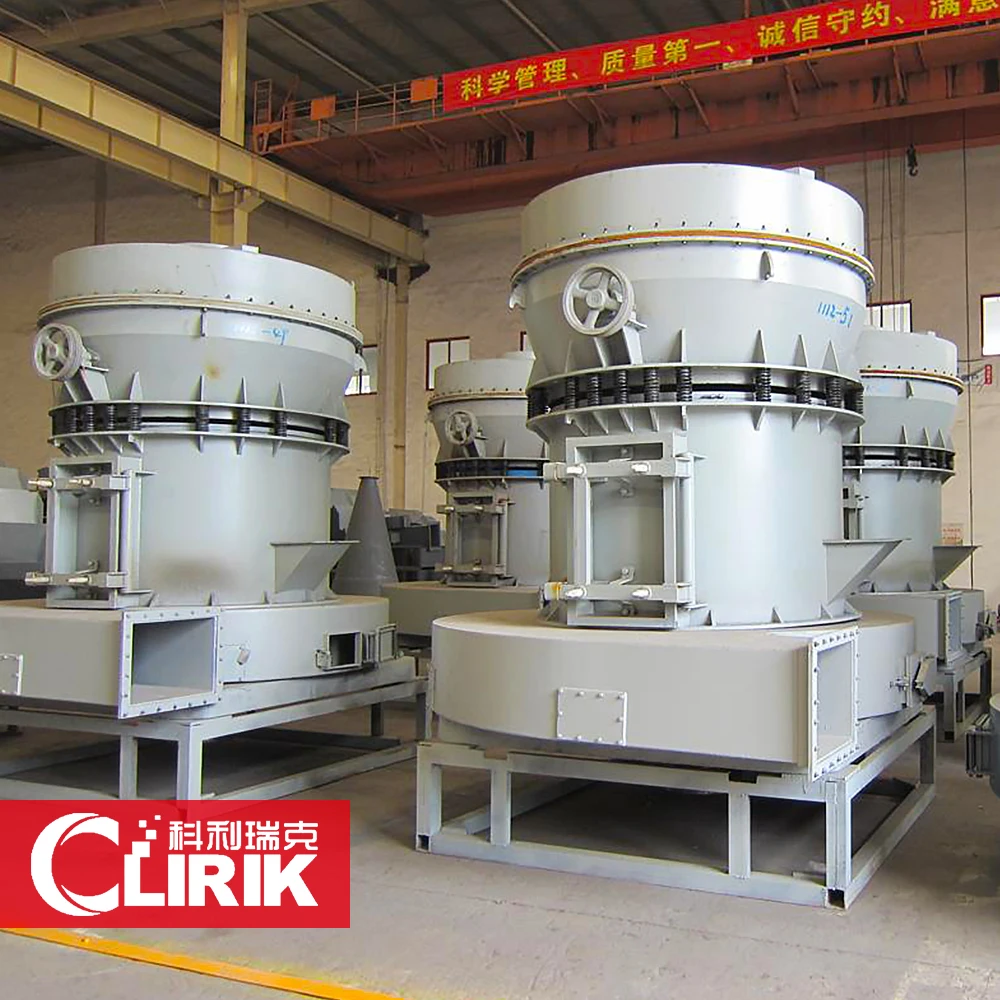

Our Factory
SHANGHAI CLIRIK MACHINERY CO., LTD located in PUDONG New district of Shanghai china, a factory of 50,000 square meter for grinding mill production, another factory of 40,000 square meter also in Shanghai for all kinds of crushers production.we are near the Shanghai Pudong New Airport, only 15minites by car, Welcome you come to visit our factory.
