Характеристики



Product Description

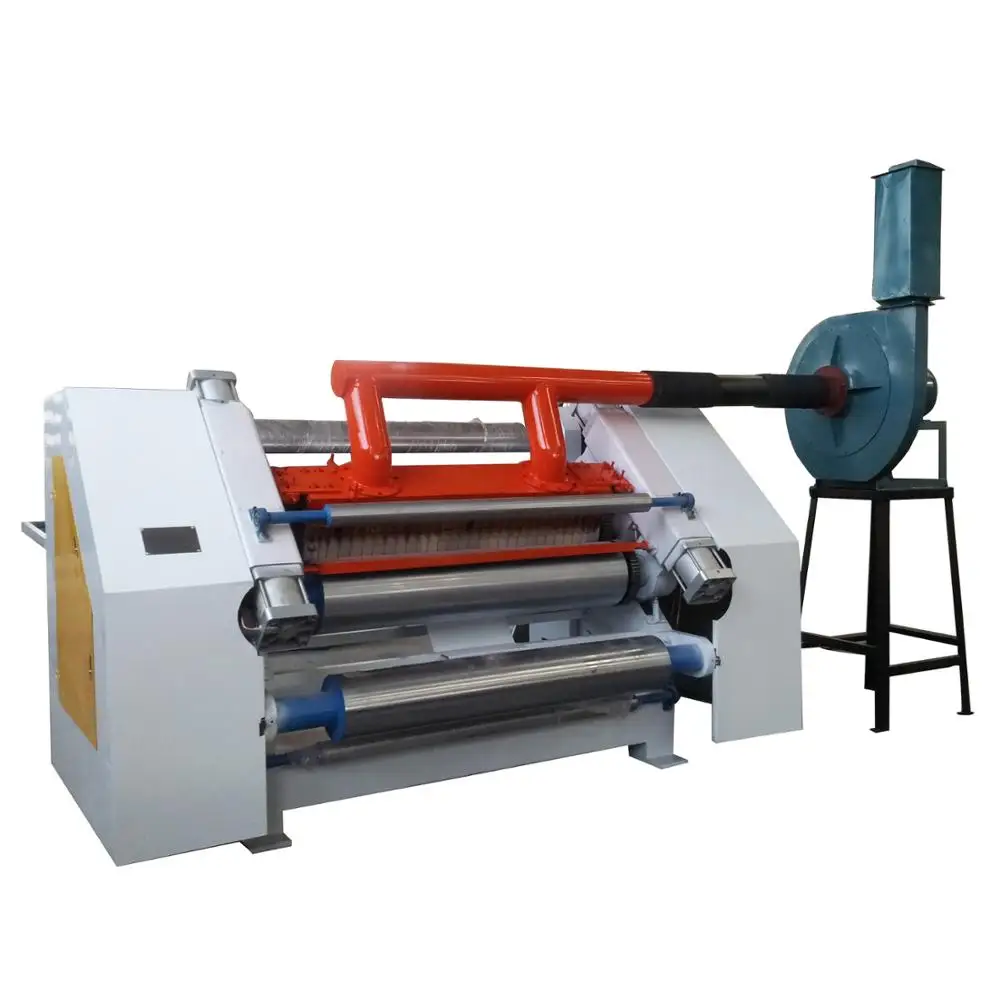

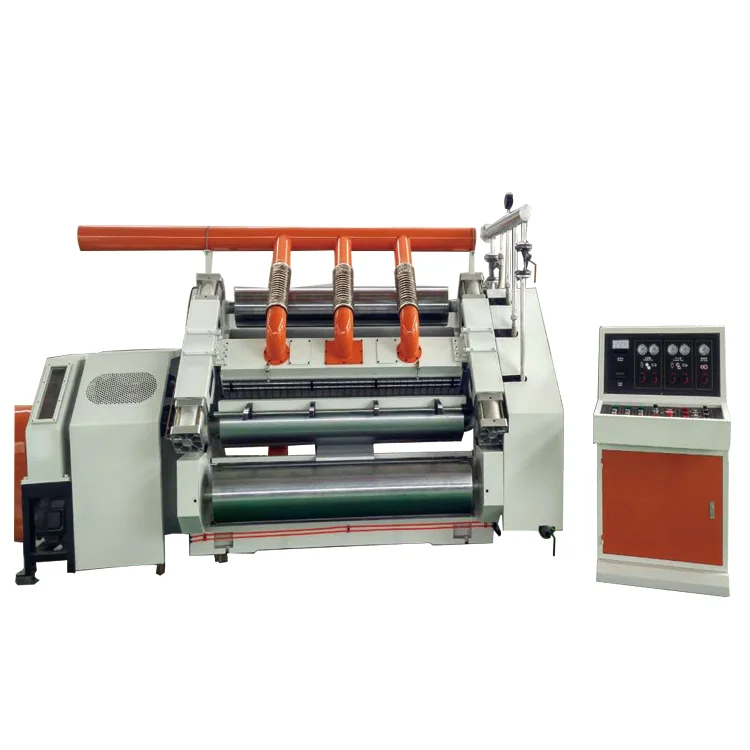

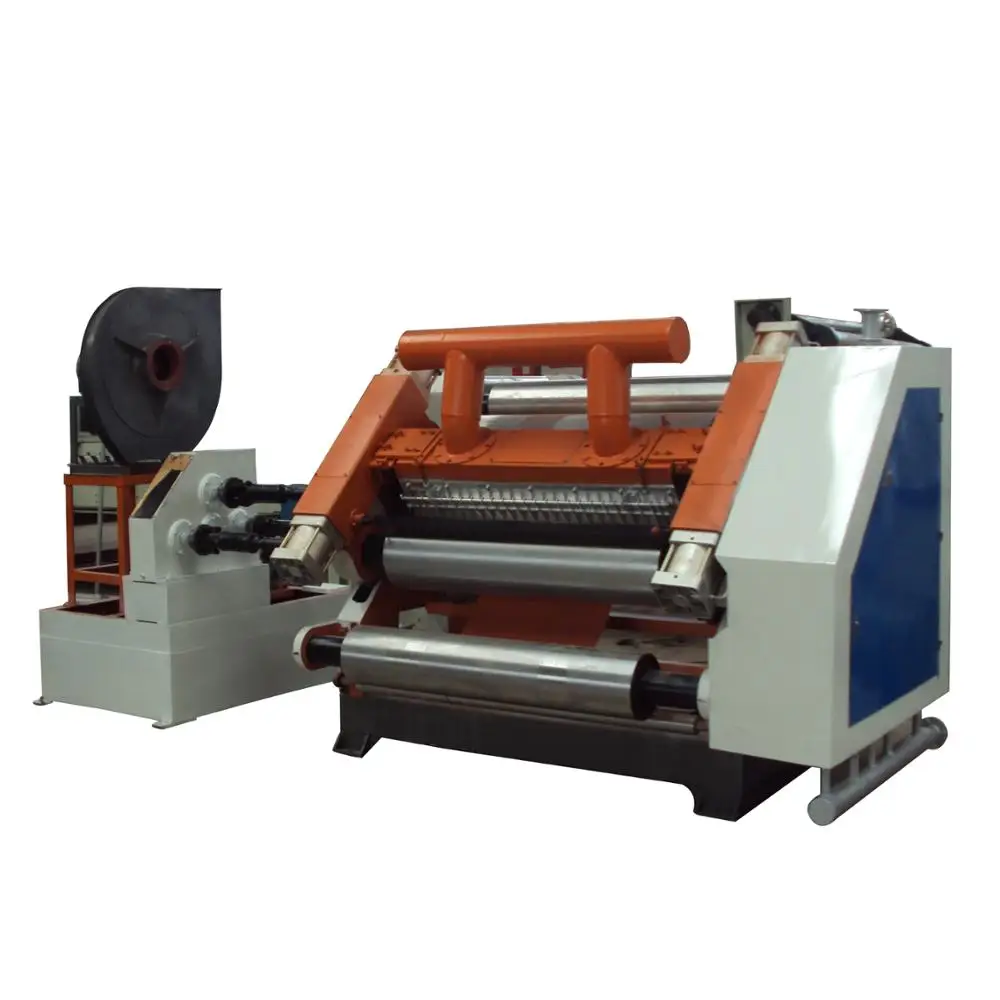

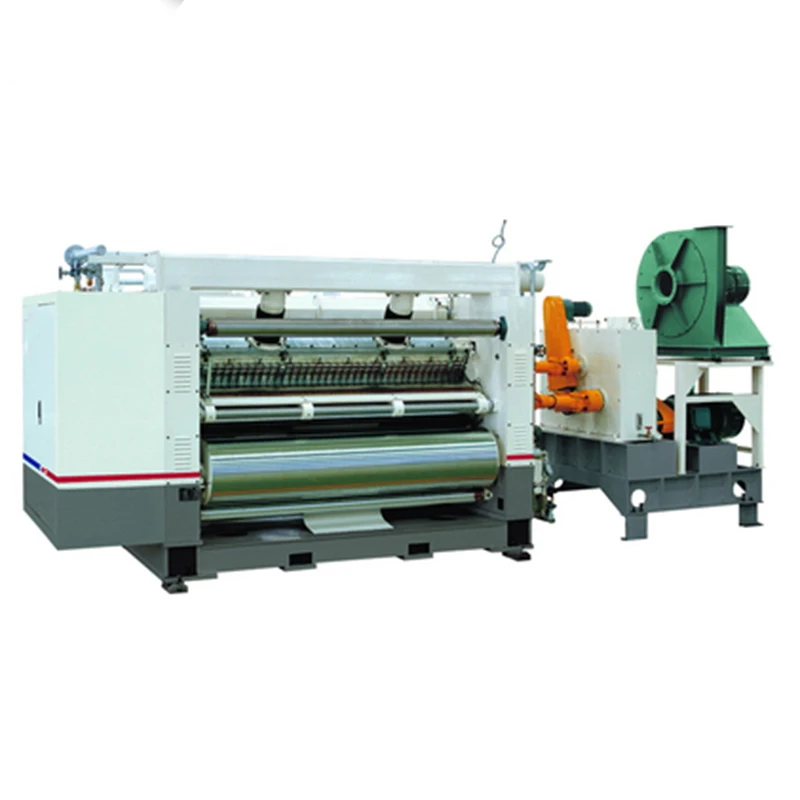

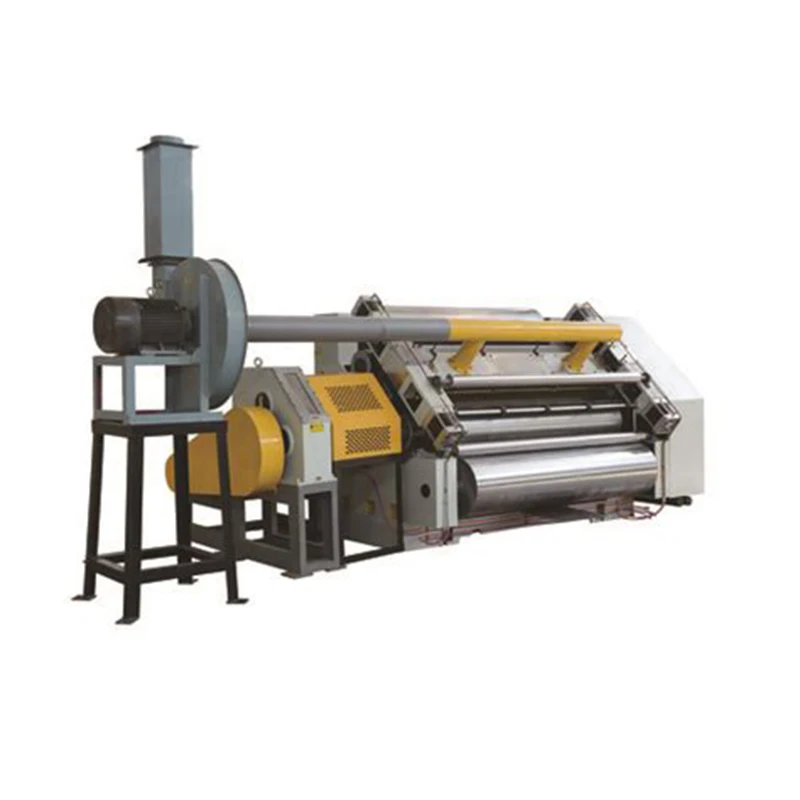

Fingerless Type Single Facer Machine Corrugados Cardboard Carton Box Single Facer Machine




Corrugated cardboard paper makingCorrugated cardboard paper makingCorrugated cardboard paper makingCorrugated cardboard paper making


Purpose and Characteristics:


320S Design Speed: 120m/min


360S Design Speed: 150m/min


Effective width: 1400mm-2500mm


Corrugated roller:f320(f360)mm


1.  It adopts a hood suction type structure and is equipped with a high pressure powerful fan. Suction with silencer, air source and electrical control are concentrated in the same operation cabinet, not less than 1.5 meters from the host, and the operating side is fully enclosed.


2. Wall panel cast iron structure, wall panel thickness 130mm.


3. Corrugated roller material is made of 48CrMo alloy steel, quenched and tempered, medium frequency quenched, surface polished, corrugated main roller diameter ¢ 280mm, surface hardness HRC58 degrees or more. The key parts of the roller and pressure roller bearing are made of Wafangdian high temperature bearing.


4. Pressure roller 284 284mm, surface grinding and chrome plating; cylinder control up and down movement, material is medium carbon steel No. 45, quenching and tempering treatment (with buffer device).


5. Pneumatic control to glue the rubber, the diameter of the rubber roller ¢ 215mm surface is polished and engraved with 25 lines of pit-type mesh processing after hard chrome treatment, the surface of the squeegee roller is polished and then plated with hard chrome.


6. The raw materials of corrugated roller and pressure roller are provided by Zhongyuan Special Steel. The corrugated roller has a single side of 0.15mm and a high pressure of 0.075mm. Add limit device. The compact cylinder is made of ¢160mm cylinder.


7. The preheating roller adopts Tiangang Steel to produce seamless steel pipe ¢ 320mm






























Working width



1800mm



Operating direction



left or right (according to the customer's workshop)



Design speed:



120m/min



gas source



0.4-0.9Mpa



Temperature range



160-200°C



heating method:






electric heating steam / heat transfer oil




Packaging & Shipping


1 Plastic film package normally


 2 If special packaging, pls tell us in advance


 3 Shipping: FOB, CNF&CIF





Corrugated cardboard paper making


Corrugated cardboard paper making





Our Services


Corrugated cardboard paper makingFactory Price Cheap Corrugated Paper Making Machine 320S/360S Fingerless Type Single Facer for Paper


After Sales Service
We deeply know that, excellent and effcient after-sales service is an indispensable part for clients to achieve due benefits. To offer most favourable and satisfactory service for wide clients, we hereby solemnly promise:
1.professional technicians will be assigned to client's site to give guidance in equipment installation and commissioning and hole training class for operators;we also offer charge-free training in our company for operators and maintenance personnel if requsted by clients.
2.The equipments will be delivered accompanied with detailed installation and operation manual and related information. Upon client's request,we can also offer plant layout design by free of charge.
3.All the equipments are offered with one year quality warranty. within the warranty period, maintenance of equipment and replacement of wearing parts are charge-free.Affer the guarantee is expired, we offer long-term maintenance service and supply of parts and components at cost price. Clinets Complaint: A speacias round-clock fax will receive your complaints seriously. We will response within 24 to 48 hours affer receiving your complaints by phone call or going to site.








Company Information


Jialong Packaging Machinery Co.,Ltd  is a academician of Chinese Packaging Technic Association.Our company specializes in discovery, development and production of corrugated cardboard production line, automatic flexo ink printing slotting die cutting machine, semi-autoatic flexo ink printing slotting machine,auto rotary die cutting machine ,single facer corrugator machine, flute laminating machine, automatic carton folder gluer machine,carton stitching machine, slotting machine, thin blade slitter scorer machine, egg tray making machine, paper edge protector making machine, paper tube core making machine and other relevant packaging machinery.

Many years before, our company considers “Quality is first, Honesty is root” as our principal, to meet customers’ demand is our target. We can supply from machine design to after-sale all service with high quality and professional technique.

We would like to cooperate with friend from every countries sincerely, and we will work hard to create the future of package together


Factory Price Cheap Corrugated Paper Making Machine 320S/360S Fingerless Type Single Facer for Paper





FAQ


1. Q: Are you factory or trading company ? why choose us?





A:we are professional manufacturer factory for carton box making machinery.Our factory has professional produce many kinds of carton box Making machinery for more than 20 years, our machines has export To many countries abroad, We have an experienced production research and development and after-sales service team!


our company rule is : we insist only produce High quality machine with best price, we never produce low quality machine with lowest price, because high quality machine and customers' Satisfaction is the most important foundation of our company development.





2Q: what is your machine Warranty period?





A: We insist only produce high quality machine with best price,


We never produce low quality machine with lowest price,


So we trust our machine quality well, we promised all of the


Machines we produce the warranty period is 24 months.


Because we believe our machine quality, so we dare to Extended warranties!





3.Q:How about the packing of products.





A:Tighten to container with steel wire rope and welded machine withcontainer


by angel iron B. Main corrugated box machines and uncoiler is packed with


waterproof plastic) C. PLC contral system and motor pump are packed in


wooden box with water proof paper coverage.





4.Q:how about the delivery time?





A:Normal standard machine we have store, if no store delivery time will be within 30 days.





5.Q: Where is your main market?





A: Our products are exported to more than 30 countries and regions,


Mexico,Spain, Russia,Canada,Poland,Georgia,Bolivia,Hungary, Pakistan, Uzbekistan,Ukraine,Kyrghyz,Argentina,Venezuela, Egypt,Bulgaria,Brazil, Australia, Philippines, Indonesia,Australia, Algeria, Sri Lanka,Bengla, Saudi Arabia,Syria,Turkey,Ethiopia and so on.





6.Q: We do not know how to operatemachine,how to deal?





A.we can send our engineer to your site and do the training for your men. you just only bear the cost for our engineer's air ticket,accommodation,food and transposition in your country


B.You can send your men to our factory. we will teach them how to operate the machine without training charges


C.Actually theres another cheap and easy way to choose. Every machine leave our factory with one book of operation manual. You can read through the manual first ,and get familiar with the machine. Then we can get a video call,and teach you on-line  how to operate the machine.





7Q: If the machine has some problems,during we using ,How to deal?





A:24 months for the whole machine. Within 24 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free.Out of 24 months, you will get spare parts at cost price. You will also get technical support and service all the lifetime.





Corrugated Cardboard Carton Box Single Facer Machine
