Product description

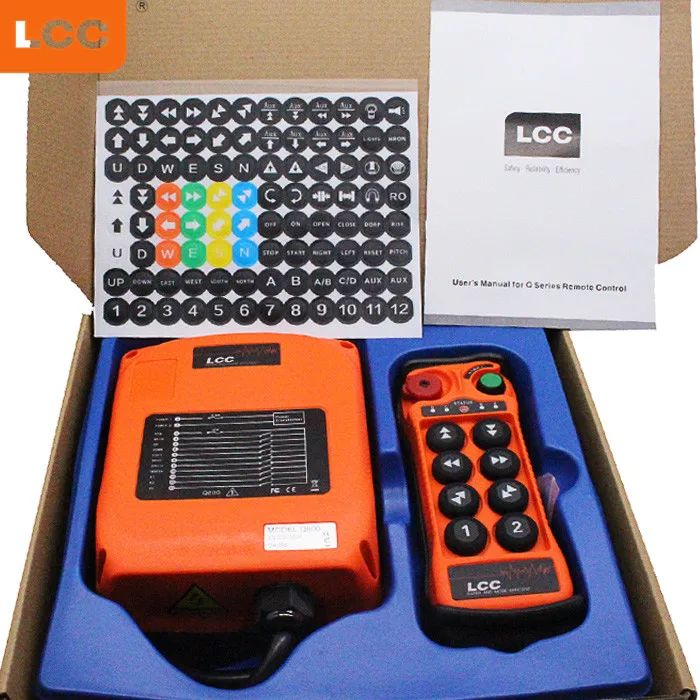

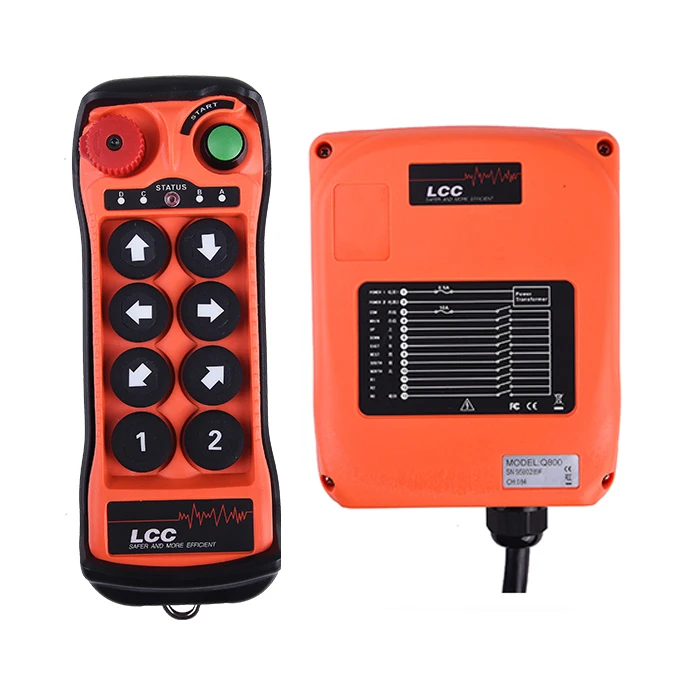

Q800 8 Channel Wireless Rf Industrial Radio Remote Control Switch for Hoist Crane
| TECHNICAL PARAMETERS OF BUTTON Q SERIES | |||||||||||||
| Type | Q200 | Q202 | Q400 | Q404 | Q600 | Q602 | Q606 | Q800 | Q808 | Q1000 | Q1010 | Q1200 | Q1212 |
| Transmitter Function | 2 single -speed buttons | 2 double -speed buttons | 4 single -speed buttons | 4 double -speed buttons | 6 single -speed buttons | 2 double 4 single
| 6 double -speed buttons | 8 single -speed buttons | 8 double -speed buttons | 10 single -speed buttons | 10 double -speed buttons | 12 single -speed buttons | 12 double -speed buttons |
| Transmitter Dimensions | 14.5x7.5x3.8cm | 19x7.2x3.9cm | 23.9x7.2x3.9cm | ||||||||||
| Transmitter Weight | 240g | 300g | 360g | ||||||||||
| Transmitter Antenna | Inside | ||||||||||||
| Receiver Antenna | Inside / optional external antenna | ||||||||||||
Start | Press the start button | ||||||||||||
Emergency | Mushroom conforms to EN3849-1 standard | ||||||||||||
Housing | Reinforced nylon plastic | ||||||||||||
IP class | IP65 | ||||||||||||
Distance | ≥ 100 meters / can be customized 300 meters / 500 meters | ||||||||||||
Frequency | 433/480MHZ | ||||||||||||
Temperature | -35°C— +75°C | ||||||||||||
Button life | ≥2,000,000 times | ||||||||||||
| Power supply | 2 pieces battery (1.5V) | ||||||||||||
| Continuous working time | 400 hours (at room temperature) | ||||||||||||
| Automatic shutdown | no shutdown / software can be set for 15 minutes, 30 minutes | ||||||||||||
Button Text | Arrow/English/Chinese/Others | ||||||||||||
| Receiver Output | Relay 5A@250v | ||||||||||||
| Receiver Voltage | AC/DC 24-48V , AC/DC 110-480V | ||||||||||||

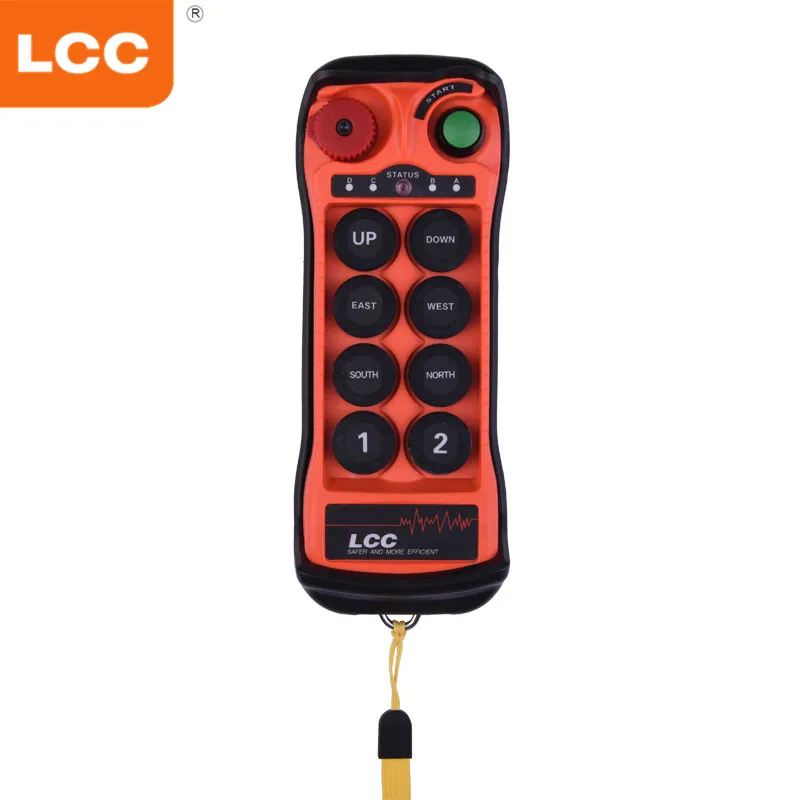

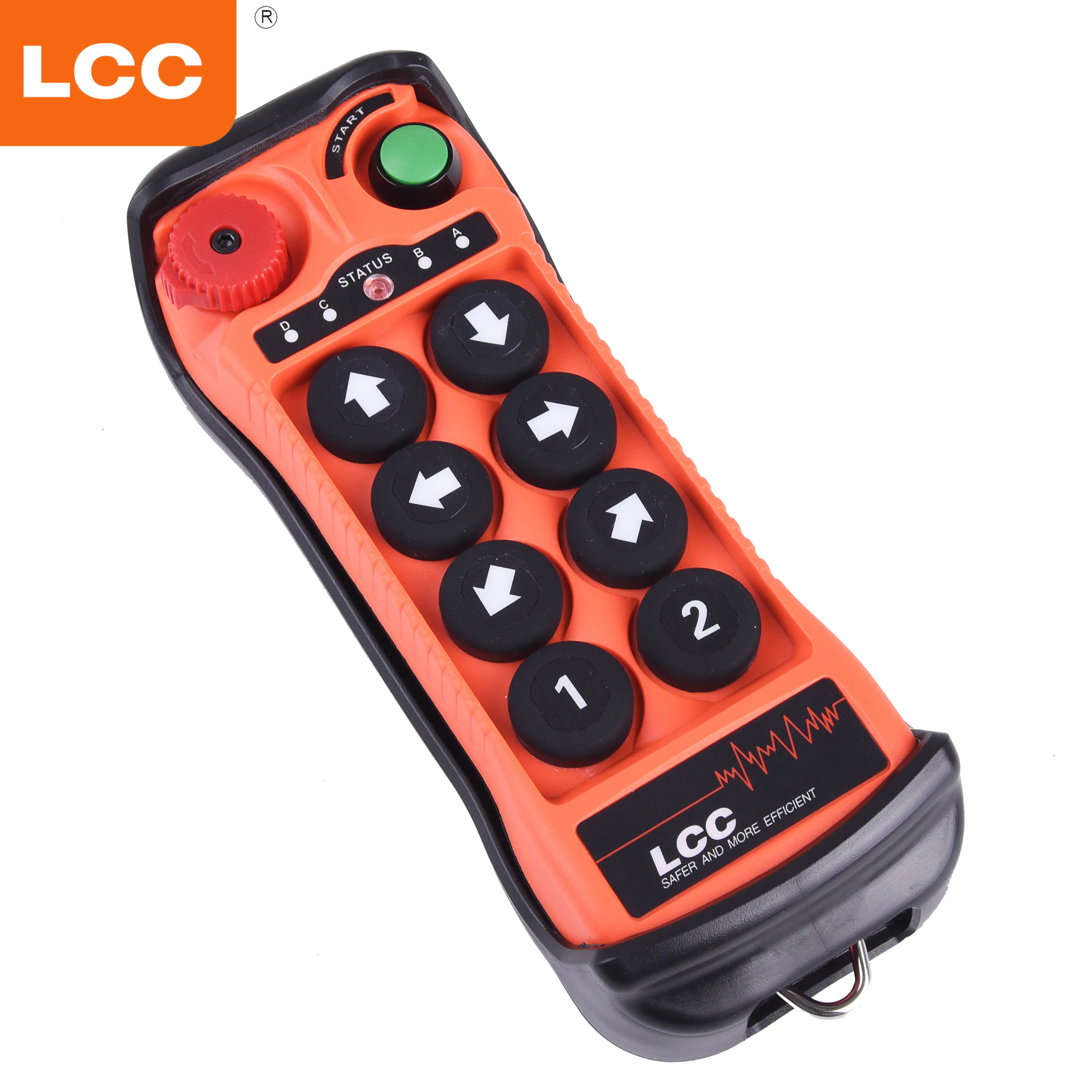

Transmitter parameter:
| Frequency | 433/480(MHZ) |
| Weight | 380g |
| Temperature range | -35℃~75℃ |
| Average power consumption | 8mA@DC3V(mA@DC) |
| Transmitter RF power | <10(mW) |
| Command response time | <100(ms) |
| Shell material | PA6(30%GF) |
| Control method | GFSK |
| Control distance | 100m |
| Protection level | IP65 |
| Power supply | LR6(AA)1.5V*2DC3V(DC) |
Frequency control | PLL |
| Stop command response time | <100(ms) |

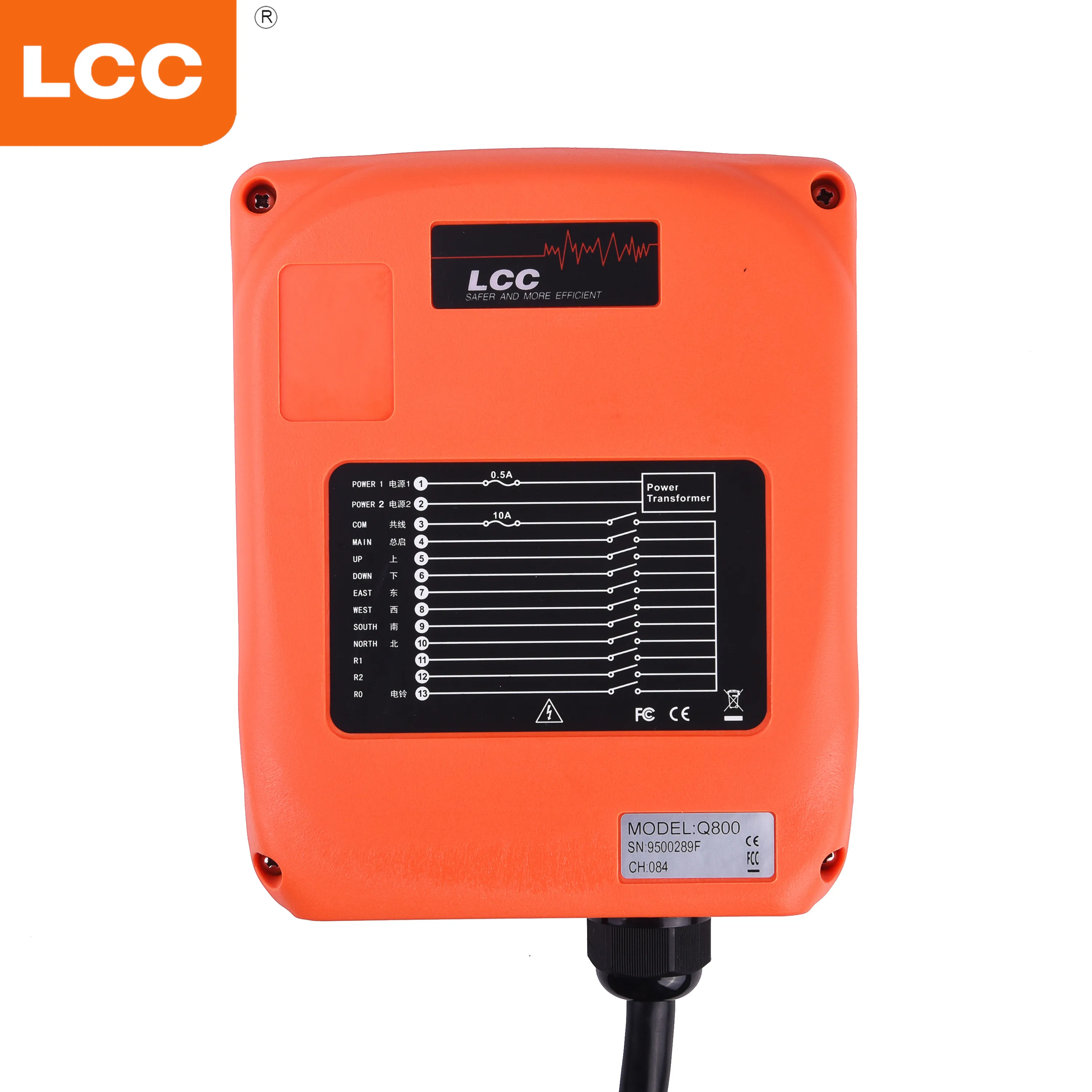

Receiver parameter:
| Frequency | 433/480(MHZ) |
| Weight | 1700g |
| Shell material | PA6(30%GF) |
| Average power consumption | 15mA@AC220V |
| Power supply(AC/DC) | Low pressure24-48V high pressure110-460V |
| Operating temperature | -35℃~+70℃ |
| Receiving sensitivity | -112(dBm) |
| Receiving capacity | 5A@250W(A@AC) |
| Control distance | 100m |
| Frequency control | PLL |
| Distribution method | GFSK |
| Reaction time | 50-100(ms) |
| Protection level | IP65 |
The LCC brand originated from the customer's desire for more reliable industrial wireless remote control. At the beginning of the brand's establishment, the vision was to provide safer, more reliable and more efficient industrial wireless remote control system for Chinese and global customers. Today, this vision has been translated into reality by LCC engineers. Now in every corner of the world, you have the opportunity to see LCC products. LCC products are the first choice for customers in general industries such as iron and steel metallurgy, automobile manufacturing, pulp and paper making, shipbuilding, mining, tunnel construction, port seawork, oil mining and other special industries.
Our Services
Our Service:
1. Any queries will be answered within 24 hours.
2. Professional manufacturer, strong R & D team support.
3.OEM / ODM available, we can customize according to customer requirements.
4. Due to transportation restrictions, the battery is not in the package. you should buy your own AA battery.
5. We are a factory from China. please don't worry about the quality and service of our products.
6. If you have any questions about products and logistics, you can email us and we will reply as soon as possible.
7. After-sales service:
1) all products are subject to strict factory quality inspection before packaging.
2) all the products have been packed in our factory, and the second package is delivered by express delivery before shipment.
3) if there are any problems during operation or installation, please contact us freely and we will solve them with professional guidance.
Why do you choose us?
1) manufacturer directly, all in stock, as soon as two hours delivery.
2) The product series is complete, covering high-end, middle-end, low-end industrial remote control.
3) Strong R & D capability and a number of core technologies.
4) Accept personalized custom remote controller to meet the special functions of different devices.
5) The second best quality manufacturer of the same kind of industrial remote control in China.
