500tons 1000tons Steel Maize Grain Storage Corn Silos

Product Description

As the name implies, grain warehouse is a warehouse for storing grain. It can be used in corn, rice, wheat, sorghum, soybean, grain and other grain crops. It devides in two types: 45 degree hopper bottom steel silo and flat bottom steel silo.The following describes them separately.

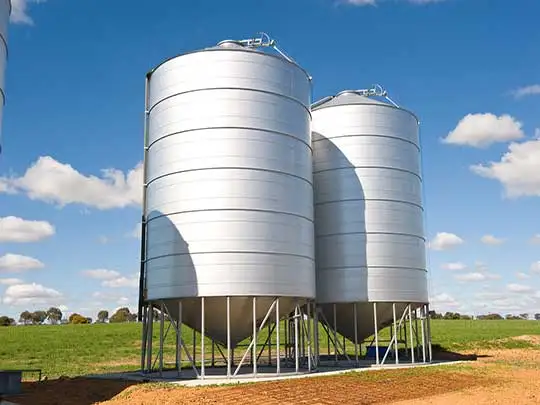

45° Hopper Bottom Steel Silo

Hopper bottom steel silos store materials out of the silos with good self-cleaning effect and no residue. The warehouse is suitable for seed, flour, aquaculture, chemical and other industries with moderate reserves and frequent silos. The hopper bottom steel silo support structure of the cone-bottom steel plate warehouse is strong and the cone-bottom strength is high.

Feature

• Since the outflow warehouse, no labor is required.
• Energy saving
• Low base cost

Technical Parameter

Hopper Bottom Steel Silo Technical Parameter
Capacity	100 ton	300 ton	500 ton	1000 ton	1500 ton
Model	TCZ04506	TCZ07307	TCZ08209	TCZ11010	TCZ11913
Diameter(m)	4.584	7.334	8.250	10.084	11.917
Total Height(m)	11.41	14.70	17.75	20.95	25.03
Volume(m3)  Density:0.75ton/m3	131	415	658	1346	1981

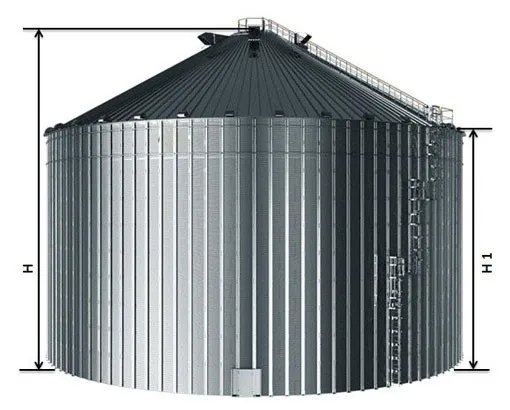

Flat Bottom Steel Silo

Flat-bottom steel silos are widely used, and are generally used for large-diameter, large-capacity silos. This form is easy to construct and low in cost. The discharge method can adopt fluidized discharge warehouse, multi-hole discharge warehouse, flat-bottomed warehouse sweeper, manual clearing, and also can use the cement cone bottom method to realize self-flow out warehouse. This type of steel silo is mostly used for oil processing, storage, such as oil, feed, flour, starch, brewing, ports, and grain depots.

Feature

• Simple structure
• large capacity
• Multiple exit methods
• Easy maintenance

Technical Parameter

Flam Bottom Steel Silo Technical Parameter
Capacity	100 ton	500 ton	1000 ton	10000 ton	15000 ton
Model	TCZ04507	TCZ09108	TCZ10014	TCZ25621	TCZ31121
Diameter(m)	4.584	9.167	10.084	25.668	31.168
Total Height(m)	9.26	11.71	18.69	30.60	32.10
Volume(m3)  Density:0.75ton/m3	137	654	1335	13484	20286

The above data is for reference only. For more information, please contact us.

Professional team to answer your questions online



Construction

Packing And Shipping

Our Service

Pre-sale:

• Selection of equipment model.
• Design and manufacture products according to the special requirements of customers.
• Train technical staff for customers.
• The company sends engineering and technical personnel to the user's site to plan the site and design the best process and scheme for free.

On sale:

• Product acceptance.
• Assist clients in drawing up construction plans.

After sale:

• Assign special after-sales service personnel free of charge and arrive at the scene to guide customers to install and debug.
• Equipment installation and commissioning.
• On-site training operators.
• After the complete set of equipment is installed, the full-time technical staff will assist the customer to smoothly produce on-site for free until the user is satisfied.
