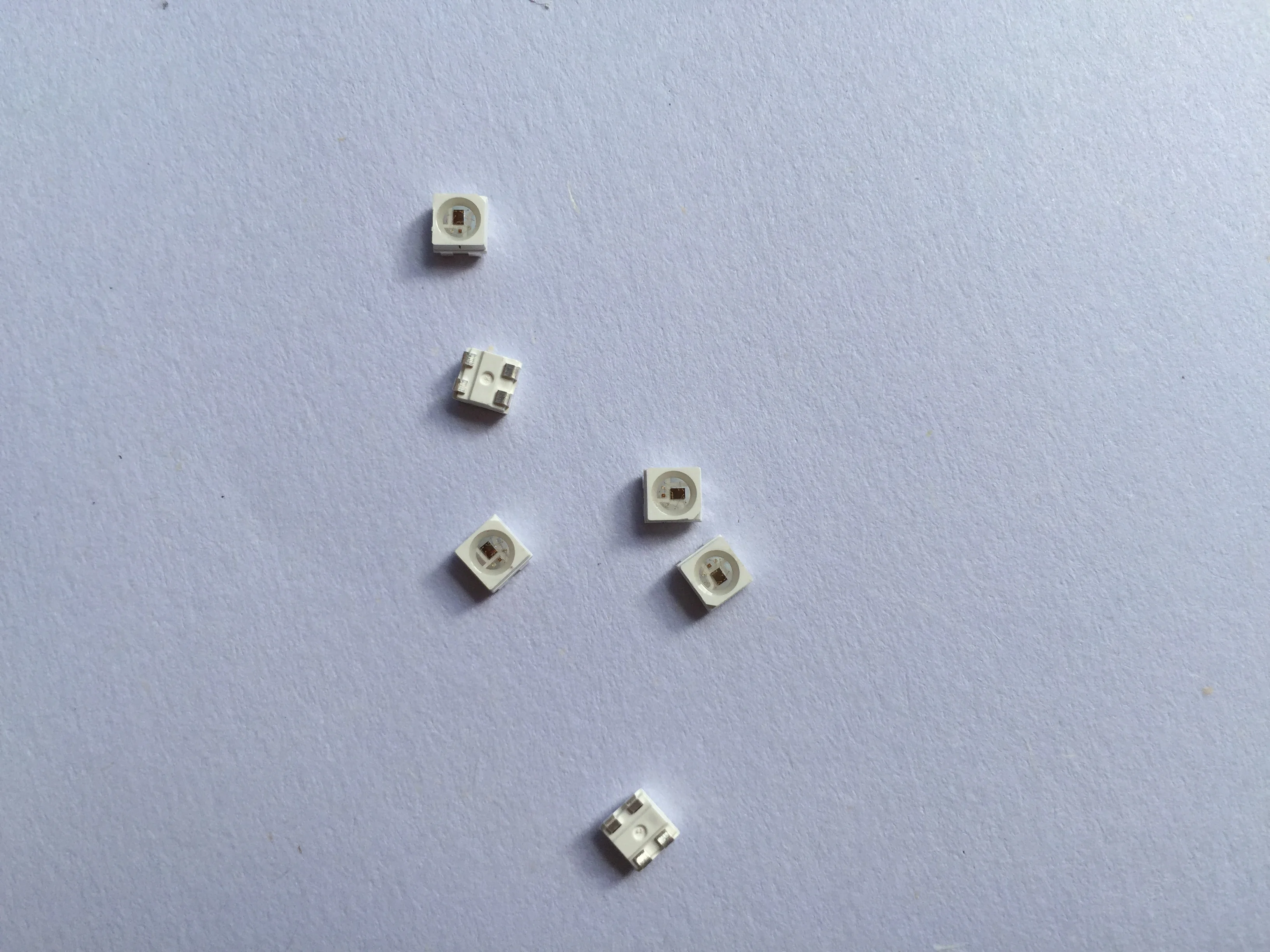

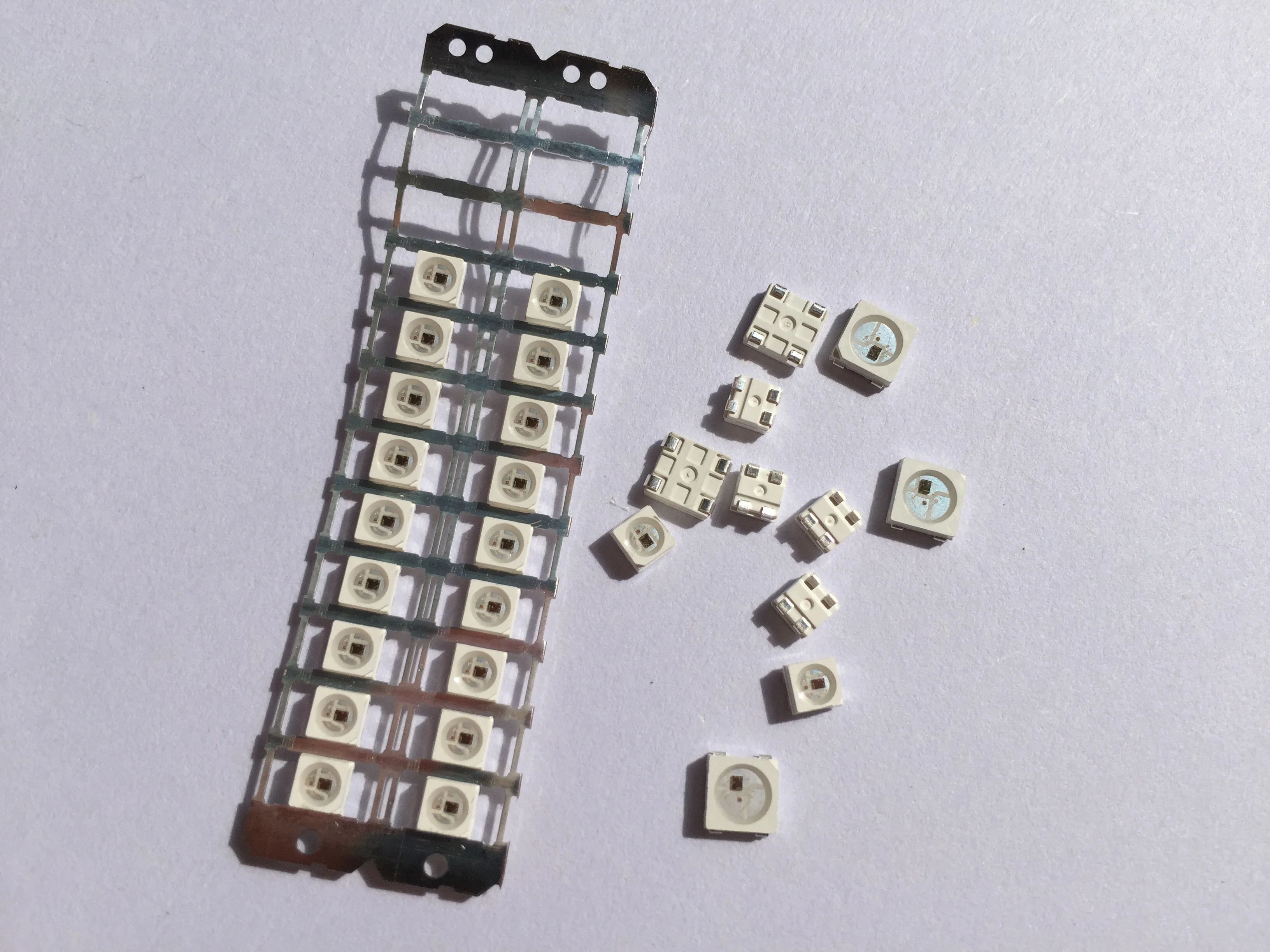

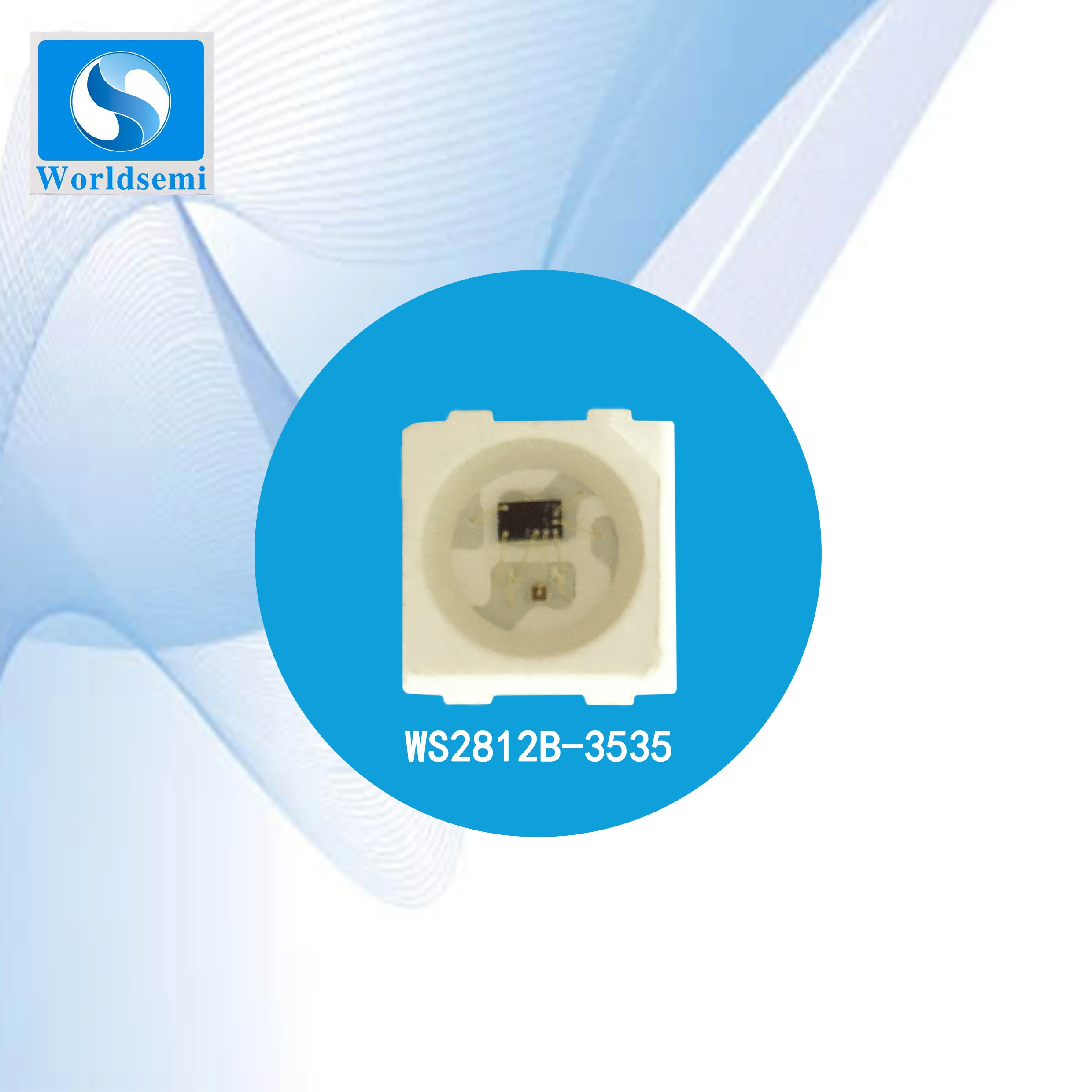

Модифицируемый светодиодный WS2812b MINI 3535 SMD Интеллектуальный источник света

Описание и отзывы

Трекер стоимости

Характеристики

Features

The control circuit and the LED share the only power source.
Control circuit and RGB chip are integrated in a package of 3535 components, form a complete control of pixel point.
Built-in signal reshaping circuit, after wave reshaping to the next driver, ensure wave-form distortion not accumulate.
Built-in electric reset circuit and power lost reset circuit.
The three primary color of each pixel can achieve 256 level Gray scale, and to fulfill 16777216 colors full-color display,

its scan frequency is higher than 2KHz.
Cascading port transmission signal by single line.
Any two point the distance does not exceed 3m transmission signal without any increase circuit.
When the refresh rate is 30fps, cascade number are not less than1024 points.

Data transfer speeds up to 800Kbps.

The reception and decoding of cascading data can be completed by a Serial Interface.

No need for external electric components and even the capacitor.













Applications
