Модуль дистанционного управления с 2 светодиодами CE автоматический
- Категория: Circuit Breakers >>>
- Поставщик: Yueqing,Sofielec,Electrical,Co.,Ltd.Yueqing,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 2678.12 $* | 2732.78 $* |
| Jul-16-2025 | 2172.23 $* | 2215.53 $* |
| Jun-16-2025 | 2636.16 $* | 2689.61 $* |
| May-16-2025 | 2615.27 $* | 2667.64 $* |
| Apr-16-2025 | 2088.81 $* | 2130.44 $* |
| Mar-16-2025 | 2573.78 $* | 2624.3 $* |
| Feb-16-2025 | 2552.76 $* | 2603.11 $* |
| Jan-16-2025 | 2531.77 $* | 2582.95 $* |
Характеристики
CE 2 module LED type Remote control Auto REC Automatic Recloser
Product Description
SMT51RA is an automatic recloser,which can inspect and reclose the circuit by itself. It may switch on/off the breaker automatically: trips and time delay can be set up and adjusted as per request. The
device Ev47-2 may reclose itself if no faulty, and will output signals to control station if any faulty.
Therefore, it may realize remote monitor or reclose the circuit in unattended or remote place.
Technical Data:
Voltage(VAC): 230V AC Frequency: 50/60Hz
Power: 3VA Standby Power: 0.5W
Insulation Voltage: 4000V/min Trip time: < 0.1s
Electrical life: 5000 Mechancal life: 8000
Reclose adjustable(times):0, 1, 2, 3, 4, 5, 6, 7, 8, 9 times
Time delay adjust(seconds):0, 10, 20, 30, 45, 60, 90, 120, 150, 180s
Reset system(ISPDT): Rated current 5A(250VAC) resistant load.
Enviroment Temperature: -25~+55 Storage Temperature: 40~+70
Production degree Breaker IP20 Inside distribution box IP40 grade II
Temperature +55 Humidity: 95% Installation: DIN rail, DIN35mm Cable 1/25mm, 2/25mm
Compatible: MM50H, ML50H, MRO50, MR50, and accessories
Technical Data
| module: | 2P 36mm |
| Rated Voltage: | 250vac /50MHZ |
| time delay to reclose | ≤3s |
| reclosing time | ≤1.5s |
| power consumption | ≤3va |
| IP grade: | IP20 |
| Compatible | MCB: SJVM16-32, SJVM16-63,RCCB:SJVL16-63, RCBO:SJVL16-40,JVRO16-32 |

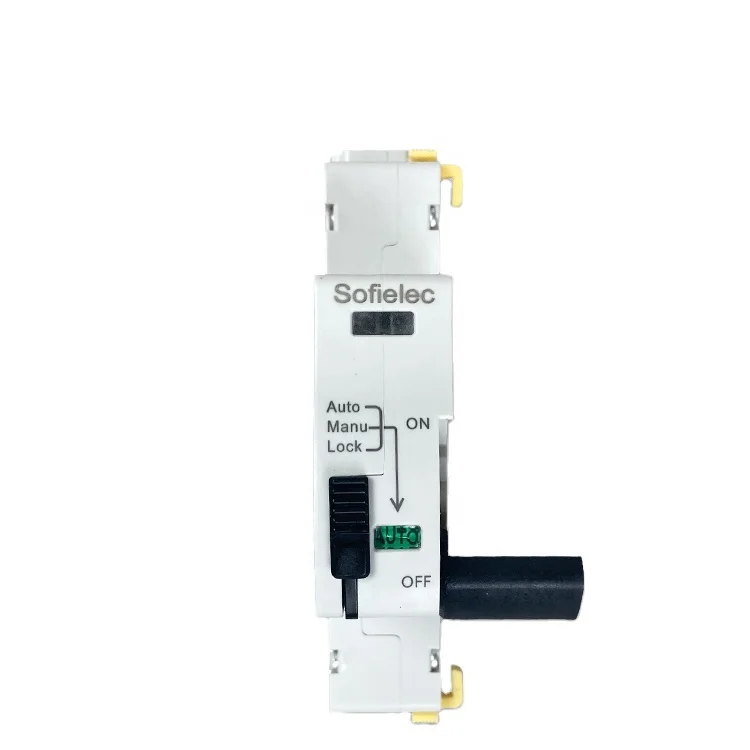

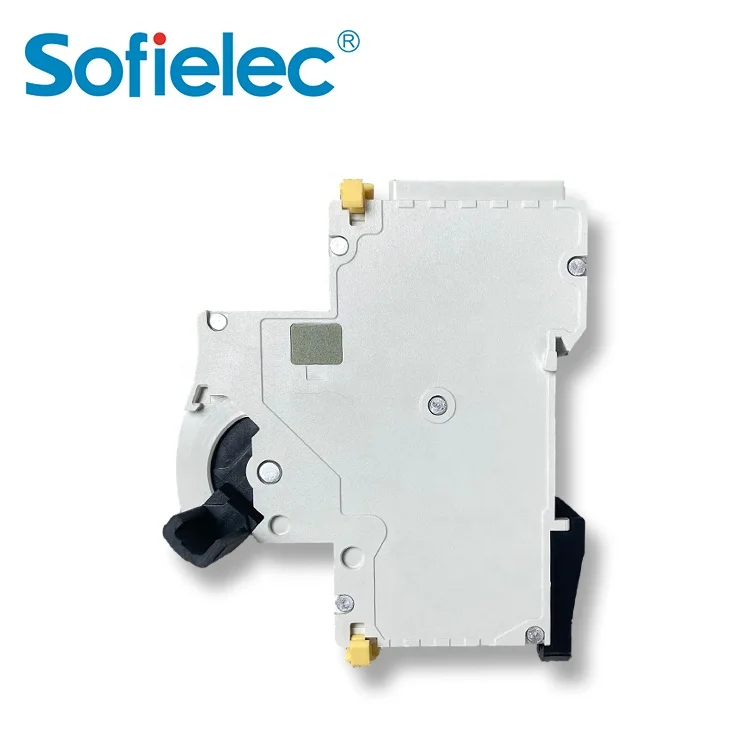

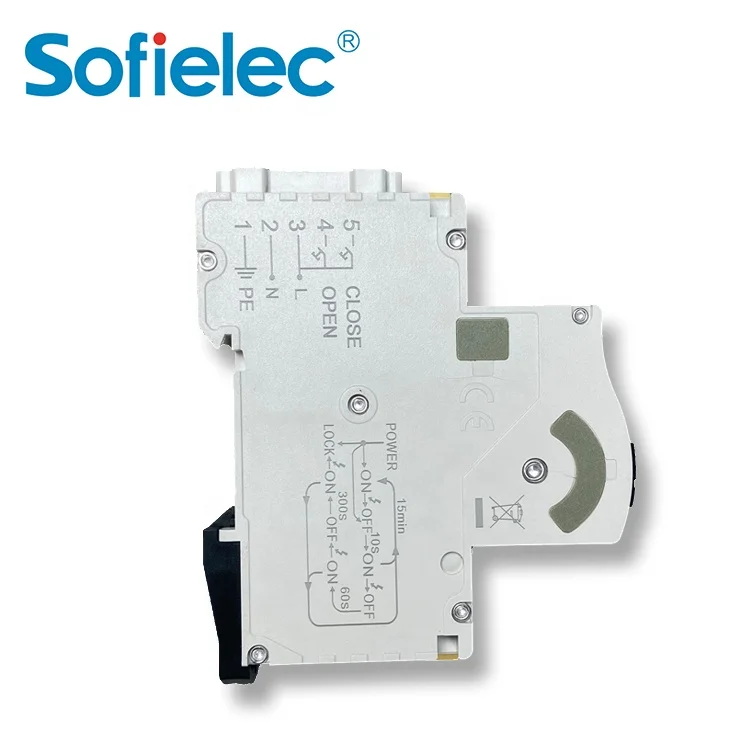

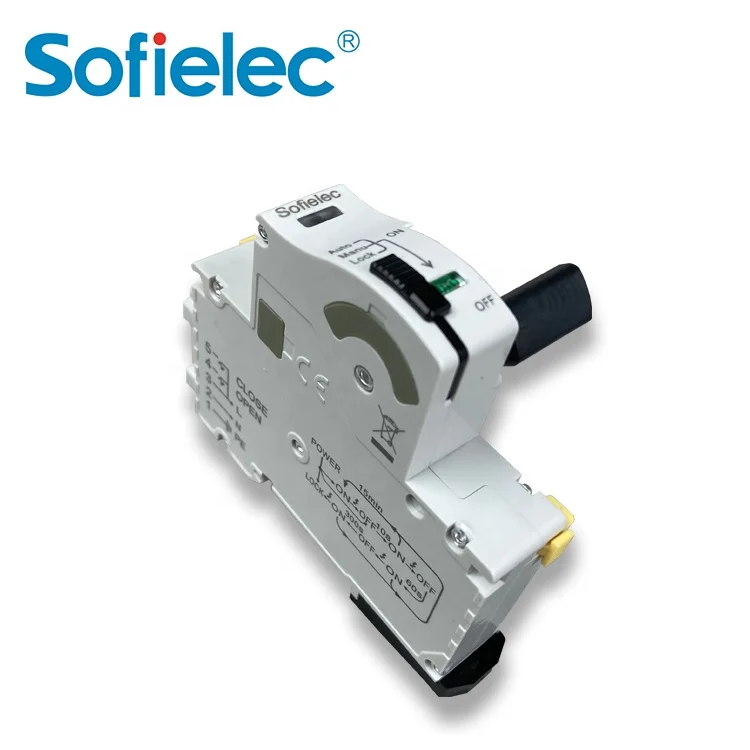

Products Picture
Company profile
Yueqing Sofielec Electrical Co., Ltd.
Yueqing Sofielec Electrical Co., Ltd.ltd is located liushi Wenzhou China. Liushi is famous for the low and high voltage electrical products such as circuit breaker,ac contactor,Timer,relay,switch gear,there is the largest low-voltage electrical appliance market in China and about 15Km far away from Wenzhou Airport and Railway, the transportation is very convenient.
Our Company is specialized in manufacturing modular electrical terminal devices for household,economic and industry area installation. We have wide range of products covers Miniature circuit breaker(MCB), Residual current circuit breaker(RCCB),Residual current circuit breaker with over-current protection(RCBO), Switch-disconnect, Distribution box, High and low voltage switch gear and the accessories in the various type of switch boards,such as SPD,copper terminals,ac contactor,ampmeter etc.
Our company takes the repuation as the large supplier of electro-magnetic type RCCB and RCBO,OEM or ODM projects are available.The most important is above products pass the lab.test and obtained the approvals:CE(Europe),S(SEMKO Sweden),CCC(China),CB,SAA
