Цифровой контроллер веса RS232 из нержавеющей стали индикатор

Цифровой контроллер веса RS232 из нержавеющей стали индикатор

Категория: Weighing Scales >>>
Поставщик: Ningbo,Majia,Electromechanical,Co.,Ltd.

Цена:36,00 $ - 45,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	43.22 $*	45.28 $*
Aug-16-2025	42.16 $*	44.64 $*
Jul-16-2025	36.37 $*	38.88 $*
Jun-16-2025	42.4 $*	44.55 $*
May-16-2025	36.64 $*	38.35 $*
Apr-16-2025	41.86 $*	43.24 $*
Mar-16-2025	41.14 $*	43.63 $*
Feb-16-2025	40.64 $*	42.39 $*
Jan-16-2025	40.38 $*	42.76 $*

Характеристики

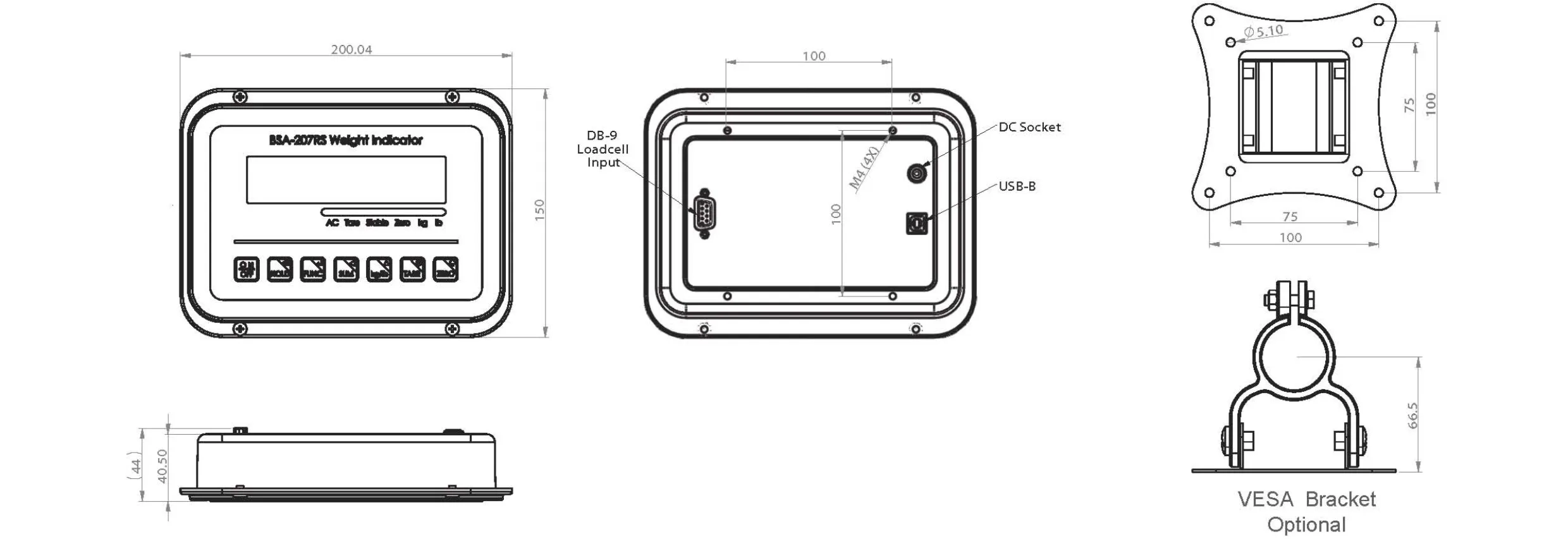

Dimensions (In mm. 1mm = 0.03937 inches)

Specification

Resolution:	10,000 or 100,000 d (Options)
Conversion Speed:	10, 20 or 40 samples (Options)
Sensitivity:	0.5μV/Vsi
Full Scale Range:	4.5mV/V
Linearity:	0.01 % of full scale
Excitation:	+5VDC with sense (4/6 wires)
Number of Cells:	Up to 8, 350 ohm load cells
Count By:	x1, x2, x5, x10, x20, x50
Decimal Point:	between any digits of the weight display
Calibration Methods:	dead load and span, store in EEPROM
Operating Temp:	-10°C to +40°C [14°F to 104°F]
Storage Temp:	-10°C to +70°C [-4°F to 158°F]
Relative Humidity:	40-90% RH, non-condensing
Display:	6 digit, 7-segment, LED, 0.8"
Status Enunciators:	ON/OFF, Hold, Func, SUM, kg/lb,Tare, Zero
Keyboard:	7 key touch switch
Voltage:	110 or 220VAC adapter
Power:	5W
Serial Communiction:	RS232 (USB-B)
Baud Rate:	1200 - 19, 200 baud, full duplex

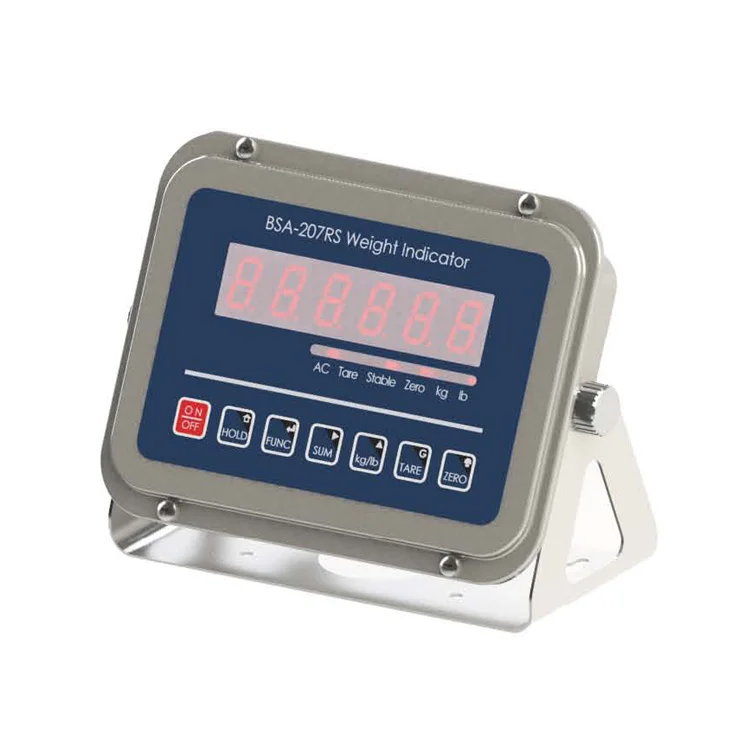

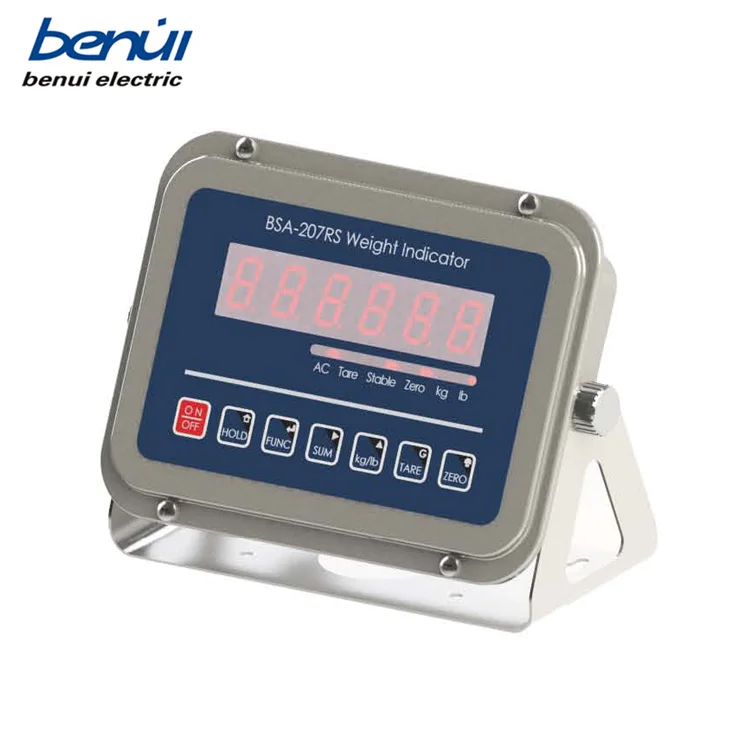

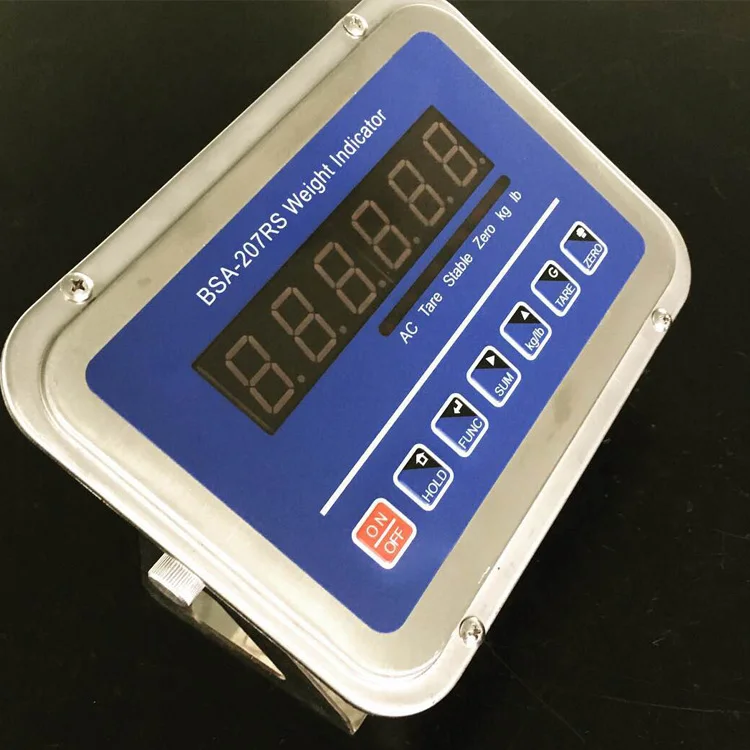

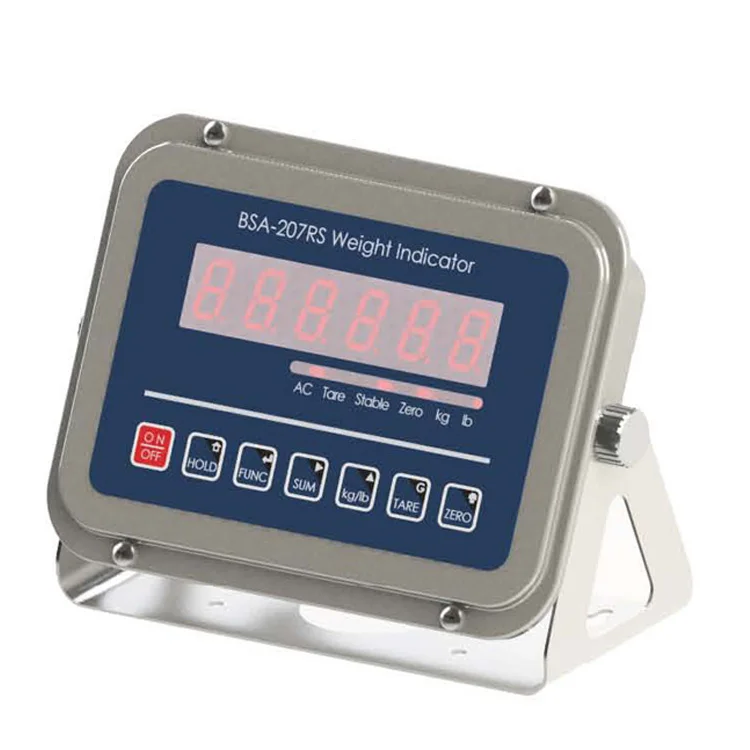

Weight indicator BSA207 widely used in platform scale, floor scale and alike static weighing system.

Economical general-purpose weighing indicator

Stainless steel house

weight, count, volume and Alarm working mode

6 digit 0.8"" LED display

USB weighing string or RS232 interface

4 level digital filtering

High-speed 24 bit AD

100,000D

Adjustable VESA bracket

Large capacity lithium battery built-in

Company Profile

NingBo Majia company which focus on designing, producing and selling load cells and auto control system. We Majia have the plant cover 12,000 square meters, equipped with state of art devices for production, testing & calibration. Its working condition is very nice and R&D ability is strong, we Majia with the annual producing capacity more than 500,000 pieces or sets of load cells, and more than 55% are sold abroad.
We Majia has already passed the approval of ISO9001, OIML R60 C3, CE and Anti-explosion, and obtained many patents and certificates on weighing field. Meantime we Majia established the management system like OA and ERP, sales net almost covered all of China and most of major countries in the world.

We Majia is not only producing but also focus on supplying for technical solution and superior service. We Majia steps forward through improve existed old items, develop new products and focus on superior advance products into Modular, digital, intelligent. Especially, we successfully develop first weighing system or load cells connected to mobile phone with functions like remote wireless control, management and updates etc. We strong believe this kind of system and load cells will be become the most popular new generation intelligent product with the development of the mobile phones and applying of 5G service in the near future.

Every features of Majia is the point why you chose our products & service！
