Product Overviews

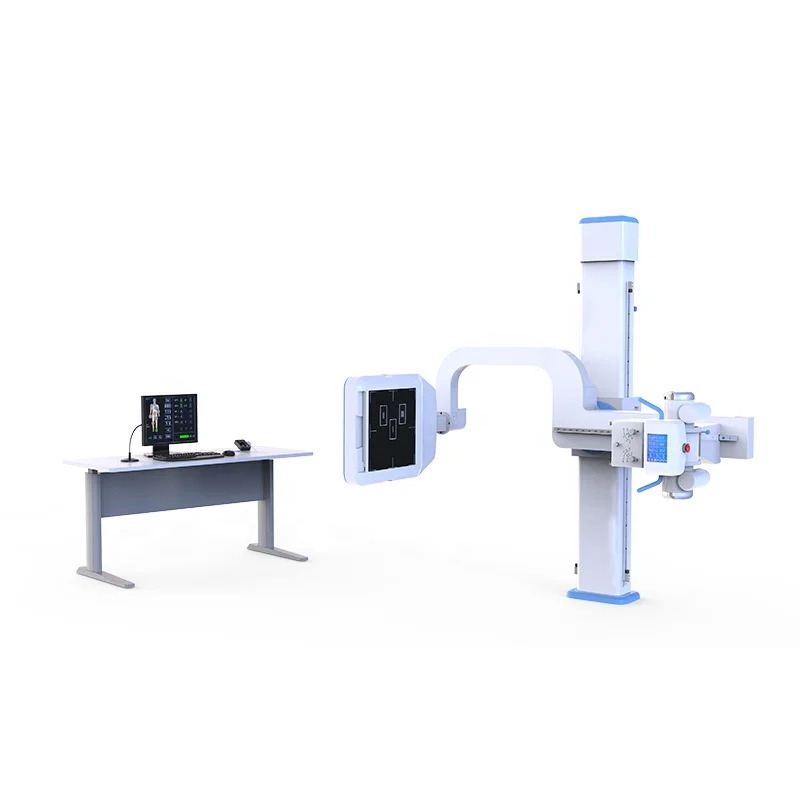

Medical Digital Radiography X-ray Machine U Arm X-ray Machine
1. High frequency and high voltage mainframe greatly reduce the radiation dose of patients, and make work images, film and screen or screen images more perfect. At the same time, it provides a guarantee and foundation for high kilovolt and short time photography of silicosis.
2. The maximum output power 50KW, fully meet the high-power, Gao Qianfu photography and short time fast photography, the time of photography is accurate, the shortest 2ms exposure time, you can take every minute of your peristalsis as you like, and show you a clear picture.
3. Real-time monitoring KV, mA, S, let the exposure process and each exposure are in your settings.
4. Time and MS second conversion display, in any time files can be converted to a second.
5. With program linkage, protection and self diagnosis function, it can quickly and accurately judge the fault status, protect and display the fault status in time, and maximize the use and maintenance.
6. Gao Qianfu photography, the pelvis and lumbar side easily completed.
7. Full microcomputer control, using program photography technology and various anatomical photography procedures, enable you to easily complete every photo, and can edit, modify and store at any time as needed.
Real Images In Factory:
Technical parameters:
| Power requirements of the machine room | Voltage conditions: three phase 380V±10%; Power frequency: 50Hz±1Hz; Power resistance: ≤0.25Ω; The power supply capacity: ≥50kVA. |
High frequency and high pressure generator | High frequency and high voltage generator: maximum power 50kW, maximum voltage 150kV; Invert frequency: 30kHz; Photography kV: 40 to 150kV, step 1 kV; Photography mA: 20 ~ 630mA, 16 gear adjustable; Exposure time s: 0.002 to 10s, 34 gear adjustable; Auto exposure: Yes; Fault self diagnosis function: Yes; Anti overload function: Yes. |
X ray tube assembly | Maximum working voltage: 150kV Maximum anode thermal capacity: 150kHU Focus nominal value: small focal 0.6cm, big coke 1.2cm Maximum instantaneous power: small focal 20kW, large coke 50kW Anode speed: 2800r/min |

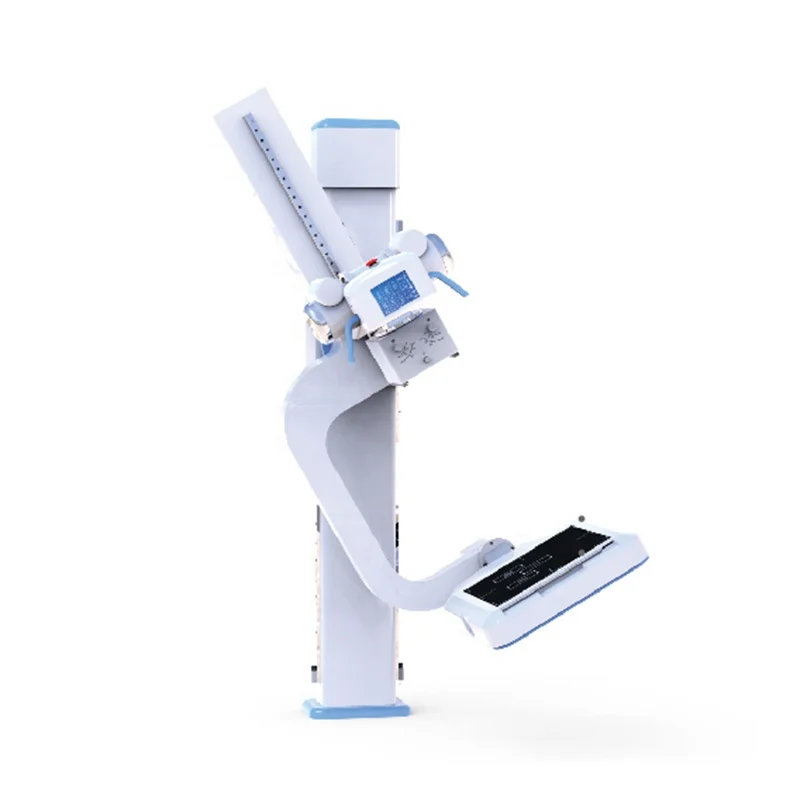

| Multifunction U arm frame | The rotation angle of the U arm: -30° to +120°; Vertical movement of U arm: 60cm to 1700cm SID: 100cm ~ 180cm Detector rotation: -45°to +45° X ray tube ball rotation: -180° to +180°, 90°section, mechanical limit |
Flat panel detector | Type of detector: amorphous silicon flat panel detector Image size: 17 x 17 Pixel matrix: 3027 * 3027 Pixel size: 139 mu m Spatial resolution: 3.6lp/mm A/D Transformation: 14-bit Image acquisition time: less than 3s Image processing time: 5~8 s |
Image acquisition workstation | CPU frequency: Intel Core Duo 2.6G Host memory: 2G high speed memory Hard disk: large capacity and high speed hard disk 500G Display: 17 inch liquid crystal display Network interface: 1000M Interface protocol: DICOM3.0 CD-ROM: DVD-RW recording system |
The Standard Accessories For DR X-ray Machine:
High frequency and high voltage generator | 1 set |
Beam limiter | 1 set |
X ray tube components | 1pc |
Amorphous silicon plate detectors | 1pc |
Detector control box | 1pc |
Image acquisition workstation and liquid crystal displays | 1 set |
High voltage cable | 2pcs |
| All azimuth U arm support system | 1 set |

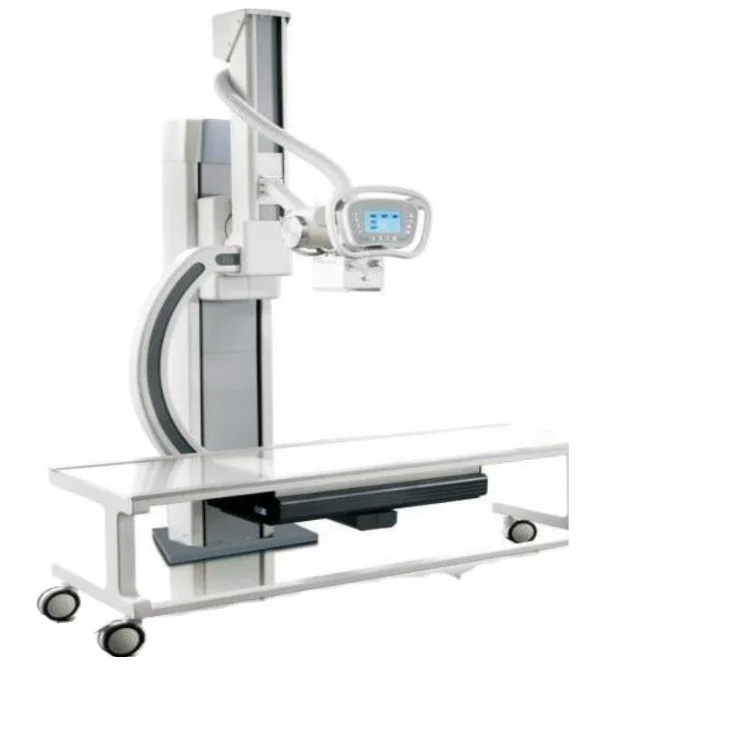

| Moving flat bed | 1set |
| Intercom system | 1 set |
After-Sales Service
Usually The warranty is 1-2years due to different products, and We support lifetime maintaining.
A. Offer door to door service;
B. We send you free parts by courier and technical guidance by video/call;
C. We support you free training .
