Hanyoung цифровой регулятор температуры DX9-KCWNR
US $80.00-$85.00
PV метр RS485 Modbus электрического счетчика 3 фазовый измеритель энергии
- Категория: Electrical Instruments >>>
- Поставщик: Shanghai,Ivy-Metering,Electronic,Technology,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.1 $* | 0.34 $* |
| Aug-16-2025 | 0.76 $* | 0.44 $* |
| Jul-16-2025 | 0.41 $* | 0.84 $* |
| Jun-16-2025 | 0.27 $* | 0.47 $* |
| May-16-2025 | 0.17 $* | 0.48 $* |
| Apr-16-2025 | 0.65 $* | 0.71 $* |
| Mar-16-2025 | 0.9 $* | 0.29 $* |
| Feb-16-2025 | 0.89 $* | 0.38 $* |
| Jan-16-2025 | 0.18 $* | 0.42 $* |
Характеристики
Technical Parameters
-Measurement Range: 5(80)A 3*230/400V
-Communication: RS485 & IR
-3 modes for Measuring and Displaying
-Four Tariff, Friendly Hours
-MID Approved
-Communication: RS485 & IR
-3 modes for Measuring and Displaying
-Four Tariff, Friendly Hours
-MID Approved
Specification | Type | 3 Phases 4 Wires Din Rail Meter |
Reference Voltage | 3×230/400V | |
Current | 0.25-5(30)A, 5(32)A,5(40)A,5(45)A, 5(50)A, 5(80)A | |
Accuracy Class | Class B | |
Standard | EN50470-1/3. | |
Frequency | 50Hz | |
Impulse Constant | 1000imp/kWh,1000imp/kvarh | |
Specification | Display | LCD6+2 |
Power Consumption | ≤ 2W,<10VA | |
Starting Current | 0.004Ib | |
Temp. Range | -20～+70℃ | |
Average Humidity | 85% | |
Relative Humidity | 90% | |
Communication | IR & RS485 Communication(Modbus protocol, RTU method) |

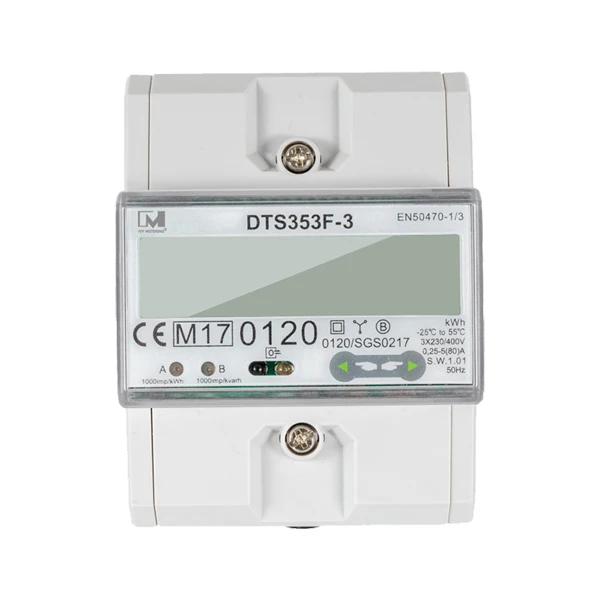

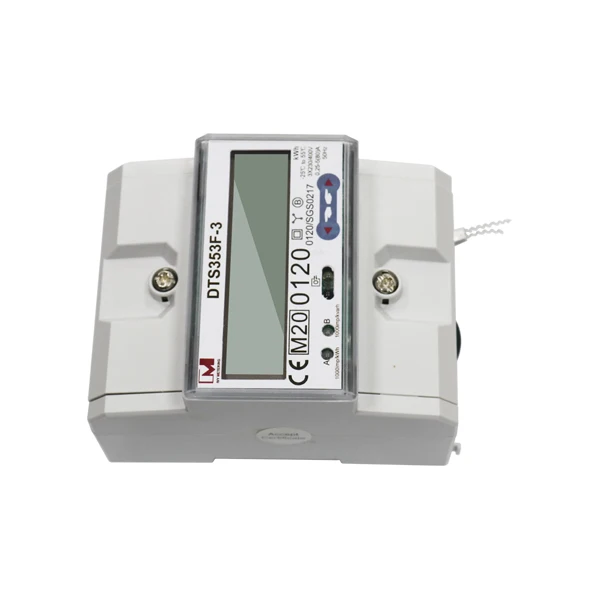

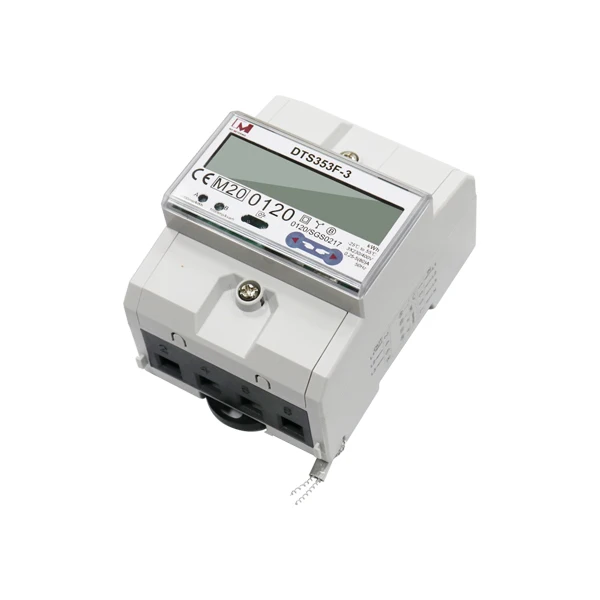

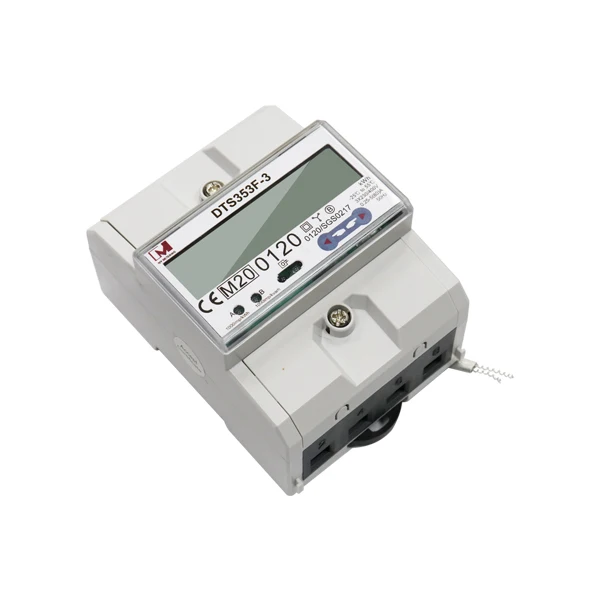

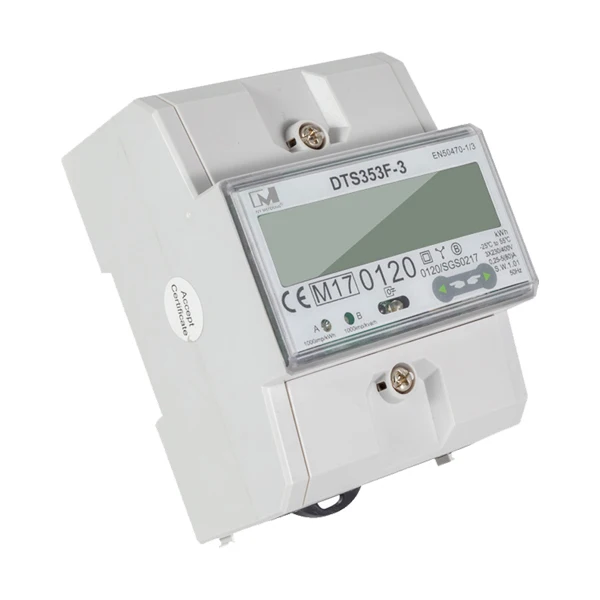

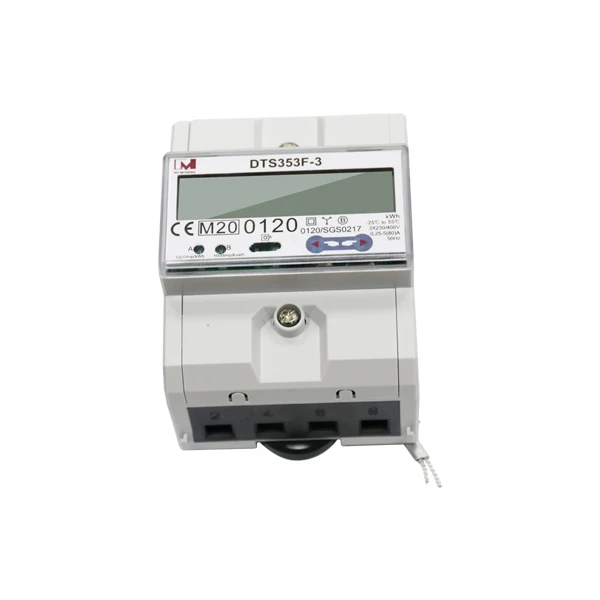

EM519024 is a three phase four wires din-rail meter in the series of MID meter. It has 4 optional tariff and allow users to set friendly hours. It has Infrared and RS485 communication that complies with EN50470-1/3 and Modbus protocol. This meter also supports max demand and tamper detection.
Cautions:
1.About AC/DC Energy Meter
(1) AC or DC- Generally speaking alternating current or direct current shall be the first factor.
(2) We also have DC meter when you need to measure the Direct Current.
2.About Function
(1) As the content is limited, all functions mentioned above are the main functions
(2) Other functions such as TOU, load control, friendly hours,RTC, plz refer to the technical specification or
(1) AC or DC- Generally speaking alternating current or direct current shall be the first factor.
(2) We also have DC meter when you need to measure the Direct Current.
2.About Function
(1) As the content is limited, all functions mentioned above are the main functions
(2) Other functions such as TOU, load control, friendly hours,RTC, plz refer to the technical specification or
contact with our sales team.
3.About Application
(1) The applications only for examples, for the pratical situation the energy meter can also be used for
3.About Application
(1) The applications only for examples, for the pratical situation the energy meter can also be used for
other applications.
(2) Welcome to inquiry if you are not sure about the functions or application, we have free technical support
(2) Welcome to inquiry if you are not sure about the functions or application, we have free technical support
