Контактный датчик нагрузки и ввинченном болте силы
- Категория: Sensors >>>
- Поставщик: Changzhou,Right,Measurement,And,Control,System,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 179.99 $* | 188.86 $* |
| Aug-16-2025 | 177.21 $* | 186.0 $* |
| Jul-16-2025 | 149.25 $* | 156.71 $* |
| Jun-16-2025 | 174.53 $* | 183.34 $* |
| May-16-2025 | 152.63 $* | 160.24 $* |
| Apr-16-2025 | 171.25 $* | 180.13 $* |
| Mar-16-2025 | 170.79 $* | 179.14 $* |
| Feb-16-2025 | 168.90 $* | 176.15 $* |
| Jan-16-2025 | 167.5 $* | 175.14 $* |
Характеристики
\t\t\t\t\t\t\t\t\tProduct Description \t\t\t\t\t\t\t
Introduction

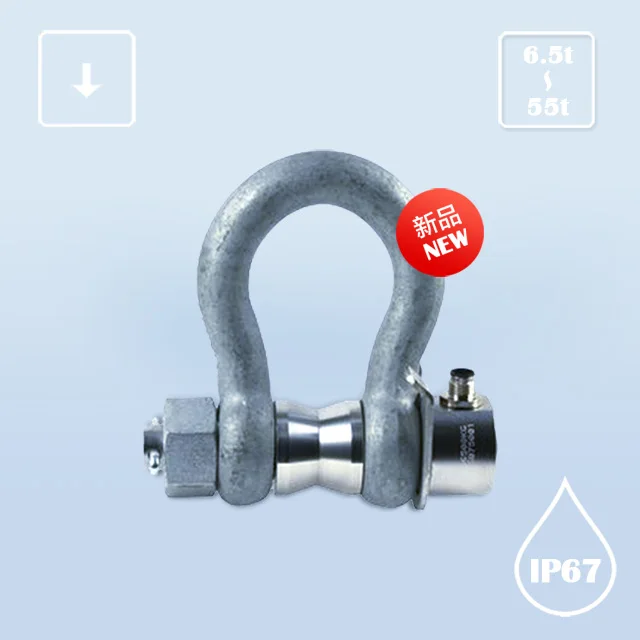

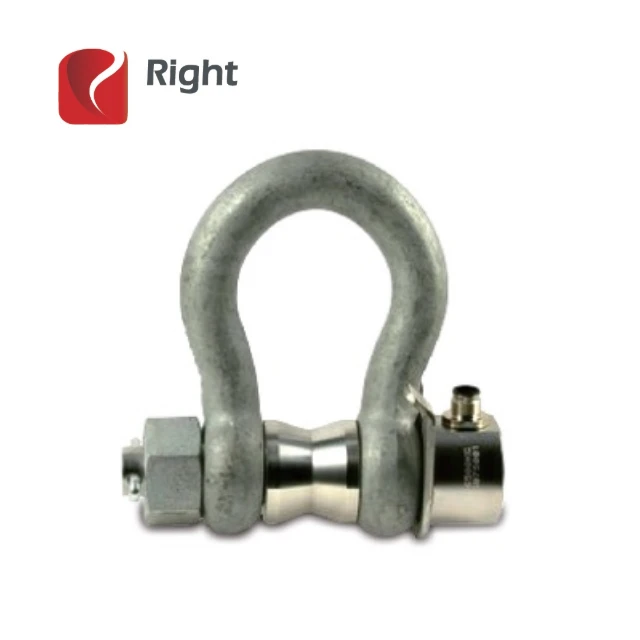

T905 pin sensor which used together with shackle.
stainless steel or alloy steel material, small size and easy operation and installation.
More convenience.
Features
1. Low profile and stainless steel or alloy steel choice.
2. High weighing capacity ranges from 6.5-55t.
3. Suitable for together with shackle.
Specification
- Parameter -
Specifications | ||
Capacity | 6.5,12,25,55 t | |
Rated output | 1.2~1.5mV/V | |
Zero balance | ±0.03mV/V | |
Non-linearity | 0.5%F.S. | |
Hysteresis | 0.2%F.S. | |
Repeatability | 0.1%F.S. | |
Creep(30min) | 0.1%F.S. | |
Temp.effect on output | 0.05%F.S./10℃ | |
Temp.effect on zero | 0.05%F.S./10℃ | |
Input impedance | 780±20Ω | |
Output impedance | 700±10Ω | |
Insulation | ≥5000MΩ/100VDC | |
Recommended excitation | 5~15V | |
Maximum excitation | 20V | |
Compensated temp range | -10~60℃ | |
Operation temp range | -20~80℃ | |
Safe overload | 150%F.S. | |
Ultimate overload | 200%F.S. | |
Cable size | φ4×4000mm | |
Material | stainless or alloy steel | |
Weight approx. | 0.3kg | |
- Mounting Dimension -
- Load Direction -
- Wiring Code -
