Product Description

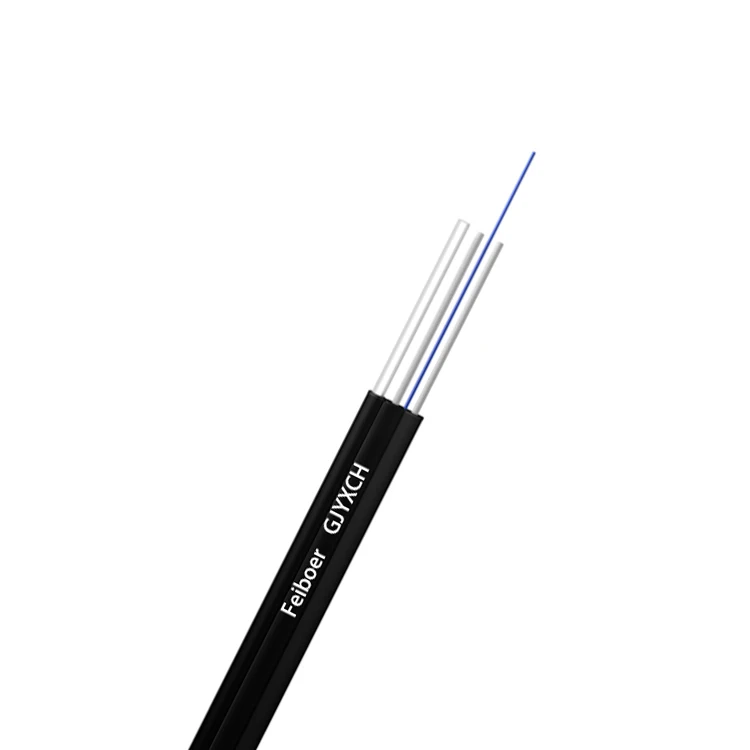

Self - supporting access network with butterfly - shaped indoor outdoor drop fiber optical cable

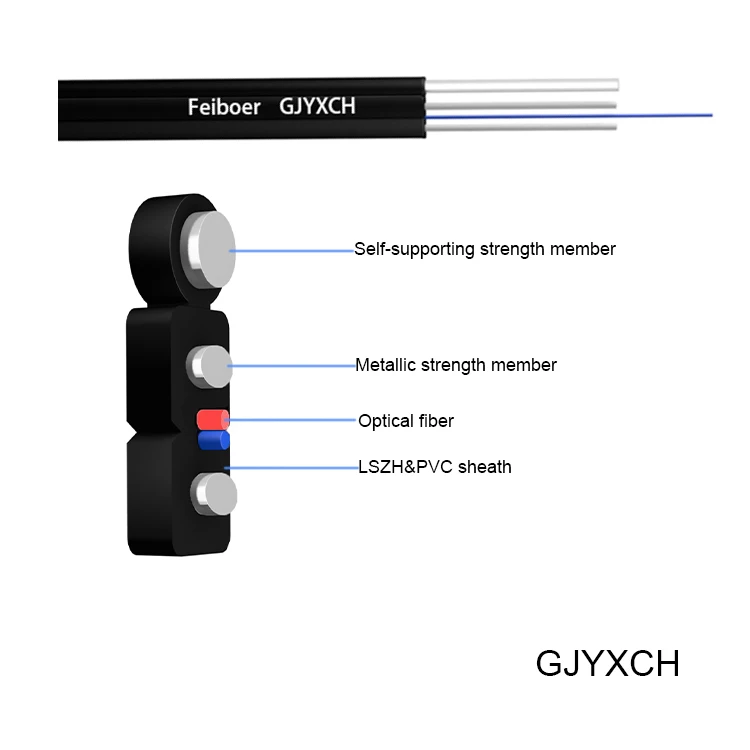

Self-supporting access network uses the indoor outdoor optical cable with a butterfly shape that is to place the optical communication unit in the center, two parallel metallic strength member are placed on both sides , and added single metallic strength member on the outside.Finally it is completed with a black or colored Lsoh Low Smoke Zero Halogen(LSZH) out sheath.
Product Characteristics
• Flex durable fiber to provide greater bandwidth and enhance network transmission characteristics
• Two parallel metallic strength member to protect the fiber and provide adequate tension and pressure
• single metallic strength member makes optical cable having good tensile performance
• Optical cable has simple structure, light weight and strong practicability
• unique groove design, Easy peeled off and splice, simplify the installation and maintenance
• Low smoke halogen-free flame-retardant sheath, pro-environment
Application
• Indoor wiring system
• FTTH, terminal system
• Indoor shaft,building wiring
Structural Parameter
|
Model No. |
Count |
Cable Size (mm) |
Weight (kg/km) |
Tension |
Crush (N/100mm) |
Bending Radius Static / dynamic |
|
GJYXCH-1Xn |
1 |
(2.0±0.1)×(5.0±0.1) |
20 |
300/600 |
1000/2200 |
15/30 |
|
GJYXCH-2Xn |
2 |
(2.0±0.1)×(5.0±0.1) |
20 |
300/600 |
1000/2200 |
15/30 |
|
GJYXCJH-1Xn |
1 |
(2.0±0.1)×(5.6±0.1) |
21 |
300/600 |
1000/2200 |
15/30 |
|
GJYXCDH -4Xn |
4 |
(2.0±0.2)×(6.0±0.2) |
22 |
300/600 |
1000/2200 |
15/30 |
Optical Fibre Performance
|
Type |
Fiber attenuation(+20℃) |
OFL |
Band Width |
10G Ethernet link length |
Minimum bending radius |
|||
|
Condition |
1310/1550nm |
850/1300nm |
850/1300nm |
850nm |
850nm |
/ |
||
|
Typical value |
MAX |
Typical value |
MAX |
|||||
|
Unit |
dB/km |
dB/km |
dB/km |
dB/km |
MHZ.km |
MHZ.km |
m |
mm |
|
G657A1 |
0.36/0.22 |
0.5/0.4 |
--- |
--- |
--- |
--- |
--- |
10 |
|
G657A2 |
0.36/0.22 |
0.5/0.4 |
--- |
--- |
--- |
--- |
--- |
7.5 |
|
OM3 |
--- |
--- |
3.0/1.0 |
3.5/1.5 |
≥1500/500 |
≥2000 |
≤300 |
30 |
|
OM4 |
--- |
--- |
3.0/1.0 |
3.5/1.5 |
≥3500/500 |
≥4700 |
≤550 |
30 |
Transportation / storage / use temperature: -20 ℃ ~ + 60 ℃
