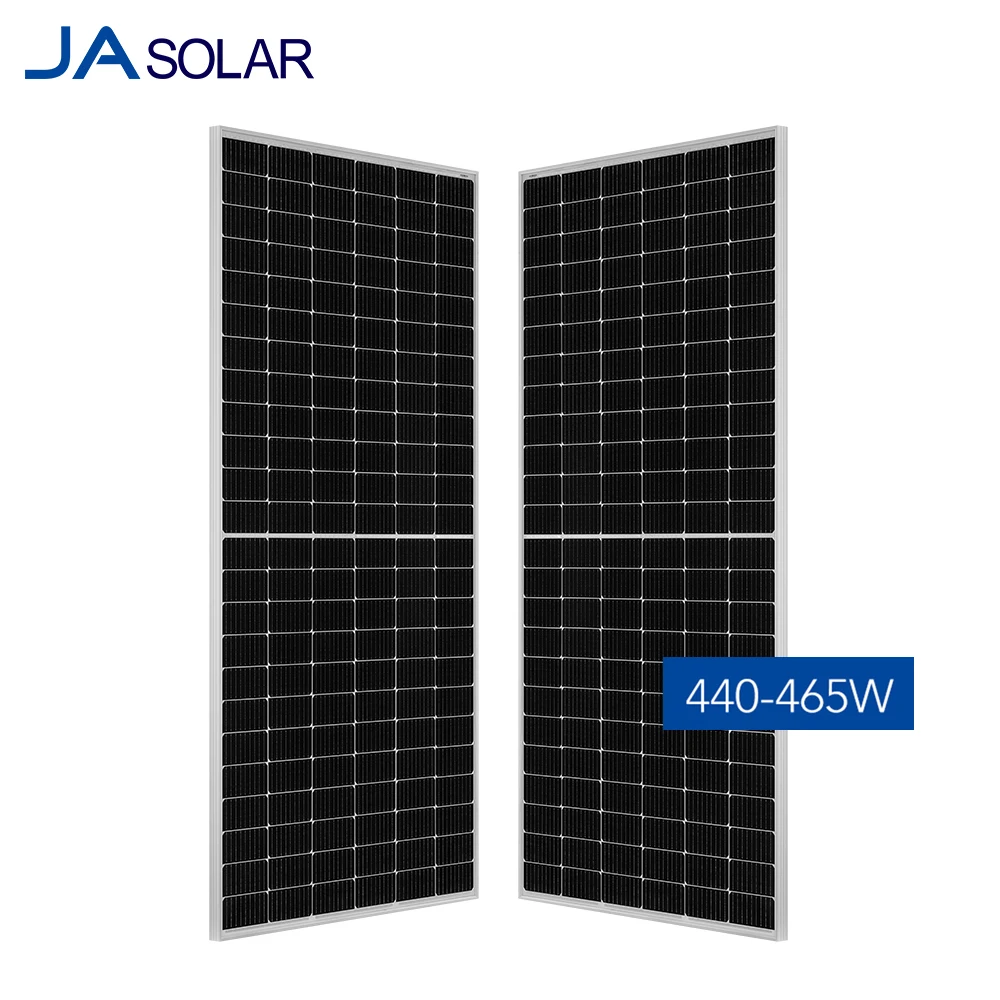

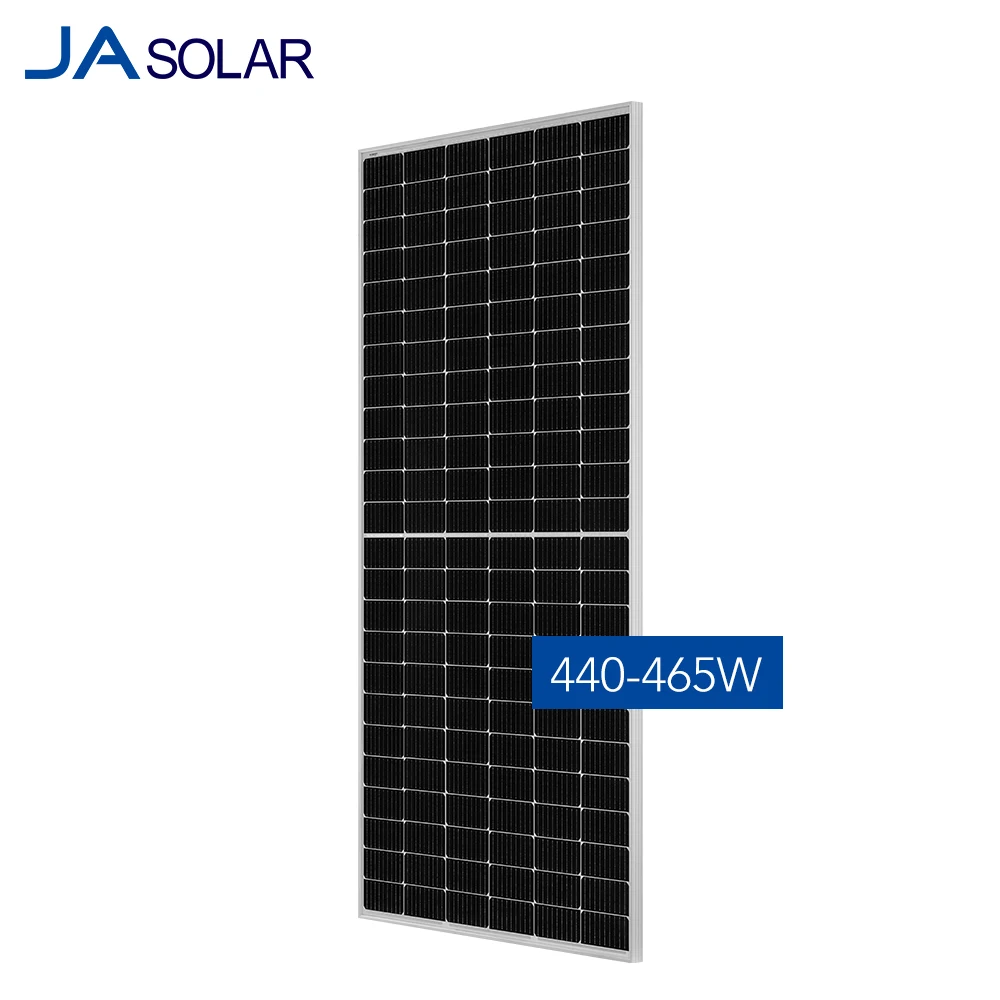

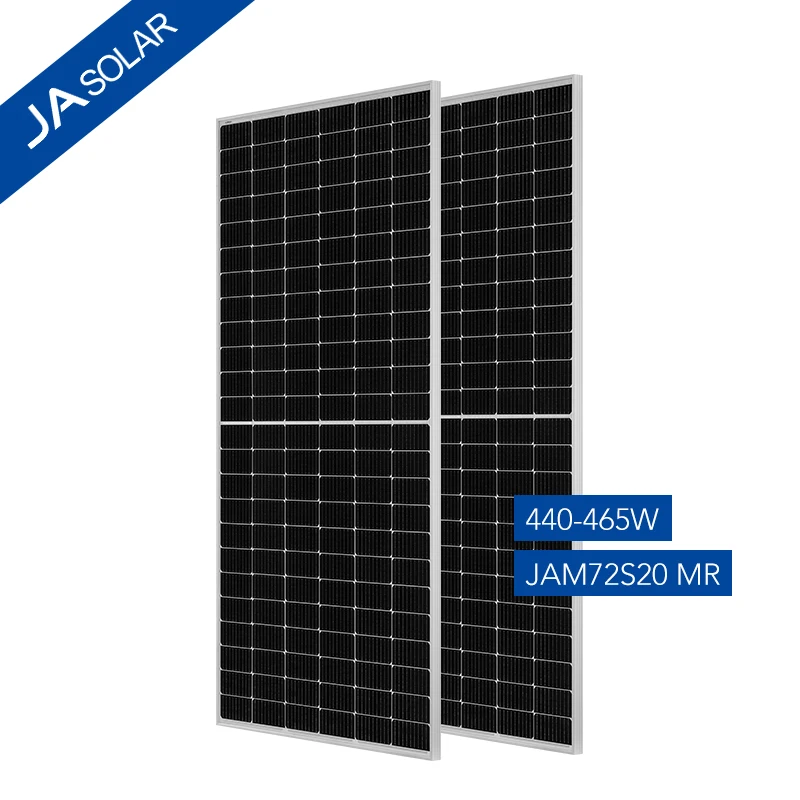

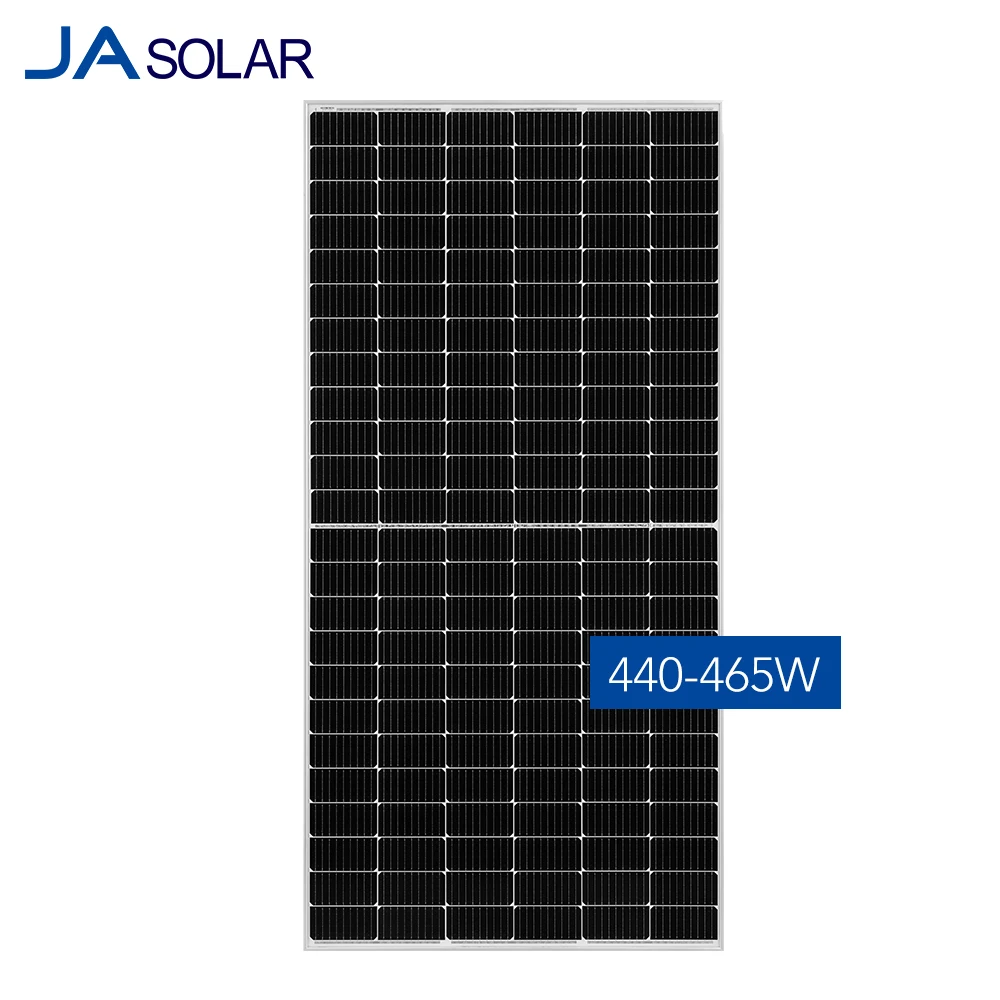

Монокристаллическая солнечная панель JA solar PERC 500 Вт 465 144 ячеек полуобрезанные новые
- Категория: Солнечные панели >>>
- Поставщик: BLUESUN,Outdoor,Energy,CO.,LTD
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.97 $* | 0.6 $* |
| Aug-16-2025 | 0.75 $* | 0.40 $* |
| Jul-16-2025 | 0.45 $* | 0.23 $* |
| Jun-16-2025 | 0.69 $* | 0.82 $* |
| May-16-2025 | 0.70 $* | 0.94 $* |
| Apr-16-2025 | 0.71 $* | 0.58 $* |
| Mar-16-2025 | 0.27 $* | 0.42 $* |
| Feb-16-2025 | 0.49 $* | 0.78 $* |
| Jan-16-2025 | 0.39 $* | 0.78 $* |
Характеристики
Why Buy JA Via Bluesun
Products Description
ELECTRICAL PARAMETERS | ||||||||||||
TYPE | JAM72S20 -455/MR | JAM72S20 -460/MR | JAM72S20 -465/MR | |||||||||
Testing Condition | STC | NOCT | STC | NOCT | STC | NOCT | ||||||
Rated Maximum Power(Pmax) [W] | 455 | 344 | 460 | 348 | 465 | 352 | ||||||
Open Circuit Voltage(Voc) [V] | 49.85 | 47.15 | 50.01 | 47.38 | 50.15 | 47.61 | ||||||
Maximum Power Voltage(Vmp) [V] | 41.82 | 39.44 | 42.13 | 39.68 | 42.43 | 39.90 | ||||||
Short Circuit Current(lsc) [A] | 11.41 | 9.29 | 11.45 | 9.33 | 11.49 | 9.38 | ||||||
Maximum Power Current(lmp) [A] | 10.88 | 8.72 | 10.92 | 8.76 | 10.96 | 8.81 | ||||||
Module Efficiency [%] | 20.4 | 20.6 | 20.8 | |||||||||
Power Tolerance | 0~+5W | |||||||||||
Temperature Coefficient of Isc(α-jsc) | +0.044%/°C | |||||||||||
Temperature Coefficient of Voc(β_Voc) | -0.272%/°C | |||||||||||
Temperature Coefficient of Pmax(γ_Pmp) | -0.350%/°C | |||||||||||
STC | Irradiance 1000W/m², cell temperature 25°C, AM1.5G | |||||||||||
NOCT | Irradiance 800W/m², ambient temperature 20°C, wind speed 1m/s, AM1.5G | |||||||||||
Remark: Electrical data in this catalog do not refer to a single module and they are not part of the offer.They only serve for comparison among different module types. | ||||||||||||
Our JA Solar Team
Packing
Model | JAM60D10/JAM60D20 | JAM72D10/JAM72D20 | JAM60S10/JAM60S20 | JAM72S10/JAM72S20 |
Pcs/Pallet | 30 | 30 | 30 | 30 |
Pcs/20'GP | 180 | 150 | 180 | 150 |
Pcs/40'HQ | 720 | 600 | 720 | 660 |
Payment
Payment Term | T/T | EXW | |||
FOB | |||||
CFR(C&F) | |||||
CIF | |||||
L/C | L/C amount above 50,000 usd, we can accept L/C at sight | ||||
Paypal | Amount lower than 5000usd | ||||
West Union | |||||
Delivery Time | 7~10days after receiving payment for one container | ||||
We welcome use Trade Assurance, you'll enjoy:
100% product quality protection
100% on-time shipment protection
100% payment protection for your covered amount
