Тяговая батарея 80 в 400 Ач промышленный Электрический вилочный погрузчик батарейный блок LFP
- Категория: Batteries >>>
- Поставщик: Shenzhen,Yichen,S-Power,Tech,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 7280.74 $* | 7644.93 $* |
| Aug-17-2025 | 7219.12 $* | 7580.31 $* |
| Jul-17-2025 | 6057.4 $* | 6360.47 $* |
| Jun-17-2025 | 7097.85 $* | 7452.97 $* |
| May-17-2025 | 6179.68 $* | 6488.87 $* |
| Apr-17-2025 | 6975.61 $* | 7324.39 $* |
| Mar-17-2025 | 6913.37 $* | 7259.88 $* |
| Feb-17-2025 | 6852.13 $* | 7195.67 $* |
| Jan-17-2025 | 6791.92 $* | 7131.53 $* |
Характеристики
Product Description

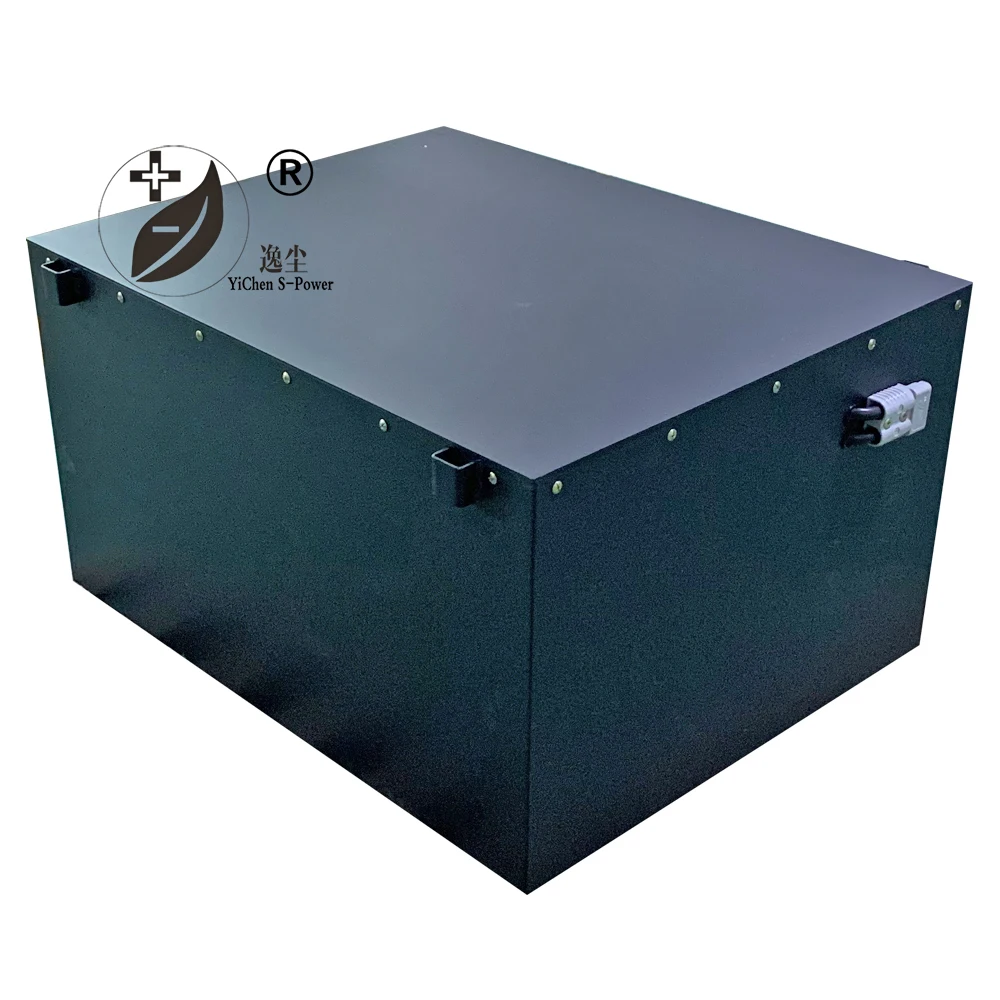

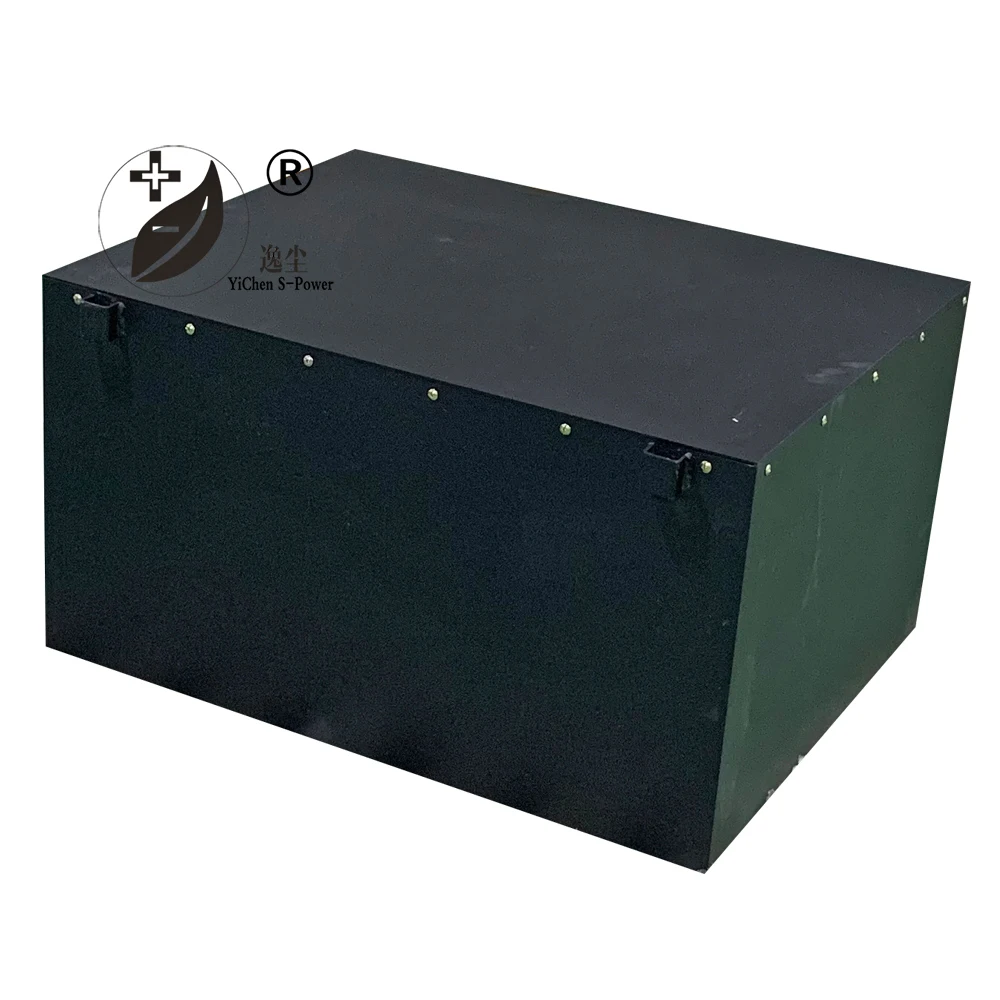

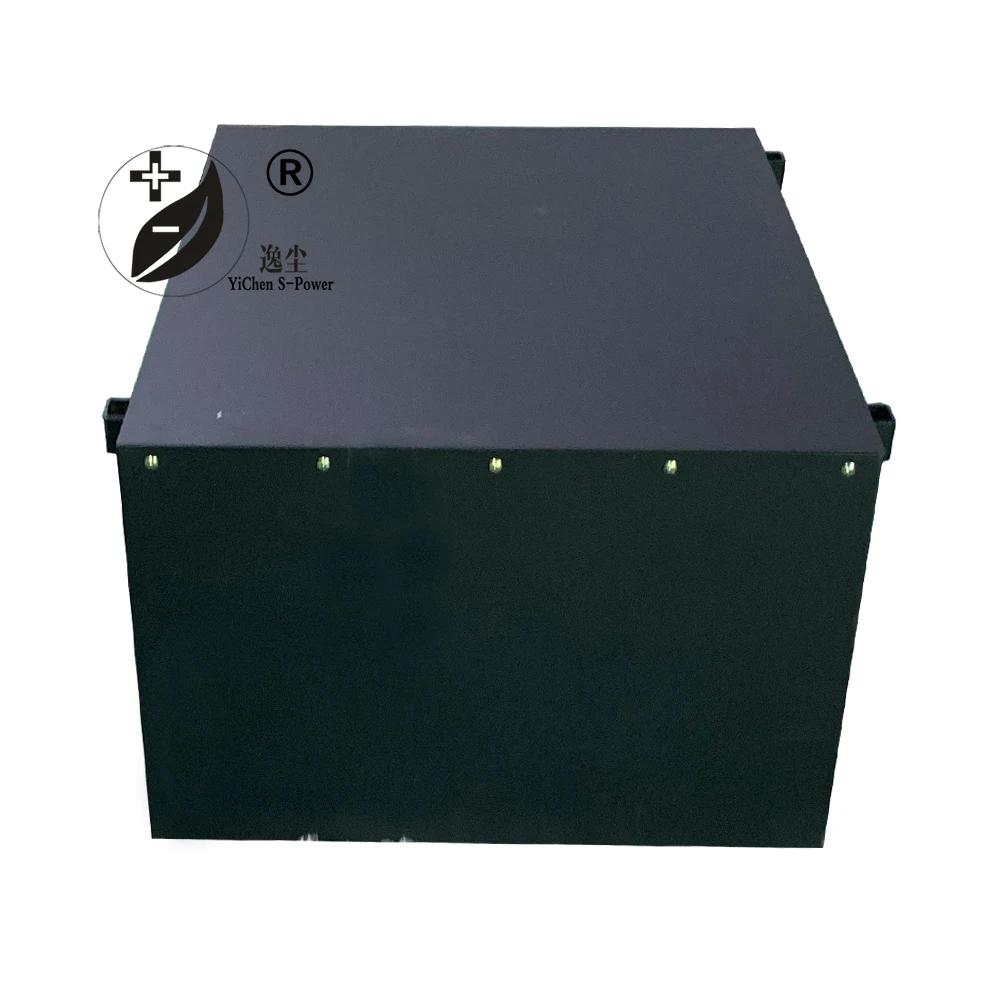

Traction battery 80v 400Ah Industrial Electric Forklift Battery Pack LFP support customization
80 volt forklift lithium battery with capacity of 400Ah,it's assembled by lithium Iron Phosphate battery cells,continuous working current can reach up to 200Amps.The LiFePO4 batteries' lifespan is over 3000times, has much longer cycle life than traditional SAL/Gel/AGM batteries.Built-in BMS,can customize CANBUS/Bluetooth and other functions, can monitor the working status of each battery cell by online PC.Also support LCD design to see the battery's parameters(like voltage,current,temperature,high-voltage,SOC,etc.).
We're the direct factory, can design and customize different kinds of electric forklift batteries for your project.
If you need other 24V/48V...,please leave message or contact us directly~
BATTERY PARAMETER
Nominal Voltage: 80V (Any voltage can be customized)
Nominal Capacity: 400Ah (Any capacity can be customized)
Discharge Cut-Off voltage: 62.5V±0.2
Charge Cut-Off voltage: 90V
Standard Charge Current: 120A (customizable)
Nominal Capacity: 400Ah (Any capacity can be customized)
Discharge Cut-Off voltage: 62.5V±0.2
Charge Cut-Off voltage: 90V
Standard Charge Current: 120A (customizable)
Max Charge Current: 200A (customizable)
Max Cont. Discharge: 200A (customizable)
Impedance: ≤25mΩ
Charge Temperature: 0℃ - 45℃
Discharge Temperature: -20℃ - 55℃
Charge Method: CC/CV
Cycle life: 3000 times 80% DOD, Max. 100% DOD
BMS: With BMS
Dimension: 900*600*500mm (Flexible,Any dimension can be customized)
Weight: 360KG
Max Cont. Discharge: 200A (customizable)
Impedance: ≤25mΩ
Charge Temperature: 0℃ - 45℃
Discharge Temperature: -20℃ - 55℃
Charge Method: CC/CV
Cycle life: 3000 times 80% DOD, Max. 100% DOD
BMS: With BMS
Dimension: 900*600*500mm (Flexible,Any dimension can be customized)
Weight: 360KG
Specification
Electrical Characteristics | Nominal Voltage | 80V |
Nominal capacity | 400Ah | |
Energy | 32KWh | |
Internal Resistance | ≤ 25mΩ | |
Cycle life | ≥3000 cycles @1C 80%DOD | |
Months Self Discharge | <3% | |
Efficiency of Charge | 100% @0.5C | |
Efficiency of Discharge | 96~99% @1C | |
Standard Charge | Charge Cut-off Voltage | 90±0.2V |
Charge Mode | 0.2C to 90V, then 90V,charge current to 0.02C (CC/CV) | |
Standard Charge Current | 120A | |
Max. Charge Current | 200A | |
Charge Cut-off Current | 5A | |
Standard Discharge | Standard discharge Current | 100A±10A |
Max. Continuous discharge Current | 200A±10A | |
Discharge Cut-off Voltage | 62.5±0.2V | |
Environmental | Charge Temperature | 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity |
Discharge Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity | |
Storage Temperature | 0℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity | |

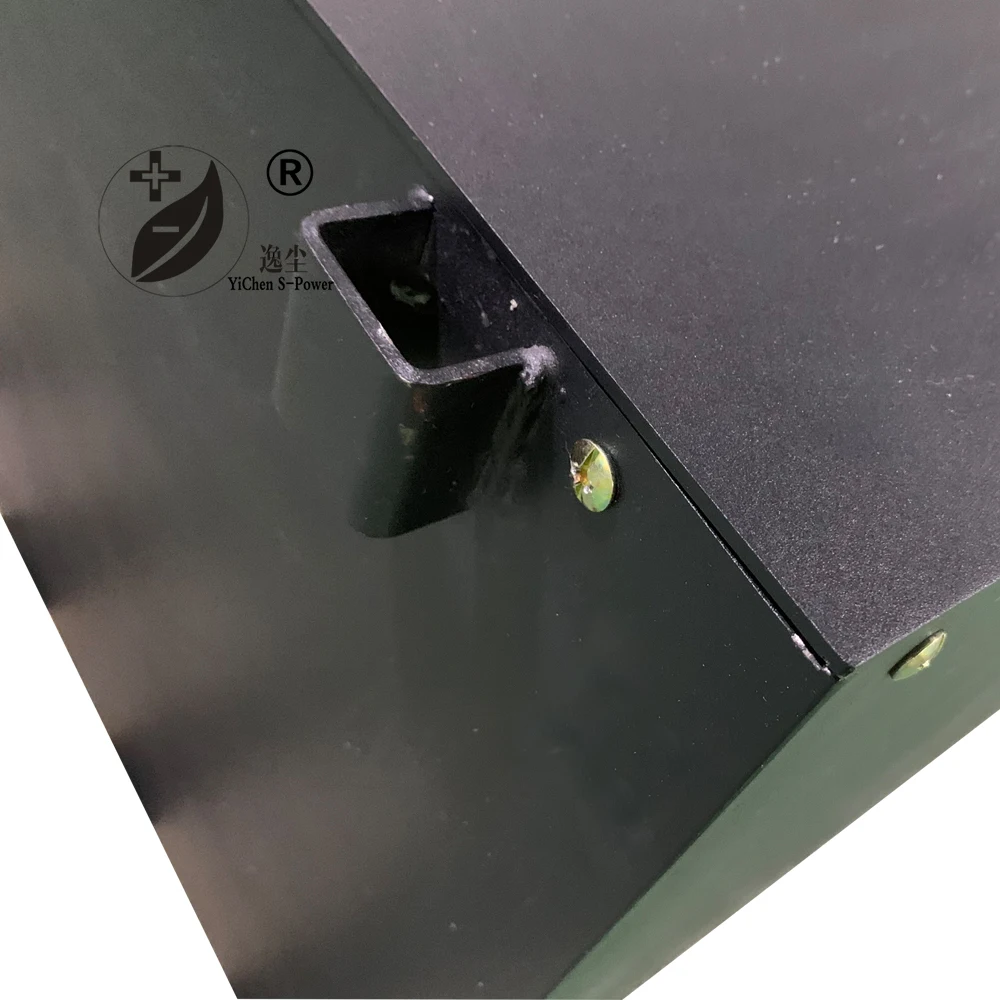

Housing Case | Cold-roll steel sheets | |
Dimensions (mm) | 900*600*500, can be customized | |
Weight | Approx 360kg | |

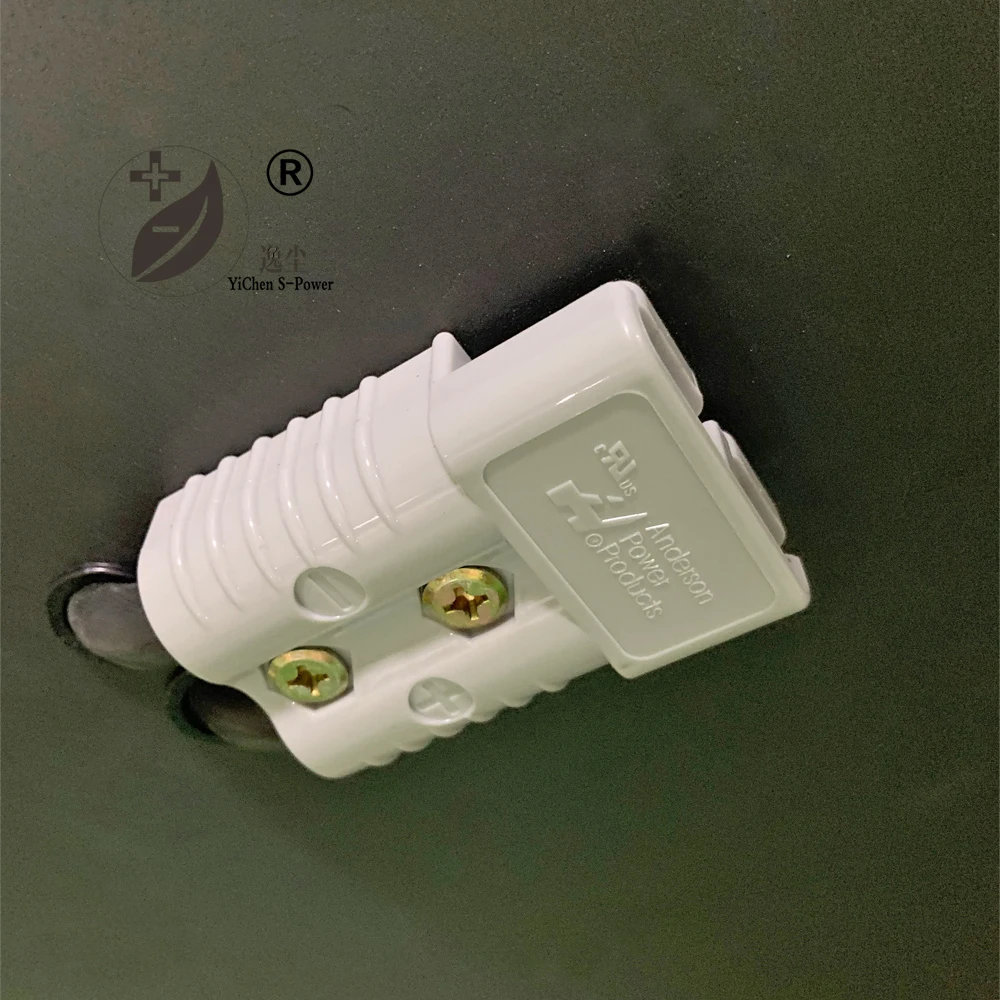

Terminal | Special plug | |
Color | Blue Gray,as pic |
Application
Specialized for Electric forklifts.
Customization Service
Which parts are customizable? | ||
Battery pack's Capacity | customizable | |
Battery pack's size | customizable | |
Logo & Package | customizable | |
Battery pack's voltage | customizable | |
Connect wire | Costomizable | |
WHO WE ARE?
We're a direct factory of batteries!
Our company name: Shenzhen Yichen S-Power Tech Co., Ltd.
We founded in 2015, is a comprehen-sive battery manufacturer with the com-bination of R&D, manufacturing, market-ing and service.
The founder has more than 12years experience with Lithium battery. We foc-us on design and development of High Voltage, Large Capacity Long cycle life LiFePO4 battery, LTO Battery and system ,offer global technical support.
WHAT WE CAN DO?
Yichen S-Power equipped with advanced production and testing facilities, to supply valuable and high quality products. Currently, we can support CANBUS/Bluetooth App/Rs485/Rs232/ solution, and developed battery self-heating and Self-cooling(Water cooling).Solve the High Temperatrue and Low Temperatrue environment battery problem.To have Longer Cycle life and More Power.These products are used on Solar, Home storage battery,UPS,AGV, RVcar, Telecom Base Station, Golf Trolley Cart,Fishing Boat, Car Start-Stop system battery.
LiFePO4 Car Start Batteries
We have 12V /24V 20Ah/40Ah/50Ah/ 60Ah/70Ah/80Ah/90Ah/100Ah/120Ah types in existence.
Also support customization.
LiFePO4 replacement of SLA
Normal 12V/24V 100Ah/120Ah/250Ah in existence.
Support customization to replace traditional SLA/Gel/AGM batteries in Solar ESS, RV, Marine and other ESS applications.
RV Caravan Batteries
Metal Steel housing/ABS case optional.
Normal 12V~48V 100Ah~400Ah.
Offer OEM/ODEM service.
Golf cart Batteries
Adopting EV class LiFePO4 cell.
12V/36V/48V
Support OEM/ODEM.
Forklift Battery Packs
Normal 48V/80V 100Ah~400Ah in existence.
Support Design & Customization according to requirement.
DC Emergency Battery
220V/110V DC Mobile Emergency Battery for Electric Power overhaul.
20Ah/30Ah/40Ah
Powerwall Solar Home ESS Battery
Normal 5KWh, 7.5KWh,10KWh exsiting.
Support Battery OEM/ODEM.
Support solution design including Inverter.
High Voltage Batteries
Can Design and produce 115V/268V/ 384V/460V/537V/576V/614V/740V for you to the special use.
Containerized ESS
Have exprience of developping 1MW/1.5MW/2MW.
Welcome to inquiry!
Company Profile
Shenzhen Yichen S-Power Tech Co., Ltd. founded in 2015, has become a comprehensive battery manufacturer with the combination of R&D, manufacturing, marketing and service. The founder has more than 12years experience with Lithium battery. We focus on design and development of High Voltage, Large Capacity Long cyclelife LiFePO4 battery, LTO Battery and system,offer global technical support,Yichen S-Power equipped with advanced production and testing facilities, to supply valuable and high quality products.Currently, we can support CANBUS/Bluetooth App/Rs485/Rs232/ solution, and developed battery self-heating and Self-cooling(Water cooling).Solve the High Temperatrue and Low Temperatrue environment battery problem.To have Longer Cycle life and More Power.These products are used on Solar, Home storage battery,UPS,AGV, RVcar, Telecom Base Station, Golf Trolley Cart,Fishing Boat, Car Start-Stop system battery.
The products passed TUV , UL , CE ,CSA ,CEC ,JET certifications. Have been exported to more than 50 different countries. OEM/ODEM service offered.
Shenzhen Yichen S-Power Tech Co.,Ltd. with great passion and faithfulness, are willing to provide you with perfect services and striding forward with you to create a bright future.
The products passed TUV , UL , CE ,CSA ,CEC ,JET certifications. Have been exported to more than 50 different countries. OEM/ODEM service offered.
Shenzhen Yichen S-Power Tech Co.,Ltd. with great passion and faithfulness, are willing to provide you with perfect services and striding forward with you to create a bright future.
Packing & Delivery
Packing
Our Normal Packing:
1)SLA replacement batteries and light weight batteries,are usually packed in single carton(per piece in 1 carton), protected by foam from top and button.
2)For heavy high voltage/high capacity batteries,are usualy packed with wooden frame for safe delivery.
OEM packing:
Since we're direct factory,we also support package customzition.While reach the OEM QTY,we can design and make according to your requirements.
Delivery
1) Sample order
Normally,the samples will be delivered by express(DHL,Fedex,TNT,UPS) or Air depending on different products. Large scale batteries will be probably delivered by ship.
2) Mass order
Air,Ship for selection,will deliver according to clients' decision.
3) We have got UN38.3,MSDS and other shipping port certificate.
FAQ
Q1: Can I have samples to test? And what is lead time for sample order?
Yes,we can supply samples in 5-7 days depending on different product items and clients' requirement.
For normal in stock product,2~5 days; For customized product,3~7days depends on requirements.
Q2: What is the warranty for the products?
1~10 years,Since our product range is wide,Minimum12v 40Ah, Max 2MW container energy storage system,Different products has different warranty,welcome to check before placing order.
Q3: What is your company's advantage?
We're direct factory,have very rich exprience in customizing kinds of high voltage,high capacity,high performance battery packs for 12v/24v/48v/80v RV caravans, Electric forklift, Golf cart, Marine, AGV, Lead acid batteries replacement, Solar home energry storage,384V/460V/614V Aircraft tractors,heavy truck, Mine train,110v/220v DC power supply, ESS cabinet,ESS container and so on, can offer you the best & professional technology support.
Q4: Do you accept OEM/ODM?
Yes,welcome!
Q5: What is the lead time for the mass order?
Generally speaking,about 7~20 days depending on different items after getting down payment and confirmation about the samples.
Q6: What is the payment terms?
Sample payment accept Paypal,Western union, Escrow;and Mass order by T/T.
Q7: What kind of certificate can offer?
CE,RoHS,UN38.3,MSDS,etc,If need IEC-62133,PSE and others, please consult with us.
