NBpower Электрический велосипед дисплей TFT UKC1 цветной для Ste alth
- Категория: Запчасти для электровелосипедов >>>
- Поставщик: Changzhou,Niubo,Power,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 71.65 $* | 75.22 $* |
| Aug-15-2025 | 71.97 $* | 75.39 $* |
| Jul-15-2025 | 59.84 $* | 62.31 $* |
| Jun-15-2025 | 70.1 $* | 74.15 $* |
| May-15-2025 | 61.14 $* | 64.26 $* |
| Apr-15-2025 | 68.16 $* | 71.0 $* |
| Mar-15-2025 | 68.87 $* | 71.20 $* |
| Feb-15-2025 | 67.13 $* | 70.98 $* |
| Jan-15-2025 | 67.57 $* | 70.70 $* |
Характеристики
Product Description

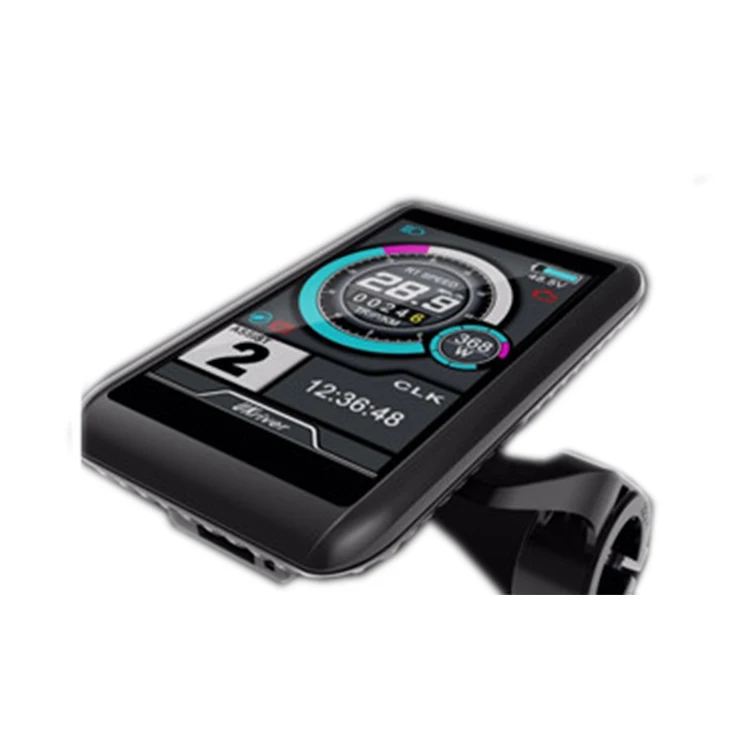

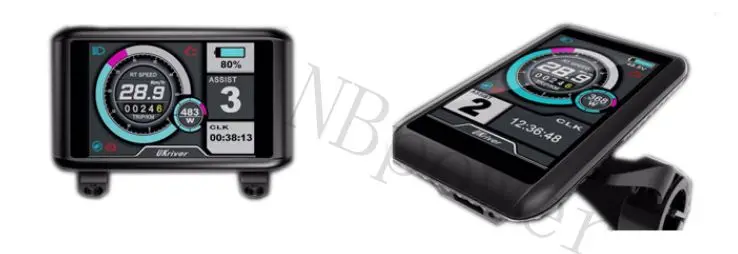

TFT UKC1 colorful Display
Screen Size | 3.5 inch IPS screen |
Voltage | 24V/36V/48V/52V/60V/72V battery supply |
Rated operating power | 1W |
Max operating power | 5W |
USB charging port | 5V 500mA |
Off leakage current | 1uA |
Support current to controller | 100mA |
Operating temperature | -20～70℃, Storage temperature : -30～80℃ |
Characteristic:
1. High-contrast 3.5inch IPS colorful matrix screen.
2. Suitable for low temperature，Max -20℃.
3. The rotatable screen can be freely switched horizontally and vertically.
4. Speed display : AVG SPEED, MAX SPEED, SPEED(Real-time).
5. Kilometer / Mile : Can be set according to customers’ habits.
6. Intelligent power indicator contains below : It can Provide a stable power indication through the optimization algorithm. The power is not affected by the start-stop fluctuation of the motor. If the system supports battery communication, the accurate percentage of power will be displayed.
7. Adjusting 5 levels backlight brightness：1st level is the darkest, 5th is the lightest
8. 9-level Assist : 3-level/5-level/6-level/9-level is optional.
9. Mileage indicator : Odometer/Trip distance/ Clock/ Riding time.
10. Power indicator：real time power indicator, digital or analog.
11. Error code indicator.
12. Speed limited can be setted
13. Bicycle self-checking function
14. Battery information display（battery communication is required）.
15. Endurance Mileage showing （battery communication is required）.
16. USB charging port，500mA/5V.
17.Software upgraded : Software can be upgraded through UART.
1. High-contrast 3.5inch IPS colorful matrix screen.
2. Suitable for low temperature，Max -20℃.
3. The rotatable screen can be freely switched horizontally and vertically.
4. Speed display : AVG SPEED, MAX SPEED, SPEED(Real-time).
5. Kilometer / Mile : Can be set according to customers’ habits.
6. Intelligent power indicator contains below : It can Provide a stable power indication through the optimization algorithm. The power is not affected by the start-stop fluctuation of the motor. If the system supports battery communication, the accurate percentage of power will be displayed.
7. Adjusting 5 levels backlight brightness：1st level is the darkest, 5th is the lightest
8. 9-level Assist : 3-level/5-level/6-level/9-level is optional.
9. Mileage indicator : Odometer/Trip distance/ Clock/ Riding time.
10. Power indicator：real time power indicator, digital or analog.
11. Error code indicator.
12. Speed limited can be setted
13. Bicycle self-checking function
14. Battery information display（battery communication is required）.
15. Endurance Mileage showing （battery communication is required）.
16. USB charging port，500mA/5V.
17.Software upgraded : Software can be upgraded through UART.

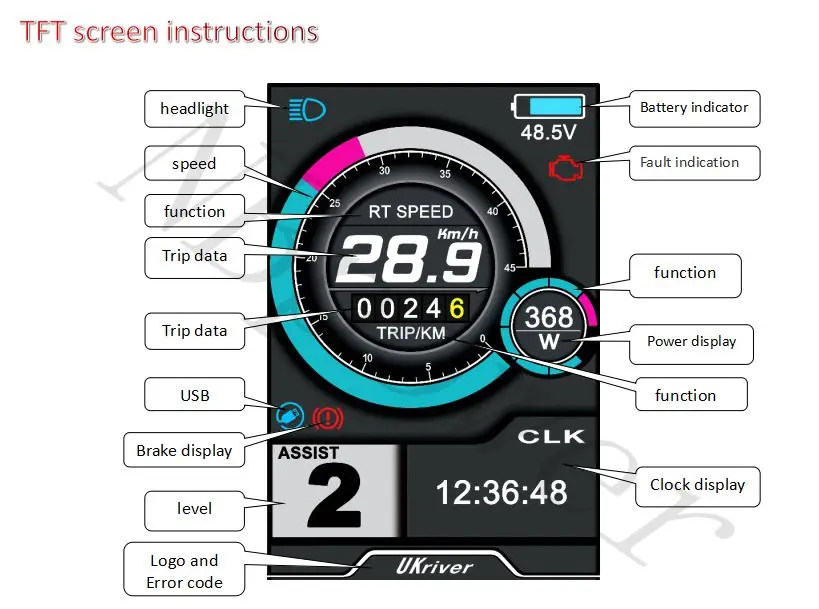

screen instructions

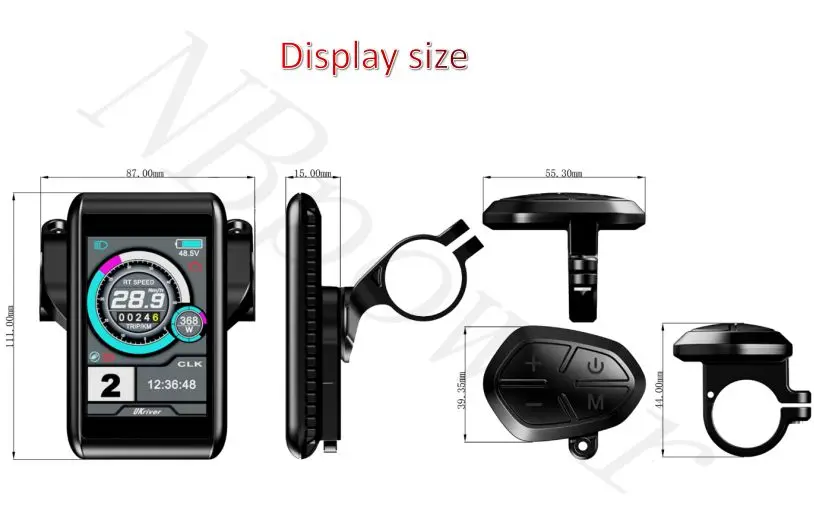

Drawing

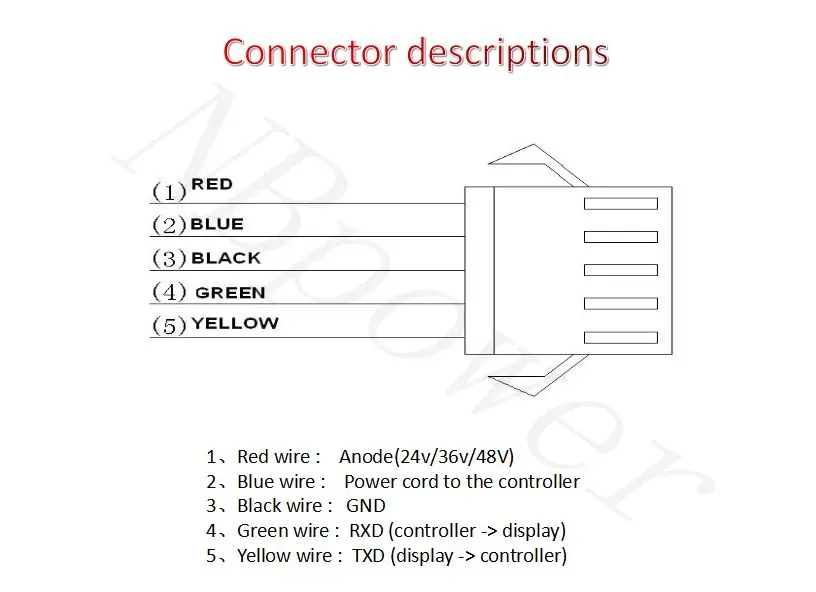

Connector Descriptions

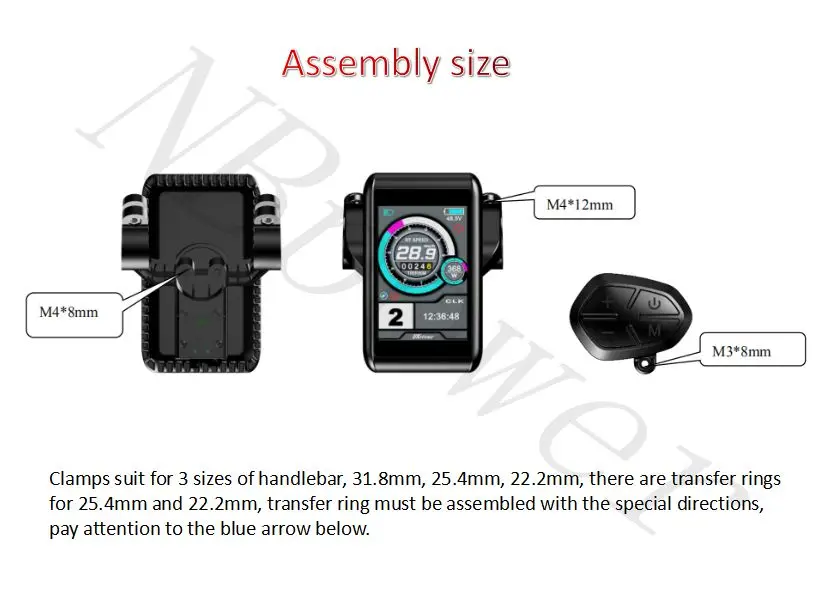

Pack & Installation
