CCTV 8 каналов 5 в 1 XVR 1080N цифровое видеозаписывающее устройство H.265 сети AHD DVR от напрямую с

CCTV 8 каналов 5 в 1 XVR 1080N цифровое видеозаписывающее устройство H.265 сети AHD DVR от напрямую с

Категория: Surveillance Products >>>
Поставщик: Shenzhen,Xuanshi,Security,Technology,Co.,Ltd.

Цена:22,00 $ - 25,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	26.57 $*	27.6 $*
Aug-16-2025	26.70 $*	27.25 $*
Jul-16-2025	22.77 $*	23.15 $*
Jun-16-2025	26.68 $*	27.23 $*
May-16-2025	22.35 $*	23.27 $*
Apr-16-2025	25.3 $*	26.48 $*
Mar-16-2025	25.36 $*	26.12 $*
Feb-16-2025	25.20 $*	26.46 $*
Jan-16-2025	24.17 $*	25.6 $*

Характеристики

Product Description

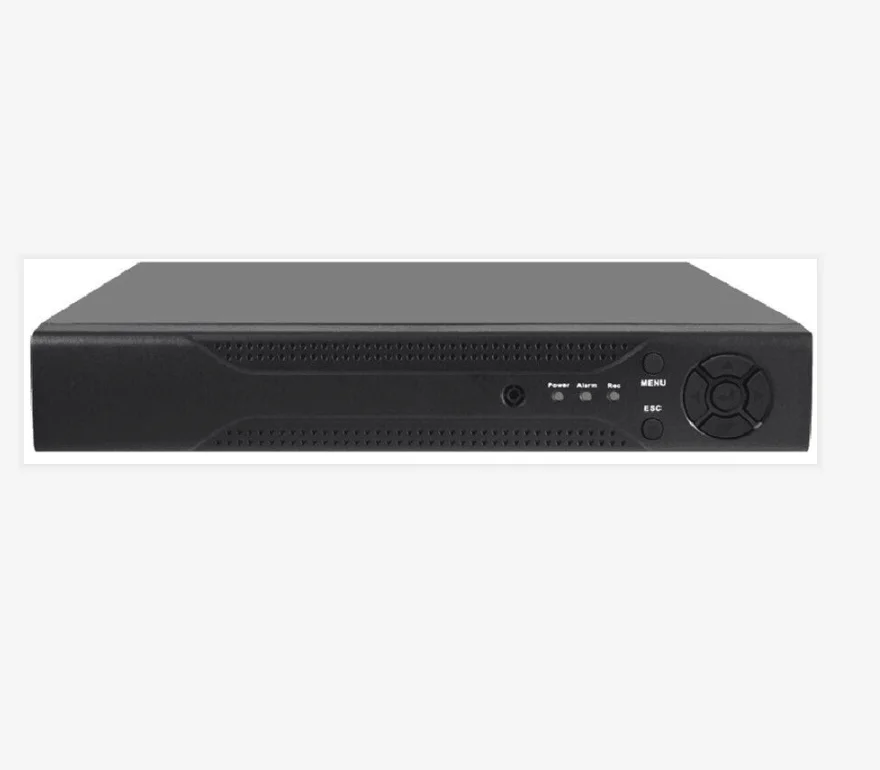

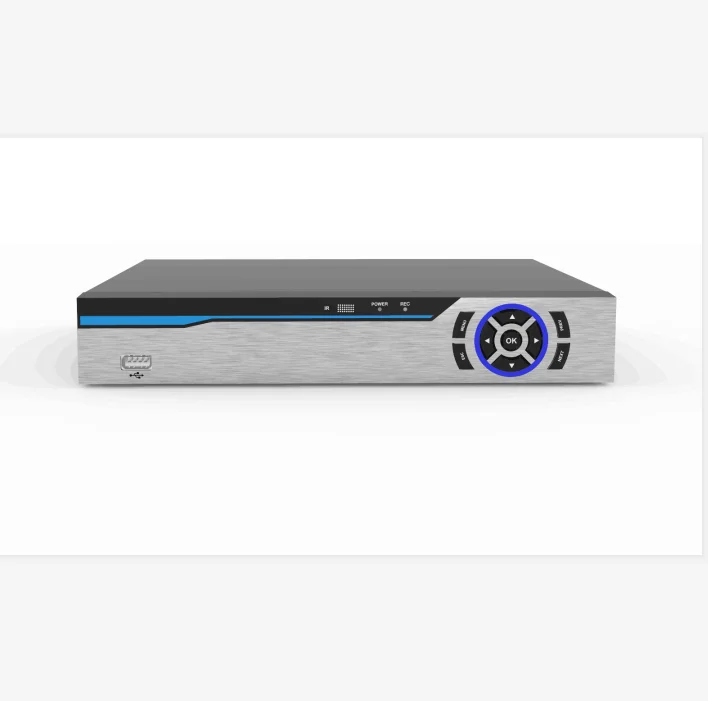

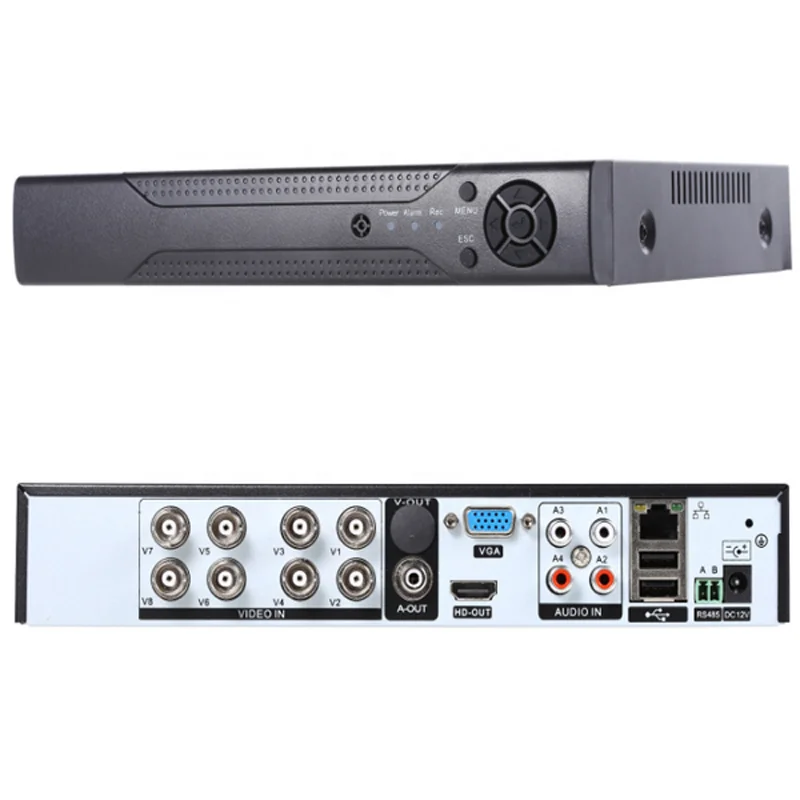

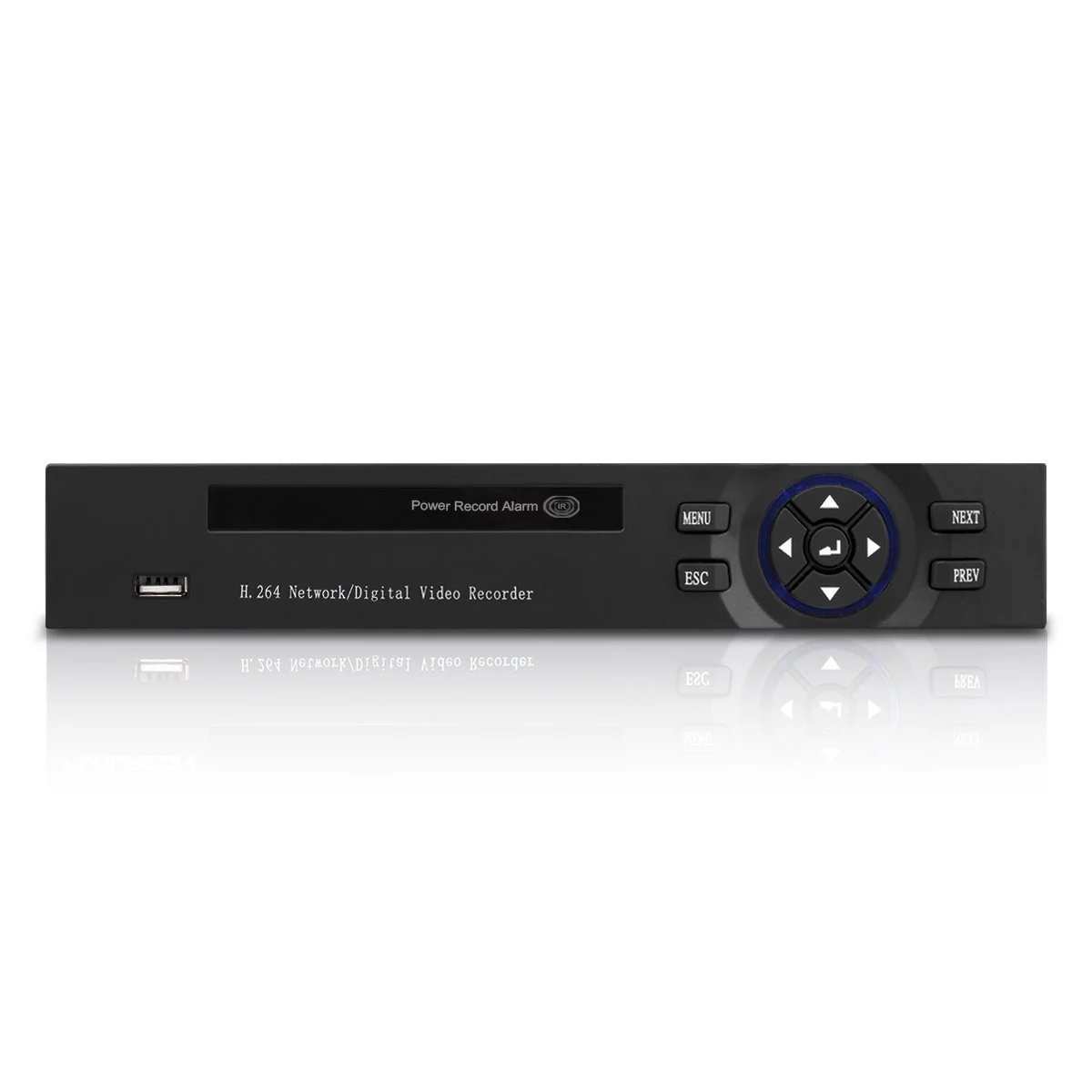

CCTV 8 Channel 5 in 1 XVR 1080N Digital Video Recorder H.265 Network AHD DVR from AHD DVR factory directly

Product Features:

1. TVI / AHD / CVI / IPC / Analog 5 in 1.
2. Transmission distance upto 500M by coaxial cable 75-5(or above)
3. Support P2P
4. Support mobile surveillance
5. Support UTC function:Control AHD/TVI Camera & PTZ Spped Dome camera via DVR by Coaxial Cable
6. Support Cloud Storage (Dropbox / Google Drive)
7. Advanced time bar playback function can make playback exact to a second
8. Digital zoom function in both preview & playback
9. Support Built-in free DDNS
10. Support mobile hard disk backup
12. Support Face Detection & Perimeter Detection (Optinal)

Model No.:	AD08N
System
Operation System	Embedded LINUX
Pentaplex function	Live monitoring, recording, playback, backup & remote access
Control Mode	Front panel, USB/Wireless mouse, IR remote, Network
Video
Input	Hybrid input(Mix freely): TVI / AHD / CVI (720/960 /1080P/3.0/4.0MP+ IP (720/960/1080P/3.0/4.0/ 5.0MP) + CVBS(960H)
Standard	PAL / NTSC
Frame Rate	Live Preview: PAL: 1~25fps; NTSC: 1~30fps
Output	1 CVBS, BNC
	1 , 3840x2160,1920×1080,1280×1024,1366×768,1280×720,1024×768 Resolution
	1 VGA, 3840x2160,1920×1080,1280×1024,1366×768,1280×720,1024×768 Resolution
UTC	Control AHD/TVI Camera & PTZ Spped Dome camera via DVR by Coaxial Cable
Audio
Input	1ch RCA (4ch RCA optional)
Input	4ch by RJ45(for IPC)
Output	1ch RCA &
Record & Playback
Video Compression	H.264
Audio Compression	G.711A
Image Encoding	Adjustable encoding quality, variable code stream/fixed code stream
Dual Stream	Support
Recording Mode	Manual, auto, motion detection, stop
Time bar	Support
Max Playback	IP : 1~2ch 720/1080P @ 25/30fps AHD / TVI / CVI : 1~4ch 1080P @ 12fps AHD / TVI / CVI :1~4ch 720P @ 25/30fps
Backup Mode	USB,HDD,Network Backup,Mobile Harddisk
Video Detection&Alarm
Trigger Events	Recording, PTZ, Tour,Email
Motion Detection	396 (22×18) detection zone, variable sensitivity levels
Capture	JPEG capture
Alarm In/Output	4ch in,1ch out (optional)
Face Detection	Support
Perimeter Detection	Support
Network
Ethernet	1 RJ-45 port (10M/100M)
P2P	Support
Cloud Storage	Support
DDNS	Support Built-in Free DDNS
3G Dongle	Support
Network protocol	TCP/IP, UDP, HTTP, RTP/RTSP
Network Functions	DHCP, PPPOE, DDNS,SMTP,SNTP,FTP,UPnP,P2P,3G
Remote Operation	Monitoring,PTZ control,playback,system setting,file download,log information
Smart Phone	iPhone,iPad,Android
Hard Disk
Hard Disk	1 SATA (Max: 8TB/HDD)
HDD Management	Hard disk hibernation technology, HDD faulty alarm&raid
Auxiliary Interface
USB Interface	2 USB 2.0 ports
RS485	PTZ control (Optinal)
Environment
Power Supply	DC 12V
Power Consumption	<9W (without HDD)
Working Environment	-10℃~+55℃ / 10%-90%RH
Dimension(WDH)	Machine: 280x225x45mm Color Box:380x270x80mm
Weight	1.7 Kg (without HDD)
Installation	Desk type

FAQ

Q1. Can I get samples?

A1. Sure. You can.You can contact us for the sample you want.We will delivery them if we have stock,if we don’t have stock,we can produce them for you.

Q2. Are you factory?

A2. Yes We have been doing OEM/ODM Service for more than 10 years,now we have our own oversea department,We can sell the cameras from our factory to oversea customers directly now.

Q3. How about warranty period? If any problem, can I get enough support?

A3. All the products you purchase from us have 2 YEAR WARRANTY. If the product is broken during this time, you can ship the item back to us for repair or we can send replaced spare parts to customers and tell customers how to change the broken spare parts

For all of the cameras produced from our own factory,we know how to repair them

Q4. what is the lead time?

A4. For sample order,we will delivery them in 1 week

For mass order,it will depends on the quantity of the order.Usually,we will try to finish the production in 1 month

Q5. Can I Print my logo on xvr or package

A5. Usually,we can offer customer logo printing service.if one camera housing reach 100pcs,we can silk printing logo or laser print logo on cameras body.
